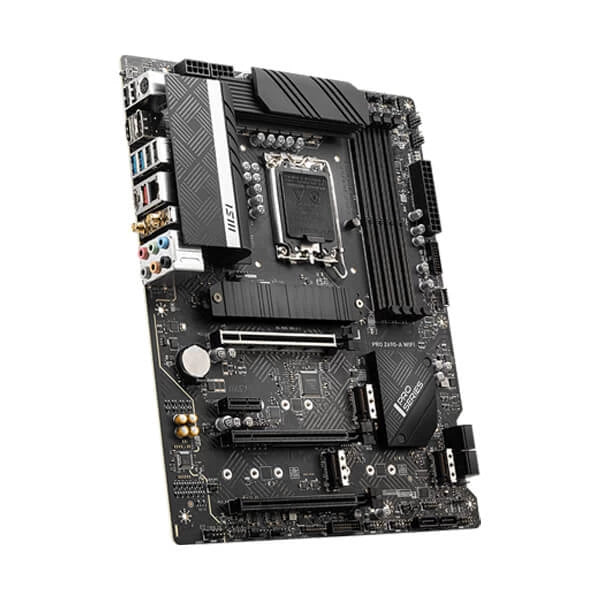

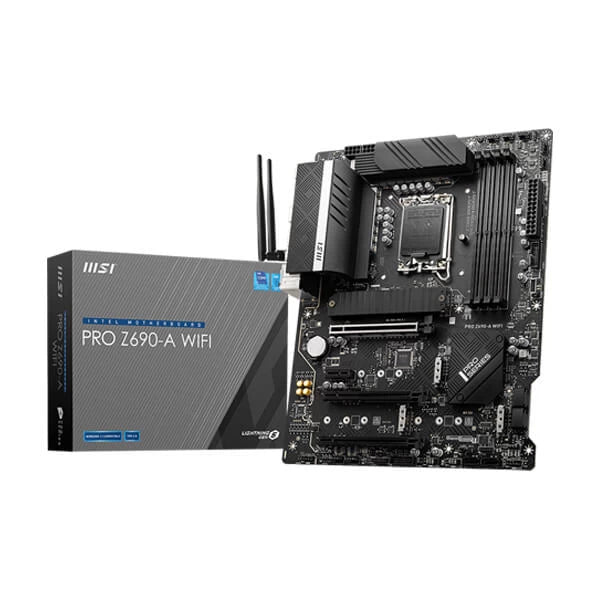

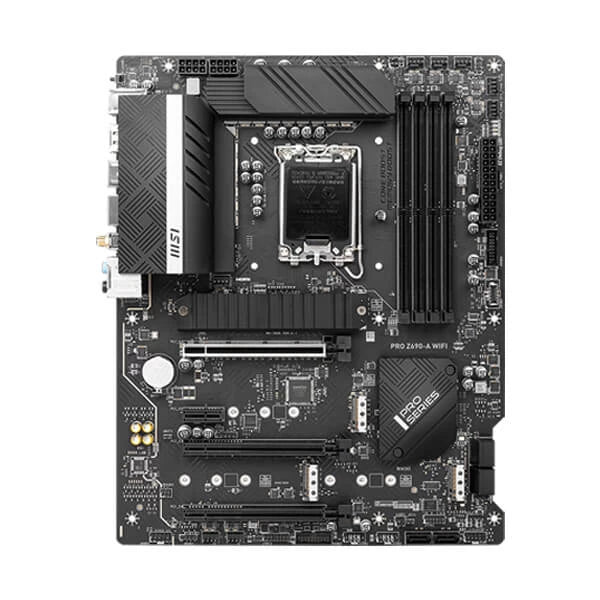

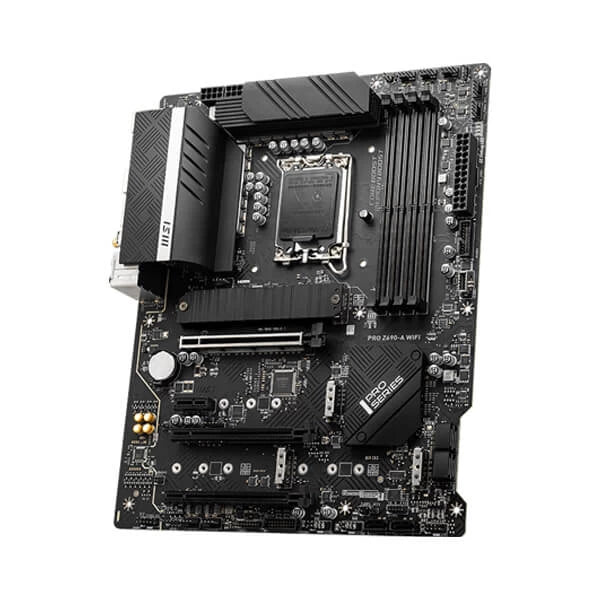

MSI Pro Z690-A Wifi DDR5 Intel Motherboard

MSI Pro Z690-A Wifi DDR5 Intel Motherboard

Name: MSI Pro Z690-A Wifi DDR5 Intel Motherboard
Brand: MSI
SKU: msi-pro-z690-a-wifi-ddr5
Price: 22142.12 INR
Availability: OutOfStock

Rs. 22,142.12 Rs. 31,999.00

Discount: Rs. 9,856.88 (31%)

11 people are viewing this right now

Hurry Up! Only 0 Left in Stock!

Out of stock >

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Dec 26 - Dec 30

Return within 30 days of purchase. Taxes are non-refundable.

Availability: In Stock Unavailable

Description
Additional Information
Shipping & Return
Reviews

Feature of MSI Pro Z690-A Wifi DDR5 Intel Motherboard

Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR5 Memory, up to 6400+(OC) MHz
Lightning Fast Experience: PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2x2
Premium Thermal Solution: Extended Heatsink Design, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop works
2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
Audio Boost: Reward your ears with studio grade sound quality
High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
Multi-GPU: With Steel armor PCI-E slots. Supports AMD Crossfire™

LIGHTNING GEN 5 PCI-E

MSI Pro Z690-A Wifi DDR5 Lightning Gen 5 PCI-E represents the bandwidth of a x16 interface to 128GB/s, which is double of the speed of the previous generation. The advanced SMT(Surface Mount Technology) PCI-E slot diminishes the interference and electrical noise, fully supporting higher bandwidth and faster transfer speeds of PCI-E 5.0 signal.

LATEST DDR5 MEMORY

A huge step of DDR performance enhancement with the latest DDR5 memory. Combined with dedicated SMT welding process and MSI Memory Boost technology, PRO Z690-A WIFI is ready to deliver the world class memory performance.

UNMATCHED MEMORY PERFORMANCE

MSI motherboards are crammed with features to fuel your system’s memory with more speed, higher overclockability and increased stability. Optimized traces and a fully isolated memory circuitry ensures perfect stability and performance, so you never have to worry about your system crashing.

CORE BOOST

Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, but creating the perfect conditions for your CPU overclocking.

6-LAYER SERVER GRADE PCB WITH 2OZ THICKENED COPPER

An enhanced PCB design with 2oz thickened copper and multilayer server grade solution increases conductivity, improving heat dissipation and performance reliability especially during overclocking.

EXTENDED HEATSINK

Metal extended heatsink enlarge the surface of heat dissipation, ensures even high-end processors to run in full speed.

USB TYPE-C READY IN BOTH FRONT CASE PANEL & REAR IO

Get all the performance benefits from the USB Type-C connector. This reversible USB connector allows for effortless connecting of USB devices.

LIGHTNING GEN 4 M.2 WITH M.2 SHIELD FROZR

Cooling your NVMe SSD delays throttling which results in higher overall performance. Part of the motherboards heatsink design which helps avoid SSD throttling by offering the best thermal protection.

FASTER LIGHTNING USB 20G

The transmission speed of the latest USB 3.2 Gen 2×2 reaches up to 20Gbps, which is four times faster than USB 3.2 Gen 1 solution. PRO Z690-A WIFI offers stable high speed transmission by reversible Type-C as well as read and write your files over USB faster than ever.

WI-FI 6E & BLUETOOTH

Use your LAN port for online gaming while using Wi-Fi for other online applications. The Wi-Fi 6E adopts latest OFDMA, two-way MU-MIMO technologies and 6GHz band, delivering wireless transmission speeds up to 2.4Gbps.

14 + 1 + 1 DUET RAIL POWER SYSTEM

Unleash and sustain maximum performance with an aggressive VRM design with concurrent stable power delivery. Combining 2x 8 pin power connectors and exclusive Core Boost technology, PRO Z690-A WIFI motherboard is ready to sustain heavy daily work.

MAXIMIUM DATA TRANSFER WITH 2.5G LAN

PRO Z690-A WIFI features high-bandwidth and low-latency dual Ethernet networks for demanding creators and power users. Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency.

EASY TO ARRANGE YOUR CABLES

Not clever at cable arrangement? MSI Atypical PCB design not only the identity of stylish but also makes SATA and USB cable routing easier. Arranges cable neatly even you are not familiar with system build.

MULTIPLE GPU SUPPORTS AND STEEL ARMOR

PRO Z690-A WIFI supports multiple GPU solution. Optimal PCI-Express slot placement allows for better fitting and airflow. That way, you can enjoy the best graphics at the highest framerate jumping from your screen when running an AMD CrossFire setup. Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free user experience.

Specifications of MSI Pro Z690-A Wifi DDR5 Intel Motherboard

Processor	Supports 12th Gen Intel® Core™ , Pentium® Gold and Celeron® Processors1 Processor socket LGA1700
Chipset	Intel® Z690 Chipset
Memory	4x DDR5 memory slots, supporting up to 128GB 1 Supports 1R 4800 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 6400+ MHz 1DPC 2R Max speed up to 5400+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Intel® XMP 3.0 OC Supports Dual Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Onboard Graphics	1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
Expansion Slots	3x PCIe x16 slots PCI_E1 (from CPU) Supports up to PCIe 5.0 x16 PCI_E3 & PCI_E4 (from Z690 chipset) Supports up to PCIe 3.0 x4 & 3.0 x1 1x PCIe 3.0 x1 slot (from Z690 chipset)
Multi-GPU Support	Supports AMD® CrossFire™ Technology
Storage	6x SATA 6Gb/s ports (from Z690 chipset) 4x M.2 slots (Key M) M2_1 slot (from CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from Z690 chipset) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_3 slot (from Z690 chipset) Supports PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_4 slot (from Z690 chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready for M.2 slots that are from Z690 Chipset Support Intel® Smart Response Technology for Intel Core™ processors
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
USB	Intel® Z690 Chipset 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel) 6x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 4 ports are available through the internal USB connectors) 4x USB 2.0 Type-A ports on the back panel USB Hub GL850G 4x USB 2.0 ports are available through the internal USB connectors
LAN	1x Intel® I225-V 2.5Gbps LAN controller
Audio	Realtek®ALC897 Codec 7.1-Channel High Definition Audio
WIRELESS LAN & BLUETOOTH®	Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1(160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.22, FIPS, FISMA
Internal Connectors	1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 4x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x Tuning controller connector 1x TBT connector (Supports RTD3)
LED Feature	1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED

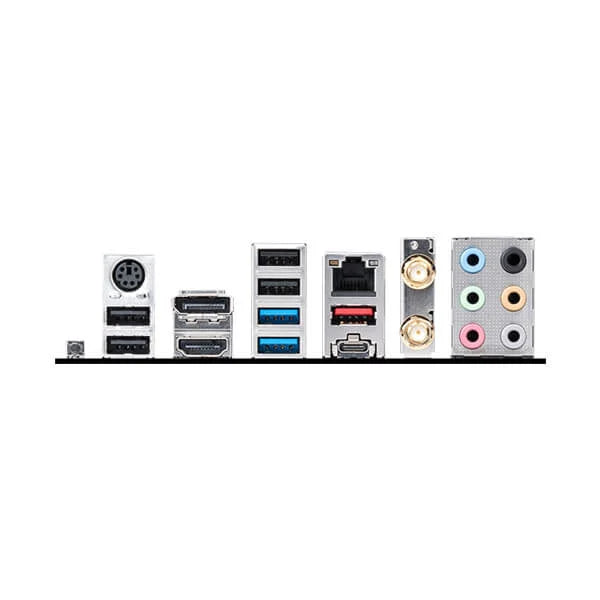

Back Panel Ports	Keyboard / Mouse DisplayPort USB 2.0 LAN port WIFI / Bluetooth Audio connector Flash BIOS Button USB 2.0 HDMI USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2x2 20Gbps Type-C USB 3.2 Gen 2 10Gbps Type-A
Operating System	Support for Windows® 11 64-bit, Windows® 10 64-bit
Mounting	9 mounting holes
Dimensions	ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Warranty	3 Years
Note*	Price, feature and specifications are subject to change without notice.
