Description

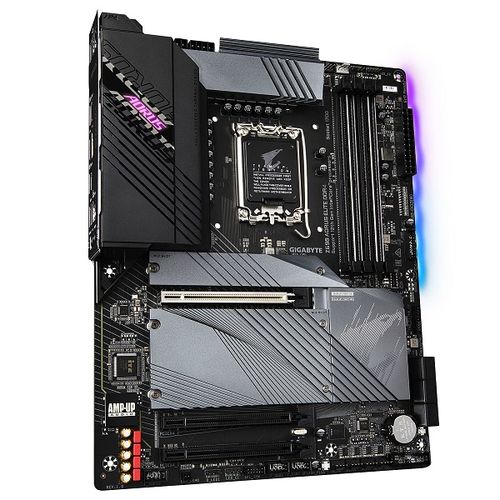

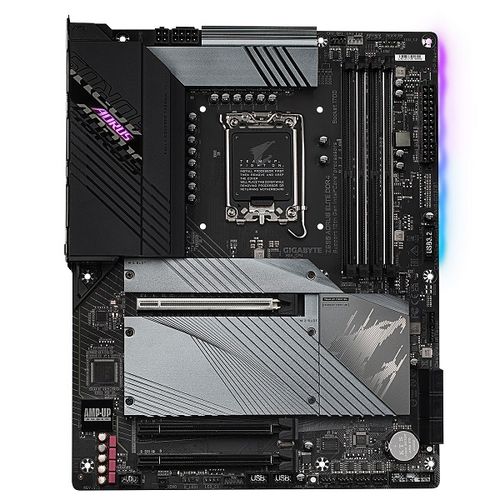

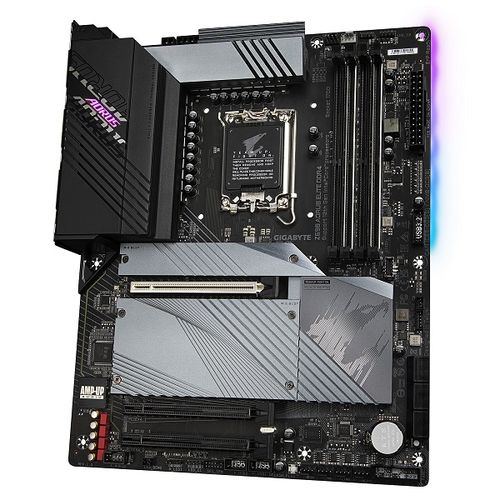

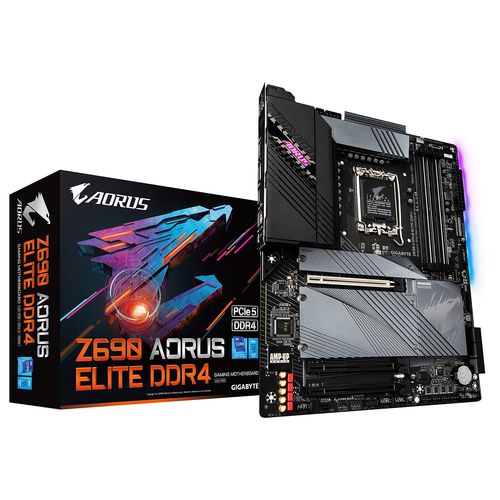

Feature of Gigabyte Z690 Aorus Elite DDR4
UNPARALLELED PERFORMANCE
With technology moving so fast, GIGABYTE still keep up with the latest trends and provide our customers with advanced features and latest technology. GIGABYTE Z690 AORUS ELITE DDR4 Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming.
ADVANCED THERMAL SOLUTION
GIGABYTE Z690 AORUS ELITE DDR4 Series Motherboards’ Un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming
NEXT GENERATION CONNECTIVITY
GIGABYTE Z690 AORUS ELITE DDR4 Series Motherboards let you experience ultimate connection flexibility and blazing data-transfer speed with next generation network and storage connectivity
DEFINITIVE AESTHETICS
GIGABYTE Z690 motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
ULTRA DURABLE
GIGABYTE Ultra Durable™ features its product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.
- Supports 12th Gen Intel® Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Direct 16+1+2 Digital VRM Design with 70A Power Stage* and Tantalum Polymer Capacitor
- Shielded Memory Routing to Avoid Interference
- Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
- AMP-UP Audio with ALC1220 and WIMA Audio Capacitors
- Fast 2.5GbE LAN with Bandwidth Management
- 4x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Enlarged Thermal Guards
- SuperSpeed USB 3.2 Gen2x2 TYPE-C® delivers up to 20Gb/s transfer speeds
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Specifications of Gigabyte Z690 Aorus Elite DDR4
| MOTHERBOARD CHIPSET | INTEL Z690 |
| MOTHERBOARD FORM FACTOR | ATX |
| MOTHERBOARD SOCKET | LGA 1700 |
| Model | |
| Brand | GIGABYTE |
| Series | AORUS |
| Model | Z690 AORUS ELITE DDR4 |
| Supported CPU | |
|
CPU Socket Type
|
LGA 1700 |
| * Dedicated LGA1700 mounting bracket is required. | |
| CPU Type | Supports 12th Gen Intel Core / Pentium / Celeron Processors |
| Chipsets | |
| Chipset | Intel Z690 |
| Onboard Video | |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
| Memory | |
| Number of Memory Slots | 4×288pin |
| Memory Standard | DDR4 5333(OC) / 5133(OC) / 5000(OC) / 4933(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC)/ 4300(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3666(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| Expansion Slots | |
|
PCI Express 5.0 x16
|
1 x PCI Express 5.0 x16 |
| * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| PCI Express 3.0 x16 | 2 x PCI Express 3.0 x16, running at x4 (PCIEX4_1, PCIEX4_2) |
| Storage Devices | |
| SATA 6Gb/s | 6 x SATA 6Gb/s |
|
M.2
|
CPU: |
| 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) | |
| Chipset: | |
| 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) | |
| 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2Q_SB/M2P_SB) | |
|
Intel Optane Ready
|
Yes |
| * System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset. | |
| SATA RAID | 0/1/5/10 |
| Onboard Audio | |
|
Audio Chipset
|
Realtek ALC1220-VB CODEC |
| * The back panel line out jack supports DSD audio. | |
|
Audio Channels
|
2-channel analog output |
| 7.1-channel digital signals | |
| * Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required. | |
| Onboard LAN | |
| LAN Chipset | Realtek 2.5GbE LAN chip |
| Max LAN Speed | 10/100/1000/2500Mbps |
|
|
|
| Rear Panel Ports | |
|

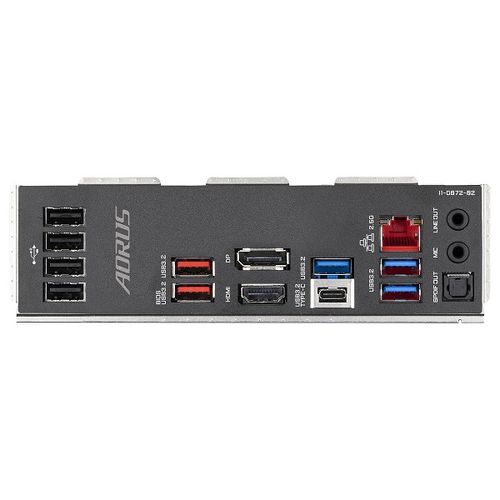

Back I/O Ports
|
1 x USB Type-C port, with USB 3.2 Gen 2×2 support |
| 2 x USB 3.2 Gen 2 Type-A ports (red) | |
| 3 x USB 3.2 Gen 1 ports | |
| 4 x USB 2.0/1.1 ports | |
| 1 x HDMI port | |
| 1 x DisplayPort | |
| 1 x RJ 45 port | |
| 1 x optical S/PDIF Out connector | |
| 2 x audio jacks | |
| Internal I/O Connectors | |
|
Onboard USB
|
1 x USB Type-C header, with USB 3.2 Gen 2 support |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
|
Other Connectors
|
1 x CPU fan header |
| 1 x water cooling CPU fan header | |
| 3 x system fan headers | |
| 1 x system fan/water cooling pump header | |
| 2 x addressable LED strip headers | |
| 2 x RGB LED strip headers | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 2 x Thunderbolt add-in card connectors | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 1 x reset button | |
| 1 x Q-Flash Plus button | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |
| * All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W. | |
| Physical Spec | |
| Form Factor | ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0″ x 9.6″ |
|
Power Pin
|
1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x 4-pin ATX 12V power connector | |
| Windows Compatibility | |
| Windows 11 | Ready |
