Description
Feature of ASUS Prime Z690-P Wifi DDR5 Intel Motherboard
- Ready for 12th Gen Intel Core processors
- 14+1 DrMOS, 8+4 pin ProCool connector, alloy chokes and durable capacitors for stable power delivery
- Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4
- DDR5, PCIe 5.0, Intel WiFi 6, 2.5 Gb Ethernet, USB 3.2 Gen 2×2 Type-C, front panel USB 3.2 Gen 1 Type-C, Thunderbolt 4 header support
- Warranty – 3 Year
PRIME Z690-P WIFI

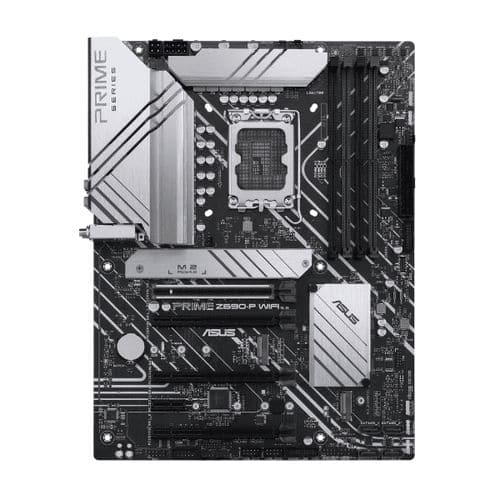

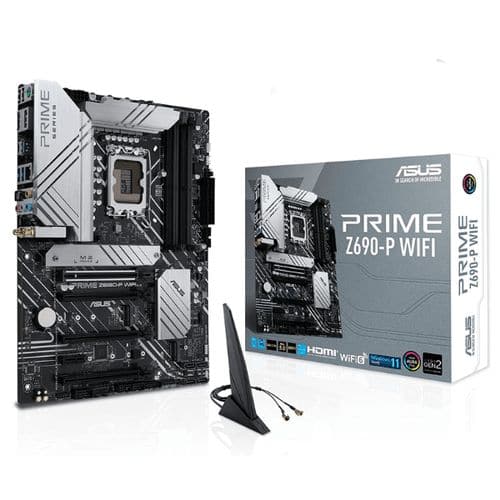

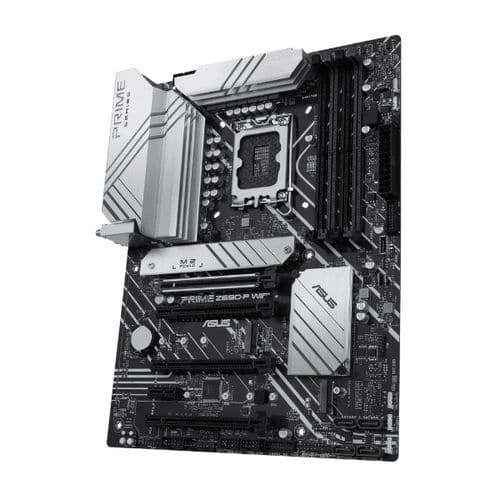

Intel Z690 (LGA 1700) ATX motherboard with PCle 5.0, DDR5, three M.2 slots, 14+1 DrMOS, HDMI, DisplayPort, Intel WiFi 6, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type C, front USB 3.2 Gen 1 Type C, Thunderbolt 4 support and Aura Sync RGB lighting.
VRM Heatsinks and Thermal Pads
Two massive VRM heatsinks and high qualitythermal pads improve heat transfer from the MOSFETS and chokes for better cooling performance
M.2 Heatsink
Two M.2 heatsinks take care of the three M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers.
Intel WiFi 6
The Intel WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.
14+1 DrMOS
A VRM with 14+1 DrMOS delivers the power and efficiency that the latest Intel processors demand.
DDR5 Performance Enhancement
ASUS Prime Z690-P Wifi DDR5 enhances DDR5 performance by providing overclocking options
for not only high-speed kits, but even entry-level memory modules that have a locked power management IC (PMIC).
• A dedicated circuit on the motherboard safely circumvents DDR5 memory PMIC restrictions, allowing you to step past the default 1.1-volt limit and push frequency and timings to the max.
• Ordinarily, a restricted PMIC that has been unlocked requires the system to be fully
power-cycled each time memory voltage is adjusted. Prime Z690-P WIFI leverages
on board hardware and firmware to clevery
Specifications of ASUS Prime Z690-P Wifi DDR5 Intel Motherboard
| CPU(max support) | I9 |
| Socket | 1700 |
| Chipset | Z690 |
| Memory | 4 x DIMM, Max. 128GB, DDR5 ECC, Un-buffered Memory |
| Memory Channel | Dual |
| Graphics |
1 x Display Port 1 x HDMI |
| Expansion Slot |
Intel® 12th Gen Processors* 1 x PCIe 5.0/4.0/3.0 x16 slot |
| Storage |
4 x SATA 6Gb/s ports 3 x M.2 slots (Key M) |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Wireless & Bluetoooth |
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 |
| USB |
Rear USB (Total 6 ports) Front USB (Total 9 ports) |
| Audio | ALC887/897 Realtek 7.1 |
| Internal I/O Connectors |
1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories |

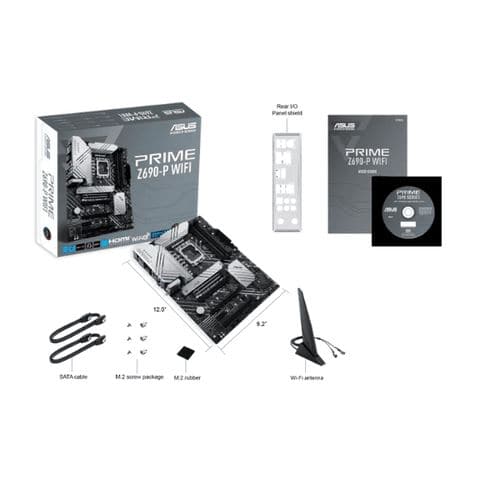

2 x SATA 6Gb/s cables 1 x ASUS Wi-Fi moving antenna 1 x I/O Shield 1 x M.2 Rubber Package 2 x M.2 SSD screw packages 1 x Support DVD 1 x User guide |
| Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor | ATX 30.5cm x 23.4cm |
| Warranty | 3 Year |
