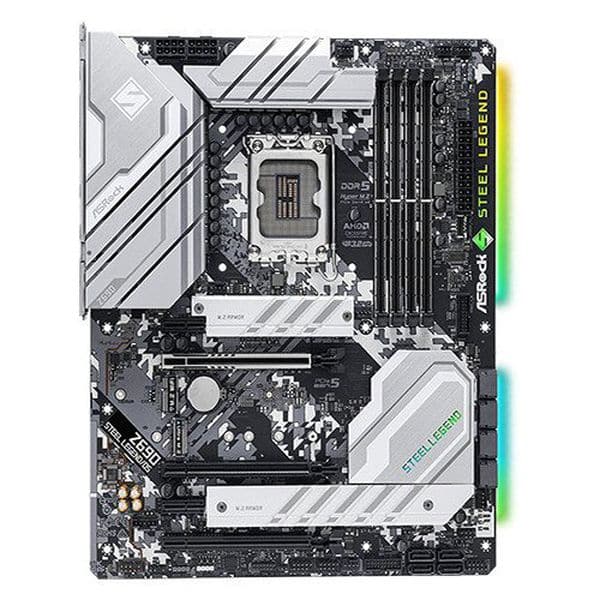

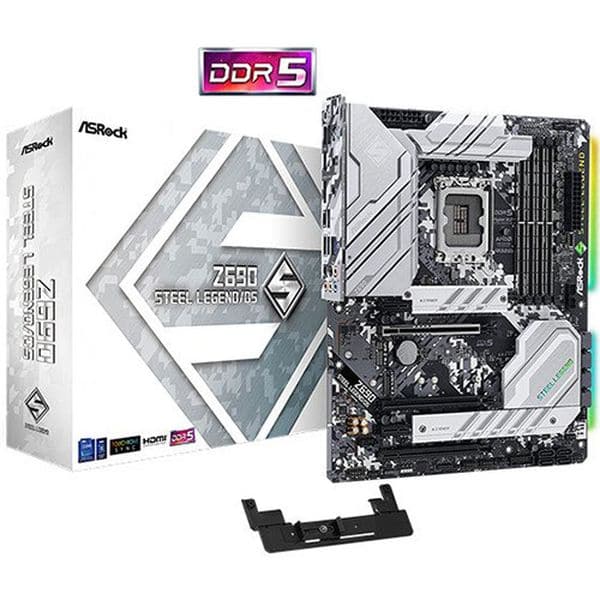

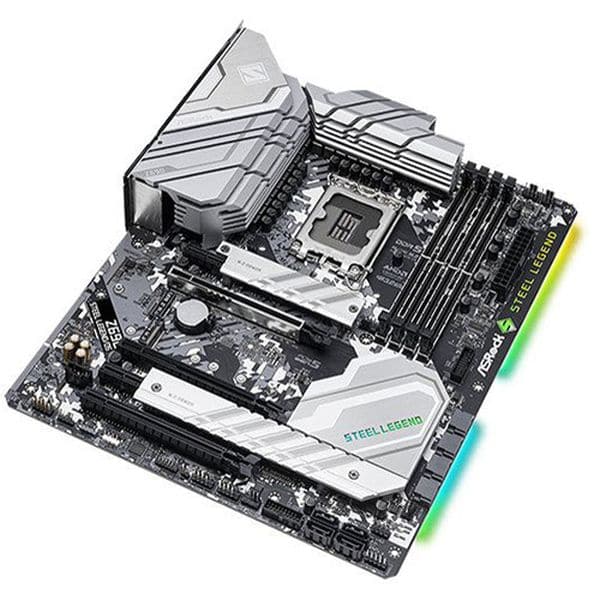

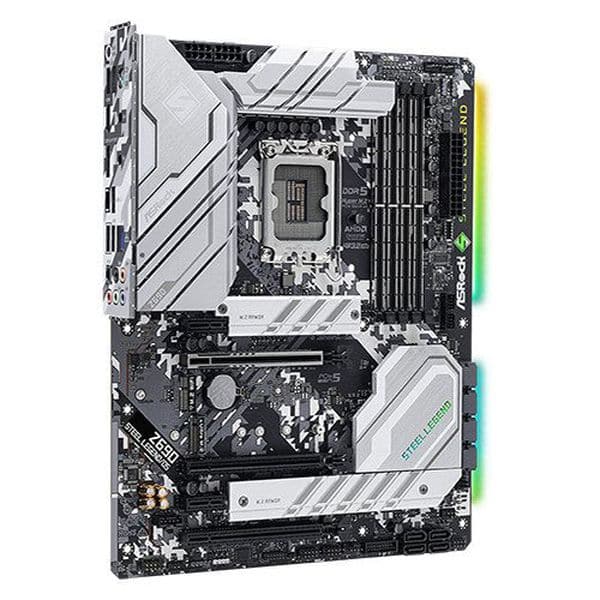

ASROCK Z690 Steel Legend DDR5 Intel Motherboard

Feature of ASROCK Z690 Steel Legend DDR5 Intel Motherboard

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

DDR5 Memory with Protection Circuit

The reinforced DIMM slot is surfaced mounted onto the motherboard to give better physical strength as well as a more stable memory signal, with this superior revolutionary design, it is able to dramatically overclock DRAM module up to insane frequency.

PCIe 5.0 + Surface-Mount Tech

Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.

Nahimic Audio

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

ASRock Graphics Card Holder

Install your heavy graphics card on the holder; connect it to your motherboard and chassis with screws. Flexibly slide up and down to perfectly adjust the height required for your graphics card in place.

POLYCHROME RGB

In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

High Speed M.2 Solution

This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Dragon 2.5 Gb/s LAN

The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Front USB 3.2 Gen2x2 Type-C

The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

Dual USB 3.2 Gen2 (Type-A + Type-C)

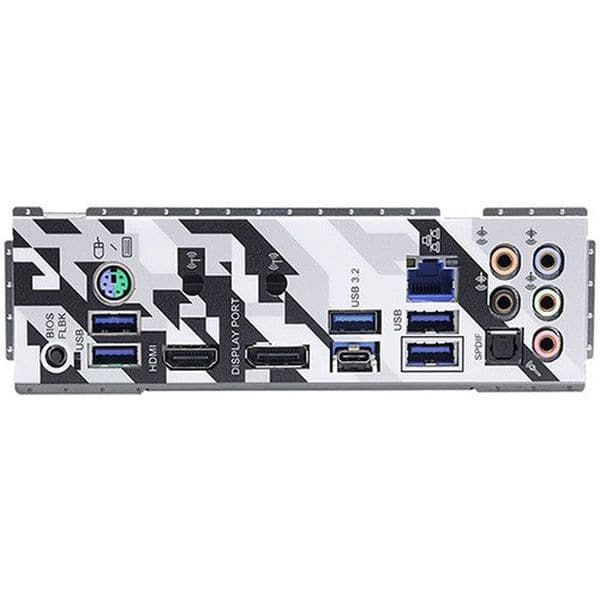

This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

Specifications of ASROCK Z690 Steel Legend DDR5 Intel Motherboard
