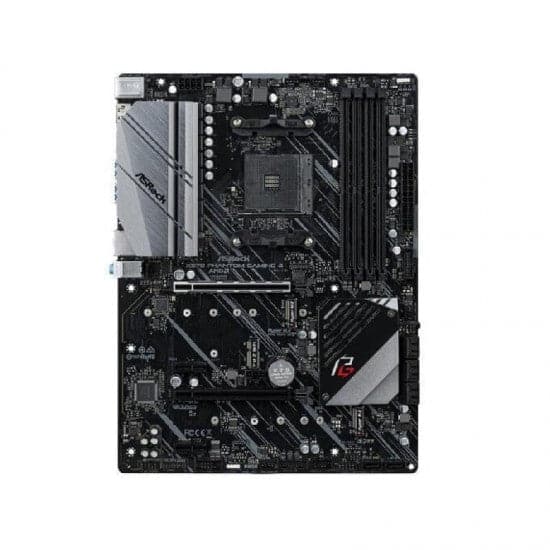

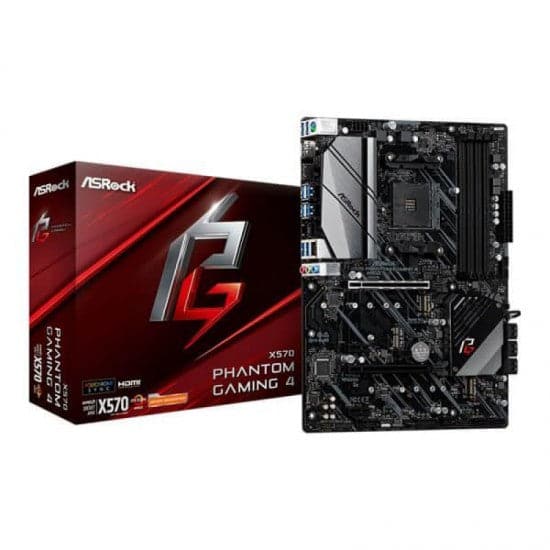

ASROCK X570 Phantom Gaming 4 DDR4 AMD Motherboard

ASROCK X570 Phantom Gaming 4 DDR4 AMD Motherboard

Name: ASROCK X570 Phantom Gaming 4 DDR4 AMD Motherboard
Brand: ASROCK
SKU: Asrock-x570-PG-4
Price: 13744.5 INR
Availability: OutOfStock

Rs. 13,744.50 Rs. 18,000.00

Discount: Rs. 4,255.50 (24%)

17 people are viewing this right now

Hurry Up! Only 0 Left in Stock!

Out of stock >

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Dec 26 - Dec 30

Return within 30 days of purchase. Taxes are non-refundable.

Availability: In Stock Unavailable

Description
Additional Information
Shipping & Return
Reviews

Feature of ASRock X570 Phantom Gaming 4

Not only visual satisfaction is necessary but also audio! Get the best hypnotic sounds with 7.1 CH HD Audio to feel like a pro! ASRock X570 PHANTOM GAMING 4 is very reliable as it has gone through over 7000+ validation hours of industrial-level tests. ASRock X570 PHANTOM GAMING 4 supports Creative Sound Blaster Cinema 5, Quad SLI, AMD 4-Way CrossFireX. ASRock X570 PHANTOM GAMING 4 comes with Intel 2.5G LAN. For secure out-of-band and remote management provided by DMTF’s client management standard. ASRock X570 PHANTOM GAMING 4 also features ASRock Polychrome SYNC.

Supports AMD AM4 Socket Ryzen™ 2000 and 3000 Series processors
10 Power Phase Design
Supports DDR4 4066+ (OC)
2 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2(Key E) For WiFi
AMD Quad CrossFireX™ and CrossFireX™
Graphics Output Options: HDMI, DisplayPort
7.1 CH HD Audio (Realtek ALC1200 Audio Codec), ELNA Audio Caps
8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 Hyper M.2 (PCIe Gen4 x4)
2 USB 3.2 Gen2 (Rear Type-A), 10 USB 3.2 Gen1 (4 Front, 6 Rear)
Intel® Gigabit LAN
ASRock Polychrome SYNC

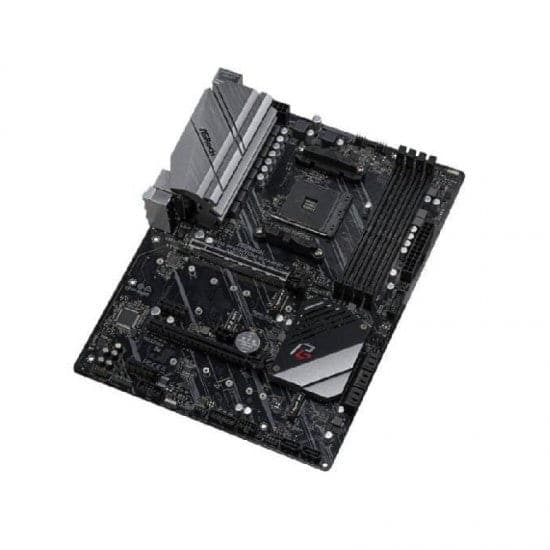

ASRock X570 Phantom Gaming 4 Motherboard

ASROCK M.2 interface which increases data transfer speeds up to 32Gb/s. The next-generation PCI Express 4.0 is capable of performing twice the speed compared to the previous 3rd generation. Asrock X570 Phantom Gaming 4 Motherboard has a High-Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts. ASRock X570 Phantom has next-generation PCI Express 4.0 M.2 SSDs which is capable of performing twice the speed compared to the previous 3rd generation. Asrock has Post Status Checker software which is a fast and easy way to identify the source of the problem. ASRock Full Spike Protection provides various technologies to prevent your motherboard’s components from being damaged from unexpected voltage spikes. X570 Phantom Gaming 4 Motherboard has ASRock Live Update & APP Shop software already installed for your convenience. Here you can get various apps and support software for users to download.

Specifications of ASRock X570 Phantom Gaming 4

Gaming Armor	Memory
	15μ Gold Contact in DIMM Slots
	VGA Card
	15μ Gold Contact in VGA PCIe Slot (PCIE1)
	Internet
	Intel® LAN
	Cooling
	XXL Aluminum Alloy Heatsink

Unique Feature	ASRock USB 3.2 Gen2
	ASRock USB 3.2 Gen2 Type-A Ports (10 Gb/s)
	ASRock Super Alloy
	XXL Aluminum Alloy Heatsink
	Premium 50A Power Choke
	Sapphire Black PCB
	High Density Glass Fabric PCB
	2oz Copper PCB
	ASRock Steel Slot Gen4
	ASRock Hyper M.2 (PCIe Gen4x4 & SATA3)
	ASRock POST Status Checker (PSC)
	ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
	ASRock Live Update & APP Shop

CPU	Supports AMD AM4 socket Ryzen™ 2000 and 3000 series processors
	Digi Power design
	10 Power Phase design

Chipset	AMD X570

Memory	Dual Channel DDR4 Memory Technology
	4 x DDR4 DIMM Slots
	AMD Ryzen series CPUs (Matisse) support DDR4 4066+(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*
	AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*
	AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory*
	Max. capacity of system memory: 128GB**
	15μ Gold Contact in DIMM Slots

	*For Ryzen Series CPUs (Picasso), ECC is only supported with PRO CPUs.
	Please refer to below table for AMD non-XMP memory frequency support.

	Ryzen Series CPUs (Matisse):


	Ryzen Series CPUs (Pinnacle Ridge):


	Ryzen Series CPUs (Picasso):


	SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label x=1 or 2
	DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label

	**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS	256Mb AMI UEFI Legal BIOS with GUI support
	Supports “Plug and Play”
	ACPI 5.1 compliance wake up events
	Supports jumperfree
	SMBIOS 2.3 support
	CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP, VDDG, CPU Load-Line Calibration, CPU VDDCR_SOC Load-Line Calibration Voltage Multi-adjustment

Graphics	Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
	DirectX 12, Pixel Shader 5.0
	Shared memory default 2GB. Max Shared memory supports up to 16GB.**
	Dual graphics output: support HDMI and DisplayPort 1.2 ports by independent display controllers
	Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
	Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
	Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI monitor is required)
	Supports HDR (High Dynamic Range) with HDMI 2.0
	Supports HDCP 2.2 with HDMI 2.0 and DisplayPort 1.2 Ports
	Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.2 Ports
	Supports Microsoft® PlayReady

	*Actual support may vary by CPU

	**The Max shared memory 16GB requires 32GB system memory installed.

Audio	7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
	Premium Blu-ray Audio support
	Supports Surge Protection
	ELNA Audio Caps
	PCB Isolate Shielding
	Individual PCB Layers for R/L Audio Channel

LAN	Gigabit LAN 10/100/1000 Mb/s
	Giga PHY Intel® I211AT
	Supports Wake-On-LAN
	Supports Lightning/ESD Protection
	Supports Energy Efficient Ethernet 802.3az
	Supports PXE

Slots	AMD Ryzen series CPUs (Matisse)
	2 x PCI Express 4.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))*
	AMD Ryzen series CPUs (Pinnacle Ridge)
	2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))*
	AMD Ryzen series CPUs (Picasso)
	2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x8 (PCIE1); dual at x8 (PCIE1) / x4 (PCIE3))*

	2 x PCI Express 4.0 x1 Slots
	Supports AMD Quad CrossFireX™ and CrossFireX™
	1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
	15μ Gold Contact in VGA PCIe Slot (PCIE1)

	*Supports NVMe SSD as boot disks

Storage	8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
	1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso)*
	1 x Hyper M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso)*

	*Supports NVMe SSD as boot disks
	Supports ASRock U.2 Kit

Connector	1 x COM Port Header
	1 x SPI TPM Header
	1 x Power LED and Speaker Header
	2 x RGB LED Headers*
	1 x Addressable LED Header**
	1 x CPU Fan Connector (4-pin)***
	1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
	3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
	1 x 24 pin ATX Power Connector
	1 x 8 pin 12V Power Connector
	1 x Front Panel Audio Connector
	1 x AMD LED Fan USB Header
	1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC Card R2.0 only)
	1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
	2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)

	*Support in total up to 12V/3A, 36W LED Strip

	**Supports in total up to 5V/3A, 15W LED Strip

	***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

	****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

	*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
	CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.

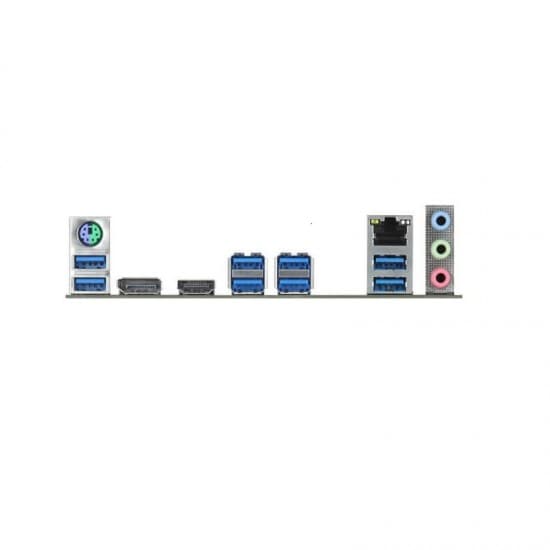

Rear Panel I/O	3 x Antenna Ports (on I/O Panel Shield)
	1 x PS/2 Mouse/Keyboard Port
	1 x HDMI Port
	1 x DisplayPort 1.2
	2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (Supports ESD Protection)
	6 x USB 3.2 Gen1 Ports (Supports ESD Protection)
	1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
	HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI	Software
	ASRock Polychrome SYNC
	ASRock Key Master
	ASRock XFast LAN
	UEFI
	ASRock Full HD UEFI
	ASRock Instant Flash

	*These utilities can be downloaded from ASRock Live Update & APP Shop.

Support CD	Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Accessories	Quick Installation Guide, Support CD, I/O Shield
	2 x SATA Data Cables
	3 x Screws for M.2 Sockets

Hardware Monitor	Temperature Sensing: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
	Fan Tachometer: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
	Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
	Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
	Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, PREM VDDCR_SOC, +1.8V, VDDP

Form Factor	ATX Form Factor: 12.0-in x 9.0-in, 30.5 cm x 22.9 cm
	Solid Capacitor design
	2oz Copper PCB

OS	Microsoft® Windows® 10 64-bit

Certifications	FCC, CE
	ErP/EuP ready (ErP/EuP ready power supply is required)
