Feature of ASUS ROG Strix X570-E Gaming Wifi ll DDR4
- AMD AM4 socket: Ready for AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors; supports up to two M.2 drives and features USB 3.2 Gen 2 and AMD StoreMI to maximize connectivity and speed
- Optimal Power Solution: 12+4 power stages with ProCool II power connector, alloy chokes and durable capacitors to support multi-core processors
- Comprehensive Cooling: Passive chipset heatsink, VRM heatsink with 8 mm heatpipe, dual on-board M.2 heatsinks and a water pump header
- High-Performance Networking: 2.5 Gbps LAN and Intel Gigabit Ethernet with ASUS LANGuard, WiFi 6E (802.11ax) with MU-MIMO and gateway teaming via GameFirst V
- Best Gaming Connectivity: Supports PCIe® 4.0, HDMI® 2.0, and DisplayPort™ 1.2, and features dual M.2, USB 3.2 Type-A and USB 3.2 Gen 2 Type-C connectors
- 5-Way Optimization: Automated system-wide tuning including custom overclocking and cooling profiles
- Industry-Leading Gaming Audio: High fidelity audio with SupremeFX S1220A, DTS® Sound Unbound and Sonic Studio III
- DIY Friendly Design: M.2 Q-Latch, patented pre-mounted I/O shield, ASUS SafeSlot and BIOS FlashBack™
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers

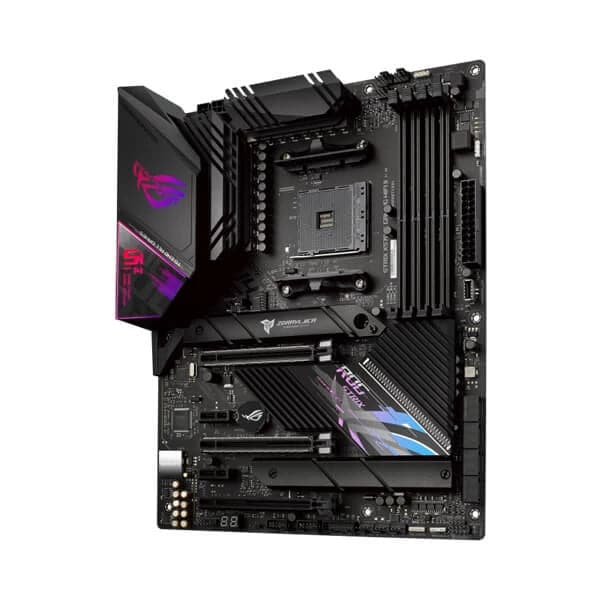

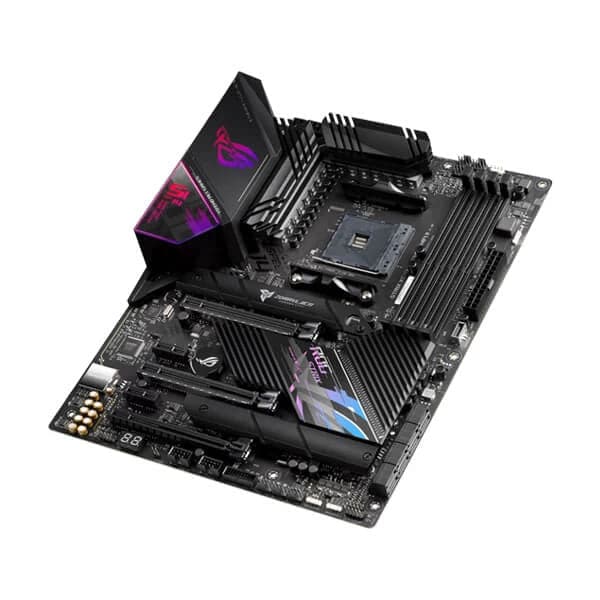

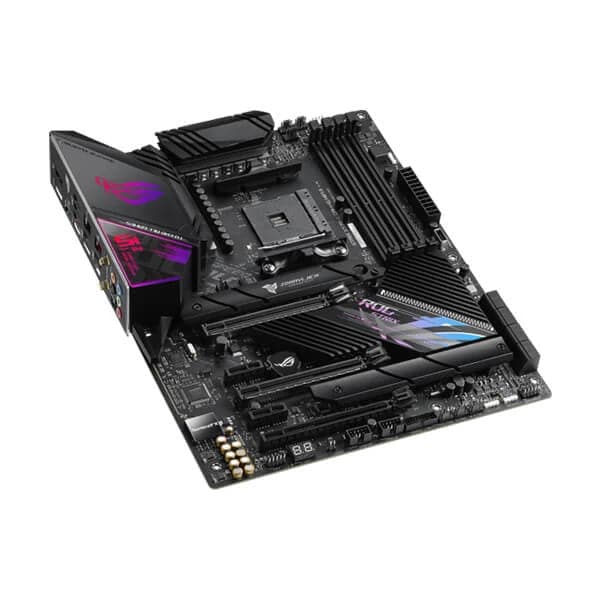

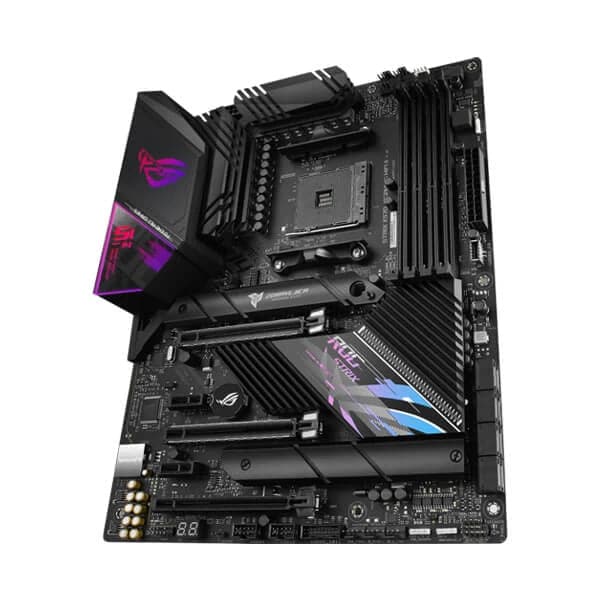

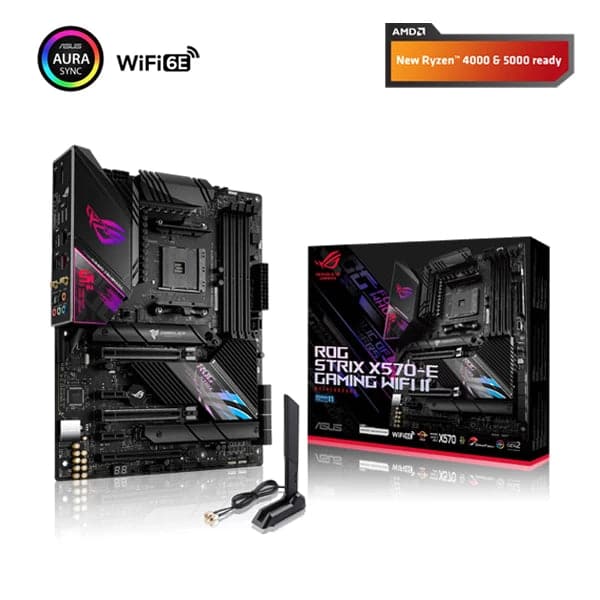

ROG Strix X570-E Gaming WiFi II
Asus ROG Strix X570-E Gaming Wi-Fi II motherboard delivers the quintessential ROG experience. It is bristling with features such as new passive chipset cooling, WiFi 6E, plus improved overclocking and audio performance, along with DIY-friendly conveniences to help seasoned builders and beginners alike. With futuristic aesthetics complemented by onboard RGB illumination, the Strix X570-E Gaming WiFi II motherboard has everything you need to build a formidable gaming rig that rises above the rest.
VRM Heatsink and L-Shaped Heatpipe
Asus ROG Strix X570-E Gaming Wi-Fi II The two VRM heatsinks are connected by an L-shaped heat pipe to provide ample surface area and mass to deal with the heat generated by the power array.
Thermal pad
Asus ROG Strix X570-E Gaming Wi-Fi II A high-quality thermal pad helps transfer heat from the inductor and phase array to the heatsink.
Dual M.2 heatsinks
Asus ROG Strix X570-E Gaming Wi-Fi II The M.2 heatsinks keep the M.2 SSD at optimum operating temperature for consistent performance and reliability.
Passive chipset heatsink
A dedicated chipset heatsink draws heat away to maintain optimum operating temperatures.
WiFi 6E
Asus ROG Strix X570-E Gaming Wi-Fi II Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band. It delivers ultrafast wireless networking speeds and improved capacity as well as better performance in dense wireless environments.
Realtek 2.5Gb Ethernet
Asus ROG Strix X570-E Gaming Wi-Fi II Onboard 2.5 Gb Ethernet gives your wired connection a boost, with up to a 2.5X improvement over standard Ethernet connections for faster file transfers, smoother lag-free gaming and high-res video streaming.
UNDENIABLY ROG STRIX
The ASUS ROG Strix X570-E Gaming Wifi II boasts striking aesthetics with a pixelated ROG logo and cyber text across the VRM cover, as well as diagonal grooves that cut across the chipset heatsink and motherboard. Together, they combine to create a motherboard that’s distinctively ROG. Asus ROG Strix X570-E Gaming Wi-Fi II
Specifications of ASUS ROG Strix X570-E Gaming Wifi ll DDR4
| CPU | AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors |
| Chipset | X570 |
| Memory |
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 4 x DIMM, Max. 128GB, DDR4 4600(O.C.)/4400(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133, un-buffered memory AMD Ryzen™ 5000 and 4000 G-Series Processors 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133, un-buffered memory AMD Ryzen™ 2000 Series Desktop Processors 4 x DIMM, max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.) /3000(O.C.)/2933/2800/2666/2400/2133, un-buffered memory |
| Graphics |
1 x DisplayPort 1 x HDMI® port - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz * VGA resolution support depends on processors' or graphic cards' resolution. For more details about the video input and output settings please refer to the user manual. |
| Expansion Slots |
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 2 x PCIe 4.0 x16 (x16 or dual x8)* AMD Ryzen™ 5000 G Series/4000 G-Series/ 2000 Series Processor 2 x PCIe 3.0 x16 (x16 or dual x8)* AMD Ryzen™ 2000 G-Series/ 3000 G-Series Processor 1 x PCIe 3.0 x16 (x8 mode)* AMD X570 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 4.0 x1 *PCIeX16_3 slot shares bandwidth with PCIeX1_2. |
| Storage |
Supports 2 x M.2 slots and 8 x SATA 6Gb/s ports AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) AMD Ryzen™ 5000 G-Series/4000 G-Series/ 3000 G-Series/ 2000 G-Series/2000 Series Processor M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) AMD X570 Chipset M.2_2 slot (Key M), type2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 8 x SATA 6Gb/s ports Supports RAID 0, 1, 10 |
| Ethernet |
1 x Realtek 2.5Gb Ethernet 1 x Intel® I211-AT 1Gb Ethernet Anti-surge LANGuard ROG GameFirst Technology |
| Wireless & Bluetooth |
2x2 Dual Band Wi-Fi 6E (802.11a/b/g/n/ac/ax) + BT5.2 Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. |
| USB |
AMD RyzenTM 5000, 5000 G-Series, 4000 G-Series, and 3000 Series Desktop Processors - 4 x USB 3.2 Gen2 ports (4 ports at back panel, Type-A) AMD RyzenTM 3000 G-Series, 2000, and 2000 G-Series Desktop Processors - 4 x USB 3.2 Gen 1 ports (4 ports at back panel, Type-A) AMD X570 chipset - 1 x USB 3.2 Gen2 front panel connector - 4 x USB3.2 Gen2 (at back panel, 3x Type-A, 1x Type-C) - 2 x USB3.2 Gen1 ports (at front panel) - 4 x USB 2.0 ports (at front panel) |
| Audio |
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - SupremeFX Shielding Technology - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |
| Back Panel I/O Ports |
8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® I211-AT 1Gb Ethernet port 1 x Realtek 2.5Gb Ethernet port 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button |
| Internal I/O Connectors |
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers 1 x 4-pin M.2 Fan header 1 x W_PUMP+ header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 8 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x Speaker header 1 x 10-1 pin System Panel header 1 x Thermal Sensor header |
| Special Features |
Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - Q-Code - Q-DIMM - Q-LED (CPU - Q-Slot ASUS Thermal Solution - M.2 heatsink ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool II - Pre-mounted I/O shield - SafeSlot AURA Sync - AURA RGB headers - Addressable Gen 2 headers |
| Software Features |
ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst V - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Two-Way AI Noise Cancelation AI Suite 3 - 5-Way Optimization by Dual Intelligent Processors 5 TPU EPU DIGI+ VRM Fan Xpert 4 Turbo app - EZ update DAEMON Tools WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode Dynamic OC Switcher |
| BIOS | BIOS |
| Manageability | WOL by PXE |
| Accessories |
Cables 4 x SATA 6Gb/s cables 1 x Thermistor cable pack Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Rubber Package 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card Installation Media 1 x Support DVD Documentation 1 x User manual |
| Form Factor | ATX 30.5cm x 24.4cm |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
