Description
Feature of Gigabyte X570 UD DDR4

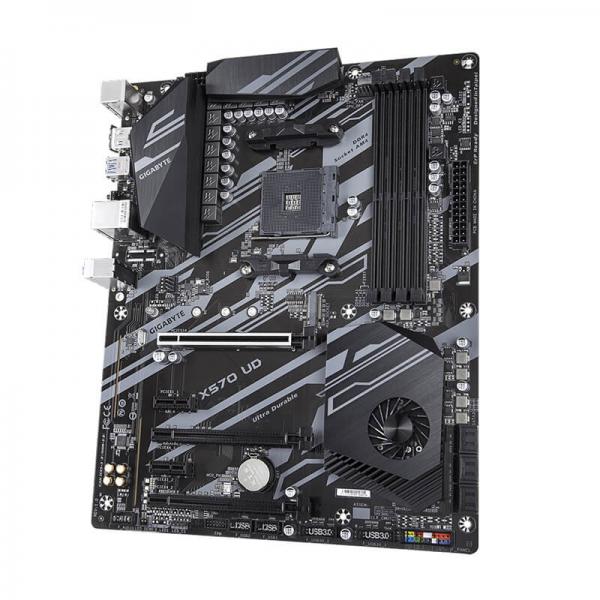

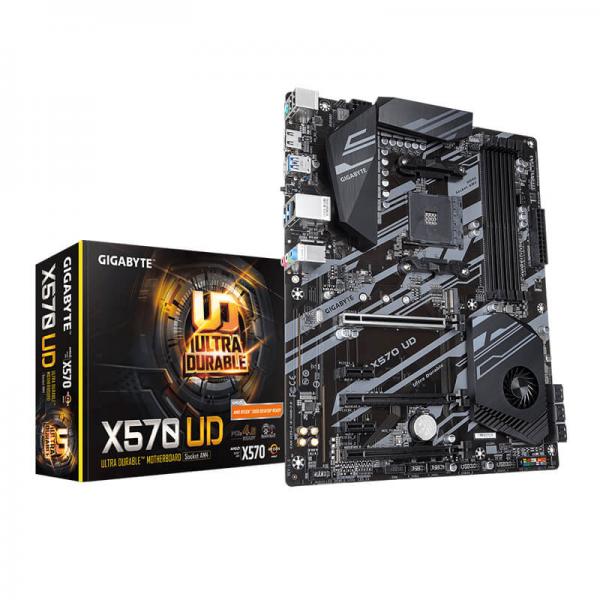

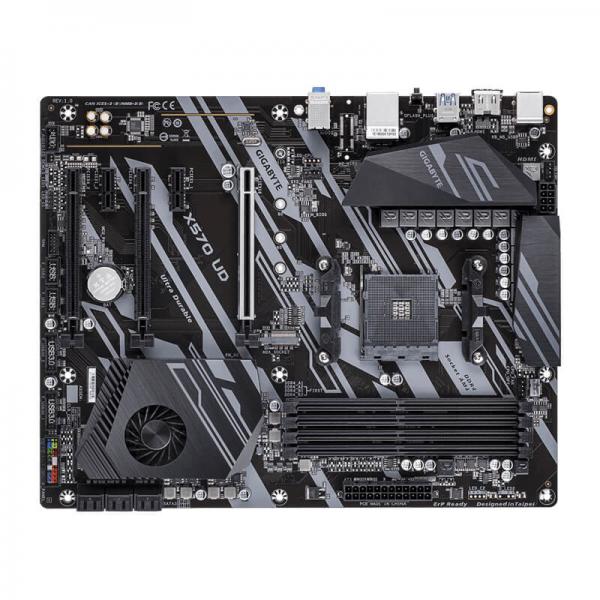

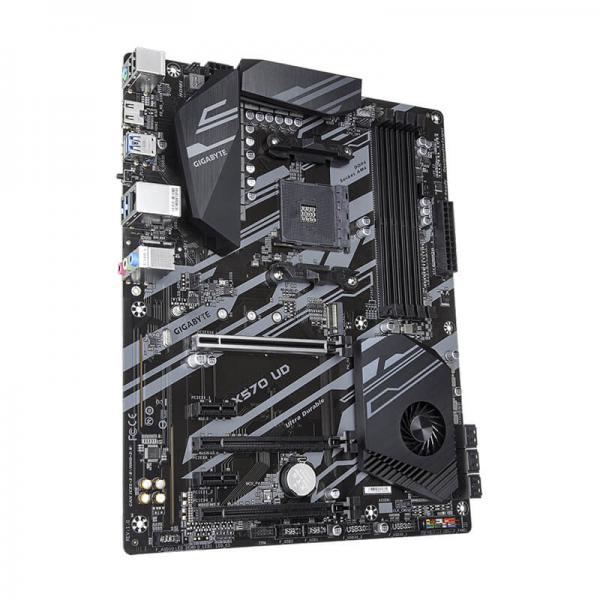

GIGABYTE X570 UD DDR4 Motherboard with 10 2 Phases Digital VRM, Advanced Thermal Design with Enlarge Heatsink, PCIe 4.0 x4 M.2 Connector, PCIe 4.0 x16 Slot Armor with Ultra Durable™ Design, GIGABYTE Gaming GbE LAN with Bandwidth Management, HDMI 2.0
- Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- 10 2 Phases Digital VRM Solution
- Advanced Thermal Design with Enlarge Heatsink
- Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 Connector
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- GIGABYTE Gaming GbE LAN with Bandwidth Management
- Supports RGB Light Strip in Full Colors
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
- Featured HDMI 2.0 support
- Q-Flash Plus update BIOS without installing CPU, Memory and Graphics card
GET READY FOR AMD RYZEN™ 5000 SERIES
GIGABYTE X570 motherboards based on the AMD X570 Chipset provide full support for latest AMD Ryzen™ 5000 Series Processors. The all-new design is a testament to GIGABYTE dedication to design quality. GIGABYTE X570 motherboards offer a rich list of features such as support for PCIe 4.0, USB Type-C™ interfaces on select boards, refined audio, high speed of Ethernet and latest standard of WIFI design, to fulfill users’ performance, audio, and data transfer needs. The new, advanced power and thermal design enables users to unleash the performance on AMD Ryzen™ 5000 Series Processors, making the GIGABYTE X570 motherboards perfect for users looking to build the best AMD platform gaming system.
AMD StoreMI technology
GIGABYTE X570 motherboards maximize your PC’s potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.
Optimized for AMD 3000 series CPU
GIGABYTE X570 motherboards use a 10*+2 phase PWM + Lower RDS(on) MOSFETs design to support the latest AMD Ryzen™ 3000-series CPUs by offering incredible precision in delivering power to the motherboard’s most power- hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.
Smart Chipset Fan Heatsink
Smart Fan
Provides 3 different operating modes to minimize noise and extend the fan’s longevity. Silent, Balanced and Performance modes, choose the mode that suits you the best in any situation.
High Durability
X570 motherboards adopt a high quality ball bearing fan which guarantees 60,000* working hours.
Specifications of Gigabyte X570 UD DDR4
| CPU | AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors (Please refer "CPU Support List" for more information.) |
| Chipset | AMD X570 |
| Memory |
3rd Generation AMD Ryzen™ processors: Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules* * ECC mode supported by 3rd Gen AMD Ryzen™/ 2nd Gen AMD Ryzen™ and only PRO sku of 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) |
| Onboard Graphics |
Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 16 GB Note: For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only. |
| Audio |
Realtek® ALC887 codec High Definition Audio 2/4/5.1-channel |
| LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| Expansion Slots |
Integrated in the CPU: · 3rd Generation AMD Ryzen™ processors:1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) · 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset: 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
| USB |
Integrated in the CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 4 x USB 3.2 Gen 1 ports available through the internal USB headers 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Connectors |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 1 x RGB LED strip header 6 x SATA 6Gb/s connectors 1 x M.2 Socket 3 connector 1 x front panel header 1 x front panel audio header 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper |

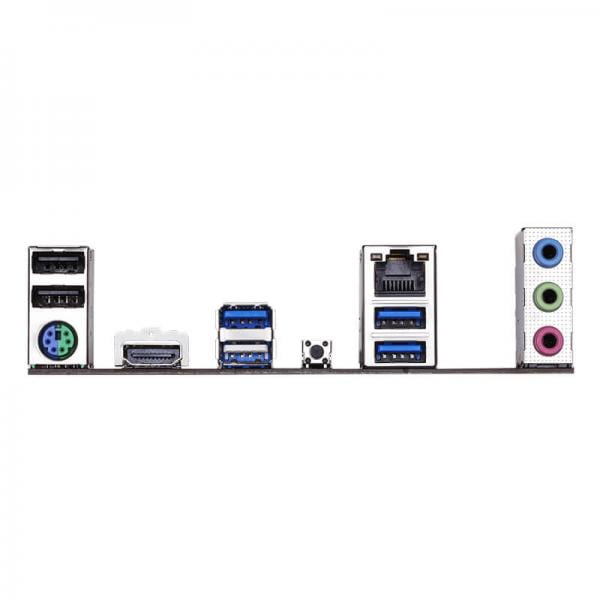

| Back Panel Connectors |
1 x PS/2 keyboard/mouse port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x Q-Flash Plus button 1 x RJ-45 port 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring |
Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install. |
| BIOS |
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features |
Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Ambient LED AutoGreen Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup Smart Keyboard Smart Survey System Information Viewer USB Blocker Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| Bundled Software |
Norton® Internet Security (OEM version) Realtek® 8118 Gaming LAN Bandwidth Control Utility |
| Operating System | Support for Windows 10 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
