Description
Feature of ASRock X570 Phantom Gaming-ITX/TB3

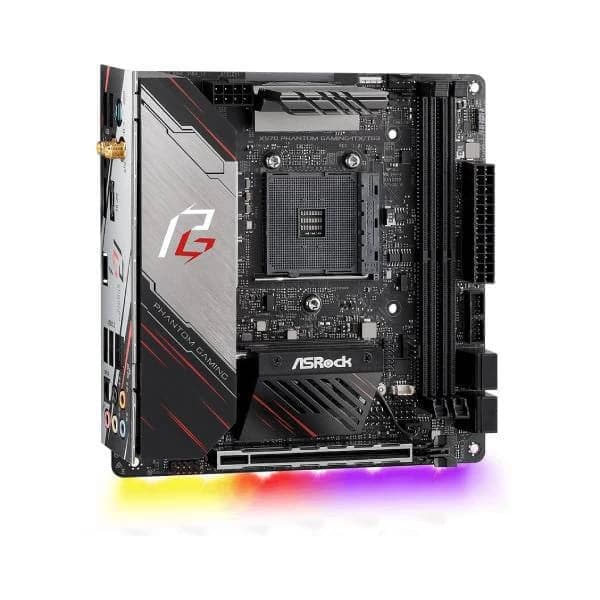

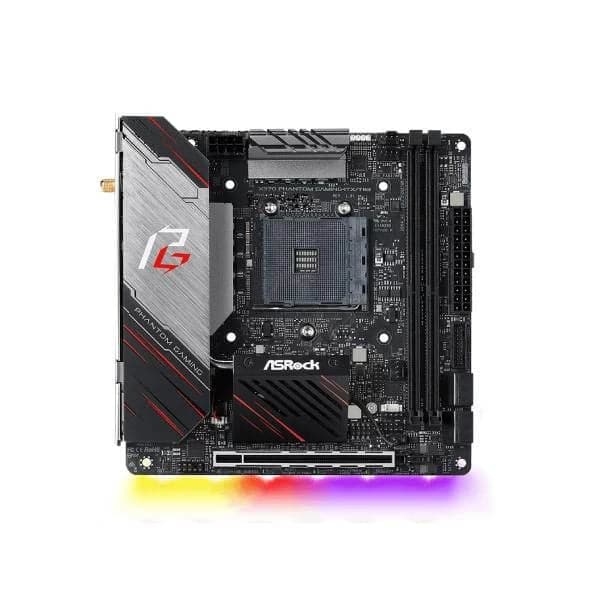

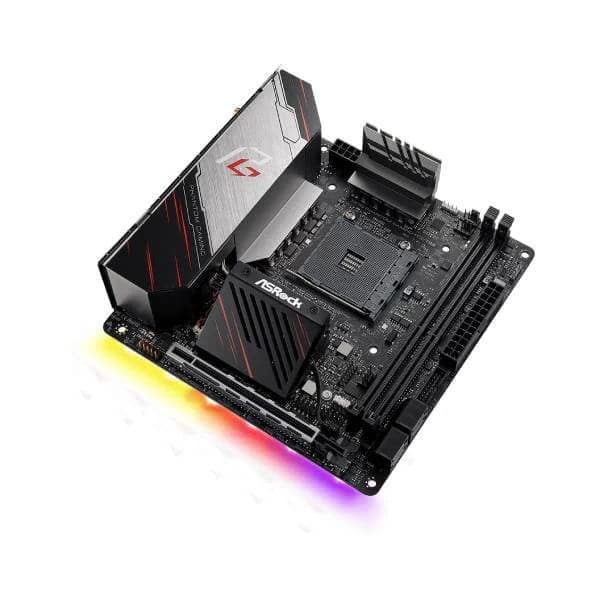

Go smaller without sacrificing performance, thanks to the ASRock X570 Phantom Gaming-ITX/TB3 AM4 Mini-ITX Motherboard from ASRock. Utilizing the AMD X570 chipset, this Mini-ITX motherboard is compatible with AMD CPUs using the AM4 socket. Up to 64GB of RAM can be installed across two sockets, with speeds up to 4533 MHz supported when overclocking. Connect storage drives using an M.2 or two SATA III connectors, or install a GPU using the PCIe 4.0 x16 slot. An M.2 E-Key slot is also present, coming with a preinstalled wireless adapter card facilitating Wi-Fi 6 and Bluetooth connectivity.

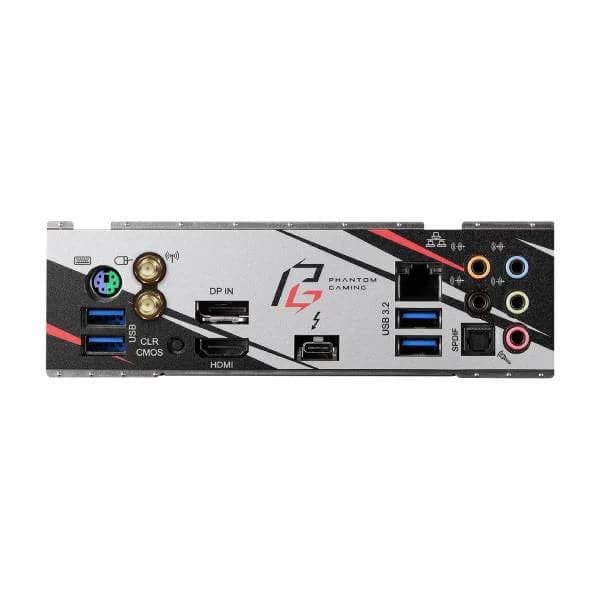

The rear I/O panel sports a Thunderbolt 3 port, as well as two USB 3.2 Gen 2 and two Gen 1 Type-A ports. A single PS/2 combo port can also be used to connect a legacy mouse or keyboard. Connect a display using the DisplayPort 1.4 or HDMI ports. An RJ45 port supports Gigabit Ethernet, while two wifi-antenna connectors are also present. In addition to a clear CMOS button, this rear panel also sports a S/PDIF port and five 3.5mm audio jacks.
The X570 Phantom Gaming-ITX/TB3’s internal headers include a USB 3.2 Gen 1 and USB 2.0 header, each supporting two Type-A ports. Connect chassis fans or pumps using a 4-pin connector, or use another 4-pin connector to install a CPU fan or liquid cooler. Users can also choose between an RGB and ARGB header to control lighting effects. Front panel audio and TPM headers are also present. Audio on this motherboard is handled by the Realtek ALC1220 audio codec, which supports 7.1 Surround Sound. The ASRock X570 Phantom Gaming-ITX/TB3 AM4 Mini-ITX Motherboard is compatible with Windows 10 64-bit operating systems.
AMD X570 Chipset
This motherboard uses the AMD X570 chipset, which is compatible with the AMD 2000- and 3000-Series CPUs using the AM4 socket, including Matisse, Pinnacle Ridge, and Picasso processors.
10 Power Phase Design
The 10 power phase design ensures smooth power delivery to the CPU, while also providing optimized performance for overclocking and gaming.
Thunderbolt 3
Thunderbolt 3 is a hardware interface that utilizes the reversible USB Type-C connector. Doubling the speed of its predecessor, Thunderbolt 3 features a maximum throughput of 40 Gb/s when used with compatible devices. The connector also transmits data via USB 3.1 at up to 10 Gb/s, and dual-bandwidth DisplayPort 1.2 allows you to connect up to two 4K displays simultaneously. Additionally, you can daisy chain up to six devices from a single Thunderbolt 3 port.
Wi-Fi 6 and Bluetooth 5.0 Connectivity
Take advantage of wireless internet speeds up to 2.4 Gb/s as well as dual-band support, thanks to Wi-Fi 6. Users can also connect wireless peripherals using Bluetooth 5.0.
ECC Memory Support
ECC or error-correcting code is a method of detecting and correcting single-bit memory errors. This motherboard is capable of supporting DDR4 ECC un-buffered memory modules, delivering server-grade performance and durability for high-end computing systems, such as scientific or financial computers.
PCIe Steel Slot
The PCIe Steel Slot ensures compatibility with heavy graphics cards that might otherwise strain the motherboard.
Flexible Integrated I/O Shield
Greater tolerance space allows this flexible, integrated I/O shield to be adjusted during installation, ensuring an ideal fit with no mechanical hiccups.
Polychrome RGB
Thanks to onboard RGB headers and an addressable RGB header, you can connect compatible LED devices such as strips, CPU fans and coolers, chassis fans, and so on. Users may also synchronize RGB LED device to create their own unique lighting effects.
60A Power Choke
The ASRock X570 Phantom Gaming-ITX/TB3 uses a 60A power choke to triple the saturation current, optimizing Vcore voltage to the motherboard.
Dr. MOS
Dr. MOS monitors current and temperature for each phase, deliverying smoother power to the CPU.
High-Density Glass Fabric PCB
A High-Density Glass Fabric PCB design reduces the gaps between the PCB layers and protects the motherboard against electrical shorts caused by humidity
.
USB 3.2 Gen 2
Doubling the speed of its predecessor, USB 3.2 Gen 2 is synonymous with USB 3.1 Gen 2 and features a maximum throughput of 10 Gb/s when used with compatible devices.
Specifications of ASRock X570 Phantom Gaming-ITX/TB3
| Gaming Armor |
Power - Hi-Density Power Connectors (24 pin and 8 pin) Memory - 15μ Gold Contact in DIMM Slots VGA Card - 15μ Gold Contact in VGA PCIe Slot (PCIE1) Internet - Intel® LAN Cooling - 2oz Copper PCB Audio - Creative Sound Blaster™ Cinema 5 |
| Unique Feature |
ASRock USB 3.2 Gen2 - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) - ASRock Thunderbolt™ 3 Type-C USB 3.2 Gen2 Port (40Gb/s for Thunderbolt™ protocol; 10 Gb/s for USB3.2 protocol) ASRock Super Alloy - Premium 60A Power Choke - 60A Dr.MOS - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) - I/O Armor - Matte Black PCB - High Density Glass Fabric PCB - 2oz Copper PCB Intel® 802.11ax WiFi ASRock Steel Slot Gen4 ASRock Hyper M.2 (PCIe Gen4x4) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| CPU |
- Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series and 5000 Series Desktop Processors* - Supports Intel® LGA 115x mounting hole and Cooler - Digi Power design - 10 Power Phase design |
| Chipset | - AMD X570 |
| Memory |
- Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - AMD Ryzen series CPUs (Vermeer) support DDR4 4533+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Renoir) support DDR4 4533+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory* - Max. capacity of system memory: 64GB** - Supports Extreme Memory Profile (XMP) memory modules - 15μ Gold Contact in DIMM Slots*For Ryzen Series CPUs (Picasso), ECC is only supported with PRO CPUs. Please refer to below table for AMD non-XMP memory frequency support. For more details, please refer to the QVL on ASRock's website.SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label x=1 or 2 DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. |
| BIOS |
- 256Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP Voltage Multi-adjustment |
| Graphics |
- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* - DirectX 12, Pixel Shader 5.0 - Shared memory default 2GB. Max Shared memory supports up to 16GB.** - Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 Input with max. resolution up to 4K x 2K (4096x2160) @ 120Hz*** - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required) - Supports HDR (High Dynamic Range) with HDMI 2.0 - Supports HDCP 2.2 with HDMI 2.0 and DisplayPort 1.4 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.4 Ports*Actual support may vary by CPU**The Max shared memory 16GB requires 32GB system memory installed.***To use a Type-C monitor, connect your graphics card to this DisplayPort 1.4 Input port with a DisplayPort cable. |
| Audio |
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - Nichicon Fine Gold Series Audio Caps - Pure Power-In - Direct Drive Technology - PCB Isolate Shielding - Impedance Sensing on Rear Out port - Individual PCB Layers for R/L Audio Channel - Gold Audio Jacks - 15μ Gold Audio Connector - Supports Creative Sound Blaster™ Cinema 5 |
| LAN |
- Gigabit LAN 10/100/1000 Mb/s - GigaLAN Intel® I211AT - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| Wireless LAN |
- Intel® 802.11ax WiFi Module - Supports IEEE 802.11a/b/g/n/ax - Supports Dual-Band (2.4/5 GHz) - Supports WiFi6 802.11ax (2.4Gbps) - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.0 + High speed class II - Supports MU-MIMO |
| Slots |
AMD Ryzen series CPUs (Vermeer, Matisse) - 1 x PCI Express 4.0 x16 Slot (PCIE1: x16 mode)* AMD Ryzen series CPUs (Renoir, Pinnacle Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)* AMD Ryzen series CPUs (Picasso) - 1 x PCI Express 3.0 x16 Slot (PCIE1: x8 mode)*- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax PCIe WiFi module (on the rear I/O) - 15μ Gold Contact in VGA PCIe Slot (PCIE1)*Supports PCIe riser cards to extend one x16 slot to two x8 slots if you install AMD Ryzen series CPUs Supports NVMe SSD as boot disks |
| Storage |
- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug - 1 x Hyper M.2 Socket, supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Renoir, Pinnacle Ridge and Picasso)**Supports NVMe SSD as boot disks Support RAID 0/1/10 |
| Connector |
- 1 x RGB LED Header* - 1 x Addressable LED Header** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) - 1 x SPI TPM Header********Supports in total up to 12V/3A, 36W LED Strip**Supports in total up to 5V/3A, 15W LED Strip***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN1/WP, CPU_FAN2/WP and CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. |
| Rear Panel I/O |
- 2 x Antenna Ports (on I/O Panel Shield) - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 Input - 1 x Optical SPDIF Out Port - 1 x USB 3.2 Gen2 Thunderbolt™ 3 Type-C Port (40Gb/s for Thunderbolt™ protocol; 10 Gb/s for USB3.2 protocol) (Supports ESD Protection) - 2 x USB 3.2 Gen2 Type-A Ports (Supports ESD Protection) - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - 1 x Clear CMOS Button - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) |
| Software and UEFI |
Software - ASRock Phantom Gaming Tuning - ASRock Polychrome SYNC - ASRock Key Master - ASRock XFast LAN UEFI - ASRock Full HD UEFI - ASRock Instant Flash*These utilities can be downloaded from ASRock Live Update & APP Shop. |
| Support CD | - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories |

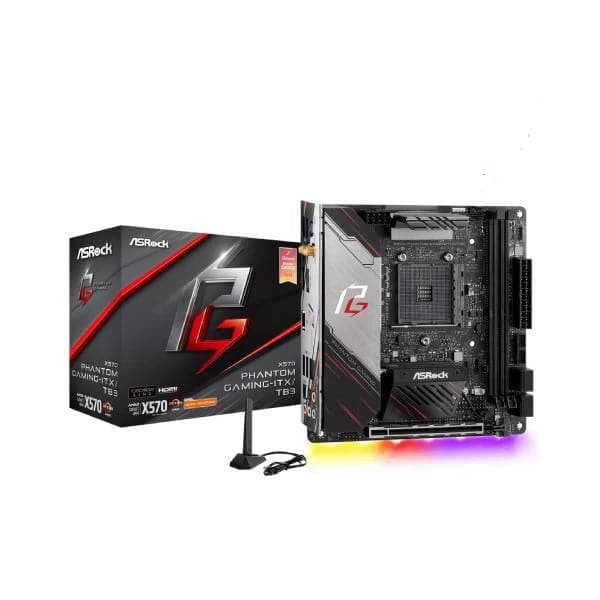

- Quick Installation Guide, Support CD - 2 x SATA Data Cables - 1 x ASRock WiFi 2.4/5 GHz Antenna - 1 x Screw for M.2 Socket |
| Hardware Monitor |
- Temperature Sensing: CPU/Water Pump, Chassis/Water Pump Fans - Fan Tachometer: CPU/Water Pump, Chassis/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU/Water Pump, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU/Water Pump, Chassis/Water Pump Fans - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, PREM VDDCR_SOC, +1.8V, VDDP |
| Form Factor |
- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm - 2oz Copper PCB |
| OS | - Microsoft® Windows® 10 64-bit |
| Certifications |
- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
