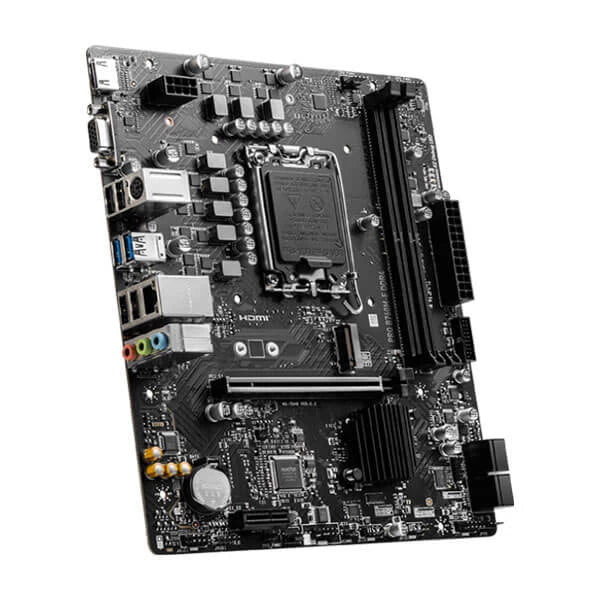

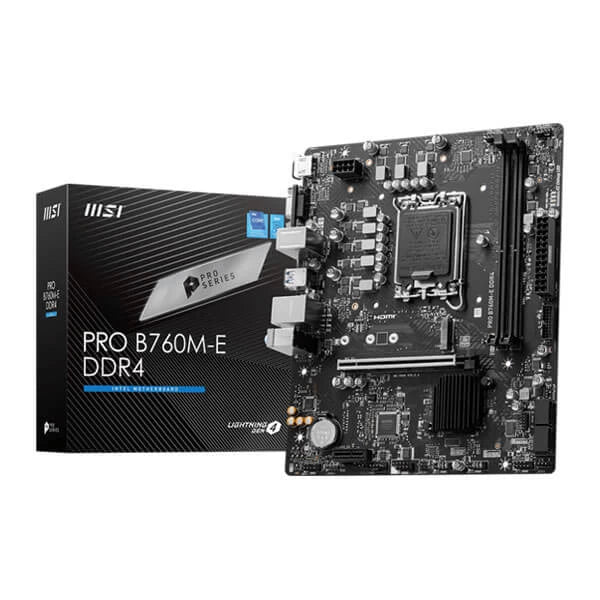

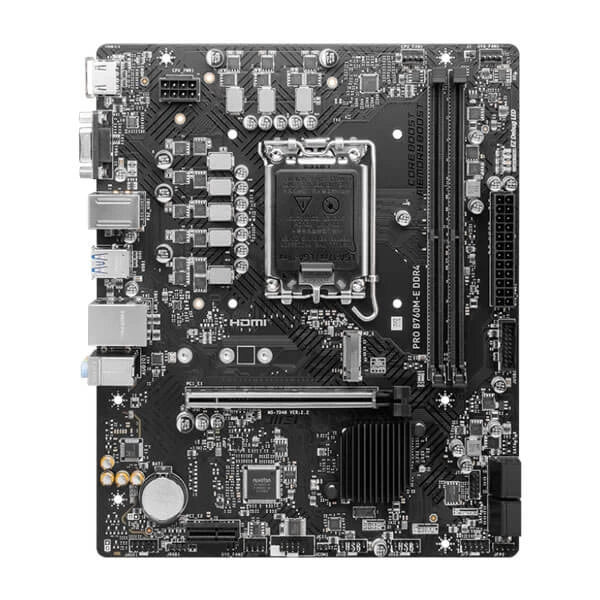

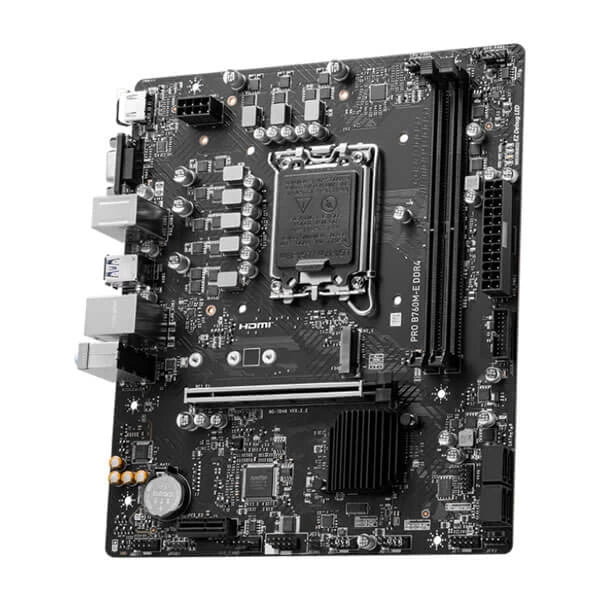

MSI Pro B760M-E DDR4 Intel Motherboard

Name: MSI Pro B760M-E DDR4 Intel Motherboard
Brand: MSI
SKU: B760M-E-DDR4
Price: 7837.15 INR
Availability: InStock

Rs. 7,837.15 Rs. 13,599.00

Discount: Rs. 5,761.85 (42%)

Out of stock >

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Jun 12 - Jun 16

Description
Additional Information
Shipping & Return
Reviews

Features Of MSI Pro B760M-E DDR4 Intel Motherboard

Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
MSI Pro B760M-E DDR4 Memory, Dual Channel DDR4 4800+MHz (OC)
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

Business Elegance

The PRO B760M-E DDR4 is a business-oriented Micro-ATX motherboard featuring the latest Intel B760 chipset that fulfils business needs.

Supports Intel Core 12th & 13th Gen Processors

The PRO B760M-E DDR4 motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors.

Form Factor: Micro-ATX

Socket Type: LGA 1700

Chipset: Intel B760

Integrated Cooling Features

Chipset Heatsink: Pro B760M-E Provides passive cooling.

Frozr AI Cooling: Automatically adjusts system fan settings based on CPU & GPU temperatures.

2 x DDR4 Dual Channel (4800 MHz OC)*

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.

*1DPC 1R Max. overclocking frequency 4800+ MHz, supports Intel XMP.

Fortified PCIe 4.0 x16

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:

1 x PCIe 4.0/3.0 x16 slot (with Steel Armor)

1 x PCIe 3.0 x1 slot

Gen4 M.2 Connector

The PRO B760M-E DDR4 motherboard features MSI’s Gen4 M.2 slot:

1 x Gen4 x4 64Gbps slot

Connectivity

1G LAN: A Realtek 1Gbps LAN controller delivers a premium network experience.

USB 3.2 Gen 1 Type-A: Connect to devices and transfer files at high bandwidth rates: 5Gbps.

HD Audio: 7.1-Channel High Definition Audio with Audio Boost.

Diplay Outputs: Include HDMI 1.4 (4K/30Hz) and legacy VGA

Specifications Of MSI Pro B760M-E DDR4 Intel Motherboard

Model	PRO B760M-E DDR4
Chipset	INTEL B760
CPU SUPPORT	Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700
Memory	2x DDR4, Maximum Memory Capacity 64GB Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 4800+ MHz • 1DPC 2R Max speed up to 4600+ MHz
Onboard Graphics	1x HDMI™ 1x VGA Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to (From CPU) PCI_E2 PCIe 3.0 supports up to (From Chipset)
Storage	1x M.2 slot M.2_1 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G port * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)
LAN	Realtek® RTL8111H Gigabit LAN
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Internal I/O	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 2x USB 2.0 1x USB 3.2 Gen1 Type A
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	HDMI VGA Keyboard / Mouse USB 3.2 Gen 1 5Gbps (Type-A) LAN port Audio Connectors USB 2.0 USB 2.0
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension	mATX 200mmx236.16mm
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.
