Description
Features of ASUS ROG Strix B760-A Gaming Wifi DDR4 Intel Motherboard

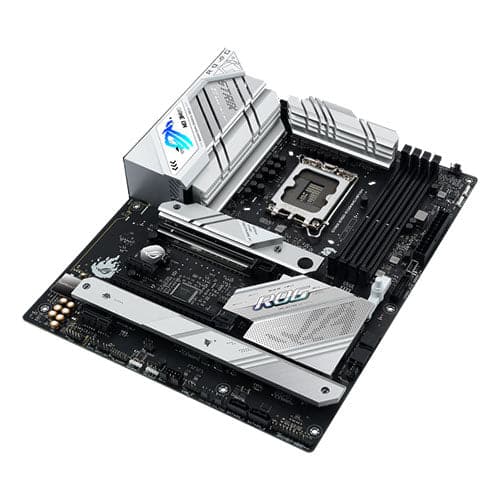

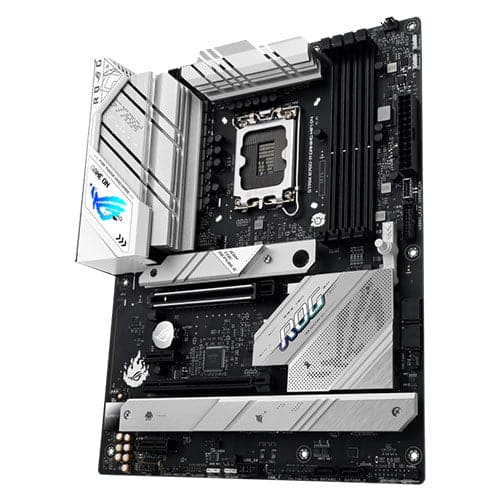

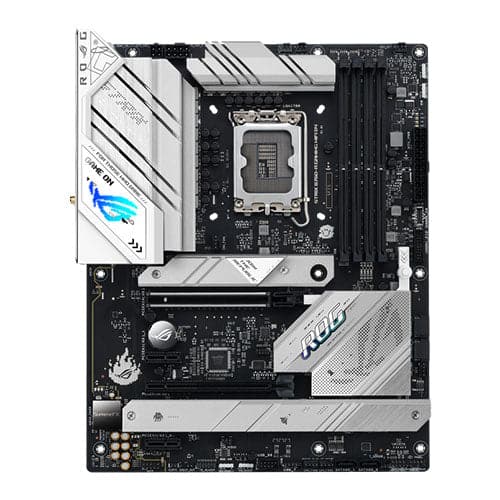

ROG STRIX B760-A GAMING WIFI D4
On its face, the ASUS ROG Strix B760-A D4 wears a light aesthetic, but beneath its grey aluminum heatsinks lies a dark PCB flush with high-performance hardware. A VRM configuration equipped to handle high-core-count Intel® 13th Gen processors, PCIe 5.0 bandwidth for graphics cards, and next-gen WiFi 6E team up to bring devilishly good gaming to this heavenly board.
PCIE® SLOT Q-RELEASE
A physical button unlocks the first PCIe slot’s security latch with one press, greatly
simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.
ALL-ROUND PERFORMANCE
The neat aesthetics of the Strix B760-A D4 were no distraction when crafting this motherboard’s power delivery and thermal arrays. You’ll get a fully fledged gaming experience and then some with this beast.
POWER ARCHITECTURE
12 + 1 power stages deliver ample current to drive the most powerful Intel 13th Gen processors through any workload with ease.
ALLOY CHOKES AND DURABLE CAPACITORS
High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.
SIX-LAYER PCB
A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.
LEADING CONNECTIVITY

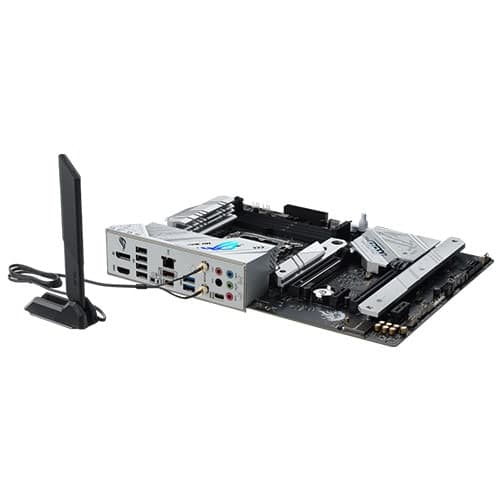

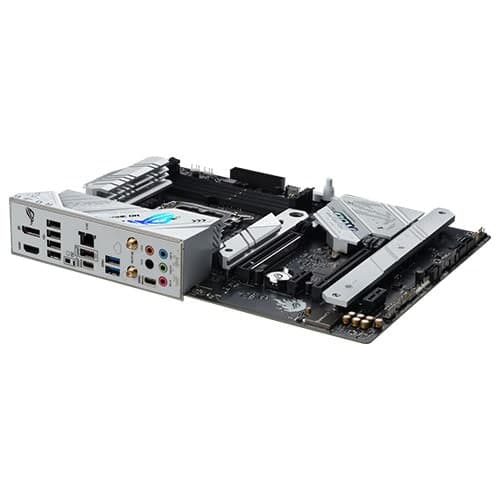

The Strix B760-A D4 is entirely well-connected with high-speed wireless and wired networking, a plethora of USB I/O, and SupremeFX audio to pump crystal-clear sound through speakers or headphones for enhanced immersion.
PCIe PERFORMANCE
The top PCIe 5.0 x16 SafeSlot is well-equipped for the increased size and bandwidth of next-gen graphics cards. Zippy storage options abound with three PCIe 4.0 M.2 slots, all featuring robust heatsinks to maximize performance.
PLAY IN STYLE
Bold aesthetics and Aura Sync RGB controls let the ROG Strix B760-A D4 shine in every build.
UNDENIABLY ROG STRIX
Diagonal slats, brushed aluminum, and bold RGB have become hallmarks of the ROG aesthetic, and the Strix B760-A D4 bears all of them with pride. Its white, silver, and black color scheme pairs well with both dark and lighter-colored components. 8-bit accents show some gaming pride.
OUTSHINE THE COMPETITION
ROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.
COOLER COMPATIBILITY
The ROG Strix B760-A D4 bears the same LGA 1700 socket as Z690 and B660 models, so many existing coolers are compatible, including all AIO offerings from ASUS and ROG.
THE ROG STRIX ECOSYSTEM AWAITS
Level up your game with ROG Strix. Enjoy complimentary aesthetics, control, and compatibility across AIO coolers, cases, peripherals, and much more. ROG offers more choices than any other brand.
Specifications of ASUS ROG Strix B760-A Gaming Wifi DDR4
| Model | |
| Brand | ASUS |
| Model | ROG STRIX B760-A GAMING WIFI D4 |
| Supported CPU | |
| CPU Socket Type | LGA1700 |
| CPU Type | 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipsets | |
| Chipset | Intel B760 Chipset |
| Memory | |
| Number of Memory Slots | 4 x DIMM |
| Memory Standard | 5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non |
| Maximum Memory Supported | 128 GB |
| Channel Supported | Dual Channel DDR4 Memory Technology |
| Expansion Slots | |
| PCI Express x1 | 2 x PCIe 3.0 x1 slots |
| PCI Express x16 | 1 x PCIe 5.0 x16 slot, 1 x PCIe 3.0 x16 slot (supports x4 mode) |
| Storage Devices | |
| SATA 3Gb/s | 4 x SATA 6Gb/s ports |
| Onboard Video | |
| Onboard Video Chipset | Integrated |
| Onboard Audio | |
| Audio Chipset | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 |
| Onboard LAN | |
| LAN Chipset | 1 x Intel 2.5Gb Ethernet |
| Rear Panel Ports | |
| Audio Ports | 5 x Audio jacks |
| Video Ports | 1 x DisplayPort |
| HDMI | 1 x HDMI Port |
| Onboard USB | |
| Onboard USB | N/A |
| Onboard 1394 | |
| Onboard 1394 | N/A |
| Physical Spec | |
| Form Factor | ATX |
| Power Pin | 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector |
| Dimensions | 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
