Description

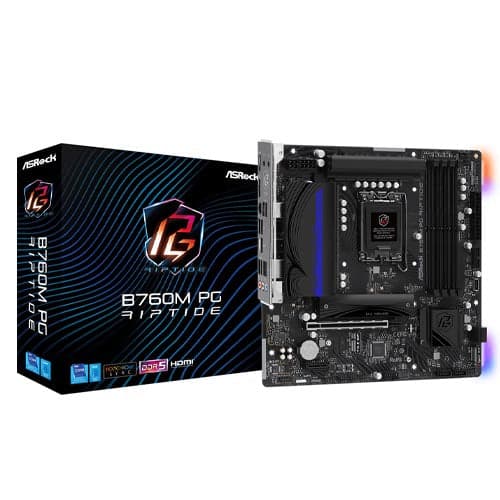

Feature of ASROCK B760M Phantom Gaming Riptide DDR5
- Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
- 14+1+1 Power Phase
- Supports DDR5 7200MHz (OC)
- 1 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4)
- 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front), 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front),
6 USB 2.0 (4 Rear, 2 Front) - Dragon 2.5G LAN
- Supports ASRock Auto Driver Installer
Riptide is named after a specific kind of water current with strong waves that occurs in
the ocean, representing the philosophy of sea's double-side, calm and unlimited
strength. Built around powerful gaming-related features, the Riptide has given a
powerful smash and immersed users in the sense of stability.
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with low-loss materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
* There are certain risks involved with memory overclocking and may affect your system’s stability. Please realize that overclocking should be done at your own risk and expense. EXPO/XMP profile support may vary by different system configuration, memory modules and motherboard models. Please refer to Memory QVL for the completed support list.
DDR5 Memory with Protection Circuit
Due to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.
Reinforced Steel Slot [PCIe 4.0 Version]
The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.
POLYCHROME RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. *The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
*A Group=Addressable RGB Header, B Group=RGB Header
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
*A Group=Addressable RGB Header, B Group=RGB Header
High Speed M.2 Solution(PCIe Gen4 x4)
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.
Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!
Step1: Install Auto Driver Installer
Step2: ADI will automatically download and install all necessary drivers.
Step3: Done!
Step1: Install Auto Driver Installer
Step2: ADI will automatically download and install all necessary drivers.
Step3: Done!
ASROCK B760M Phantom Gaming Riptide DDR5 strives offer only the cutting edge technology with the most user-friendly design. The pre-installed IO Shield design makes motherboard to be well-installed in the chassis precisely for preventing any interferences and speed up the set-up process.
Specifications of ASROCK B760M Phantom Gaming Riptide DDR5
| Model | |
| Brand | ASRock |
| Model |
B760M PG Riptide
|
|
Supported CPU
|
|
| CPU Socket Type |
LGA 1700
|
| CPU Type |
Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700)
|
| Chipsets | |
| Chipset |
Intel B760
|
| Memory | |
| Number of Memory Slots |
4x288pin (DDR5)
|
| Memory Standard |
DDR5 4800
|
| Maximum Memory Supported | 128GB |
| Channel Supported |
Dual Channel
|
| Memory Feature |
Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC)*
|
|
1DPC 1R Up to 6800+ MHz (OC), 4800 MHz Natively.
|
|
|
1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.
|
|
|
2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively.
|
|
|
2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
|
|
|
Supports Intel Extreme Memory Profile (XMP) 3.0
|
|
|
* Please refer to Memory Support List on ASRock’s website for more information. (http://www.asrock.com/)
|
|
|
Expansion Slots
|
|
| PCI Express 4.0 x16 |
1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
|
| PCI Express x1 |
1 x PCIe 4.0 x1 Slot (PCIE2) *
|
|
* Supports NVMe SSD as boot disks
|
|
|
Storage Devices
|
|
| SATA 6Gb/s |
4 x SATA 6Gb/s
|
| M.2 | CPU: |
|
1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
|
|
| Chipset: | |
|
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
|
|
|
* Supports Intel Volume Management Device (VMD)
|
|
|
* Supports NVMe SSD as boot disks
|
|
| SATA RAID | 0/1/5/10 |
|
Onboard Audio
|
|
| Audio Chipset |
Realtek ALC897
|
| Audio Channels |
7.1 Channels
|
|
Onboard LAN
|
|
| LAN Chipset |
Dragon RTL8125BG
|
| Max LAN Speed | 2.5Gbps |
|
Rear Panel Ports
|
|
| Back I/O Ports |
2 x Antenna Mounting Points
|
|
1 x PS/2 Mouse/Keyboard Port
|
|
|
1 x HDMI Port
|
|
|
1 x DisplayPort 1.4
|
|
|
1 x USB 3.2 Gen1 Type-C Port
|
|
|
3 x USB 3.2 Gen1 Type-A Ports
|
|
|
4 x USB 2.0 Ports
|
|
|
1 x RJ-45 LAN Port
|
|
|
HD Audio Jacks: Line in / Front Speaker / Microphone
|
|
|
Internal I/O Connectors
|
|
| Onboard USB |
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
|
|
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
|
|
|
1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
|
|
| Other Connectors |
1 x eDP Signal Connector
|
|
1 x SPI TPM Header
|
|
|
1 x Chassis Intrusion and Speaker Header
|
|
|
1 x RGB LED Header*
|
|
|
3 x Addressable LED Headers**
|
|
|
1 x CPU Fan Connector (4-pin) ***
|
|
|
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) ****
|
|
|
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) *****
|
|
|
1 x Front Panel Audio Connector
|
|
|
* Supports in total up to 12V/3A, 36W LED Strip
|
|
|
** Support in total up to 5V/3A, 15W LED Strip
|
|
|
*** CPU_FAN1 supports the fan power up to 1A (12W).
|
|
|
**** CPU_FAN2/WP supports the fan power up to 2A (24W).
|
|
|
***** CHA_FAN1~3/WP support the fan power up to 2A (24W).
|
|
|
***** CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.
|
|
|
Physical Spec
|
|
| Form Factor |
Micro ATX
|
| Dimensions (W x L) |
9.6″ x 9.6″
|
| Power Pin |
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
|
|
1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
|
|
|
Windows Compatibility
|
|
| Windows 11 |
Supported
|
| Features | |
| Features |
Superb Productivity
|
|
Dual Channel DDR5
|
|
|
Rock-Solid Durability
|
|
|
14+1+1 Power Phase
|
|
|
Pre-Installed I/O Shield
|
|
|
Ultrafast Connectivity
|
|
| 2.5G LAN | |
|
EZ Update
|
|
|
ASRock Auto Driver Installer
|
|
|
EZ Troubleshooter
|
|
|
ASRock Post Status Checker
|
|
|
Packaging
|
|
| Package Contents |
1 x User Manual
|
|
2 x SATA Data Cables
|
|
|
2 x Screws for M.2 Sockets
|
|
| **Features, Price and Specifications are subject to change without notice to customer. |
