Description
Features Of GIGABYTE B760M DS3H
GIGABYTE Ultra-Efficient M.2 Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
CONNECTIVITY
GIGABYTE B760M DS3H Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network and storage.
PERSONALIZATION
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality
Specifications Of GIGABYTE B760M DS3H
| Model | |
| Brand | GIGABYTE |
| Model | B760M DS3H |
| Supported CPU | |
| CPU Socket Type | LGA1700 |
| CPU Type | 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipsets | |
| Chipset | INTEL B760 |
| Memory | |
| Number of Memory Slots | 4 x DDR4 |
| Memory Standard | Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800( |
| Maximum Memory Supported | 128 GB |
| Channel Supported | Dual Channel DDR4 Memory Technology |
| Expansion Slots | |
| PCI Express x16 | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16, 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
| Storage Devices | |
| SATA 3Gb/s | 4 x SATA 6Gb/s connectors |
| Onboard Video | |
| Onboard Video Chipset | Integrated Graphics Processor-Intel® HD Graphics |
| Onboard Audio | |
| Audio Channels | 2/4/5.1/7.1-channel |
| Audio Chipset | Realtek® Audio CODEC |
| Onboard LAN | |
| LAN Chipset | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |

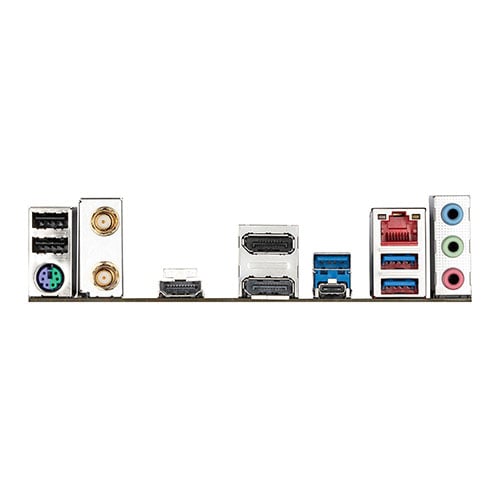

| Rear Panel Ports | |
| USB | 2 x USB 2.0/1.1 ports;3 x USB 3.2 Gen 1 ports;1 x USB Type-C® port, with USB 3.2 Gen 2 support |
| Audio Ports | 3 x audio jacks |
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | HDMI/Display port/D-sub |
| HDMI | 1 x HDMI Port |
| Onboard USB | |
| Onboard USB | N/A |
| Onboard 1394 | |
| Onboard 1394 | N/A |
| Physical Spec | |
| Form Factor | Micro ATX Form Factor |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Dimensions | 24.4cm x 24.4cm |
