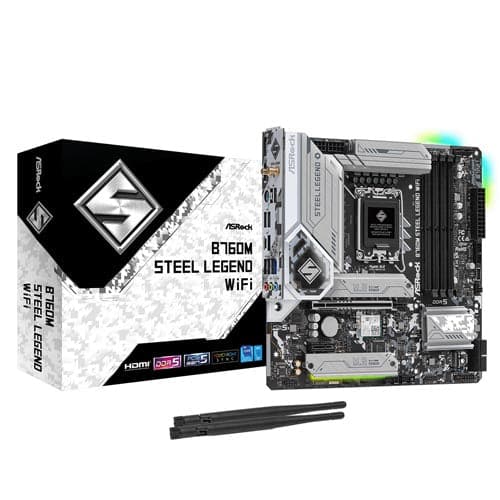

ASROCK B760M Steel Legend Wifi DDR5 Intel Motherboard

Name: ASROCK B760M Steel Legend Wifi DDR5 Intel Motherboard
Brand: ASROCK
SKU: Asrock-B760M-Steel-Legened-Wifi
Price: 14106.12 INR
Availability: InStock

Rs. 14,106.12 Rs. 19,999.00

Discount: Rs. 5,892.88 (29%)

20 people are viewing this right now

Hurry Up! Only 5 Left in Stock!

Out of stock >

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Dec 25 - Dec 29

Return within 30 days of purchase. Taxes are non-refundable.

Availability: In Stock Unavailable

Description
Additional Information
Shipping & Return
Reviews

Features of ASROCK B760M Steel Legend Wifi DDR5 Intel Motherboard

Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
12+1+1 Power Phase, Dr.MOS for VCore+GT Supports DDR5 7200MHz (OC)
1 PCIe 5.0 x16, 1 PCIe 4.0 x1
Graphics Output Options: HDMI, DisplayPort, eDP
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3, 3 Hyper M.2 (PCIe Gen4x4)
- 2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front),
- 1 USB 3.2 Gen2 Type-A (Rear),
- 6 USB 3.2 Gen1 (4 Rear, 2 Front),
- 6 USB 2.0 (2 Rear, 4 Front)
Dragon 2.5G LAN, 802.11ax (WiFi 6E) + Bluetooth 5.3
Supports ASRock Auto Driver Installer

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it’s able to support the latest memory modules with most extreme memory performance!

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

DDR5 XMP & EXPO Support

Derived from the “built for stable and reliable” designing concept, ASROCK B760M Steel Legend Wifi DDR5. This motherboards is built with low-loss materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel^® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

DDR5 Memory with Protection Circuit

Due to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.

PCIe 5.0 + Surface-Mount Tech

Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.

Reinforced Steel Slot
[PCIe 5.0 Version]

The reinforced steel slot is capable of supporting PCI Express 5.0 standard. The various benefits include:

Extra anchor points
Stronger latch
Ensure signal stability
Make sure heavy graphics cards to be well-installed.

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.

Static Noise Suppression
Echo Cancellation
Lateral Sound Cancellation
Voice Stabilizer

Sound Tracker

The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

Works on any devices!

Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.

POLYCHROME RGB

In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

High Speed M.2 Solution(PCIe Gen4 x4)

Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Dragon 2.5 Gb/s LAN

The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.

SMA cable is easy to loose, this is an unacceptable situation for every users. Now we fixed this issue with a little Key-E module cap.

Dual USB 3.2 Gen2 (Type-A + Type-C)

This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

Front USB 3.2 Gen2 Type-C

Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

Built in eDP Signal Connector Supports ASRock 13.3” Side Panel kit

An eDP signal connector is built with ASRock selected motherboards and supports two functions simultaneously – power and transmission of digital display signal. The connector reserves the room for upgrading with ASRock’s exclusive 13.3” Side Panel Kit.. The ideal 13.3″ Side Panel size will be perfectly matched standard form factor chassis and users can easily build a LCD display inside the PC, adding a sub-screen for monitoring PC status, or watching videos, doing streaming or working personalized tasks. This whole new concept of customization enables new possibilities for personalizing designs – doubles productivity or entertainment.

Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!

Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.

Specifications of ASROCK B760M Steel Legend Wifi DDR5 Intel Motherboard

Model	B760M-STEEL-LEGEND-WIFI
Brand	ASRock
Model	B760M Steel Legend WiFi
Supported CPU
CPU Socket Type	LGA 1700
CPU Type	Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700)
Chipsets
Chipset	Intel B760
Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 4800
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
Memory Feature	Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC)*
	1DPC 1R Up to 6800+ MHz (OC), 4800 MHz Natively.
	1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.
	2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively.
	2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
	Supports Intel Extreme Memory Profile (XMP) 3.0
	* Please refer to Memory Support List on ASRock’s website for more information. (http://www.asrock.com/)
Expansion Slots
PCI Express 5.0 x16	1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
PCI Express x1	1 x PCIe 4.0 x1 Slot (PCIE2)*

	* Supports NVMe SSD as boot disks
	15µ Gold Contact in VGA PCIe Slot (PCIE1)
Storage Devices
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	CPU:
	1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
	Chipset:
	1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
	1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

	* Supports Intel Volume Management Device (VMD)
	* Supports NVMe SSD as boot disks
SATA RAID	0/1/5/10
Onboard Audio
Audio Chipset	Realtek ALC897
Audio Channels	7.1 Channels
Onboard LAN
LAN Chipset	Dragon RTL8125BG
Max LAN Speed	2.5Gbps
Wireless LAN	802.11ax Wi-Fi 6E
Bluetooth	Yes
Rear Panel Ports
Back I/O Ports	1 x DisplayPort / 1 x HDMI / 1 x LAN (RJ45) / 1 x PS/2 / 1 x USB 3.2 Gen 2 Type-A / 1 x USB 3.2 Gen 2 Type-C / 2 x Antenna Bracket / 2 x USB 2.0/1.1 / 3 x Audio Jacks / 4 x USB 3.2 Gen 1 Type-A
Internal I/O Connectors
Onboard USB	2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
	1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
	1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
Other Connectors	1 x eDP Signal Connector
	1 x SPI TPM Header
	1 x Chassis Intrusion and Speaker Header
	1 x RGB LED Header*
	3 x Addressable LED Headers**
	1 x CPU Fan Connector (4-pin) ***
	1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) ****
	3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) *****
	1 x Front Panel Audio Connector

	* Supports in total up to 12V/3A, 36W LED Strip
	** Support in total up to 5V/3A, 15W LED Strip
	*** CPU_FAN1 supports the fan power up to 1A (12W).
	**** CPU_FAN2/WP supports the fan power up to 2A (24W).
	***** CHA_FAN1~3/WP support the fan power up to 2A (24W).
	***** CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.
Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	9.6″ x 9.6″
Power Pin	1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
	2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
Windows Compatibility
Windows 11	Supported
Features
Features	Superb Productivity
	PCIe Gen5 (Graphics)
	Dual Channel DDR5
	Rock-Solid Durability
	12+1+1 Power Phase, 50A Dr.MOS for VCore+GT
	Flexible Integrated I/O Shield
	Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) for VCore Ultrafast Connectivity
	2.5G LAN, 802.11ax Wi-Fi 6E Module
	EZ Update
	ASRock Auto Driver Installer
	EZ Troubleshooter
	ASRock Post Status Checker
Packaging
Package Contents	1 x User Manual
	2 x SATA Data Cables
	2 x ASRock WiFi 2.4/5/6 GHz Antennas
	3 x Screws for M.2 Sockets
	3 x Standoffs for M.2 Sockets
	ASRock Auto Driver Installer
**Features, Price and Specifications are subject to change without notice to customer.	EZ Troubleshooter
