Optimized VRM Design
SPS (Smart Power Stage)

Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.

10+1+1 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

10 Layer PCB

The 10 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!

DDR5 XMP & EXPO Support

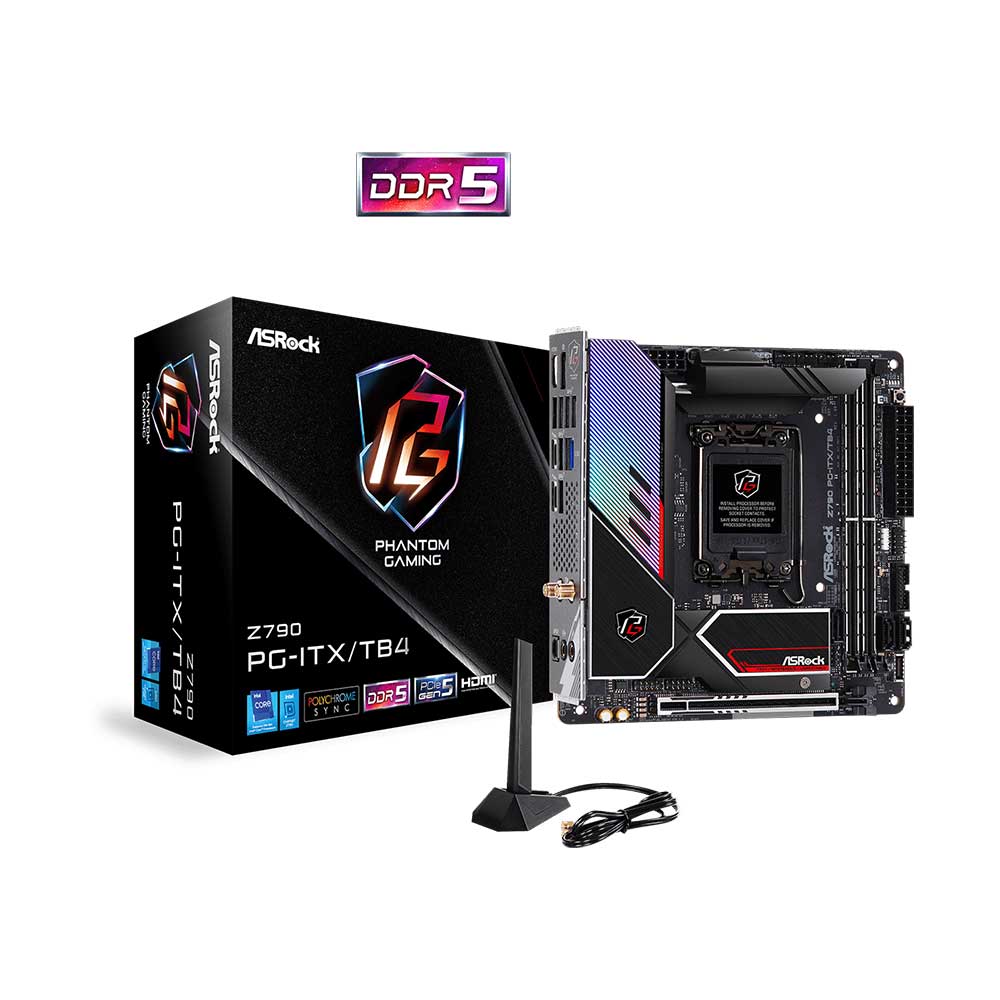

Derived from the “built for stable and reliable” designing concept, ASROCK Z790 PG-ITX/TB4 does not compromise on any details. This motherboards is built with low-loss materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

DDR5 Memory with Protection Circuit

Reinforced DIMM Slot

The reinforced DIMM slot is surfaced mounted onto the motherboard to give better physical strength as well as a more stable memory signal, with this superior revolutionary design, it is able to dramatically overclock DRAM module up to insane frequency.

DIY Friendly Design

Due to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.

PCIe 5.0 + Surface-Mount Tech

Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.

KiLLER E3100 + AX1675

The Killer Ethernet controller is designed specially for competitive gamers and performance-hungry users, this motherboard comes with both Killer E3100 2.5G Ethernet & WiFi 6E solution, the enhanced detection and prioritization engine provides the ultimate networking experience for gaming and multimedia applications.

KiLLER Doubleshot Pro

Killer DoubleShot Pro allows the use of both the Killer Wireless and Killer Ethernet interfaces work at the same time which will give the end user max throughput as high as 4.9 Gbps, it automatically utilizes the fastest network connection for high priority traffic, this ensures the highest priority traffic will always be put on the fastest and most reliable link.

Benefits

Killer DoubleShot Pro allows the use of both the Killer Wireless and Killer Ethernet interfaces work at the same time which will give the end user max throughput as high as 4.9 Gbps, it automatically utilizes the fastest network connection for high priority traffic, this ensures the highest priority traffic will always be put on the fastest and most reliable link.

Thunderbolt™ 4/USB4 Type-C

Thunderbolt™ 4/USB4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects external monitors, Thunderbolt™, and USB devices with a single Thunderbolt 4 cable.

Fast Charging Technology

Enjoy the superfast charging rate, up to 9V@3A 27W with the next generation PD 3.0!

POLYCHROME RGB

This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects

Wi-Fi 6E 802.11ax

WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.

Front USB 3.2 Gen2x2 Type-C

The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
