GIGABYTE B650M D3HP DDR5 AMD Motherboard

GIGABYTE B650M D3HP DDR5 AMD Motherboard

Name: GIGABYTE B650M D3HP DDR5 AMD Motherboard
Brand: Gigabyte
SKU: Gigabyte-B650M-D3HP
Price: 10544.8 INR
Availability: InStock

Rs. 10,544.80 Rs. 17,200.00

Discount: Rs. 6,655.20 (39%)

20 people are viewing this right now

Hurry Up! Only 15 Left in Stock!

Out of stock >

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Dec 25 - Dec 29

Return within 30 days of purchase. Taxes are non-refundable.

Availability: In Stock Unavailable

Description
Additional Information
Shipping & Return
Reviews

Features Of GIGABYTE B650M D3HP

AMD Socket AM5：GIGABYTE B650M D3HP DDR5 AMD Ryzen™ 7000 Series Processors
Unparalleled Performance：5+2+2 Phases Digital VRM Solution
Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
EZ-Latch：PCIe x16 Slot with Quick Release Design
Fast Networks：2.5GbE LAN
Extended Connectivity：2*DP, HDMI
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Durable Performance

GIGABYTE B650M D3HP Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.

Future Connectivity

The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage

2.5GbE LAN

Supercharge your gaming with Gigabyte B650M D3HP 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition

PCIe 4.0 Hardware Design

Gigabyte B650M D3HP Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance

High-End Audio Capacitors

Gigabyte B650M D3HP motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

Gigabyte B650M D3HP motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level

GIGABYTE Control Center

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.

Unified software platform for all Gigabyte supported products
Intuitive user interface for an eased experience
Modularized control components only for installed hardware
Auto update function to keep system up to date and support future products

Specifications Of GIGABYTE B650M D3HP

Model
Brand	GIGABYTE
Model	B650M D3HP
Supported CPU
CPU Socket Type	AM5
CPU Type	Ryzen 7000 Series
Chipsets
Chipset	AMD B650
Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
Maximum Memory Supported	192GB
Channel Supported	Dual Channel
ECC Supported	Non-ECC
Buffer Supported	Un-buffered
Memory Feature	4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for AMD Extended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
	(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
Expansion Slots
PCI Express 4.0 x16	CPU:
PCI Express 4.0 x16	– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
PCI Express x1	Chipset:
PCI Express x1	– 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Devices
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	Integrated in the CPU:
	– 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
	Chipset:
	– 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)
SATA RAID	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
SATA RAID	RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Onboard Audio
Audio Chipset	Realtek Audio CODEC
	High Definition Audio
	2/4/5.1/7.1-channel
	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Audio Channels	7.1 Channels
Onboard LAN
LAN Chipset	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Max LAN Speed	2.5Gbps

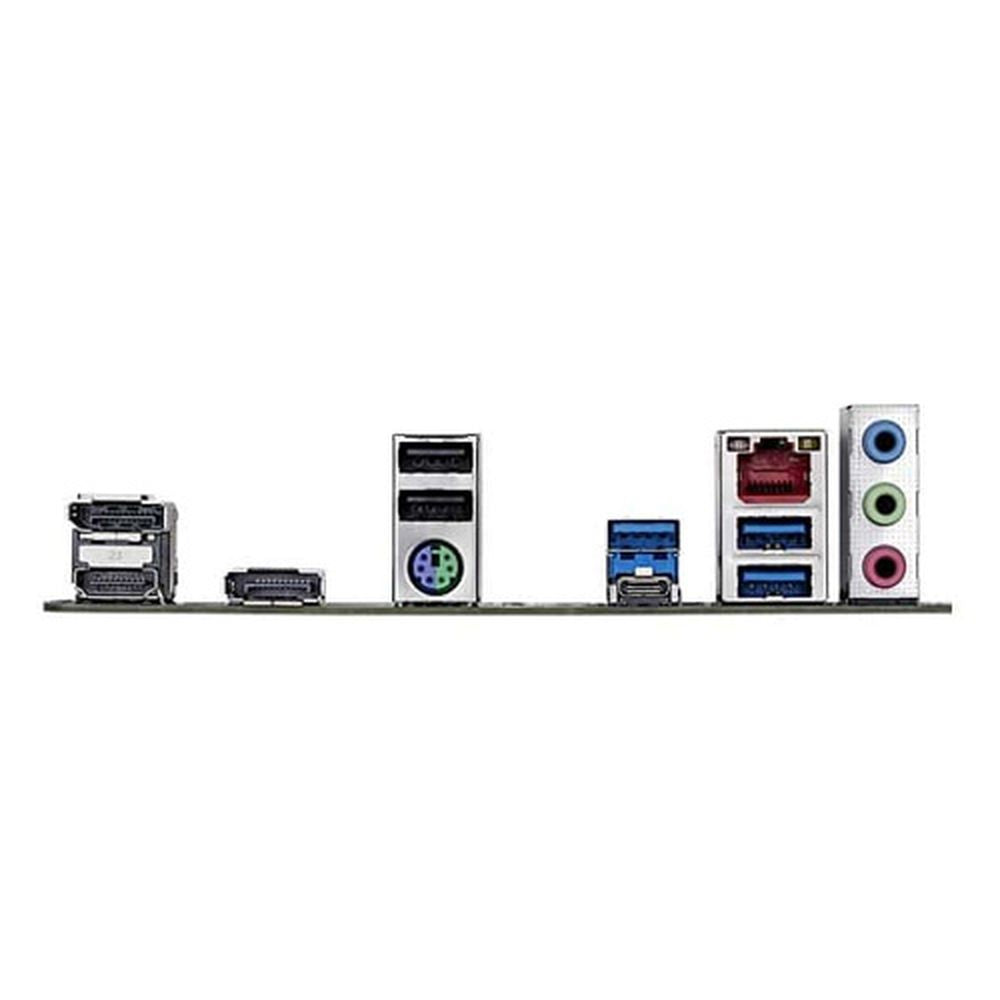

Rear Panel Ports
Back I/O Ports	1 x PS/2 keyboard/mouse port
	1 x USB Type-C port, with USB 3.2 Gen 1 support
	3 x USB 3.2 Gen 1 ports
	2 x USB 2.0/1.1 ports
	1 x HDMI port
	2 x DisplayPorts
	1 x RJ-45 port
	3 x audio jacks
Internal I/O Connectors
Onboard USB	1 x USB Type-C header, with USB 3.2 Gen 1 support
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header
	2 x system fan headers
	2 x addressable LED strip headers
	1 x RGB LED strip header
	2 x M.2 Socket 3 connectors
	4 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
	1 x Q-Flash Plus button
	1 x reset jumper
	1 x Clear CMOS jumper
Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	9.6″ x 9.6″
Power Pin	1 x 24-pin ATX main power connector
Power Pin	1 x 8-pin ATX 12V power connector
Windows 11 Compatibility
Windows 11	Supported
Features
Features	Support for GIGABYTE Control Center (GCC)
	* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

	Support for Q-Flash
	Support for Q-Flash Plus
