Description
Features Of GIGABYTE B650M D3HP
-
AMD Socket AM5：GIGABYTE B650M D3HP DDR5 AMD Ryzen™ 7000 Series Processors
Unparalleled Performance：5+2+2 Phases Digital VRM Solution
Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
EZ-Latch：PCIe x16 Slot with Quick Release Design
Fast Networks：2.5GbE LAN
Extended Connectivity：2*DP, HDMI
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Durable Performance
GIGABYTE B650M D3HP Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage
2.5GbE LAN
Supercharge your gaming with Gigabyte B650M D3HP 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition
PCIe 4.0 Hardware Design
Gigabyte B650M D3HP Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance
High-End Audio Capacitors
Gigabyte B650M D3HP motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
Gigabyte B650M D3HP motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level
GIGABYTE Control Center
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.
- Unified software platform for all Gigabyte supported products
- Intuitive user interface for an eased experience
- Modularized control components only for installed hardware
- Auto update function to keep system up to date and support future products
Specifications Of GIGABYTE B650M D3HP
| Model | |
| Brand | GIGABYTE |
| Model | B650M D3HP |
| Supported CPU | |
| CPU Socket Type | AM5 |
| CPU Type | Ryzen 7000 Series |
| Chipsets | |
| Chipset | AMD B650 |
| Memory | |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules |
| Maximum Memory Supported | 192GB |
| Channel Supported | Dual Channel |
| ECC Supported | Non-ECC |
| Buffer Supported | Un-buffered |
|
Memory Feature
|
4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory |
| Dual channel memory architecture | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for AMD Extended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules | |
| (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.) | |
| Expansion Slots | |
|
PCI Express 4.0 x16
|
CPU: |
| – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 | |
|
PCI Express x1
|
Chipset: |
| – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 | |
| Storage Devices | |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
|
M.2
|
Integrated in the CPU: |
| – 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) | |
| Chipset: | |
| – 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB) | |
|
SATA RAID
|
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices |
| RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
| Onboard Audio | |
|
Audio Chipset
|
Realtek Audio CODEC |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| Audio Channels | 7.1 Channels |
| Onboard LAN | |
| LAN Chipset | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Max LAN Speed | 2.5Gbps |
| Rear Panel Ports | |
|

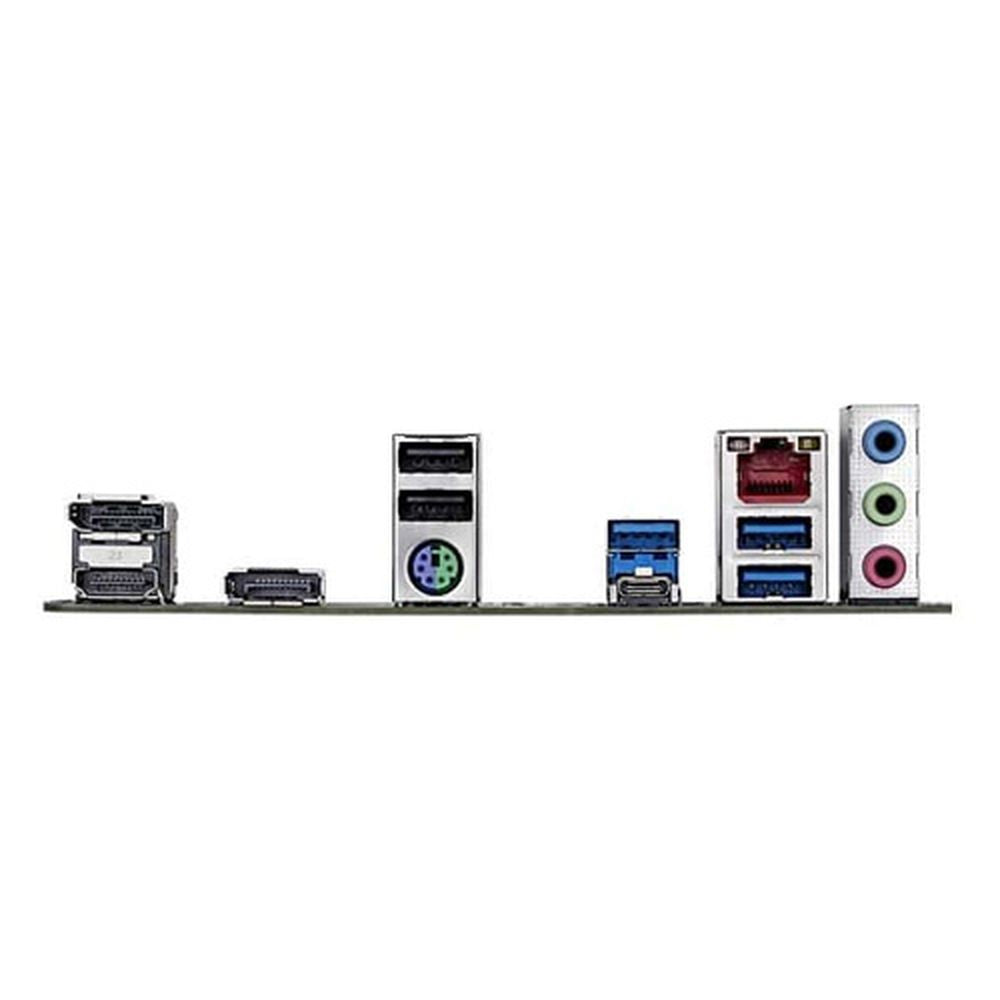

Back I/O Ports
|
1 x PS/2 keyboard/mouse port |
| 1 x USB Type-C port, with USB 3.2 Gen 1 support | |
| 3 x USB 3.2 Gen 1 ports | |
| 2 x USB 2.0/1.1 ports | |
| 1 x HDMI port | |
| 2 x DisplayPorts | |
| 1 x RJ-45 port | |
| 3 x audio jacks | |
| Internal I/O Connectors | |
|
Onboard USB
|
1 x USB Type-C header, with USB 3.2 Gen 1 support |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
|
Other Connectors
|
1 x CPU fan header |
| 2 x system fan headers | |
| 2 x addressable LED strip headers | |
| 1 x RGB LED strip header | |
| 2 x M.2 Socket 3 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| 1 x Q-Flash Plus button | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |
| Physical Spec | |
| Form Factor | Micro ATX |
| Dimensions (W x L) | 9.6″ x 9.6″ |
|
Power Pin
|
1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| Windows 11 Compatibility | |
| Windows 11 | Supported |
| Features | |
|
Features
|
Support for GIGABYTE Control Center (GCC) |
| * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| Support for Q-Flash | |
| Support for Q-Flash Plus | |
