MSI Pro B650M-B DDR5 AMD Motherboard

Name: MSI Pro B650M-B DDR5 AMD Motherboard
Brand: MSI
SKU: MSI-Pro-B650M-B
Price: 8431.56 INR
Availability: InStock

Rs. 8,431.56 Rs. 14,246.00

Discount: Rs. 5,814.44 (41%)

Out of stock >

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Jan 08 - Jan 12

Availability: In Stock Unavailable

Description
Additional Information
Shipping & Return
Reviews

Features Of MSI Pro B650M-B

Ryzen 7000 READY – The MSI PRO B650M-B is a compact Micro-ATX motherboard outfitted with the AMD B650 chipset (AM5, Ryzen 7000 ready); The VRM features MSI Core Boost technology for improved stability & performance
PASSIVE & AI COOLING – A chipset heatsinks provide passive cooling; Frozr AI cooling automatically adjusts system fan settings based on CPU & GPU temperatures
DDR5 MEMORY, PCI-E 4.0 x16 SLOT – 2 x DDR5 DIMM SMT slots enable high-speed memory and improve signal clarity (1DPC 1R, 6800+ MHz); Primary PCIe x16 slot supports PCIe 4.0 (64GB/s) and includes Steel Armor
GEN4 M.2 CONNECTOR – Storage options include 1 x M.2 Gen4 x4 64Gbps slot for hyper-fast SSD access
WELL CONNECTED – Network hardware includes 2.5Gbps LAN; Rear ports include USB 3.2 Gen 1 Type-A (5Gbps), HDMI 2.1, VGA, and 7.1 HD Audio with Audio Boost

Chipset Heatsink

The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.

CORE BOOST

Core Boost technology combines MSI’s premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.

Once connected to the internet, MSI Driver Utility Installer will detect and present suitable drivers and utilities automatically, you can download and install with just a few clicks

LIGHTNING GEN 4 PCI-E

MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.

REINFORCED, HEAVY SOLDERED CONNECTIONS

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

FAST AND FUTURE-READY STORAGE

MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

LATEST DDR5 MEMORY WITH SMT SLOT

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MSI PRO Series motherboards are ready to deliver the world class memory performance.

The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.

EASY OVERCLOCKING WITH EXPO PROFILE

MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Easy to enable EXPO profile with auto power settings to get the best memory speed and stability.

AUDIO BOOST

THE ISOLATED ANALOGY STRUCTURE FOR AUDIO CONNECTORS

To provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.

EXTEND YOUR RGB EXPERIENCE WITH EASE

Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

Supports AMD Ryzen™ 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

Specifications Of MSI Pro B650M-B

Model Name	PRO B650M-B
Chipset	AMD B650
CPU	Supports AMD Ryzen 8000/ 7000 Series Desktop Processors Socket AM5
Memory	2x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
Onboard Graphics	1x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Slot	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage	1x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)
LAN	Realtek® RTL8125BG 2.5G LAN
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Internal IO	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports
LED FEATURE	4x EZ Debug LED

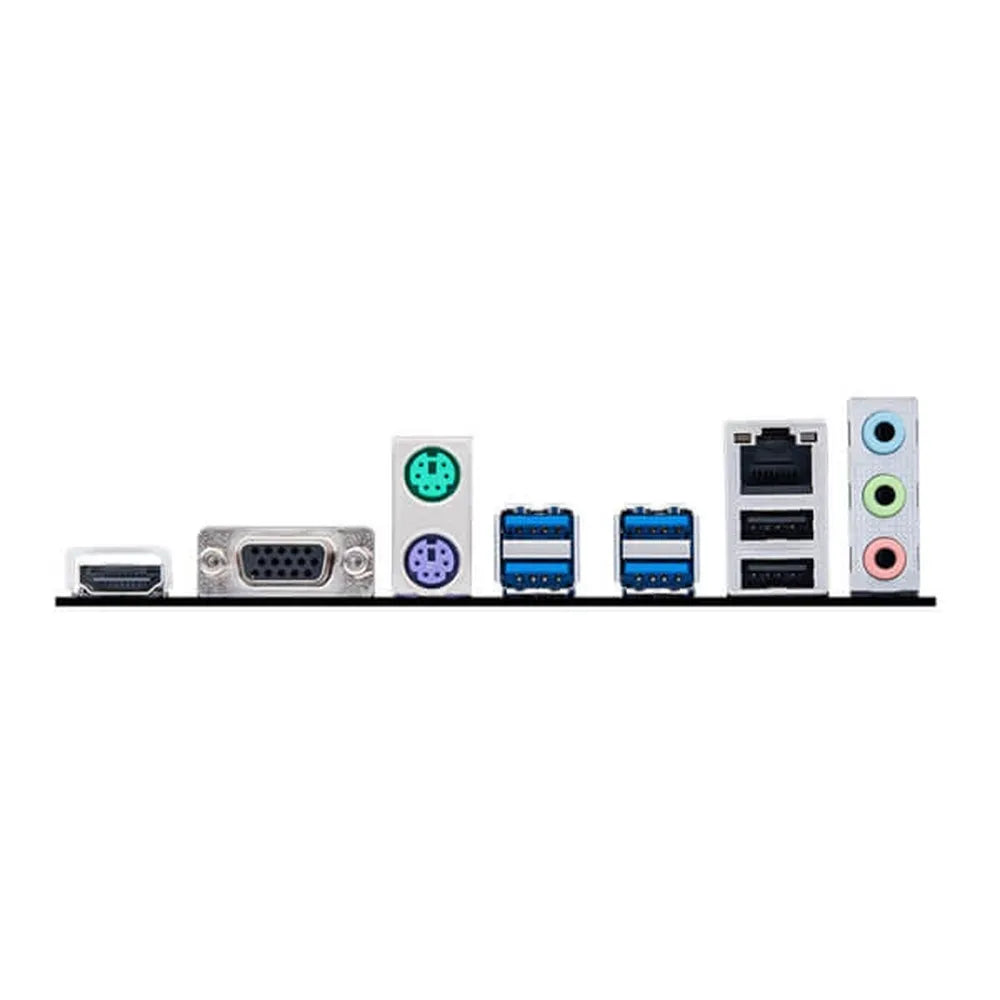

BACK PANEL PORTS	HDMI™ VGA Keyboard/Mouse USB 3.2 Gen 1 5Gbps (Type-A) LAN port Audio connectors USB 2.0
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info	mATX 215mmx243.84mm
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.
