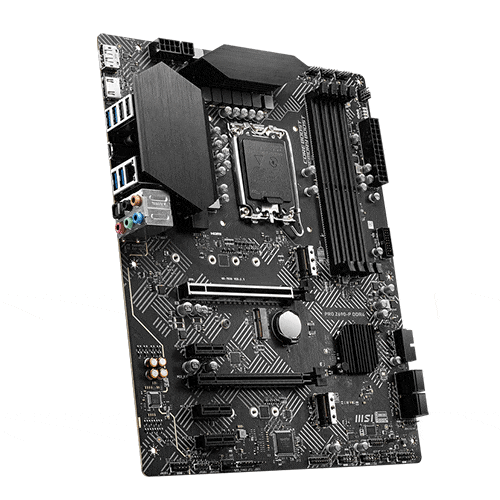

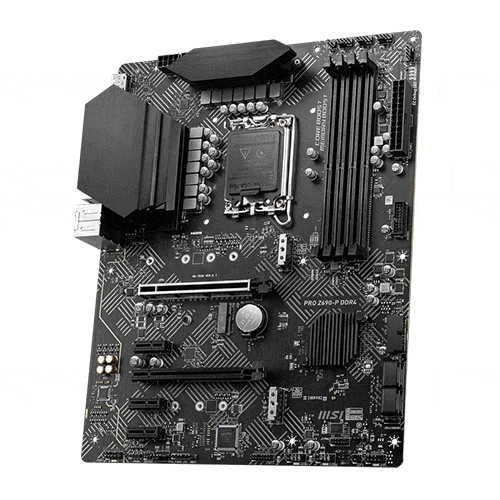

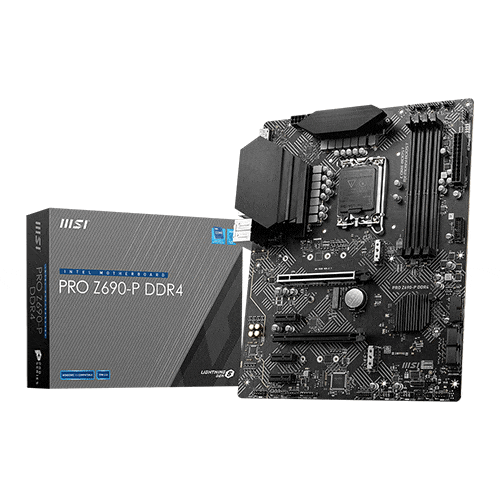

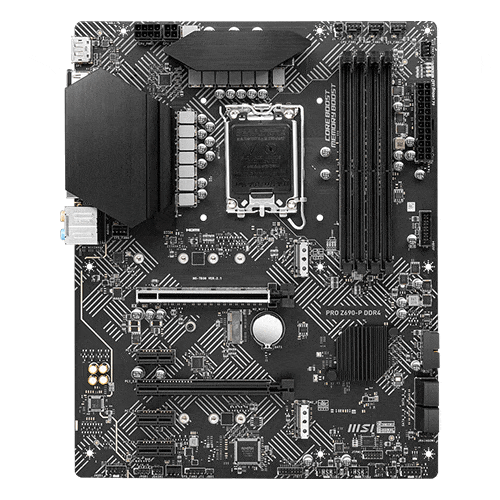

MSI Pro Z690-P DDR4 Intel Motherboard

Name: MSI Pro Z690-P DDR4 Intel Motherboard
Brand: MSI
SKU: msi-pro-z690-p
Price: 16767.8 INR
Availability: OutOfStock

Rs. 16,767.80 Rs. 27,000.00

Discount: Rs. 10,232.20 (38%)

19 people are viewing this right now

Hurry Up! Only 0 Left in Stock!

Out of stock >

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Dec 26 - Dec 30

Return within 30 days of purchase. Taxes are non-refundable.

Availability: In Stock Unavailable

Description
Additional Information
Shipping & Return
Reviews

Feature of MSI Pro Z690-P DDR4 Intel Motherboard

Supports 12th Gen Intel^® Core™, Pentium^® Gold and Celeron^® processors for LGA 1700 socket
Supports DDR4 Memory, up to 5000+(OC) MHz
Core Boost : With premium layout and digital power design to support more cores and provide better performance.
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
Lightning Fast Experience: PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2x2
Premium Thermal Solution: Extended Heatsink Design and MOSFET thermal pads rated for 7W/mk are built for high performance system and non-stop works
2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Audio Boost: Reward your ears with studio grade sound quality
High Quality PCB: 6-layer PCB and server grade level material
Multi-GPU: With Steel armor PCI-E slots. Supports AMD Crossfire™

Cooling

MSI Pro Z690-P DDR4 extended PWM heat sink with 7W/mK thermal padding ensures even power-hungry processors can run at full speed.

Total Fan Control

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to four temperature targets for the CPU and motherboard, facilitating automatic adjustment of fan speeds.

FROZR AI Cooling

FROZR AI Cooling detects CPU and GPU temperatures and automatically adjusts the system fans to optimal speed via the MSI AI ENGINE.

Optimized for Liquid Cooling

Designed to support popular all-in-one and custom liquid cooling solutions, this motherboard sports a dedicated fan pump PIN header for full control of pump speed. Additionally, a clearly marked keep-out-zone allows for easy and safe installation and a perfect fit.

EZ Debug LCD

Running into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get up and running again.

Keep Out Zone

MSI motherboard circuitry ensures the case standoff keep out zones are pure and clean, preventing any component contact or damage to the motherboard. Plus, protective paint is printed around each screw hole to prevent parts from being scratched.

Compatible by Design

In addition to supporting 12th Gen Intel Core processors, this motherboard has been tested for stability and compatibility with a range of memory modules. Plus, the PRO Z690-P DDR4 is Windows 11 certified.

MSI LAN Manager

MSI LAN Manager automatically classifies and prioritizes latency-sensitive applications for online games, ensuring latency doesn't derail the action. Plus, change applications' traffic priority or customize bandwidth for each application.

PCIe 5.0

The PCIe 5.0 x16 interface ensures speeds up to 128 GB/s, which is double the speed of the previous generation. Additionally, the advanced SMT (Surface Mount Technology) PCIe slot diminishes interference and electrical noise while also supporting the higher bandwidth and faster transfer speeds of PCIe 5.0.

Optane: Boost Your HDD

PC Enthusiasts can now enjoy the performance of an SSD on their HDD by coupling it with an Intel Optane Memory device. Intel Optane technology provides a combination of high throughput, low latency, high quality of service, and high endurance.

Mystic Light Extension

Add more color if you want suing the Mystic Light Extension pin header. This header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system without needing a separate RGB controller.

Memory Boost and XMP Support

Extreme Memory Profile (XMP) support in the BIOS is tested and certified by MSI OC LAB. Easily enable auto power settings to get the best memory speed and stability.

Core Boost

Core Boost technology combines the motherboard layout and optimized power design for fast, precise, and undistorted current delivery to the CPU. This design supports multicore CPUs, while also allowing for streamlined overclocking.

Specifications of MSI Pro Z690-P DDR4 Intel Motherboard

Processor	Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors Processor socket LGA1700 Please go to msi.com to get the newest support status as new processors are released.
Chipset	Intel® Z690 Chipset
Memory	4x DDR4 memory slots, support up to 128GB 1 Supports 2133/ 2666/ 3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5000+ MHz 1DPC 2R Max speed up to 4600+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) Please refer www.msi.com for more information on compatible memory
Expansion Slot	2x PCIe x16 slots PCI_E1 slot (From CPU) Support PCIe 5.0 x16 PCI_E3 (From Z690 chipset) Support PCIe 3.0 x4 3x PCIe 3.0 x1 slots (Fom Z690 chipset) 1x M.2 slot with E key for Intel® Wireless-AX CNVi and PCIe WiFi module
Onboard Graphics	1x HDMI 1.4b with HDR port, supports a maximum resolution of 4K 30Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Multi-GPU	Supports AMD CrossFire™ Technology
Storage	4x SATA 6Gb/s ports (From Z690 chipset) 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (From Z690 chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel® Optane™ Memory
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB	Intel® Z690 Chipset 8x USB 3.2 Gen 1 5Gbps ports (4 Type-A port on the back panel and 4 ports available through the internal USB connectors) 6x USB 2.0 ports (2 Type-A port on the back panel and 4 ports available through the internal USB connectors) 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
Audio	Realtek®ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
LAN	1x Realtek® RTL8125BG 2.5Gbps LAN controller
Internal connectors	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 4x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Clear CMOS jumper 1x TBT connector (Supports RTD3)
LED FEATURE	1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 4x EZ Debug LED

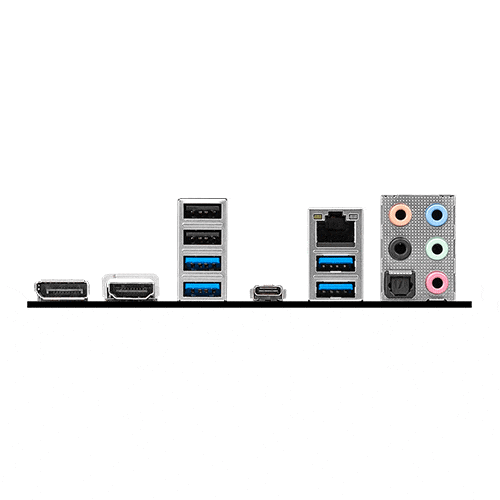

Back panel ports	DisplayPort HDMI USB 2.0 LAN port Audio Connectors USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2x2 20Gbps Type-C USB 3.2 Gen 1 5Gbps Type-A Optical S/PDIF Out
Dimensions	ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.
