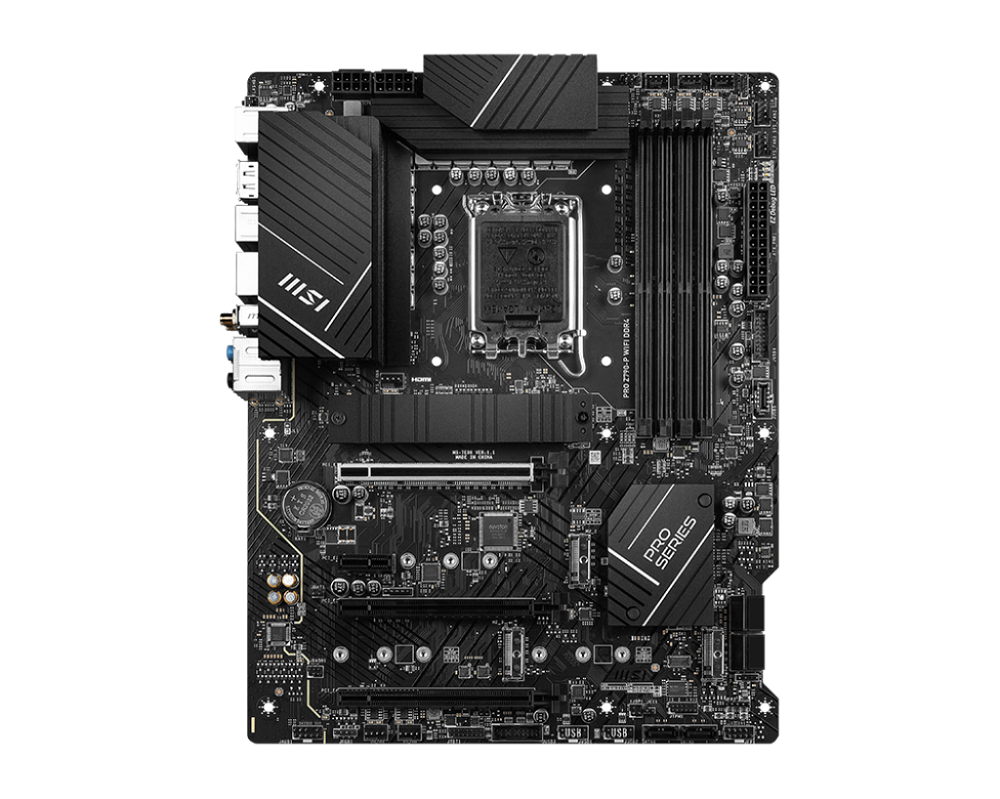

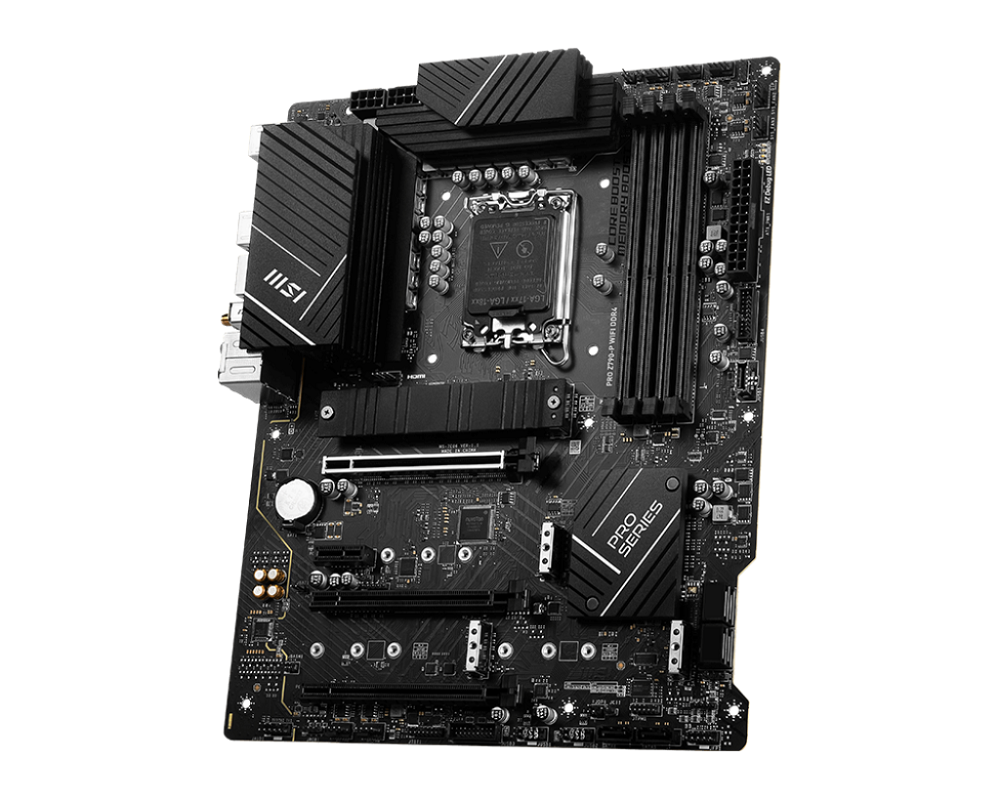

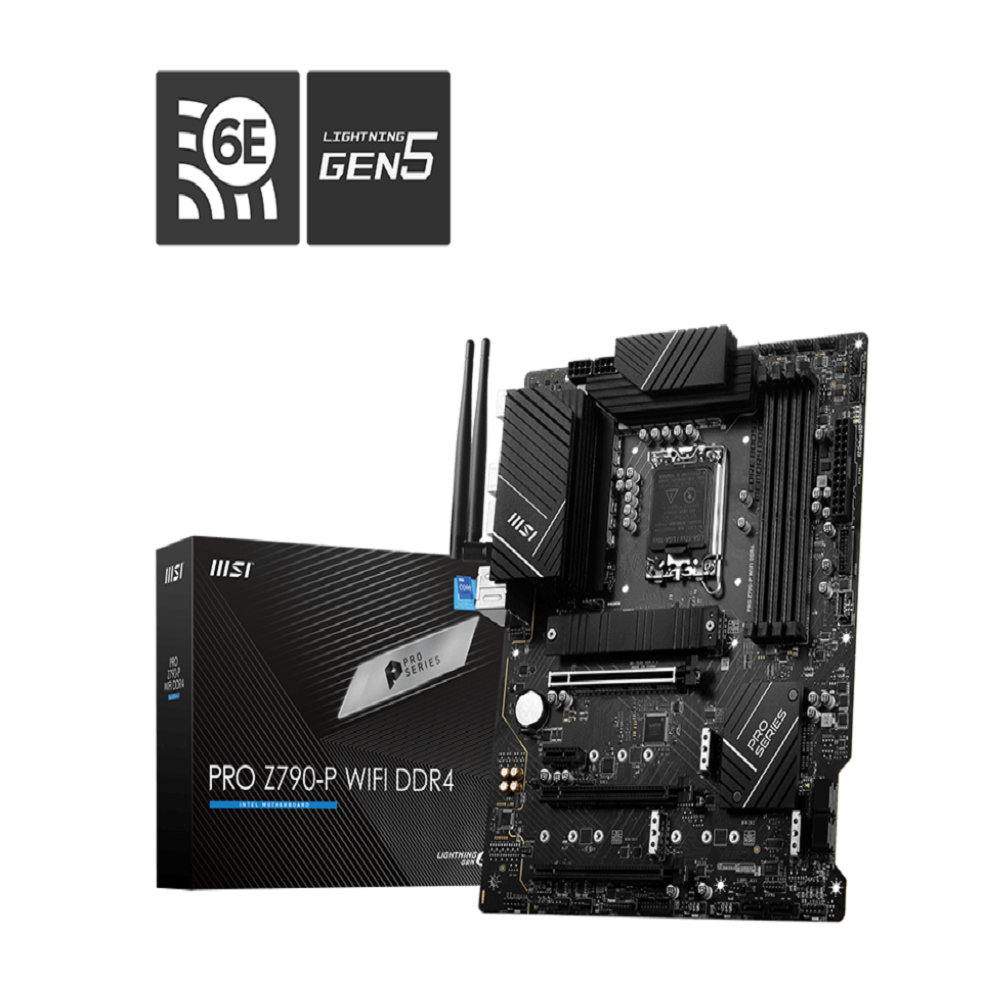

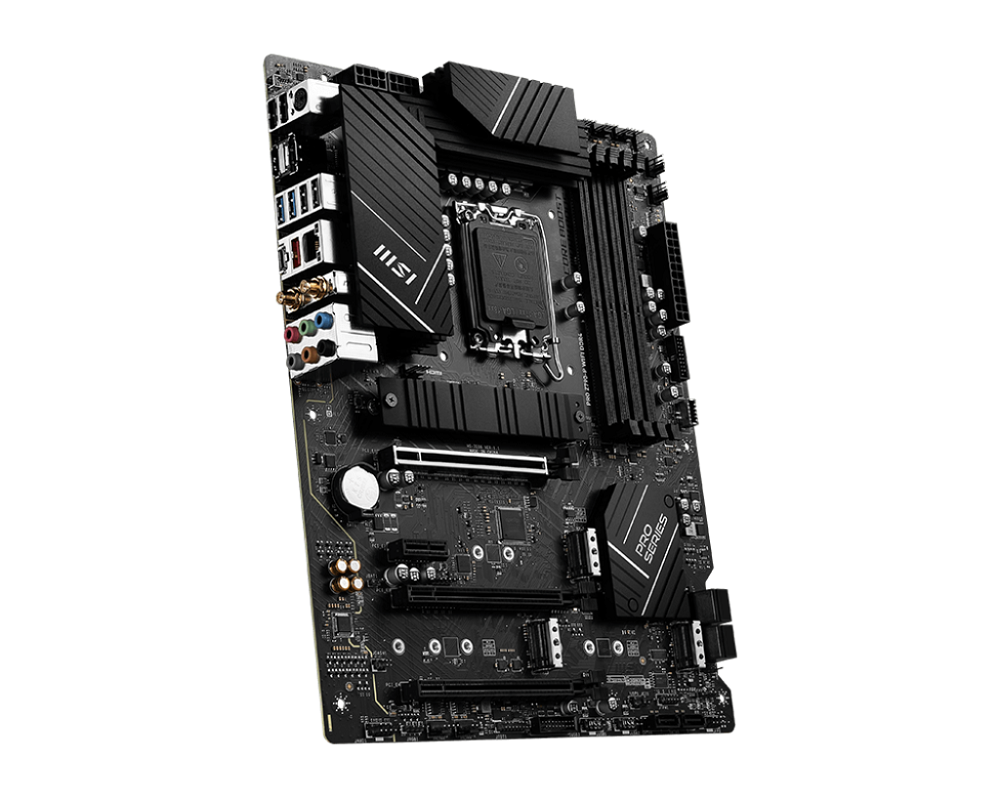

MSI Pro Z790-P Wifi DDR4 Intel Motherboard

MSI Pro Z790-P Wifi DDR4 Intel Motherboard

Name: MSI Pro Z790-P Wifi DDR4 Intel Motherboard
Brand: MSI
SKU: MSI-Pro-Z790-P-Wifi-DDR4
Price: 17782.1 INR
Availability: OutOfStock

Rs. 17,782.10 Rs. 41,899.00

Discount: Rs. 24,116.90 (58%)

10 people are viewing this right now

Hurry Up! Only 0 Left in Stock!

Out of stock >

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Dec 26 - Dec 30

Return within 30 days of purchase. Taxes are non-refundable.

Availability: In Stock Unavailable

Description
Additional Information
Shipping & Return
Reviews

Features Of MSI Pro Z790-P Wifi DDR4 Intel Motherboard

Supports 12th/13th Gen Intel^® Core™, Pentium^® Gold and Celeron^® processors for LGA 1700 socket
MSI Pro Z790-P Wifi DDR4 Memory, Dual Channel DDR4 5333+MHz (OC)
Enhanced Power Design: 14+1+1 DRPS with 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

Business Elegance

For creative professionals looking forward to increasing productivity and improving efficiency, the MSI PRO Z790-P WIFI DDR4 offers a quality platform with the capacity to support a broad spectrum of both cutting-edge and innovative hardware.

Supports Intel Core 12th & 13th Gen Processors

The PRO Z790-P WIFI DDR4 motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors.

Form Factor: ATX

Socket Type: LGA 1700

Chipset: Intel Z790

14 Duet Rail Power System with 55A DrMOS

With its dual 8-pin power connectors and exclusive Core Boost technology, the PRO Z790-P WIFI DDR4 is able to sustain heavy CPU power loads to support system-demanding settings:

1. Digital PWM IC

2. 14 Duet Rail CPU Power System with 55A DrMOS

3. 1-Phase GT Power

4. 1-Phase AUX Power

Integrated Cooling Features

VRM Cooling: Features an Extended Heatsink design and 7W/mK MOSFET thermal pads for improved thermal dissipation.

PCB Cooling: A 6-layer server-grade printed circuit design with 2 oz. thickened copper improves heat dissipation & performance.

SSD Cooling: M.2 Shield Frozr prevents thermal throttling.

System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header.

Fortified PCI-e 5.0 x16 Slot

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:

1 x PCI-e 5.0/4.0/3.0 x16 slot* (with Steel Armor**) 1 x PCI-e 4.0/3.0 x16 slot* *Supports x16/x4 **MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

Lightning Gen4 M.2 Connectors

The PRO Z790-P WIFI DDR4 motherboard features MSI’s latest M.2 slots:

4 x Gen4 x4 64Gb/s slots

M.2 Shield Frozr

Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

M.2 Shield Frozr: MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

4 x DDR4 Dual Channel (5333 MHz OC)

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability. *1DPC 1R Max. overclocking frequency 5333+ MHz, supports Intel XMP.

Wi-Fi 6E & Bluetooth 5.2

2.5G LAN: A 2.5Gbps LAN controller delivers a premium network gaming experience.

Wi-Fi 6E: Features the latest Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology.

USB 3.2 Gen 2×2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gb/s.

HD Audio: 7.1-Channel High Definition Audio with Audio Boost.

Specifications Of MSI Pro Z790-P Wifi DDR4 Intel Motherboard

CHIPSET	INTEL Z790
CPU SUPPORT	Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700
MEMORY	4x DDR4, Maximum Memory Capacity 128GB Memory Support 5333/5200/5066/5000/4800/4600/4533/4400/ 4266/4000/3866/3733/3600/3466/3333(O.C.)/3200/3000/2933/ 2800/2666/2400/2133(By JEDCE & POR) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHzSupports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
ONBOARD GRAPHICS	1x HDMI™ 1x DisplayPort Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT	3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 PCIe 3.0 supports up to x1 (From Chipset)
STORAGE	4x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G port
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN	Intel® 2.5Gbps LAN
WIRELESS / BLUETOOTH	Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3, FIPS, FISMA* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
AUDIO	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
INTERNAL I/O	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 4x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C
LED FEATURE	4x EZ Debug LED

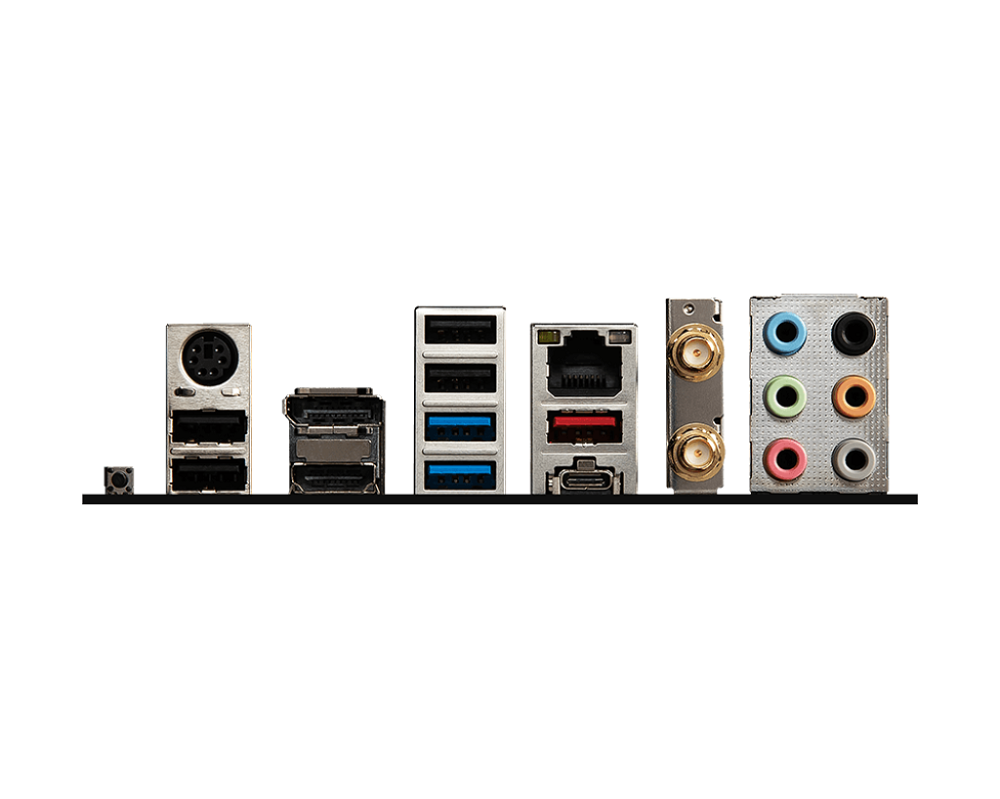

BACK PANEL PORTS	Keyboard / Mouse DisplayPort USB 2.0 2.5G LAN Wi-Fi / Bluetooth Audio Connectors Flash BIOS Button USB 2.0 HDMI™ USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2x2 20Gbps (Type-C) USB 3.2 Gen 2 10Gbps (Type-A)
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB DIMENSION	ATX 243.84mm x 304.8mm
