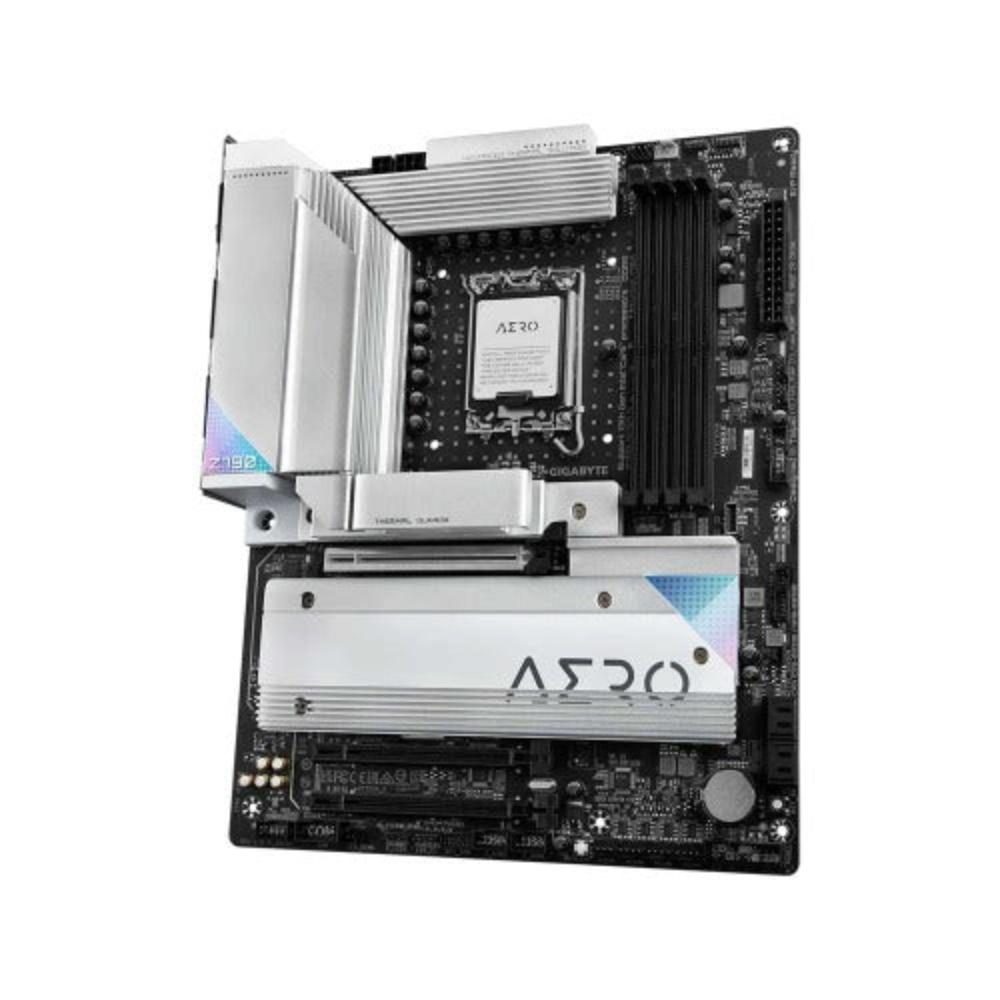

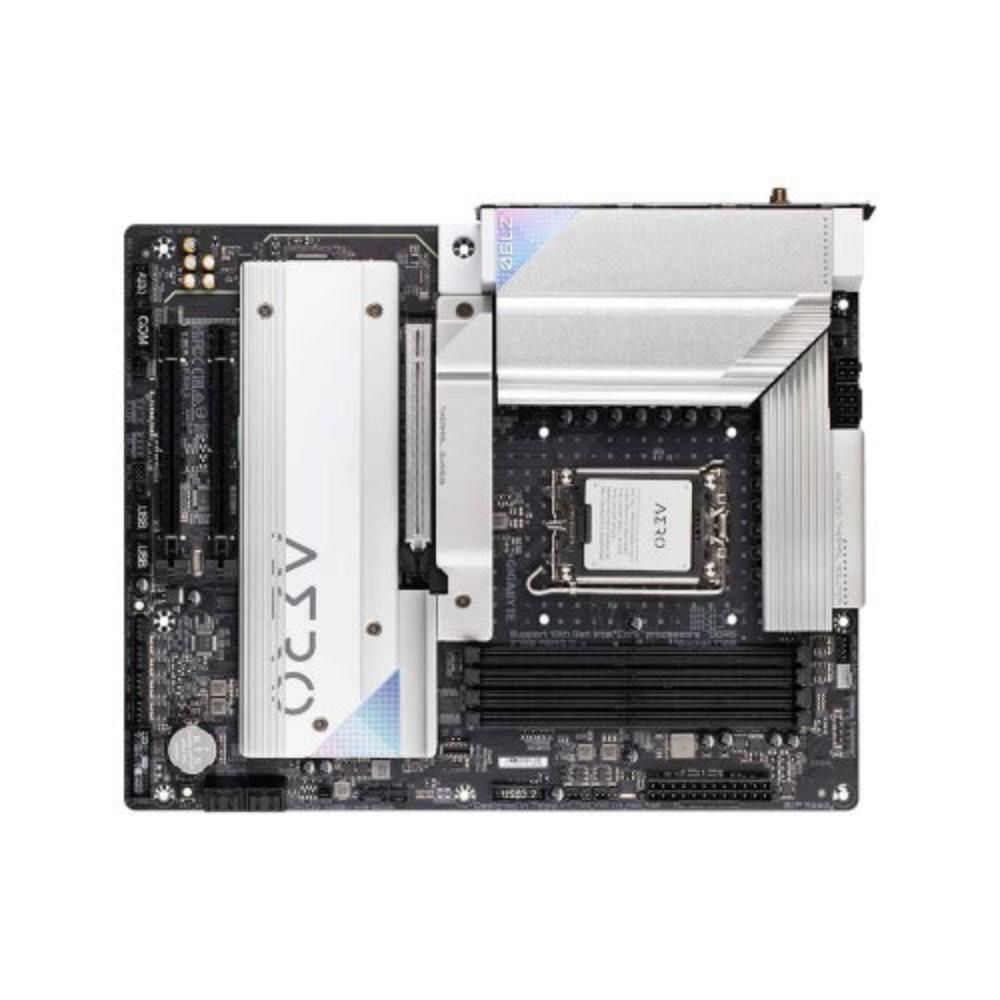

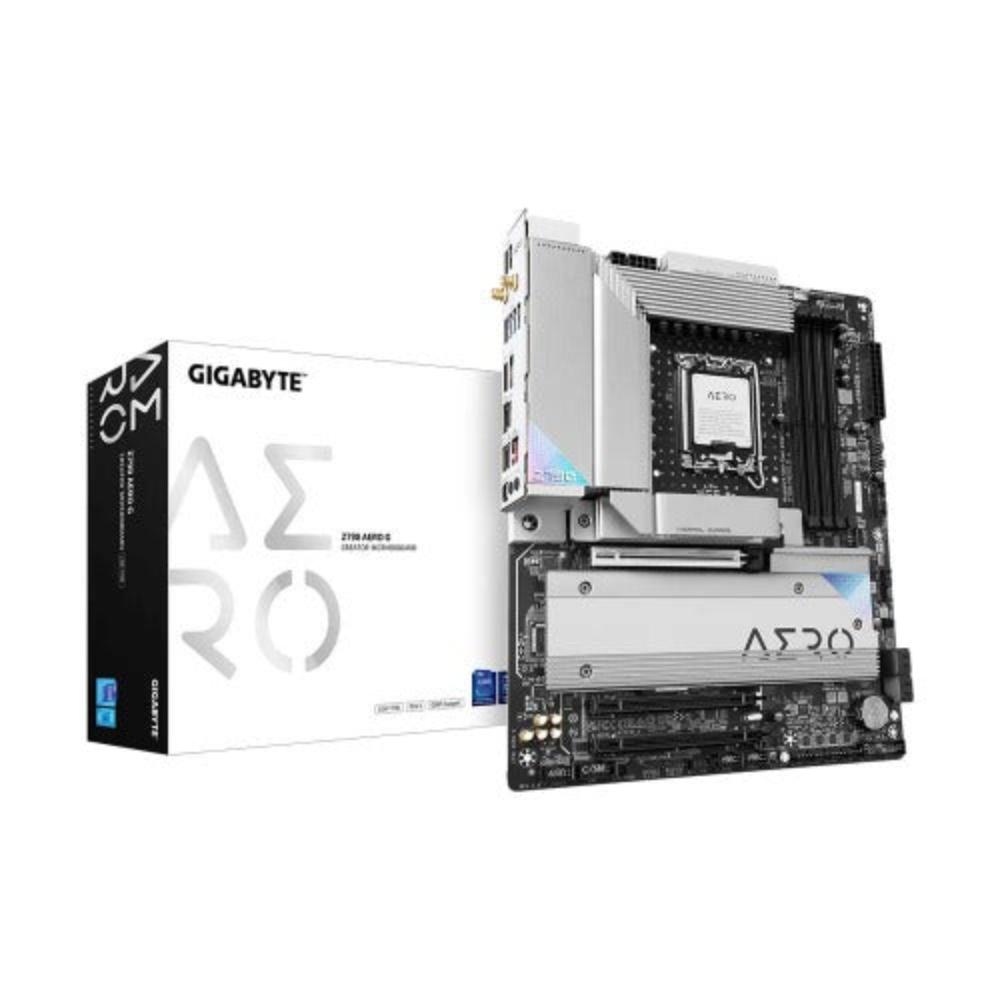

GIGABYTE Z790 Aero G DDR5 Intel Motherboard

GIGABYTE Z790 Aero G DDR5 Intel Motherboard

Name: GIGABYTE Z790 Aero G DDR5 Intel Motherboard
Brand: Gigabyte
SKU: Gigabyte-Z790-AERO-G-DDR5
Price: 32295.9 INR
Availability: OutOfStock

Rs. 32,295.90 Rs. 54,990.00

Discount: Rs. 22,694.10 (41%)

21 people are viewing this right now

Hurry Up! Only 0 Left in Stock!

Out of stock >

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Dec 25 - Dec 29

Return within 30 days of purchase. Taxes are non-refundable.

Availability: In Stock Unavailable

Description
Additional Information
Shipping & Return
Reviews

Features of GIGABYTE Z790 Aero G DDR5 Intel Motherboard

Supports 13th and 12th Gen Intel^® Core™ Series Processors

VisionLINK :

One USB-C^® Port for Video, Data Transfer and Charging

Dual Channel DDR5 :

4*SMD DIMMs with XMP Memory Module Support

Next Generation Storage :

1*PCIe 5.0 x4 and 4*PCIe 4.0 x4 M.2 Connectors

Advanced Thermal Design & M.2 Thermal Guard III :

To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance

EZ-Latch Plus:

M.2 Connectors with Quick Release & Screwless Design

Fast Networks :

Intel^® 2.5GbE LAN & Wi-Fi 6E 802.11ax

Extended Connectivity :

DP IN, HDMI, Front USB-C^® 20Gb/s Support

Smart Fan 6 :

Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection

Q-Flash Plus :

Update BIOS Without Installing the CPU, Memory and Graphics Card

Specifications of GIGABYTE Z790 Aero G DDR5 Intel Motherboard

CPU	1. LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
	2. L3 cache varies with CPU
Chipset	Intel® Z790 Express Chipset
Memory	1. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
	2. 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
	3. Dual channel memory architecture
	4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	6. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support:
	1. 1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 4096×2304@60 Hz
	* Support for drawing tablets and 20V@3A of power delivery.
	* Support for DisplayPort 1.4 version and HDR.
	2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
	* Support for HDMI 2.0 version and HDCP 2.3.
Audio	1. Realtek® ALC1220-VB CODEC
	* The back panel line out jack supports DSD audio.
	2. High Definition Audio
	3. 2/4/5.1/7.1-channel
	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
	4. Support for S/PDIF Out
LAN	1. Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication Module	Intel® Wi-Fi 6E AX211
	1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
	2. BLUETOOTH 5.3
	3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Expansion Slots	CPU:
	1. 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
	* The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector
	* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
	Chipset:
	1. 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)
	Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)
Storage Interface	CPU:
	1. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
	2. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
	Chipset:
	1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
	2. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
	3. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
	4. 4 x SATA 6Gb/s connectors
	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	Chipset:
	1. 2 x USB Type-C® ports, with USB 3.2 Gen 2×2 support (1 port on the back panel, 1 port available through the internal USB header)
	2. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
	3. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
	4. 2 x USB 3.2 Gen 1 ports available through the internal USB header
	5. 2 x USB 2.0/1.1 ports on the back panel
	Chipset USB 3.2 Gen 1 Hub:
	1. 4 x USB 3.2 Gen 1 ports on the back panel
	Chipset USB 2.0 Hub:
	1. 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1. 1 x 24-pin ATX main power connector
	2. 1 x 8-pin ATX 12V power connector
	3. 1 x 4-pin ATX 12V power connector
	4. 1 x CPU fan header
	5. 1 x water cooling CPU fan header
	6. 4 x system fan headers
	7. 2 x system fan/water cooling pump headers
	8. 2 x addressable LED strip headers
	9. 2 x RGB LED strip headers
	10. 5 x M.2 Socket 3 connectors
	11. 4 x SATA 6Gb/s connectors
	12. 1 x front panel header
	13. 1 x front panel audio header
	14. 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
	15. 1 x USB 3.2 Gen 1 header
	16. 2 x USB 2.0/1.1 headers
	17. 1 x noise detection header
	18. 2 x Thunderbolt™ add-in card connectors
	19. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
	20. 1 x serial port header
	21. 1 x Q-Flash Plus button
	22. 1 x reset button
	23. 1 x reset jumper
	24. 2 x temperature sensor headers
	25. 1 x Clear CMOS jumper

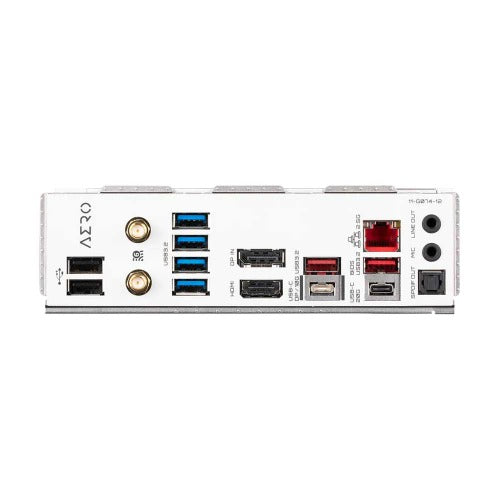

Back Panel Connector	1. 2 x USB 2.0/1.1 ports
	2. 2 x SMA antenna connectors (2T2R)
	3. 4 x USB 3.2 Gen 1 ports
	4. 1 x DisplayPort In port
	5. 1 x HDMI 2.0 port
	6. 2 x USB 3.2 Gen 2 Type-A ports (red)
	7. 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
	8. 1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support
	9. 1 x RJ-45 port
	10. 1 x optical S/PDIF Out connector
	11. 2 x audio jacks
I/O Controller	1. iTE® I/O Controller Chip
H/W Monitoring	1. Voltage detection
	2. Temperature detection
	3. Fan speed detection
	4. Water cooling flow rate detection
	5. Fan fail warning
	6. Fan speed control
	* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
	7. Noise detection
BIOS	1. 1 x 256 Mbit flash
	2. Use of licensed AMI UEFI BIOS
	3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	1. Support for GIGABYTE Control Center (GCC)
	* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	2. Support for Q-Flash
	3. Support for Q-Flash Plus
	4. Support for Smart Backup
Bundled Software	1. Norton® Internet Security (OEM version)
	2. LAN bandwidth management software
Operating System	1. Support for Windows 11 64-bit
	2. Support for Windows 10 64-bit
Form Factor	1. ATX Form Factor; 30.5cm x 24.4cm
Warranty	3 Years

GIGABYTE Z790 Aero G DDR5 Intel Motherboard
