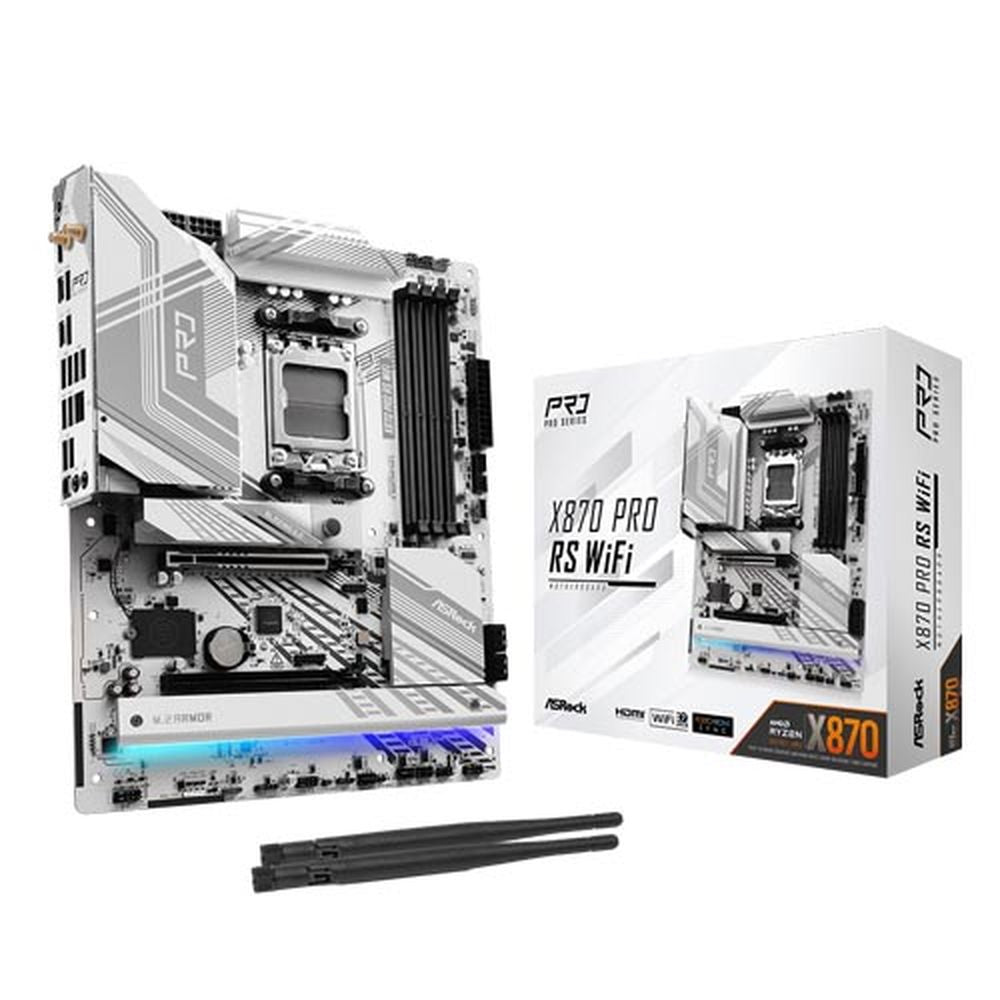

ASROCK X870 Pro RS WiFi DDR5 AMD Motherboard ( White )

ASROCK X870 Pro RS WiFi DDR5 AMD Motherboard ( White )

Name: ASROCK X870 Pro RS WiFi DDR5 AMD Motherboard ( White )
Brand: ASROCK
SKU: asrock-x870-pro-rs
Price: 19251.12 INR
Availability: InStock

Rs. 19,251.12 Rs. 35,999.00

Discount: Rs. 16,747.88 (47%)

16 people are viewing this right now

Hurry Up! Only 5 Left in Stock!

Out of stock >

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Dec 26 - Dec 30

Return within 30 days of purchase. Taxes are non-refundable.

Availability: In Stock Unavailable

Description
Additional Information
Shipping & Return
Reviews

Features of ASROCK X870 Pro RS WiFi DDR5 AMD Motherboard ( White )

Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.

8 Layer PCB design

The 8 Layer PCB of Asrock provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.

DDR5 XMP & EXPO Support

Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

Dragon 2.5 Gb/s LAN

The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Front Panel USB 3.2 Gen2x2 Type-C Header

The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

Specification of ASROCK X870 Pro RS WiFi DDR5 AMD Motherboard ( White )

Unique Feature
	Superb Productivity
	PCIe Gen5 (Graphics, M.2)
	Dual Channel DDR5
	USB4 Type-C Ports (40 Gb/s)
	Rock-Solid Durability
	14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC with Enlarged Heatsink Armor
	Flexible Integrated I/O Shield
	Ultrafast Connectivity
	2.5G LAN, 802.11be Wi-Fi 7 Module
	EZ Update
	BIOS Flashback Button
	ASRock Auto Driver Installer
	EZ Troubleshooter
	ASRock Post Status Checker
CPU	Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*
	* The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details. (http://www.asrock.com/)
Chipset	AMD X870
Memory	Dual Channel DDR5 Memory Technology
	4 x DDR5 DIMM Slots
	Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)*
	Max. capacity of system memory: 256GB
	Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
	*Please refer to Memory Support List on ASRock’s website for more information.
BIOS	256Mb AMI UEFI Legal BIOS with GUI support
Graphics	Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
	1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
	2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz*
	* Only the CPU’s embedded graphics can be displayed through USB4 ports. If you want to display to a Type-C monitor, please use AM5 Ryzen™ 9000, 8000 and 7000 processors with embedded graphics.
Audio	7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
	Impedance Sensing on Rear Out port
	Individual PCB Layers for R/L Audio Channel
	Nahimic Audio
LAN	2.5 Gigabit LAN 10/100/1000/2500 Mb/s
	Dragon RTL8125BG
	Supports Dragon 2.5G LAN Software
	Smart Auto Adjust Bandwidth Control
	Visual User Friendly UI
	Visual Network Usage Statistics
	Optimized Default Setting for Game, Browser, and Streaming Modes
	User Customized Priority Control
Wireless LAN	802.11be 2×2 Wi-Fi 7 Module
	Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
	Supports 2.4GHz/5GHz/6GHz* frequency band
	Supports 160MHz channel bandwidth with 6GHz* frequency band
	1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
	Supports Bluetooth 5.4
	Supports MU-MIMO
	* Wi-Fi 7 (6GHz band) will be supported by Microsoft Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
Slots
CPU:	1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:	1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*
	1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
	Supports AMD CrossFire™
	15μ Gold Contact in VGA PCIe Slot (PCIE1)
	* PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.
	If M2_2 is occupied, PCIE2 will be disabled.
	Supports NVMe SSD as boot disks
Storage
CPU:	1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset:
	1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
	1 x Ultra M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
	2 x SATA3 6.0 Gb/s Connectors ASMedia ASM1061:
	2 x SATA3 6.0 Gb/s Connectors
	* Supports NVMe SSD as boot disks
	M2_1 is the first priority for M.2 installation.
	M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors.
	If M2_2 is occupied, PCIE2 will be disabled.
	If SATA3_1 or SATA3_2 is occupied, M2_3 will downgrade to Gen3x2 mode.
RAID	Supports RAID 0 and RAID 1 for SATA storage devices
	Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
	* Requires additional M.2 NVMe expansion cards to support RAID 10
USB
CPU:	2 x USB4 Type-C (Rear)
	2 x USB 3.2 Gen1 Type-A (Rear (USB32_1 and USB32_2))
Chipset:	1 x USB 3.2 Gen2x2 Type-C (Front)
	4 x USB 3.2 Gen1 Type-A (2 Rear (USB32_3 and USB32_4), 2 Front)
	9 x USB 2.0 (6 Rear, 3 Front)
	* All USB ports support ESD Protection
Connector	1 x Thermistor Cable Header
	1 x Power LED and Speaker Header
	1 x RGB LED Header*
	3 x Addressable LED Headers**
	2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
	4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
	1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
	1 x 24 pin ATX Power Connector
	2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
	1 x Front Panel Audio Connector
	2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
	1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
	1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
	* Supports in total up to 12V/3A, 36W LED Strip
	** Support in total up to 5V/3A, 15W LED Strip
	*** CPU_FAN1 supports the fan power up to 1A (12W).
	CPU_FAN2, CHA_FAN1~4 and AIO_PUMP support the fan power up to 3A (36W).
	CPU_FAN2, CHA_FAN1~4 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.

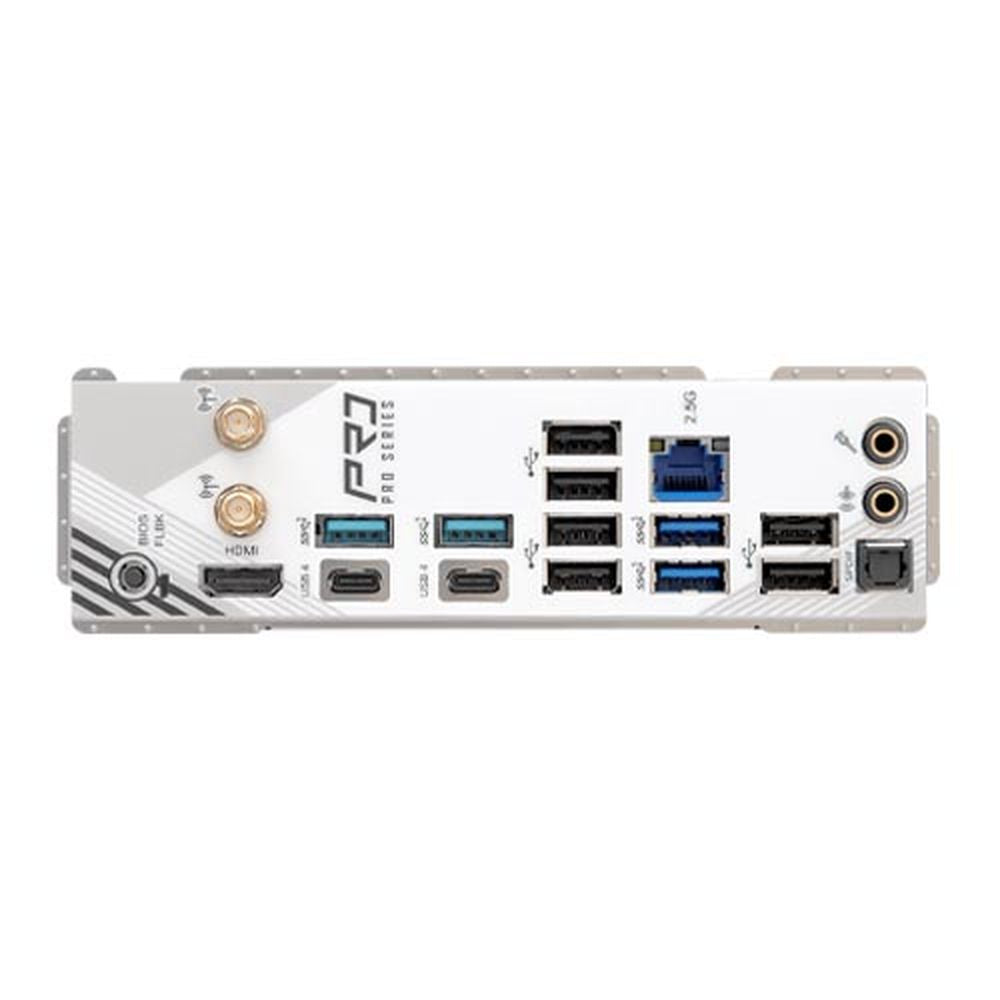

Rear Panel I/O	2 x Antenna Ports
	1 x HDMI Port
	1 x Optical SPDIF Out Port
	2 x USB4 Type-C Ports (40 Gb/s)*
	4 x USB 3.2 Gen1 Type-A Ports
	6 x USB 2.0 Ports
	1 x RJ-45 LAN Port
	1 x BIOS Flashback Button
	1 x Line Out Jack (Gold Audio Jack)
	1 x Microphone Input Jack (Gold Audio Jack)
	* Supports USB PD 3.0 up to 5V@3A (15W) charging
Software and UEFI
Software	ASRock Motherboard Utility (A-Tuning)
	ASRock Dragon 2.5G LAN Software
	ASRock Polychrome SYNC*
UEFI	ASRock EZ Mode
	ASRock Full HD UEFI
	ASRock Auto Driver Installer
	ASRock Instant Flash
	*These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories	2 x SATA Data Cables
	2 x ASRock WiFi 2.4/5/6 GHz Antennas
Form Factor	ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
	8 Layer PCB
OS	Microsoft Windows® 10 64-bit / 11 64-bit
Certifications	FCC, CE
	ErP/EuP ready (ErP/EuP ready power supply is required)
