Description

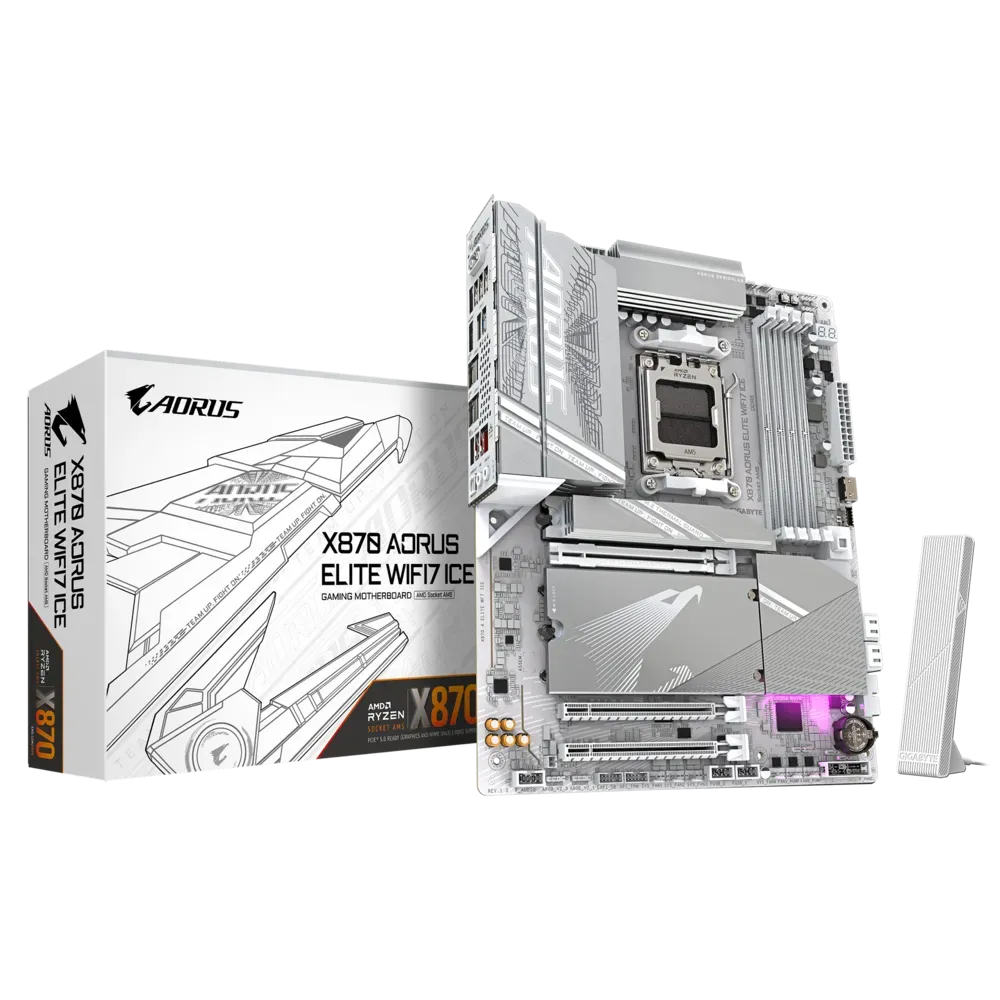

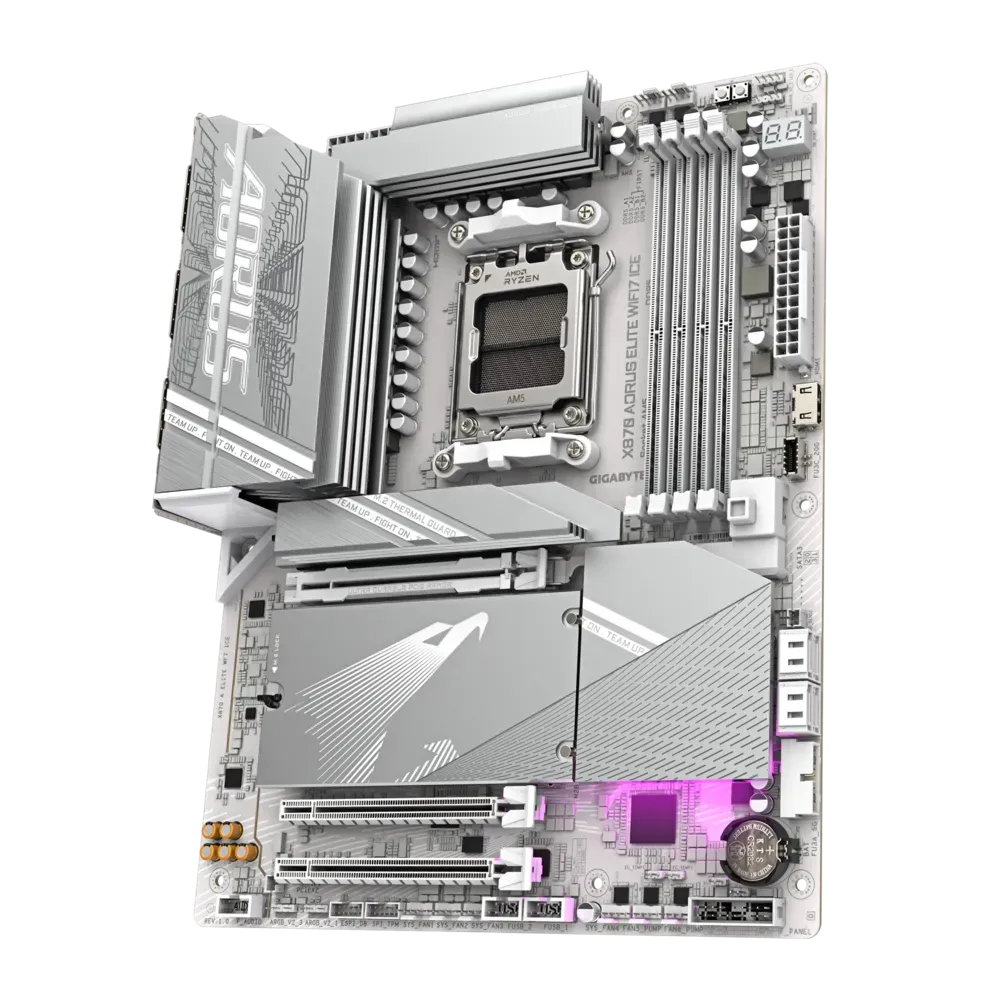

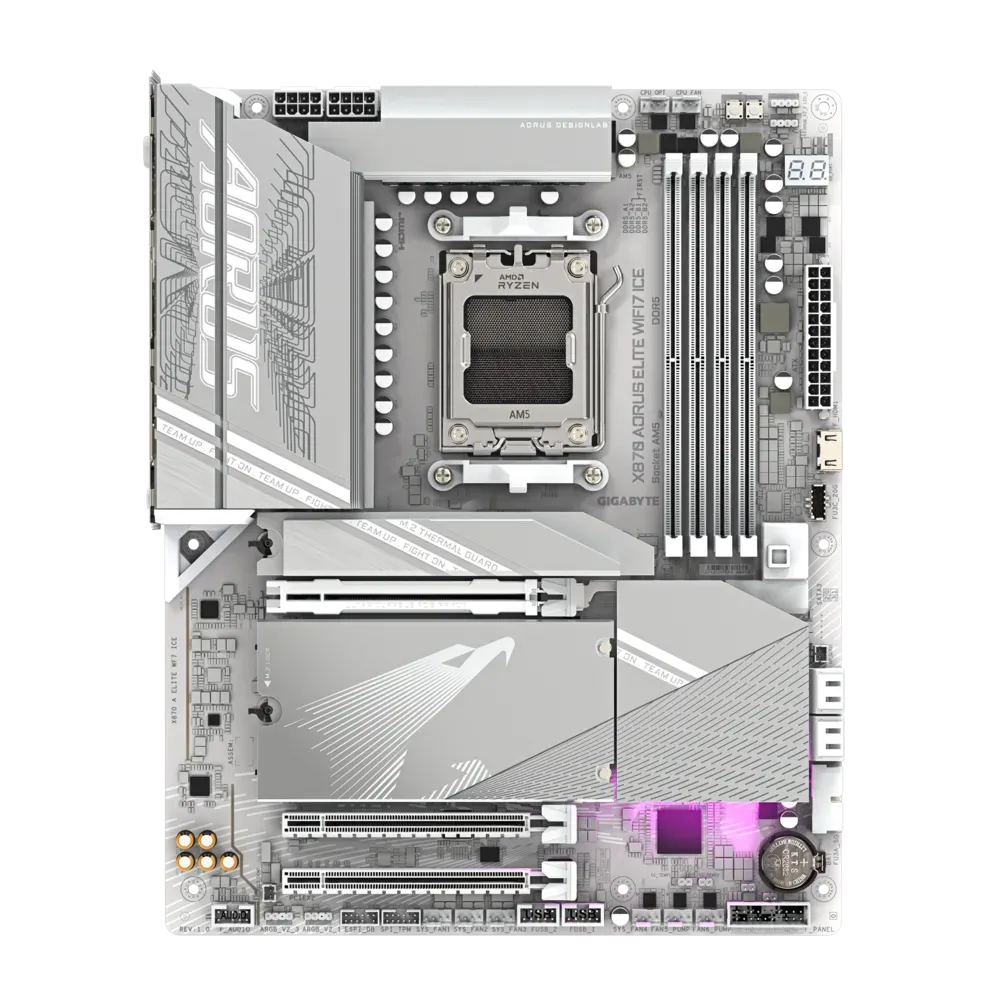

Feature of GIGABYTE X870 AORUS ELITE WIFI7 ICE DDR5
- GIGABYTE X870 AORUS ELITE WIFI7 ICE DDR5 :Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 16+2+2 phases VRM solution
- Dual Channel DDR5:4*DIMMs with AMD EXPO™ Memory Module Support
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus:PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click:M.2 heatsinks with screwless design
- Sensor Panel Link:Onboard video port for hassle-free in-chassis panel setup
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage:4*M.2 slots, including 3* PCIe 5.0 x4
- Efficient Thermal:VRM Thermal Armor Advanced & M.2 Thermal Guard L
- Fast Networking:2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity:Dual USB4 Type-C with DP-Alt, HDMI
- Reliable Audio:Realtek ALC1220 HD Audio & Audiophile Grade Capacitors
- Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
- PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card
16*+2+2 Twin Digital VRM Design
6-Layer PCB
Mid-Loss PCB
2X Copper PCB
Premium Choke and Capacitor
UD Power Connector
24 pin ATX Power Connector
8+8 pin CPU with UD Solid Pin
Full-length PCIe slots
1 x PCIe 5.0 x16 with PCIe UD Slot X
1 x PCIe 4.0 x4 Slot
1 x PCIe 3.0 x2 Slot
4 x M.2 Slots
3 x PCIe 5.0 M.2 UD Slots
1 x PCIe 4.0 M.2 Slot
Auto DDR5 Memory Boost
With just a single click, unleash the full potential of DDR5 memory, instantly boosting your gaming and work efficiency
One-Click Acceleration:
Enhance DDR5 speeds with a single click.
EZ to Pro
Enhanced Computing Power
Fast AI Performance
EZ to Peak
Safe OC
Less Power Usage
DDR5 Zenith-Memory
Zenith of the Memory
AORUS gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
Top-tier Compatibility
DDR5 Overclocking Up to
8000 MT/s
Exclusive BIOS Design
Advanced BIOS functionality provides seamless optimization of industry-leading DDR5 memory performance.
AMD EXPO™ Settings
Optimize memory with AMD’s user-friendly profiles.
Boost Performance
Get the most out of your system’s memory.
Unmatched Hardware Excellence
Elevate your gaming with our state-of-the-art technology for a superior experience.
Shielded Memory Routing
Daisy-Chained Routing
6-Layer Server-Grade PCB
Sturdy VRM DesignSteady Power
Better Play AORUS Series, steady power keeps your gaming smooth.
Digital Twin VRM Design
Delivers consistent, high-powered performance to elevate your overclocking to the next level.
16 VCORE Phases DrMOS 60A
Unlock the full power of your multi-core CPU for unmatched performance.
2 SOC Phases DrMOS 60A
Optimized for integrated GPU performance and memory management within the CPU.
2 MISC Phases Ppak
Deliver reliable power to your CPU-connected PCIe lanes for uninterrupted performance.
Comprehensive Thermal
AORUS motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.
VRM Thermal Armor Fins-Array
These solid heatsinks are forged to keep your system cool.
M.2 Thermal Guard L
with M.2 Thermal Guard Backplate
* Test results are for reference only and may vary in different circumstances.
6x optimized heat dissipation
Easy & Friendly
Hassle-free Assembly
Our cutting-edge motherboard is designed for the ultimate DIY experience.
EZ-Latch Designs
User-friendly designs simplifying the assembly process.
M.2 EZ-Latch Click
screwless installation for M.2 heatsink
M.2 EZ-Latch Plus
screwless installation for M.2 SSDs
PCIe EZ-Latch Plus
Easy ejection with single click for graphics cards
WIFI EZ-Plug
The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install.
Enhanced PCB Design for Superior Gameplay
Serving as the cornerstone of the motherboard, the PCB holds a fundamental and vital influence on system performance.
6L Server-grade PCB
Facilitates condensed integration, ensuring signal fidelity, power consistency, and diminished EMI for premium performance systems.
2X Copper Enhancement
Optimizes system efficiency through enhanced thermal management, improved power delivery, and comprehensive overclocking capabilities.
56% Lower Dissipation Factor
Our cutting-edge technology enhances signal integrity in high-frequency circuits, establishing new level in high-speed electronic engineering.
All-round Connectivity
Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.
Specifications of GIGABYTE X870 AORUS ELITE WIFI7 ICE DDR5
| Brand | GIGABYTE |
| Model | X870-AORUS-ELITE-WIFI7-ICE |
| CPU Socket Type | AM5 |
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
| Chipset | AMD X870 |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | DDR5 5200 |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| ECC Supported | Non-ECC |
| Buffer Supported | Un-buffered |
| Memory Feature | Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules |
| PCI Express 5.0 x16 | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode * The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode. AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.) |
| PCI Express x4 | Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector.- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
| M.2 | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs * The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 processor is used.1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs |
| SATA RAID | 36535 |
| Audio Chipset | Realtek ALC1220 |
| Audio Channels | 7.1 Channels |
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Wi-Fi 802.11 be |
| Bluetooth | BLUETOOTH 5.4 |

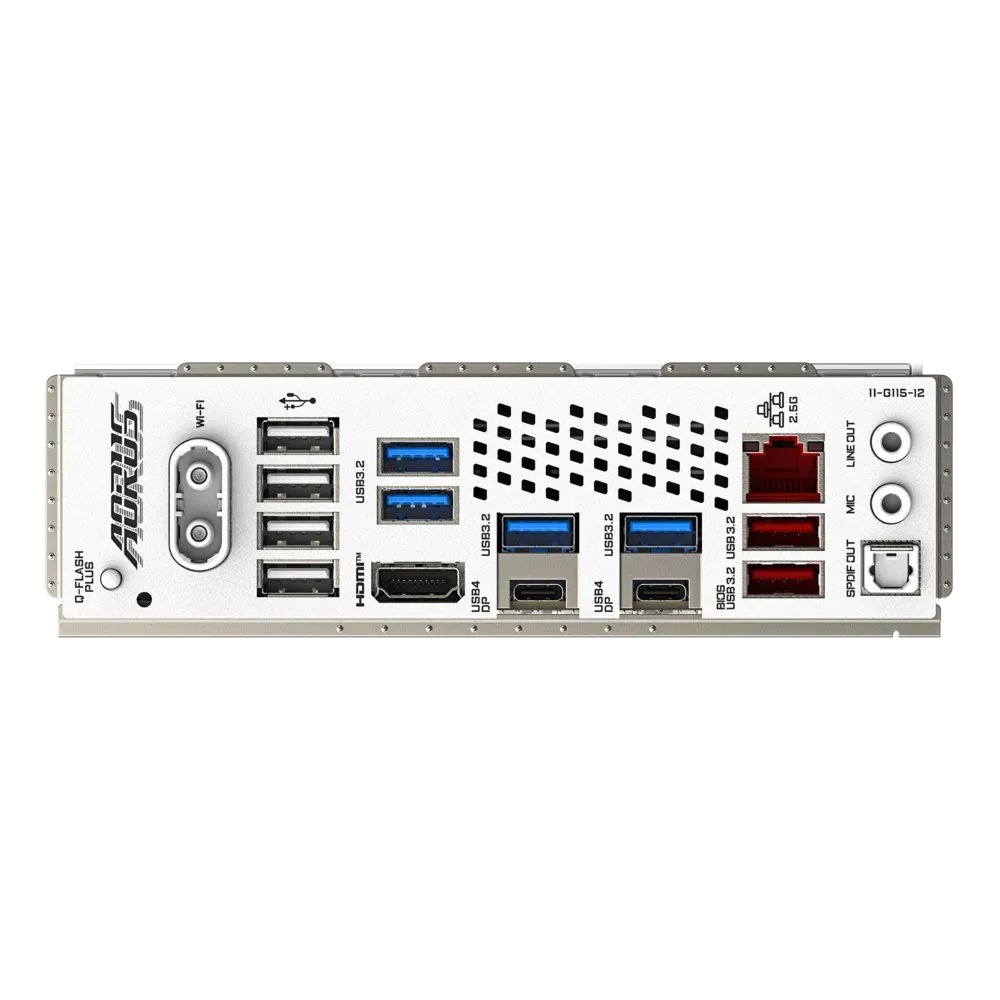

| Back I/O Ports | 1 x Q-Flash Plus button 1 x HDMI port 2 x antenna connectors (2T2R) 2 x USB4 USB Type-C ports (DisplayPort) 2 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
| Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers |
| Other Connectors | 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x noise detection header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port 1 x power button 1 x reset button 2 x temperature sensor headers 1 x reset jumper 1 x Clear CMOS jumper |
| Form Factor | ATX |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors |
| BIOS Feature | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Windows 11 | Supported |
