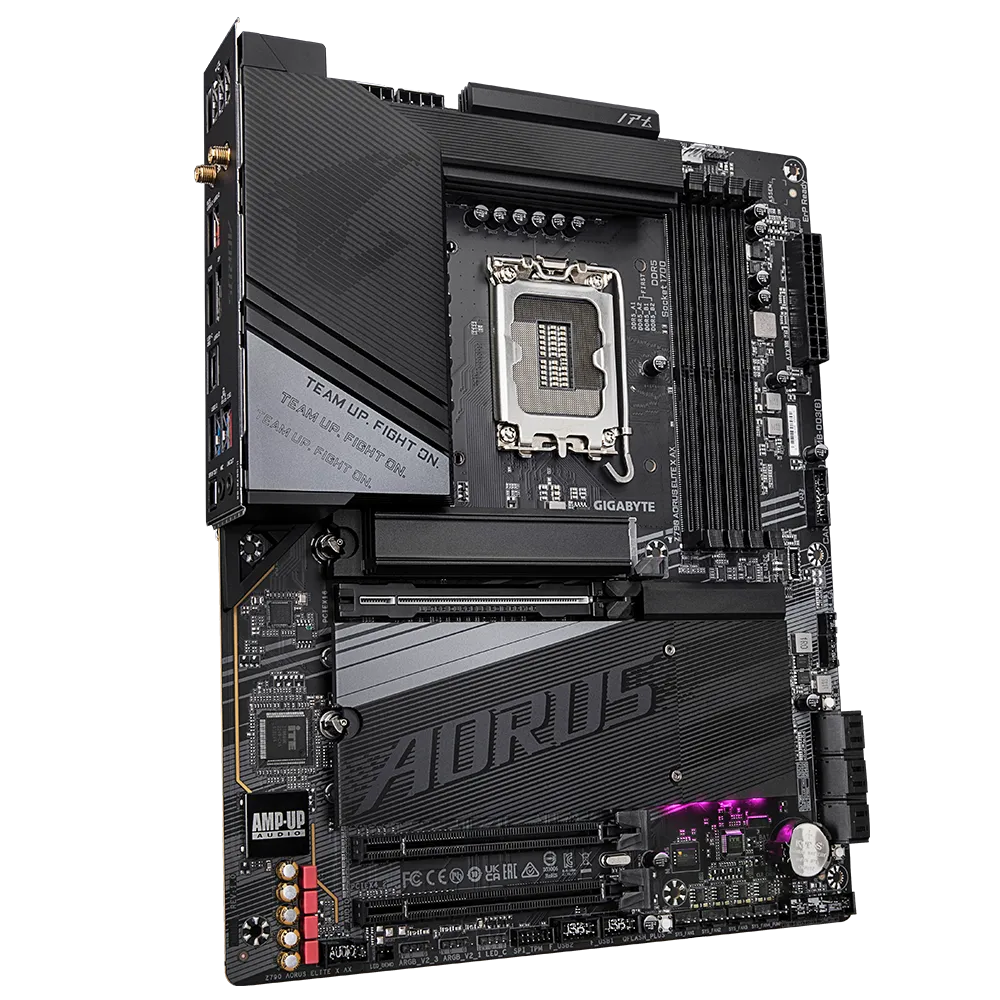

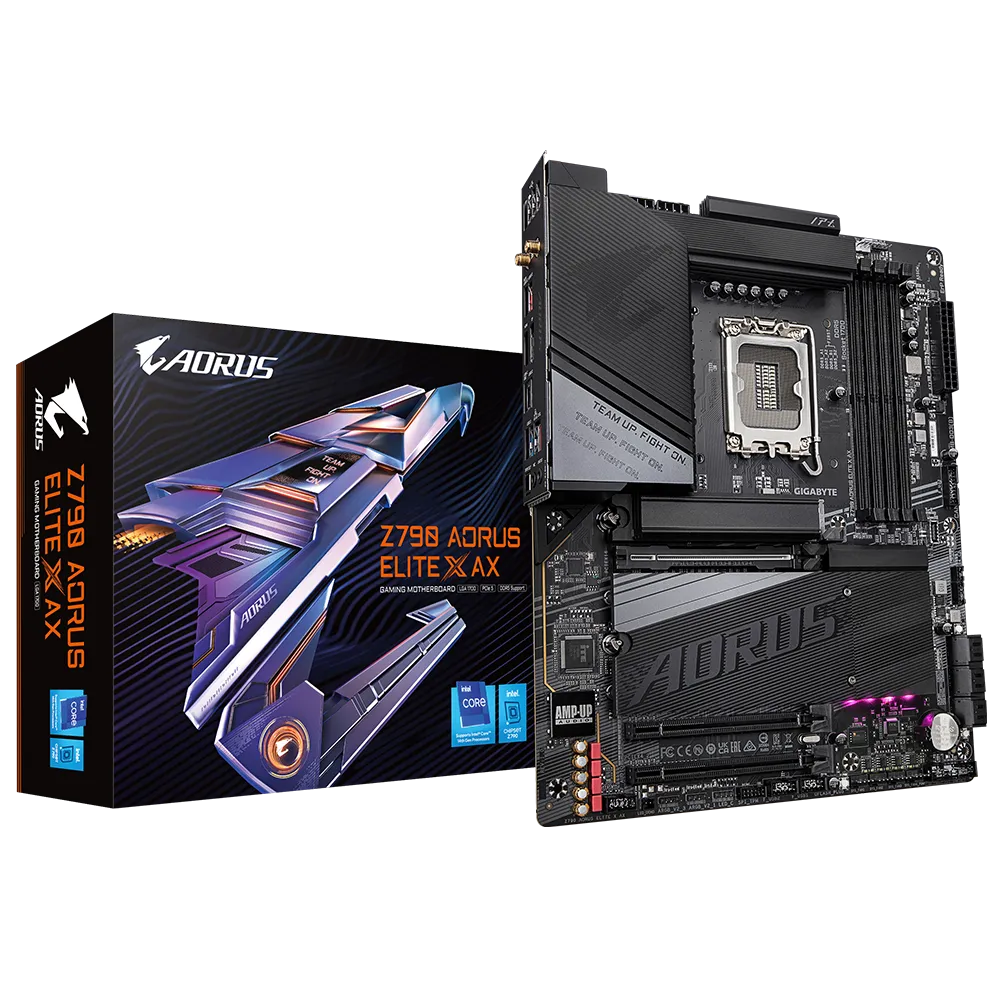

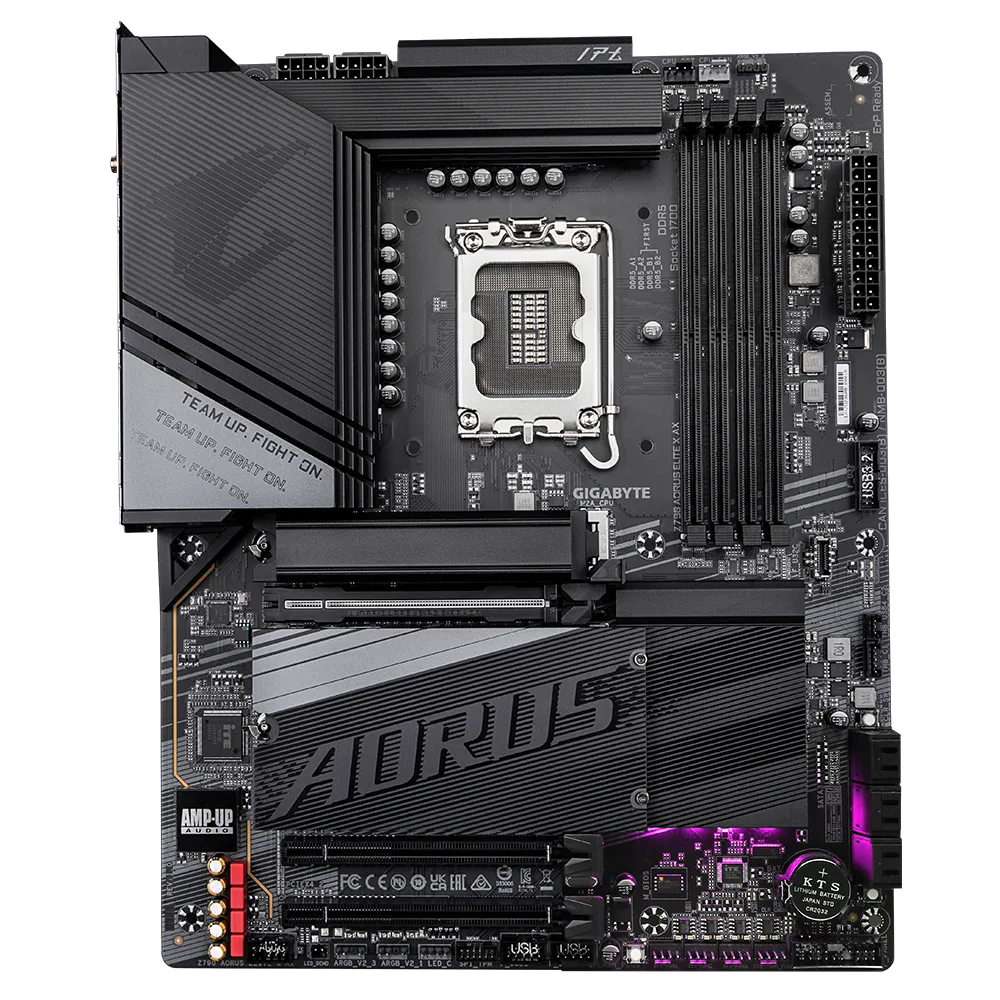

GIGABYTE Z790 Aorus Elite X AX DDR5 Intel Motherboard

GIGABYTE Z790 Aorus Elite X AX DDR5 Intel Motherboard

Name: GIGABYTE Z790 Aorus Elite X AX DDR5 Intel Motherboard
Brand: Gigabyte
SKU: gigabyte-z790-aorus-elite-x-ax-motherboard
Price: 30669.1 INR
Availability: InStock

Rs. 30,669.10 Rs. 39,999.00

Discount: Rs. 9,329.90 (23%)

18 people are viewing this right now

Hurry Up! Only 5 Left in Stock!

Out of stock >

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Dec 25 - Dec 29

Return within 30 days of purchase. Taxes are non-refundable.

Availability: In Stock Unavailable

Description
Additional Information
Shipping & Return
Reviews

Features Of GIGABYTE Z790 AORUS ELITE X AX

Supports Intel® Core™ 14th and 13th processors
Digital twin 16+1+2 phases VRM solution
Dual Channel DDR5：4*DIMMs with XMP 3.0 memory module support
PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card
EZ-Latch Click：M.2 heatsinks with screwless design
EZ-Latch Plus：M.2 slots with quick release design
UC BIOS：User-Centred intuitive UX with Quick Access function
Ultra-Fast Storage：4*PCIe 4.0 x4 M.2 slots
Efficient Overall Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard L
Fast Networking：2.5GbE LAN & Wi-Fi 6E with Ultra-high gain antenna
Extended Connectivity：DP, HDMI, Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s
Precision Audio：ALC1220 & Audiophile Grade Capacitors

Performance

Twin Digital VRM design leverages 16 VCORE phases and 70A Power Stage to ensure electrical throughput that can handle Intel Core, Pentium, and Celeron processors as well as extreme overclocking. DDR5 XMP overclocking boosts RAM up to 8266 MHz for enhanced multitasking and rendering performance.

Power Delivery

GIGABYTE Z790 Aorus Elite X AX features a twin 16+1+2 phases digital VRM solution with 70A Smart Power Stages. This means that the motherboard has 31 power phases in total, which is more than enough to power even the most demanding processors. The Smart Power Stages are also more efficient than traditional MOSFETs, which helps to reduce heat output and improve overall performance.

Enhanced Thermal Design

Designed to maintain thermal performance and prevent system throttling, the AORUS ELITE X AX’s fully covered VRM Thermal Armor Advanced heat sink, M.2 Thermal Guard L, 8-layer copper PCB, 7 W/mK Thermal Pad, and 8mm heatpipe work together to ensure that onboard components are safe under heavy loads. Smart Fan6 application gives users the ability to monitor and operate connected fans to assist with cooling capabilities.

Networking

The Z790 AORUS ELITE X AX features a 2.5GbE LAN port and Wi-Fi 7 with Ultra-high gain antenna. The 2.5GbE LAN port provides up to 2.5x faster speeds than standard Gigabit Ethernet ports, while the Wi-Fi 7 provides up to 3.2x faster speeds than Wi-Fi 6. The Ultra-high gain antenna helps to improve signal strength and range.

Front Panel USB-C Connector

The USB 3.2 Gen 2 port has a throughput up to 10 Gb/s while connected to USB 3.2 compliant peripherals. With the USB Type-C connector, users can enjoy the flexibility of a reversible connection to access and store massive amounts of data rapidly.

Personalization & Customization

With an array of RGB headers, you can use GIGABYTE’s RGB Fusion and Control Center software to customize your rig with a wide range of colors and lighting effects, turning your rig into the centerpiece of your gaming room. UEFI BIOS settings can be easily accessed and allow you to fine-tune your performance profile according to your needs. A multi-key function reset button can be reconfigured to other functions within the BIOS to meet different user scenarios such as acting as an RGB switch, boot directly to BIOS, and enable Safe Mode.

Ultra Durable

Sporting an easy DIY design, the AORUS ELITE X AX provides you with several enhancements that make the installation of components a breeze. PCIe EZ-Latch provides quick access to your M.2 storage drives and Q-Flash Plus enables you to update the BIOS settings with only a few power cables, RAM, and processor. You also get PCIe UD Slot X, M.2 UD Slot PG4, and UD Power Connector, adding more flexibility and utility to your system.

Specifications Of GIGABYTE Z790 AORUS ELITE X AX

CPU	LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU
Chipset	Intel® Z790 Express Chipset
Memory	Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support:1 x HDMI port, supporting a maximum resolution Support for HDMI 2.0 version and HDCP 2.3.1 x DisplayPort, supporting a maximum resolution Support for DisplayPort 1.2 version and HDCP 2.3
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Intel® Wi-Fi 6E AX211WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Expansion Slots	CPU:1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset:2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)
Storage Interface	CPU:1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset:2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors
USB	Chipset:1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs:8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x reset jumper 1 x Clear CMOS jumper

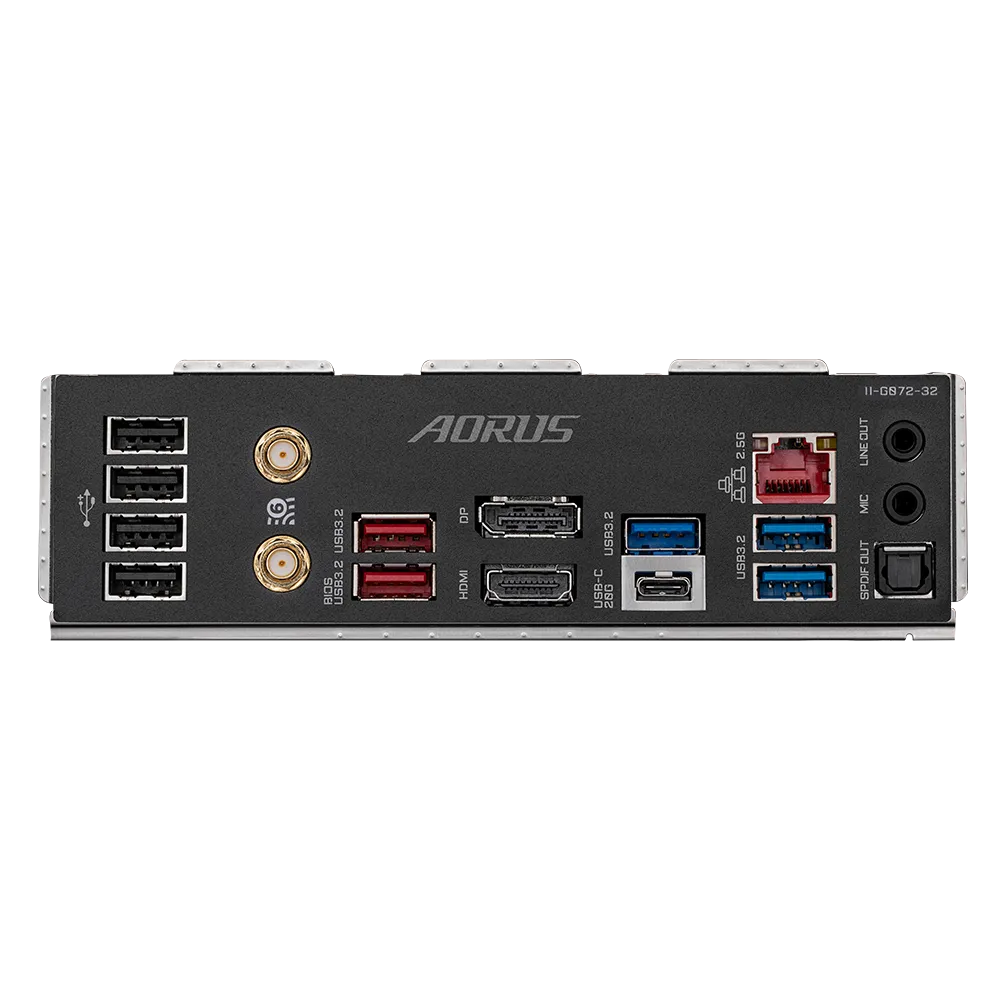

Back Panel Connectors	1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI 2.0 port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software	Norton® Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.
