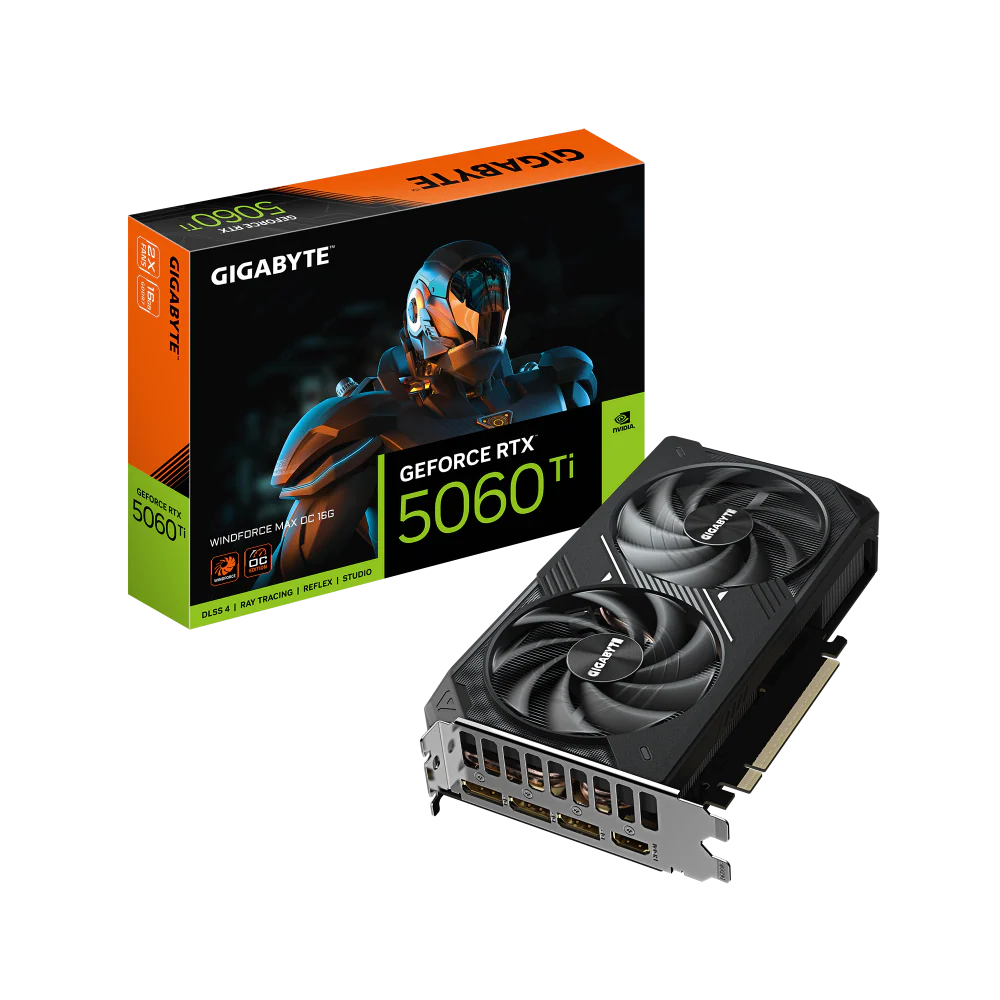

Features of GIGABYTE GeForce RTX 5060 TI Windforce Max OC 16GB Nvidia Graphic Card
WINDFORCE
COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, copper plate, 3D active fans, and screen cooling.
HAWK FAN
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
REINFORCED STRUCTURE
The reinforced metal backplate securely fastened to the I/O bracket, provides exceptional structural integrity.
ULTRA DURABLE
ULTRA COOLING - Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
LOW POWER LOSS - Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
LONGER LIFE - Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
Specifications of GIGABYTE GeForce RTX 5060 TI Windforce Max OC 16GB Nvidia Graphic Card
| Model | GV-N506TWF2MAX-OC-16GD |
| Graphics Processing | GeForce RTX™ 5060 Ti |
| Core Clock | 2587 MHz (Reference card :2572 MHz) |
| Cuda Cores | 4608 |
| Memory Clock | 28 Gbps |
| Memory Size | 16 GB |
| Memory Type | GDDR7 |
| Memory Bus | 128 bit |
| Card Bus | PCI-E 5.0 |
| Digital Max Resolution | 7680×4320 |
| Multi View | 4 |
| Card Size | L=208 W=120 H=40 mm |
| PCB Form | ATX |
| DirectX | DirectX 12 API |
| Open GL | 4.6 |
| Recommended PSU | 650 W |
| Power Connectors | 8 Pin x 1 |
| Output | DisplayPort 2.1b *3 HDMI 2.1b *1 |
| Accessories | Quick guide |
| Warranty | 3 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
