Output Specifications
Robust internals support a wide range of AC inputs, while delivering stable output for high performance components.
MSI MAG A750GL PCIE5 750W power supply offers 80 PLUS Gold-certified energy efficiency, ATX 3.0 compatibility, PCIe 5.0 GPU support (up to 450W), and a Fluid Dynamic Bearing (FDB) fan for quiet and stable performance.
The efficiency of a power supply directly influences system performance and power consumption.
An 80 PLUS Gold certified rating means higher efficiency (up to 90%) and reduces internal thermal loading.
Being ATX 3.0 compatible, the MAG A750GL PCIE5 power supply can handle up to 2x total power excursions and 3x GPU power excursions.

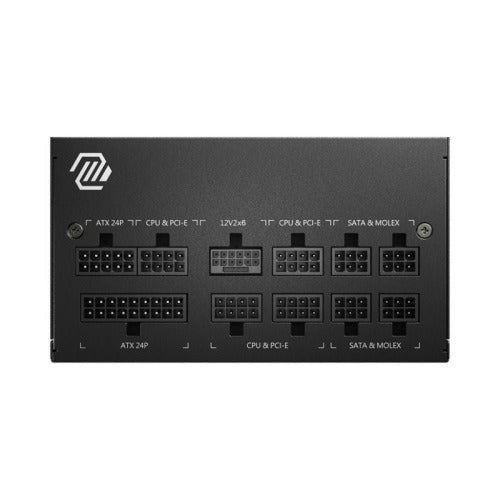

A fully modular design means that only the connectors required for by the build are used. This significantly reduces cable clutter, simplifies the overall build and improving airflow.
The MSI MAG A750GL PCIE5 750W Power Supply features extra GPU power feeds (3 x 8-pin VGA connectors) to support a broad array of NVIDIA and AMD graphics cards.
Alternatively, through the native 16-pin PCIe connector, the PSU can provide up to 450W of power to a PCIe 5.0 GPU.
A compact 140 mm-long and 150 mm-wide ATX form factor ensures a comfortable and easy fit in most PC cases. This frees up more space for cable management and airflow to the rest of the system.
The flat black cables allow for improved cable management and provide more space for airflow.
Because of its fully modular design, only the necessary cables need to be plugged in and the rest can be stored in the supplied cable bag.

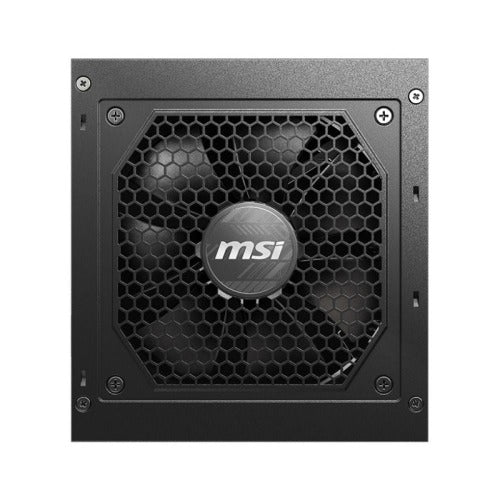

Developed for quiet and stable operation, a 120 mm Fluid-Dynamic Bearing fan achieve a good balance between cooling performance and noise level.
By offering a wide range of connectivity options, the MSI power supply guarantees extensive hardware support. Connect multiple hard drives, SSDs, graphics cards and other components to satisfy your needs.
The cable connectors are made of premium copper alloy, which offers better current surge protection than generic phosphor bronze.
Robust internals support a wide range of AC inputs, while delivering stable output for high performance components.
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply’s 5 CPU & PCI-E slots are more than plenty.
To make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.
Get the best 80 Plus Gold computer smps price from us today!
| EFFICIENCY RATING | 80 PLUS Gold (up to 90%) |
| MODULAR | Yes (full modular) |
| FAN SIZE | 120 mm |
| FAN BEARING | Fluid Dynamic Bearing |
| DIMENSIONS (DXWXH) | 140 x 150 x 86 mm |
| PFC TYPE | Active PFC |
| INPUT VOLTAGE RANGE | 100~240 VAC |
| POWER WATT | 750W |
| POWER EXCURSION | 1500W (*up to 200% of the PSU's rated power for 100μs) |
| INPUT FREQUENCY RANGE | 47-63Hz |
| PROTECTION | OCP / OVP / OPP / OTP / SCP / UVP |
| ATX (24 PIN) | 1 |
| EPS (4+4 PIN) | 2 |
| PCI-E 5.0 (16 PIN) | 1 (450W) |
| PCI-E (6+2 PIN) | 3 |
| SATA (15 PIN) | 8 |
| MOLEX (4 PIN) | 4 |
| FDD (4 PIN) | 1 |
| Warranty | 7 Years |
| Note* | Price, feature and specifications are subject to change without notice. |
