Description

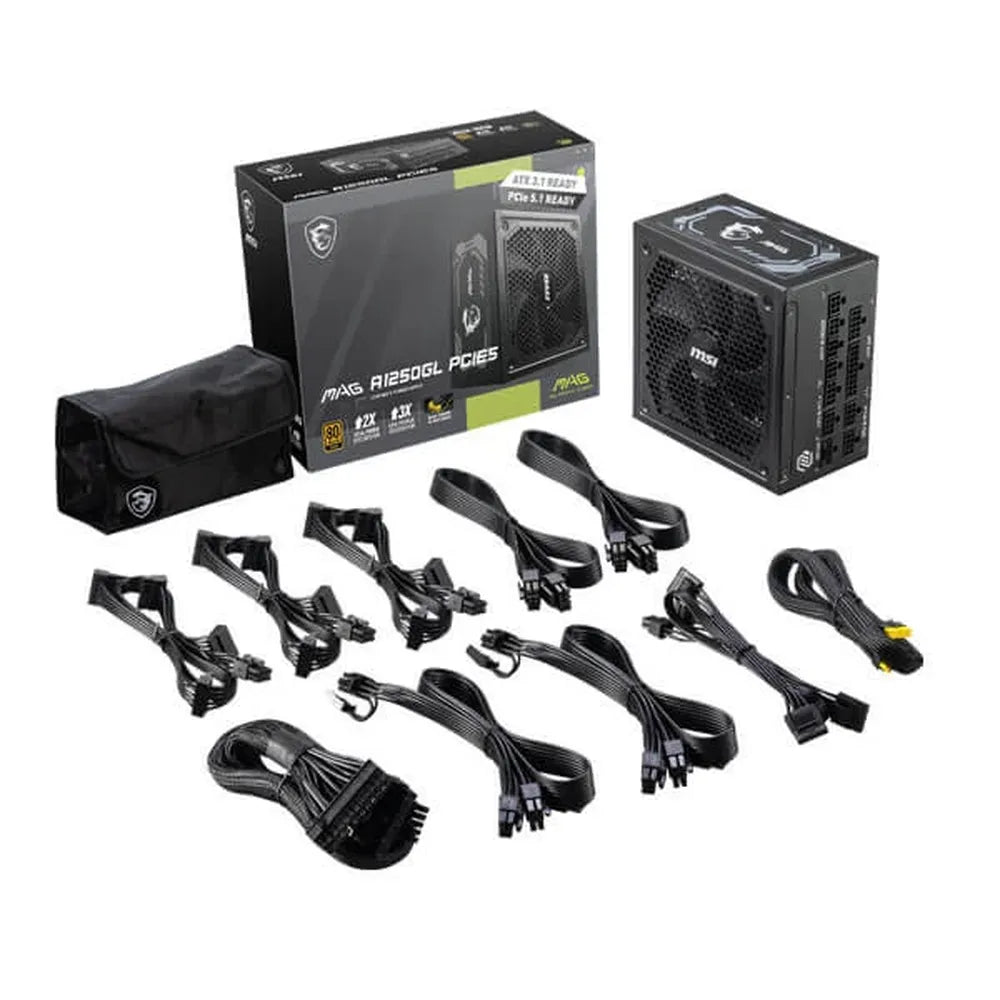

Features of MSI MAG A1250GL
- ATX 3.1 ready, native dual-color PCIe CEM 5.1 connector
- Supports NVIDIA® GeForce RTX™ 40 series graphics cards
- Fully modular design, flat cables
- 80 PLUS Gold certified for high efficiency
- Active PFC design
- Protection with OVP / OCP / OPP / OTP / SCP / UVP
- 135 mm fluid dynamic bearing fan
- LLC half bridge topology with DC-to-DC module design
ATX 3.1 READY
The MSI Power Supply can hold up to 2x total power excursion and 3x GPU power excursion, remaining stable when paired with high performing graphics cards.
ENERGY EFFICIENCY CERTIFICATION
The efficiency of your 1250W Power Supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.
ONLY WHAT YOU NEED
The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build. Additionally, the included cable pack provides a storage solution for any unused cables.
ALL THE MORE ORGANIZED
Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.

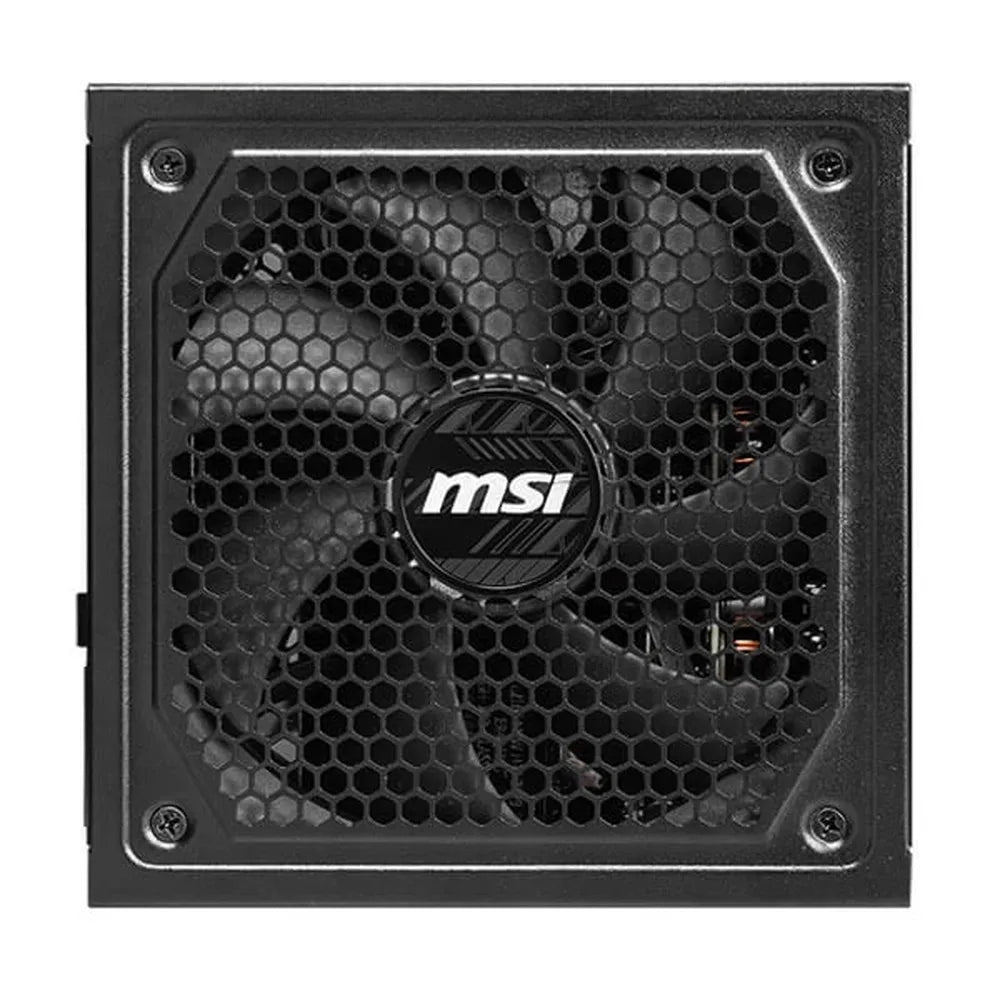

FLUID DYNAMIC BEARING
The power supply’s fan comes with a fluid dynamic bearing that perfectly balances cooling performance and noise level.
HALF BRIDGE LLC + SR + DC/DC
A half-bridge LLC with DC/DC converter combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.
THE POWER YOU HAVE
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's CPU & PCIe connectors are more than plenty.
PROTECTION MECHANISMS
To make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.
Get the best 80 Plus Gold computer smps price from us today!
Specifications of MSI MAG A1250GL
| Model Name | MAG-A1250GL-PCIE5 |
| EFFICIENCY RATING | 80 PLUS Gold (up to 90%) |
| MODULAR | Yes (fully modular) |
| FAN SIZE | 135 mm |
| FAN BEARING | Fluid Dynamic Bearing |
| DIMENSIONS (DXWXH) | 150 x 150 x 86 mm |
| PFC TYPE | Active PFC |
| INPUT VOLTAGE RANGE | 100-240V~ |
| POWER WATT | 1250W |
| POWER EXCURSION | 2500W (*up to 200% of the PSU's rated power for 100μs) |
| INPUT FREQUENCY RANGE | 50-60Hz |
| PROTECTION | OCP / OVP / OPP / OTP / SCP / UVP |

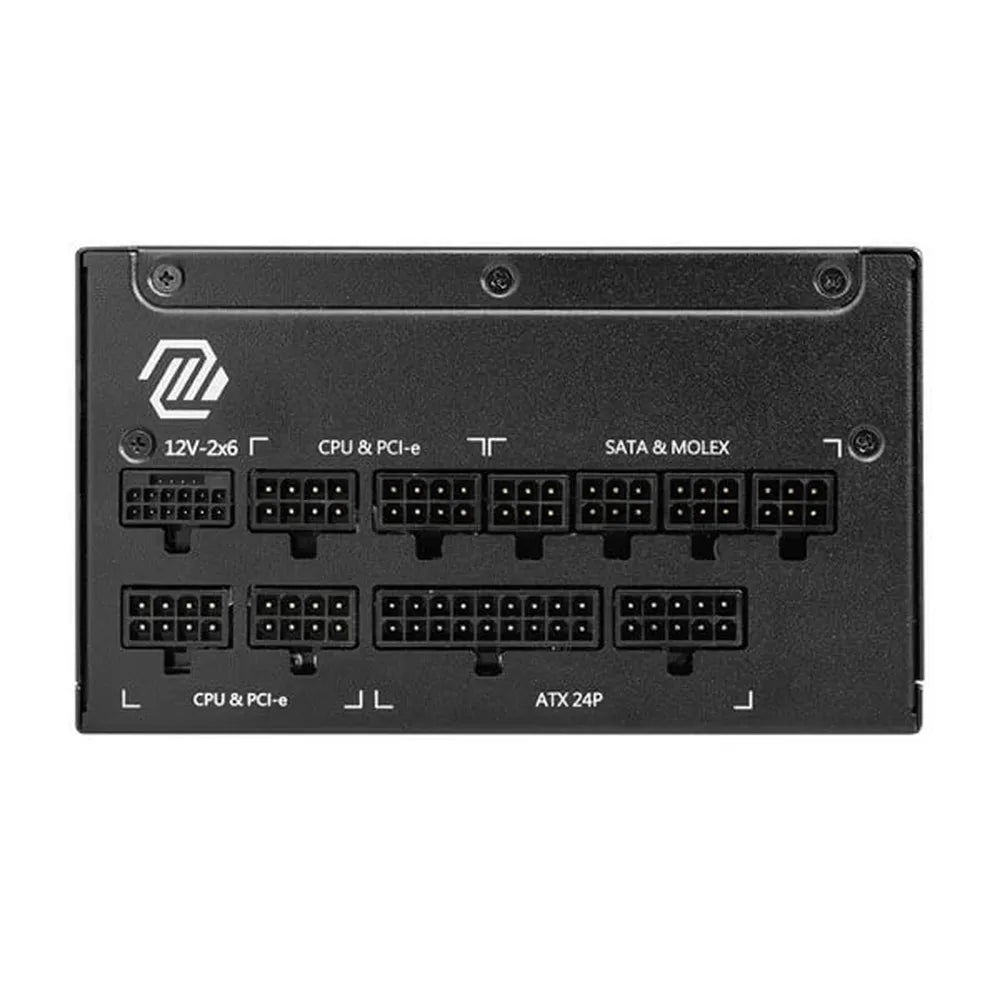

| ATX (24 PIN) | 1 |
| EPS (4+4 PIN) | 2 |
| PCI-E 5.1 (16 PIN) | 1 (600W) |
| PCI-E (6+2 PIN) | 4 |
| SATA (15 PIN) | 12 |
| MOLEX (4 PIN) | 4 |
| FDD (4 PIN) | 1 |
| Warranty | 7 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
