Features of GAMDIAS Helios P2-850G 850 Watt 80 Plus Gold Non Modular ATX 3.0 Power Supply (Black)
- 850W 80 Plus Gold
- ATX 3.0 & PCIe Gen 5.0 Ready
- 120mm Hydraulic Bearing Fan
- Native 12VHPWR Cable
- Full DC-DC, LLC Resonant Circuit Design
- Heavy-duty Protection: OVP/UVP/OPP/SCP/OCP/OTP
THE RELIABLE POWERHOUSE
The new HELIOS P2-850G power supply delivers consistent efficient power with certification of 80 Plus Gold, fully supporting ATX 3.0 and PCIe Gen 5.0 to power up next-gen graphic cards and top-notch PC components. Equipped with high-quality capacitors and a hydraulic bearing fan with a silent mode, the PSU maintains silent operations while outputting constant reliable performances.
80 PLUS GOLD CERTIFIED
Designed to meet 80 PLUS Gold level, providing stable power output up to 92% efficiency at 50% load reducing carbon footprint and power consumption.
ATX 3.0 & PCIe GEN 5.0 READY
HELIOS P2 P2-850G is designed to address ATX 3.0 standards and PCIe Gen 5.0 connector compatibility while offering up to 200% total power excursion. The HELIOS P2 Series can hold up to triple the GPU power excursion and twice the total power excursion.
NATIVE 12VHPWR CABLE
The native 16 PIN (12VHPWR) PCIe connector can deliver up to 450W for PCIe 5.0 graphics cards, providing powerful and stable performance and allowing the PSU to natively run next-generation GPUs.

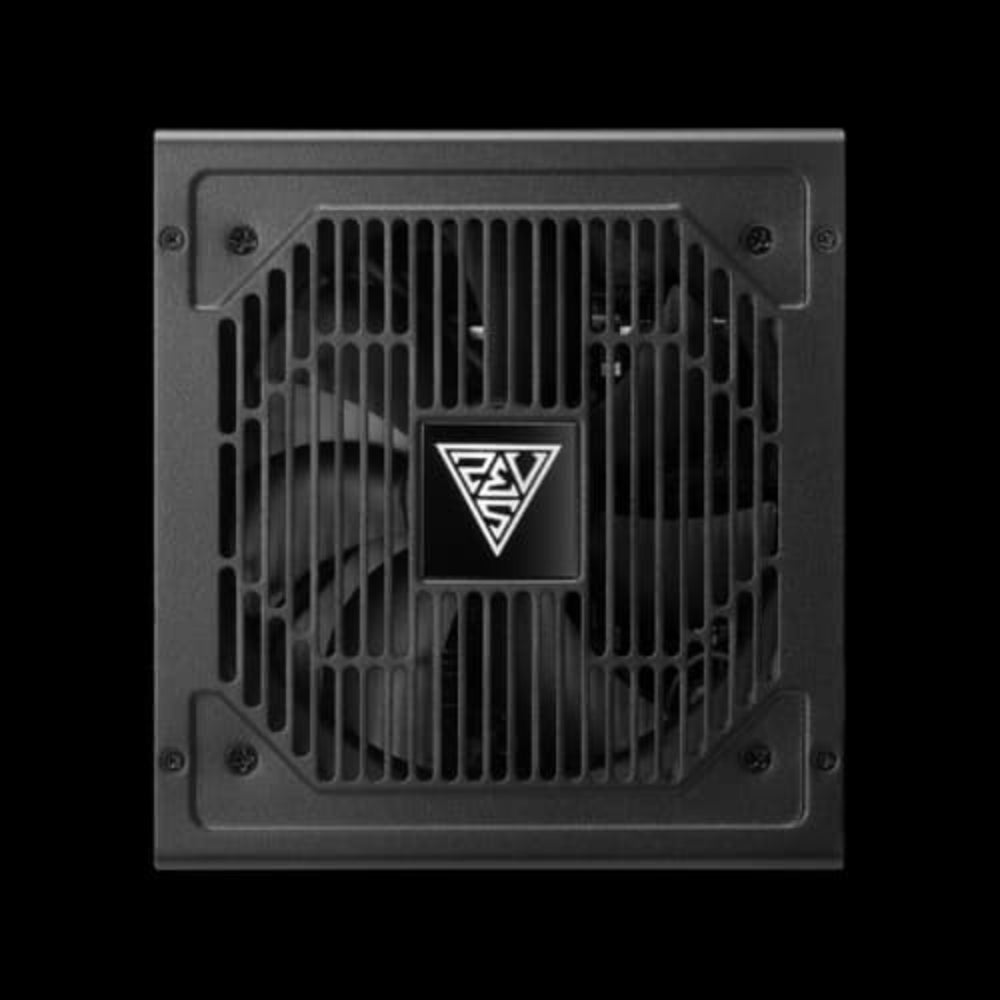

SILENT OPERATION
Featuring a premium 120mm hydraulic fan can provide excellent thermals, silent acoustics, and high reliability to ensure longevity at near-silent operation. Furthermore, the smart fan will adjust the fan speed and minimizes undesired noise.
STABLE +12V OUTPUT
Made with premium DC to DC structure with full bridge LLC resonance assist and 12V synchronous rectification providing a safe and stable output.
HEAVY-DUTY PROTECTION
This PSU offers complete protection, meeting full demands to help the system operate safely and stably.
- OCP-Over Current Protection
- OTP-Over Temperature Protection
- OVP-over Temperature Protection
- OPP-Over Power Protection
- UVP-Under Voltage Protection
- SCP-Short Circuit Protection
EXTENSIVE GPU SUPPORT
The HELIOS P2 is designed to support new NVIDIA and AMD graphics cards with increased power demands and different connectors, with additional support to a 12+4-pin VGA power connector (12VHPWR) and up to four 6+2-pin VGA power connectors.
- Motherboard Connector-1 x 24-pin
- CPU EPS-2 x 4+4-pin
- 12VHPWR-1 x 12+4-pin
- SATA-6 x 5-pin
- Modex-3 x 4 pin
- GPU PCI-E-4 x 6+2-pin

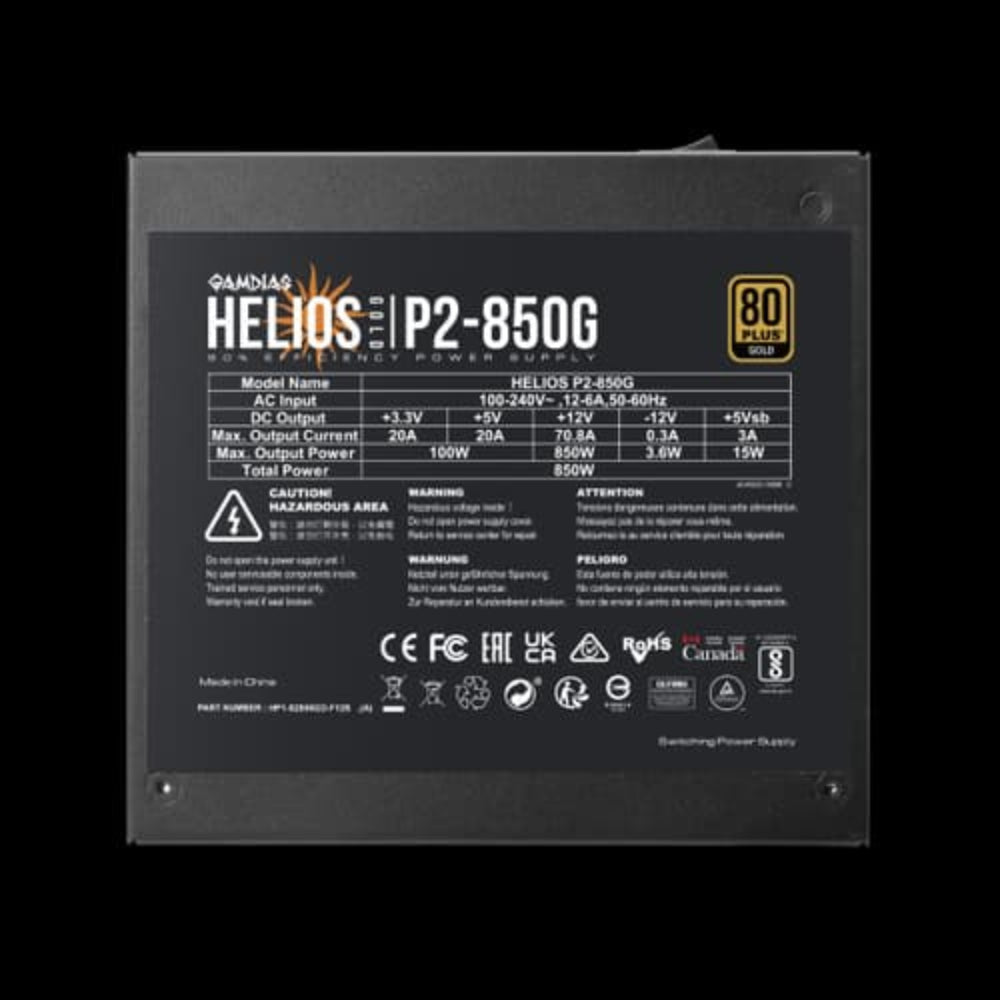

Specifications of GAMDIAS Helios P2-850G 850 Watt 80 Plus Gold Non Modular ATX 3.0 Power Supply (Black)
| Model |
HELIOS-P2-850G |
| POWER |
|
| Type |
ATX12V v3.0 |
| Efficiency |
Meet 80 PLUS Gold efficiency |
| Power Factor Correction |
APFC with PF value of 0.99 |
| Support MB Sync |
No |
| Dimension (L x W x H) |
140 x 150 x 86 mm |
| Support C6/C7 power state |
Yes |
| AC Input |
100-240V~ / 12-6A / 50-60Hz |
| DC Output |
#ERROR! |
| Max. Output Current |
20A / 20A / 70.8A / 0.3A / 3A |
| Max. Output Power |
100W / 850W / 3.6W / 15W |
| Total Power |
850W |
| Peak Power |
1105W |
| Protection |
OVP / UVP / OPP / SCP / OCP / OTP |
| Main Power |
1 (24 Pin) |
| CPU |
2 (4+4 Pin) |
| PCI-E |
4 (6+2 Pin) |
| 12VHPWR |
1 (12+4 Pin) |
| SATA |
6 (5 Pin) |
| Molex |
3 (4 Pin) |
| Modular |
Non Modular |
| Flat Cable |
Yes |
| Cooling System |
120mm hydraulic bearing fan |
| Silent Mode |
No |
| DC to DC |
Yes |
| Environmental Compliance |
Erp Lot 6 |
| Warranty |
3 Years |
| Note |
*** Images are for Representation purposes only
*** Features, Price, Specifications are subject to change without notice.
|
