Features of GAMDIAS Kratos P2-850G RGB

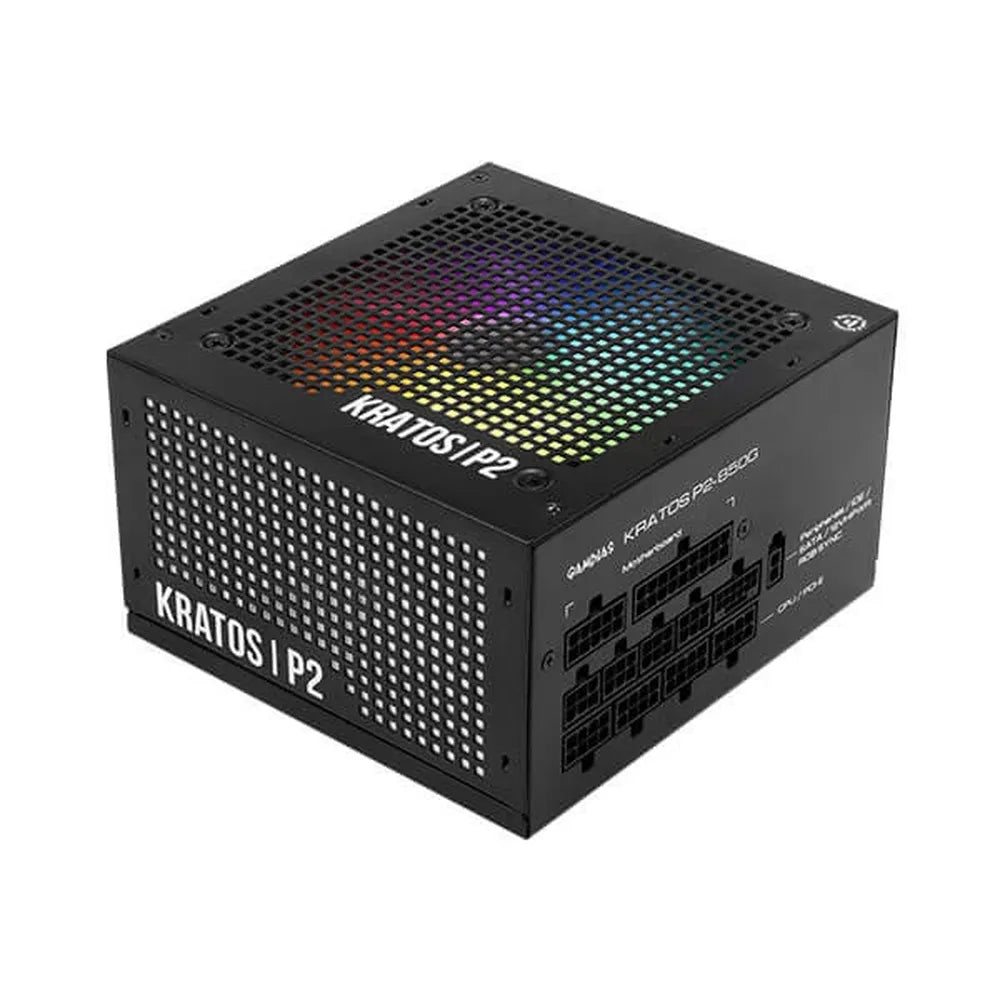

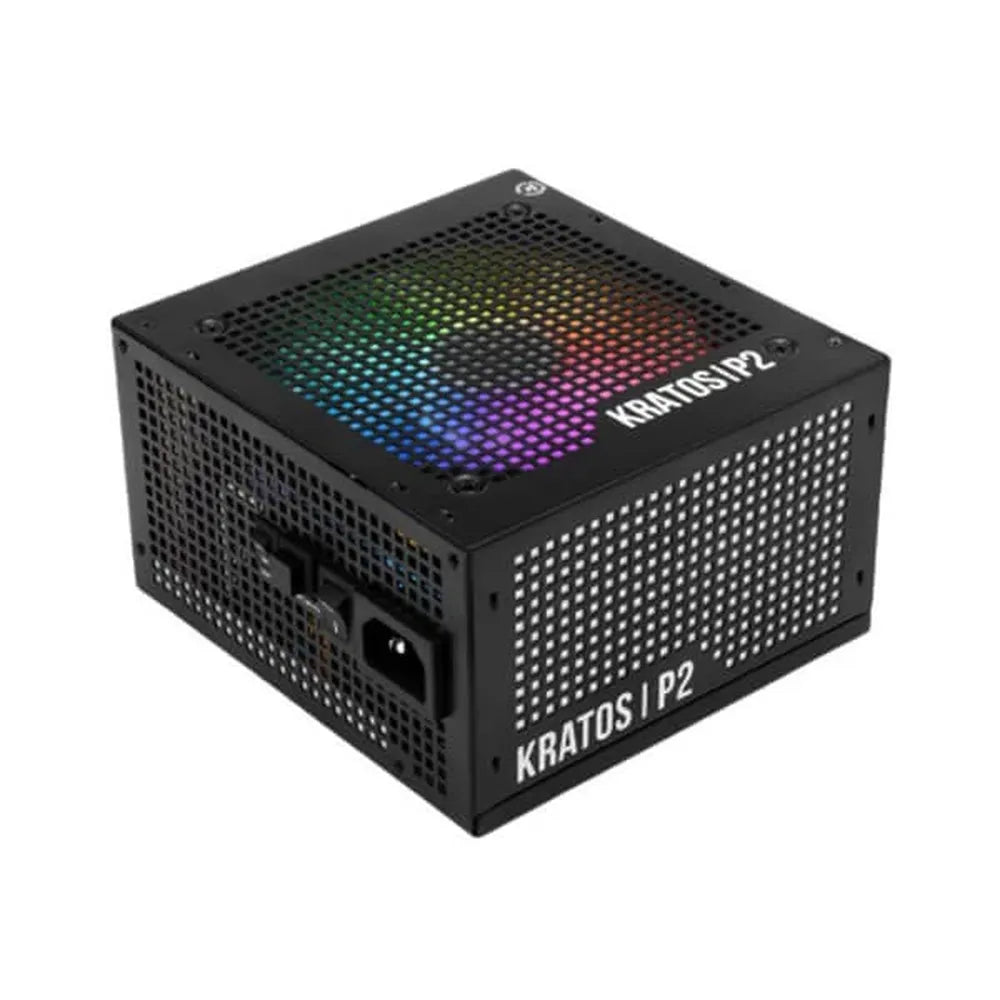

The GAMDIAS KRATOS P2-850G 850W Power Supply ensures stable and efficient power delivery with 80 Plus Gold certification. With ATX 3.0 and PCIe Gen 5.0 support, 100% superior Japanese capacitors, a premium 120mm hydraulic bearing fan, and 30 built-in addressable lighting effects to stand out in both performance and aesthetics.
- Fully Modular
- 850W 80 Plus Gold
- ATX 3.0 & PCIe Gen 5.0 Ready
- 100% Industrial-grade Japanese Capacitors
- Native 12VHPWR Cable
- ARGB with 30 Built-In Lighting Effects
- 120 mm Hydraulic Bearing Fan
- Full DC-DC, LLC Resonant Circuit Design
- Heavy-duty Protection: OVP/UVP/OPP/SCP/OCP/OTP
80 PLUS GOLD CERTIFIED
Tailored to meet 80 PLUS Gold certification, the KRATOS P2 Series guarantees stable power output with up to 90% efficiency at 50% load and 87% efficiency at 100% load.
ATX 3.0 READY
KRATOS P2-850G is designed to address ATX 3.0 standards and PCIe Gen 5.0 connector compatibility while offering up to 200% total power excursion to fulfill the power requirements of next-generation graphics cards.
NATIVE 12VHPWR CABLE
The native 16 PIN (12VHPWR) PCIe connector can deliver up to 600W for PCIe 5.0 graphics cards, providing powerful and stable performance and allowing the PSU to natively run next-generation GPUs.
SIMPLE CUSTOMIZATION
Gamdias Power Supply KRATOS P2 supports addressable RGB sync via motherboard manufacturer's sync software and also has 30 built-in lighting effects easily accessible with a simple button switch.
SILENT FAN

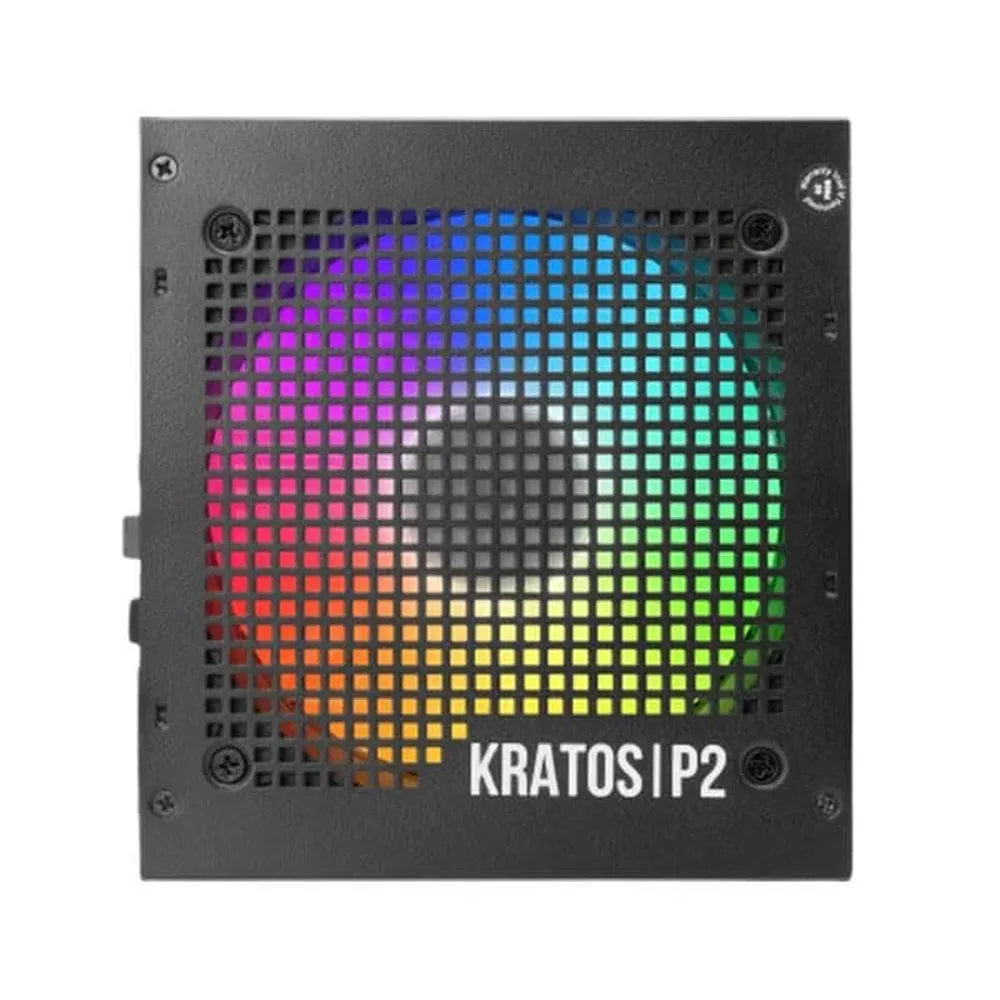

The KRATOS P2 is equipped with a 120mm hydraulic bearing fan to provide excellent heat dissipation at near-silent operation. When silent mode is switched on, the fan will adjust its fan speed to minimize undesired noise.
JAPANESE CAPACITORS
Made with 100% high-quality Japanese 105°C/221°F electrolytic capacitors to ensure standard in quality, durability, and stability.
LLC RESONANT CIRCUIT LAYOUT
Made with premium DC to DC structure with full bridge LLC resonance assist and 12V synchronous rectification providing a safe and stable output.
HEAVY-DUTY PROTECTION
This PSU offers complete protection, meeting full demands to help the system operate safely and stably.
EXTENSIVE GPU SUPPORT
The KRATOS P2 is designed to support NVIDIA and AMD graphics cards with increased power demands and different connectors, with additional support to a 12+4-pin VGA power connector (12VHPWR) and up to four 6+2-pin VGA power connectors.
Get the best 80 Plus Gold computer smps price from us today!
Specifications of GAMDIAS Kratos P2-850G RGB
| Model | KRATOS P2-850G |
| Type | ATX12V v3.0 |
| Efficiency | Meet 80 PLUS Gold efficiency |
| Power Factor Correction | APFC with PF value of 0.99 |
| Support MB Sync | 5V 3-pin Addressable (Digital) RGB Header Only |
| Dimension (L x W x H) | 140 x 150 x 86 mm |
| Support C6/C7 power state | Yes |
| AC Input | 100-240V~ / 11-5.5A / 47-63Hz |
| DC Output | #ERROR! |
| Max. Output Current | 20A / 20A / 70.5A / 0.3A / 3A |
| Max. Output Power | 130W / 846W / 3.6W / 15W |
| Total Power | 850W |
| Peak Power | 1105W |
| Protection | OVP / UVP / OPP / SCP / OCP / OTP |

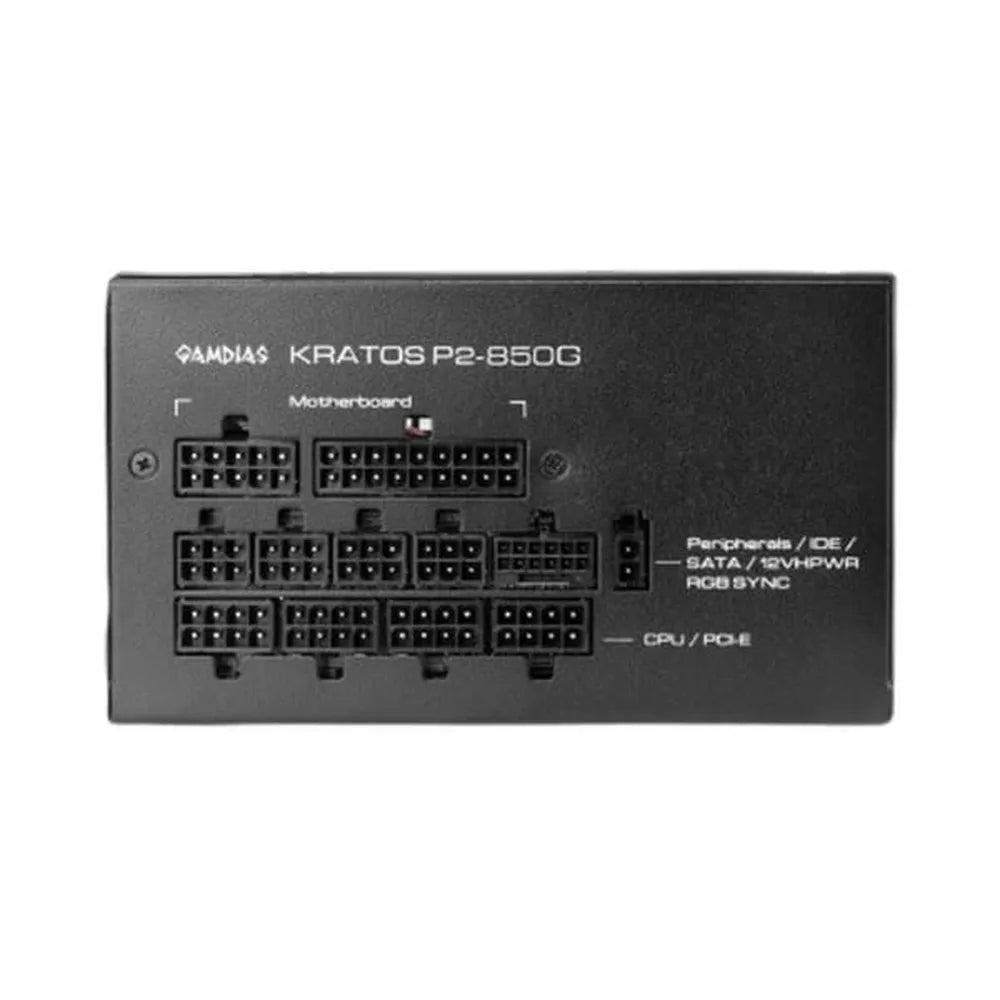

| Main Power | 1 (24 Pin) |
| CPU | 2 (4+4 Pin) |
| PCI-E | 4 (6+2 Pin) |
| 12VHPWR | 1 (12+4 Pin) |
| SATA | 6 (5 Pin) |
| Molex | 3 (4 Pin) |
| Modular | Fully Modular |
| Flat Cable | Yes |
| Lighting Effect | 30 Neon-Flex RGB |
| Cooling System | 120mm hydraulic bearing fan |
| Silent Mode | Yes |
| DC to DC | Yes |
| Environmental Compliance | Erp Lot 6 |
| Warranty | 7 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
