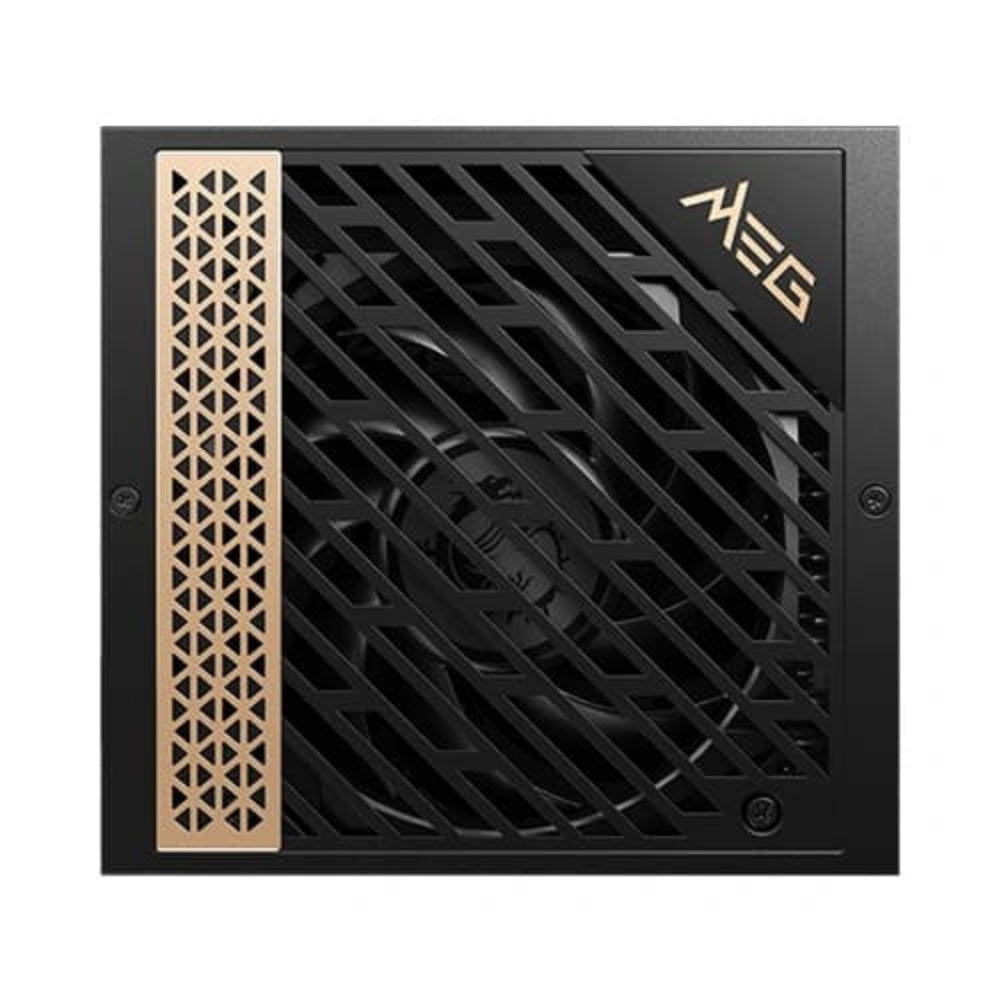

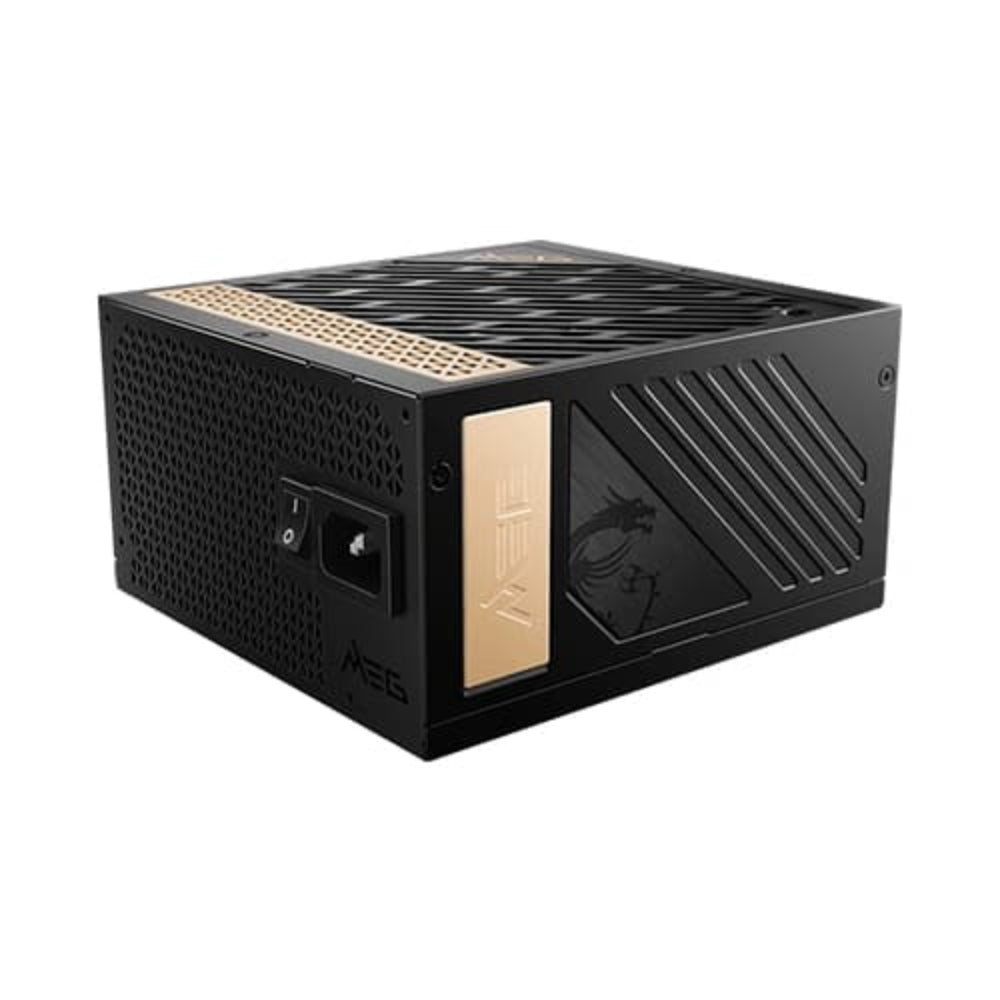

MSI MEG Ai1300P PCIe5 1300W 80+ Platinum Fully Modular 3.1 ATX Power Supply ( 1300W )

Features of MSI MEG Ai1300P PCIe5 1300W 80+ Platinum Fully Modular 3.1 ATX Power Supply ( 1300W )

• Supports Nvidia GeForce RTXTM 40 Series graphics cards
• ATX 3.1 fully supported
• PCIe 5.1 ready, with native 16-pin connector
• Software sync with MSI Center
• Full modular design
• Sleeve cables
• 80 PLUS Platinum certified for high efficiency
• 100% all Japanese 105oC capacitor
• Active PFC design
• Industrial level protection with OVP,OCP,OPP,OTP,SCP,UVP
• LLC Full-Bridge Topology with DC-DC module design
• Fan Size: 120 mm
• Fan Bearing: Hydro Dynamic Bearing
• PFC Type: Active PFC
• Input Voltage Range: 100-240
• Power Excursion: 2600W (*up to 200% of the PSU's rated power for 100μs)
• Input Frequency Range: 50~60 Hz
• Protection: OCP / OVP / OPP / OTP / SCP / UVP

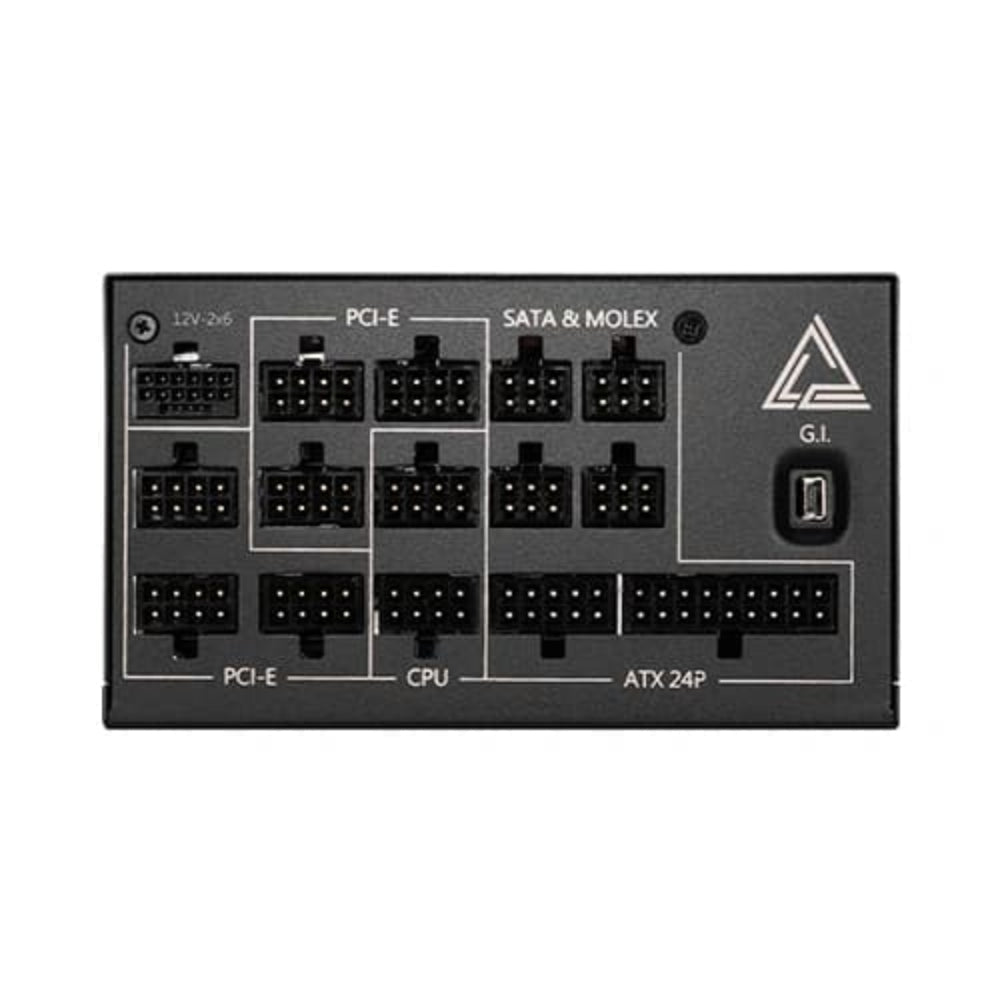

• ATX (24 pin): 1
• EPS (8 pin): 1
• EPS (4+4 pin): 1
• PCI-E 5.0 (16 pin): 1
• FDD (4 pin): 1

THE REVELATION OF LEGEND

The MEG series is revealed as a legend that represents the ultimate elegance in gaming. With the determination of transcending current gaming products, the flagship models push the limits of what an extreme gaming series can be

The mysterious triangle is a symbolic icon of MEG's infinite power, with the triangle's slope further extending the three pillars of MEG's core characteristics: legendary, loyalty, and luxurious.

ATX 3.1 Ready

It has an output port that is compliant with PCIe 5.1 and Intel PSDG (Power Supply Design Guide) ATX 3.1, also the MEG Ai1300P PCIE5 power supply can hold up to 2x total power excursion and 3x GPU power excursion.

level up your GAME

With native 16 PIN PCIe connector this power supply is ready for Nvidia® GeForce RTX® 40 Series graphics cards. It can freely pipe up to 600W of power to PCIe 5.1 graphics cards

Platinum CERTIFIED

The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS and Cybenetics PLATINUM certified promises lower energy consumption and higher efficiency.

GPU SUPPORT FOR ALL

The power supply can support the NVIDIA and AMD graphics cards. Prepared for the highest of requirements, the MEG power supply’s IO supports can support different and versatile ways of connection according to the power connector design of different graphics cards.

compact sizing

Compared with the general platinum power supply on the market. The power supply’s 160mm-long and 150mm-wide dimensions ensure a comfortable and easy fit in most PC cases, effectively providing more space for cable management and airflow to the rest of the system.

sleeve cable

Flexible triple-layer sleeved cables are easy to bend and durable, providing easy cable routing and better durability. It also looks better depending on the preference of users.

Specifications of MSI MEG Ai1300P PCIe5 1300W 80+ Platinum Fully Modular 3.1 ATX Power Supply ( 1300W )
