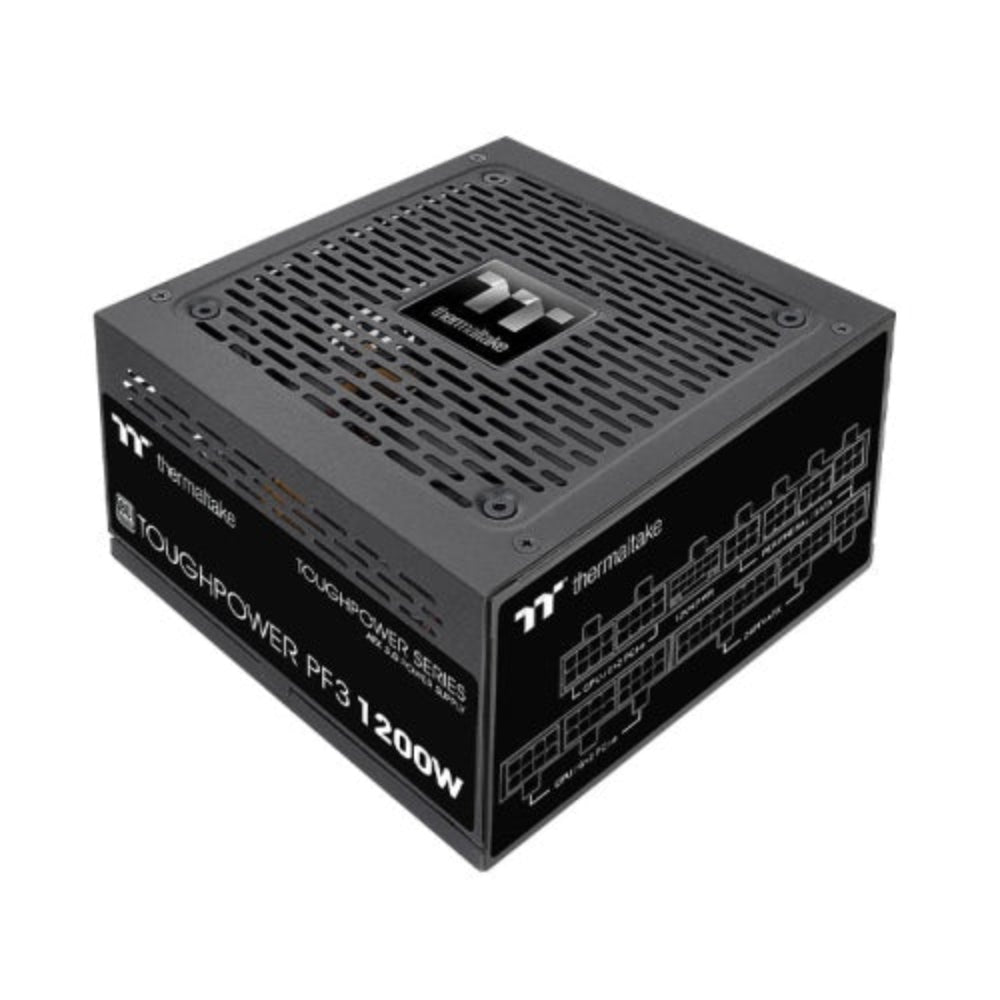

Features of THERMALTAKE Toughpower PF3 1200W 80+ Platinum Fully Modular ATX 3.0 Power Supply ( 1200W )
Toughpower PF3 series is 80 PLUS Platinum certified and fully compatible with Intel’s ATX 3.0 specifications. Designed with a native PCIe Gen 5 connector, it can power up next-gen technology with one new 12VHPWR cable.
To fully support next-gen hardware, Toughpower PF3 Platinum Series (750W/850W/1050W/1200W) is designed to meet ATX 3.0 standards, including a PCIe Gen 5.0 12VHPWR connector. The PF3 Platinum series delivers 80 PLUS Platinum efficiency, it also offers the highest stability, durability, and reliability.
Toughpower PF3 Platinum series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards.
Toughpower PF3 series comes with a 16pin connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.
The wattage marked on the 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of the PF3 1200W can deliver up to 600W for PCIe 5.0 graphics cards.
The wattage marked on the 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of the PF3 1200W can deliver up to 600W for PCIe 5.0 graphics cards.
As the power consumption of graphics cards increase, so has their demand for power. The PF3 Platinum series is designed to support NVIDIA and AMD graphics cards, and ready to supply the graphics cards according to their different ways of connections.
80 Plus Platinum certification means the Toughpower PF3 converts power efficiently, resulting in lower power loss and heat buildup inside the power supply.
The Toughower PF3 Plantinum Series is designed to be compact with size of 140mm (D) x 86mm (H) x 150mm (W) which provides ample space for cable management.
Featuring a 120mm fluid dynamic bearing fan to create the perfect balance between silence and superior cooling. Furthermore, the Smart Zero Fan will adjust the fan speed and minimizes undesired noise.
Featuring a 120mm fluid dynamic bearing fan to create the perfect balance between silence and superior cooling. Furthermore, the Smart Zero Fan will adjust the fan speed and minimizes undesired noise.
Specification of THERMALTAKE Toughpower PF3 1200W 80+ Platinum Fully Modular ATX 3.0 Power Supply ( 1200W )
| P/N | PS-TPD-1200FNFAPx-3 |
| watts | 1200W |
| Model | TPD-1200AH2FKP |
| Max. Output Capacity | 1200W |
| Color | Black |
| Dimension ( W / H / D ) | 140mm(D)x86mm(H)x150mm(W) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-250 msec |
| Hold Up Time | > 17msec |
| Input Current | 15A |
| Input Frequency Range | 50 - 60Hz |
| Input Voltage | 100 - 240Vac |
| OPERATING TEMPERATURE | 0°C to + 40°C |
| Operating Humidity | 5% to 85%,non-condensing |
| Storage Temperature | -40°C to + 70°C |
| Storage Humidity | 5% to 95%, non-condensing |
| COOLING SYSTEM | 12cm FDB Fan |
| Efficiency | Meet 80 PLUS® Platinum at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE/FCC/UKCA/ICES/LVD/TUV/cTUVus/CB/CCC/BSMI |
| PCI-E 6+2pin | 5 |
| PCIe 12+4pin | 1 |
