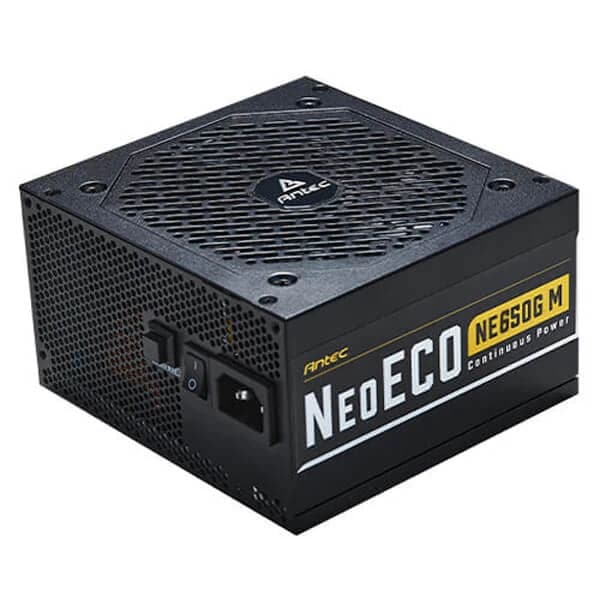

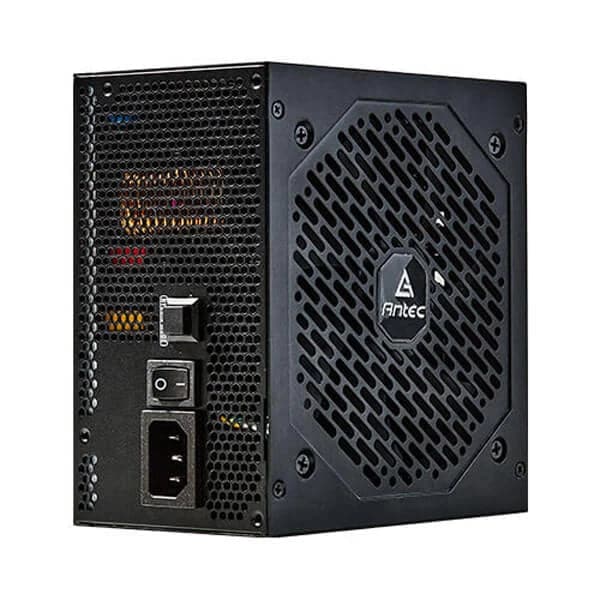

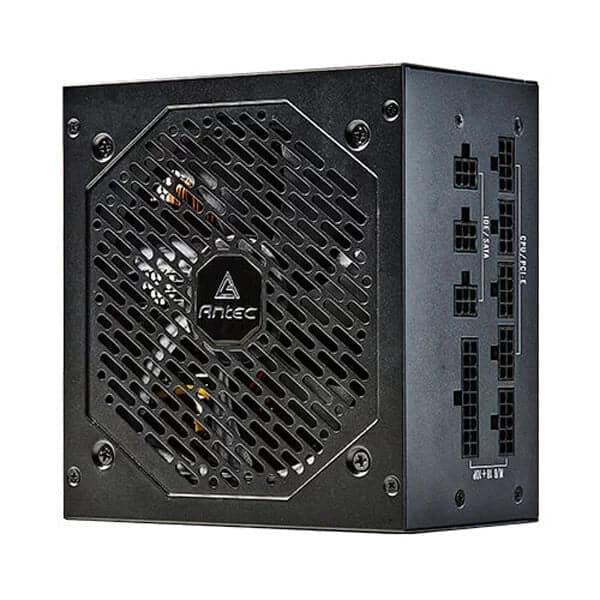

ANTEC NE650G M 650W 80+ Gold Fully Modular ATX 2.0 Power Supply

Features of ANTEC NE650G M Gold Fully Modular Power Supply

The brand-new NeoECO Gold Modular series was born ready for the best DIY-PC experience seekers, and it also serves exceptional performance and outstanding stability. Featured 100% full modular design and 80 PLUS Gold certification, the NeoECO Gold Modular series keeps your PC hardware installation convenient and clean. It still provides highly efficient power to your system and reduces your electricity bills. The advanced thermal control with the Zero RPM mode enables to turn the fan off at low loads to provide absolute silence. With the 120mm silent fan, the NeoECO Gold Modular can optimize the balance between cooling and noise. High-quality Japanese heavy-duty caps allow your system has more stable performance. The CircuitShield design serves your industry-grade protection to make your system safe in any environment. With the 7-year warranty, the NeoECO Gold Modular series will be the ideal choice for professional modders and PC gamers.

1. 650W Power Supply - Guaranteed 650W of Continuous Power from Antec
2. 100% Modular - Improves airflow and reduces clutter
3. 80 PLUS® Gold certified -Reduce your electricity bill
4. PhaseWave Design - A server-class LLC design with a synchronous rectification based on a DC-DC topology
5. Antec Quality 7-year warranty
6. 120mm Silent Fan－Whisper-quiet high-quality fluid bearing fan with long lifetime
7. Zero RPM Manager - An advanced low voltage fan control with fan-off mode at low loads for absolute silence
8. 99%+12V - Output for maximum CPU & GPU support
9. CircuitShield－Full suite of industrial grade protections: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
10. High-Quality JP capacitors achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system’s performance
11. 28(18+10) pin MBU socket - For possible future MBU connectors
12. ATX 12V 2.4－Engineered according to the newest PSU guideline and compatible with the latest CPU generation

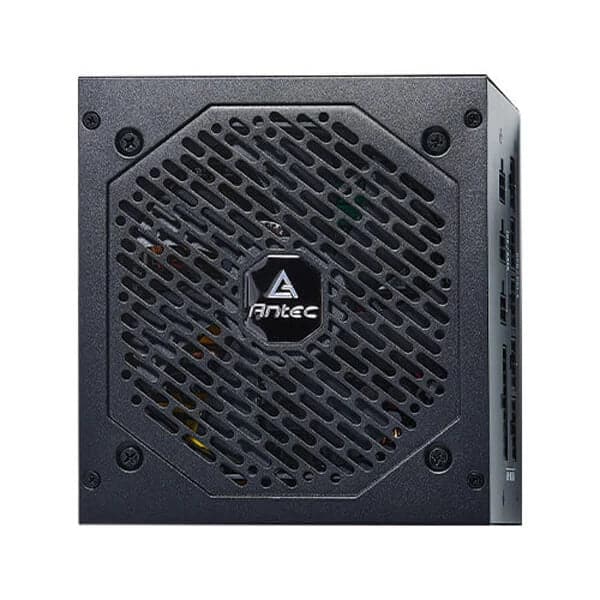

120mm Silent Fan

Zero RPM Mode

The Zero RPM fan mode further automatically ensures zero fan speed at low loads to reduce plenty of noise and keep absolute silence.

Japanese Heavy-Duty Caps

Japanese capacitors ensure the tightest DC stability and regulation, for reliability that you and your system can count on.

PhaseWave^TM LLC + DC to DC Design

A server-class Half-Bridge LLC design with synchronous rectification based on a DC-DC topology to improve performance and stability.

7-Year Warranty

The new NeoECO Gold Modular series from Antec Power Supply
pushes the standard for excellence with the circuit shield suite of industrial protections and is backed by a 7-year warranty.

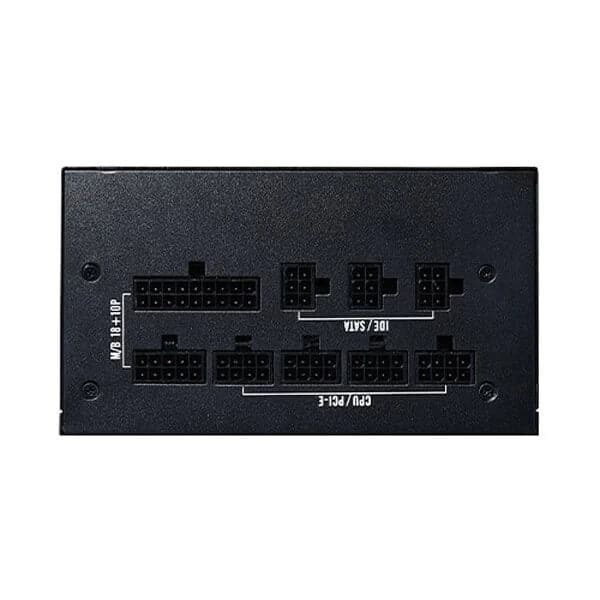

100% Full Modular

Enables users to use only the cables which are needed and help clear out excess cables that can obstruct and reduce airflow

Get the best 80 Plus Gold pc power supply price from us today!

Specifications of ANTEC NE650G M 80+ Gold Fully Modular Power Supply



Product Name	ANTEC NE650G M
Model Name	X7000A078-20
Type	ATX 12V 2.4
Modular	Fully
Dimension	150(L) x 140(W) x 86(H)
Input Voltage	100-240 VAC
Input Current	10A MAX
Input Frequency Range	50Hz-60Hz
PFC	Active PFC
Power Good Signal	100-500ms
Efficiency	Up To 92%
Protection	OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO
Output Capacity	650W
Operation Temperature	0 ~ 40°C
Regulatory	cTUVus / TUV / CB / RCM / CE / FCC / BIS / BSMI / UKCA / ICES
Fan	120mm Silence Fan
Certifications	80 Plus Gold
Connector	1 x MB 24(20+4) Pin 2 x 8(4+4) Pin EPS 12V 4 x 8(6+2) Pin PCI-E 8 x SATA 3 x Molex 1 x FDD
Net Weight	1.30 kgs
Gross Weight	2.50 kgs
UPC#	76134511751
Warranty	7 years
Note	***Features, Price and Specifications are subject to change without notice.
