Features of SILVERSTONE VIVA 650W 80+ Gold
The SILVERSTONE VIVA 650W Power Supply is Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity

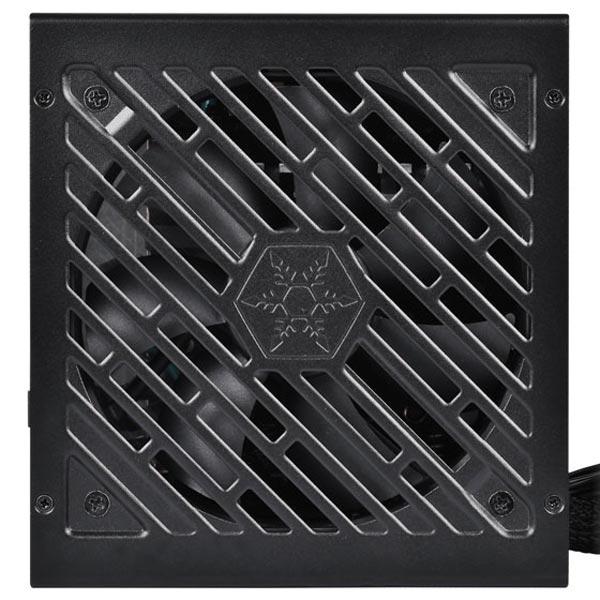

The Silverstone Power Supply has Built-in 120mm fan has excellent airflow and low noise, perfect for quiet home or office use
Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking
Flat cables have much greater flexibility to allow for tighter folding and management of cables

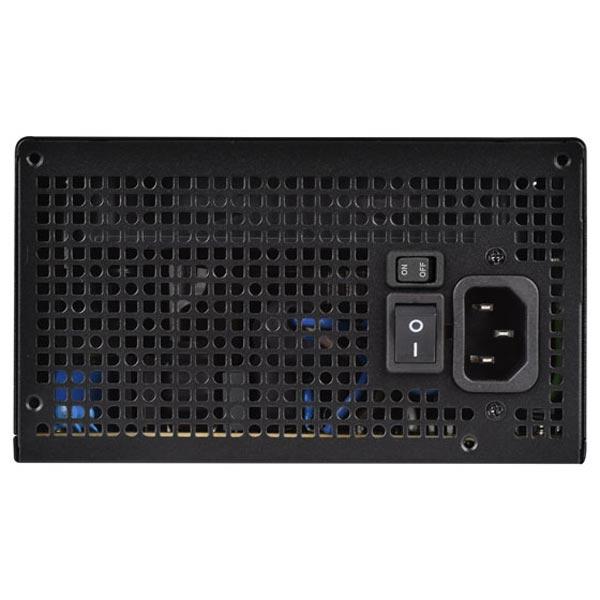

Fan switch located on the rear side designed for semi-fanless function
Specially designed cover increases effectiveness of residual heat dissipation
Dual CPU power connector design
- High efficiency with 80 PLUS Gold certification
- 24/7 continuous power output with 40℃ operating temperature
- Class-leading single +12V rail
- Silent running 120mm fan with 0 dBA minimum, equipped with semi-fanless switch function
- PCIe 8 pin and PCIe 6 pin connectors support
- All black flat cables.
Get the best 80 Plus Gold computer SMPS price from us today!
Specifications of SILVERSTONE VIVA 650W 80+ Gold
| Model No | SST-VA650-G |
| Max. DC Output | 650W |
| Power density | 360W per liter |
| Model | SST-VA650-G |
| Color | Black (Lead-Free Paint) |
| Combined +3.3V & +5V | 120W |
| Combined +12V | 650W |
| Input Voltage | 90 ~ 264 Vrms |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | Active PFC.（PF>0.9 at Full Load） |
| Efficiency | 82% ~ 85% (at 20% ~ 100% loading) |
| MTBF | 100,000 hours |
| Operating temperature | 0°C ~ 40°C |
| Protection |
Over current protection Over power protection Over voltage protection Short circuit protection Under voltage protection Over temperature protection |
| Connectors |
1 x 24 / 20-Pin motherboard connector (500mm) 1 x 8-Pin EPS and 1 x 4-Pin + 4-Pin ATX 12V connector (650mm / 150mm) 4 x 8 / 6-Pin PCIe connector (“500mm / 150mm” x 2) 8 x SATA connector ("500mm / 150mm / 150mm / 150mm” x 2) 3 x 4-Pin Peripheral connector and 1 x 4-Pin Floppy connector (500mm / 150mm / 150mm / 150mm) |
| Cooling System | Silent 120mm fan |
| Form Factor | ATX(PS2) |
| Noise Level | 0 dBA minimum |
| Dimension |
150 mm (W) x 86 mm (H) x 140 mm (D) 5.91" (W) x 3.39" (H) x 5.51" (D) |
| Weight | 1.72kg |
| Certification | 80 PLUS GOLD |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
