Description
Features of ZOTAC Gaming GeForce RTX 3090 Trinity 24GB Nvidia Graphic Card
ZOTAC GAMING GeForce RTX 3090 Trinity is equipped with a powerful graphics processor and especially fast GDDR6X graphics memory. ZOTAC GAMING GeForce RTX 3090 Trinity gaming graphics card is designed for gamers with the highest demands on graphics quality and performance. Compared to the RTX-2080 series, the computing speed of the rasterization optics and the ray tracing performance has been significantly increased. In addition, the Ampere generation GPUs support PCIe Express 4.0. With a GeForce RTX 3090, extremely high frame rates in 4K and even fluid gaming in 8K are possible.
The GPU comes with an efficient triple-fan cooling design with semi-passive cooling. It features striking discreet RGB LED lighting. The card comes with a factory overclock of 1695 MHz which is a more than 300 MHz increase over the reference frequency. As with all the 3090 GPUs, this card also features 24 GB of GDDR6X next-gen graphics memory which is clocked at a blazingly high memory clock of 9750 MHz.
The high graphics performance of the ZOTAC GAMING GeForce RTX 3090 Trinity is ensured by the graphics processor with a maximum boost clock of 1695 MHz and the 24 GB GDDR6X memory with an effective clock frequency of 19500 MHz. The GAMING GeForce RTX 3090 Trinity is kept at low temperatures by the triple fan design cooling system developed by ZOTAC.
The design of the ZOTAC GAMING GeForce RTX 3090 Trinity in black and grey blends in perfectly with most builds. For a visually uniform look, the slot bracket is also colored black. The visually discreet RGB lighting can be controlled via ZOTAC's Spectre 2.0 software. The beastly graphics card is 2.9 slots high and just under 32 cm long, which won't be much difficult to fit into most builds.
- 2nd Gen Ray Tracing Cores
- 3rd Gen Tensor Cores
- SPECTRA 2.0 RGB Lighting
- IceStorm 2.0 Advanced Cooling
- Active Fan Control with FREEZE Fan Stop

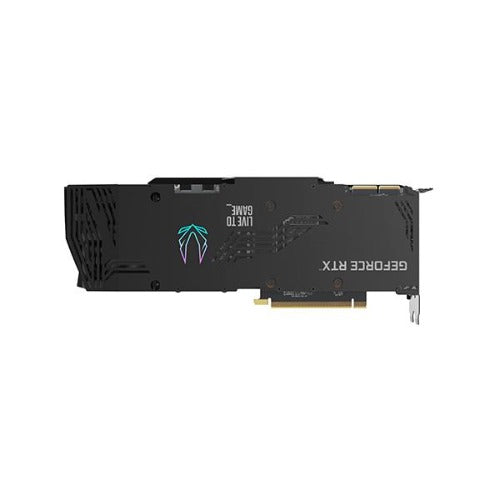

- Metal Frontplate and RGB LED Backplate
- FireStorm Utility
- NVIDIA NVLink (SLI-ready), VR Ready
Live To Game with the all-new ZOTAC GAMING GeForce RTX™ 30 Series based on the NVIDIA Ampere architecture. Built with enhanced RT Cores and Tensor Cores, new streaming multiprocessors, and superfast memory, the new ZOTAC GAMING graphics cards give rise to amplified gaming with ultra graphics fidelity.
ULTIMATE RAY TRACING AND AI
NVIDIA RTX is the most advanced platform for ray tracing and AI technologies that are revolutionizing the ways we play and create. Over 150 top games and applications use RTX to deliver realistic graphics with incredibly fast performance or cutting-edge new AI features like NVIDIA DLSS and NVIDIA Broadcast. RTX is the new standard.
GET FASTER PERFORMANCE WITH NVIDIA DLSS
Get a performance boost with NVIDIA DLSS (Deep Learning Super Sampling). AI-specialized Tensor Cores on GeForce RTX GPUs give your games a speed boost with uncompromised image quality. This lets you crank up the settings and resolution for an even better visual experience.
RAY TRACING
Ray tracing simulates how light behaves in the real world to produce the most realistic and immersive graphics for gamers and creators. GeForce RTX 30 Series has 2nd generation RT Cores for maximum ray-tracing performance.
AWARD-WINNING DESIGN
AMP Holo model is a proud winner of Red Dot Design Award for outstanding achievement in Product Design.
COLOR IN THE LIGHT
SPECTRA 2.0 lights the path, enables beautiful colors, brings lighting to life with animated options, and makes the ZOTAC GAMING graphic card yours with personalization using the ZOTAC GAMING FireStorm software. Equipped with powerful Addressable LEDs, lighting and colors are fluid, dynamic and more mesmerizing with HoloBlack.
With a simple and intuitive minimal interface, the ZOTAC GAMING FireStorm Utility provides simple tools to transform fine-tuning your GPU into a simple task. Monitor your GPU, control the fan speed, adjust the SPECTRA supported RGB lighting, and many more options.
Specifications of ZOTAC Gaming GeForce RTX 3090 Trinity 24GB Nvidia Graphic Card
| GPU | GeForce RTX 3090 |
| CUDA cores | 10496 |
| Video Memory | 24GB GDDR6X |
| Memory Bus | 384-bit |
| Engine Clock | Boost: 1695 MHz |
| Memory Clock | 19.5 Gbps |
| PCI Express | 4.0 16x |

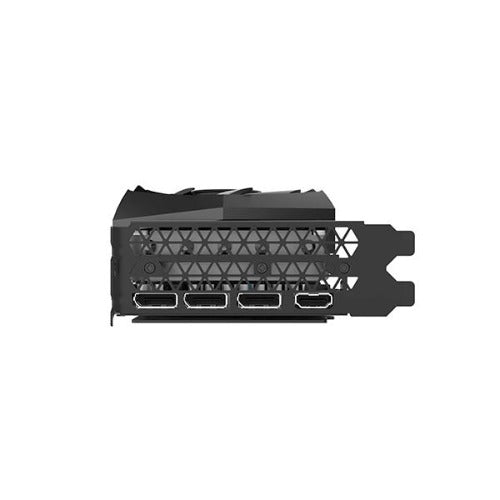

| Display Outputs | 3 x DisplayPort 1.4a (up to 7680×4320@60Hz) |
| HDMI 2.1* (up to 7680×4320@60Hz) | |
| *Ultra High Speed HDMI Cable is required to support 8K/60FPS or 4K/120FPS | |
| HDCP Support | 2.3 |
| Multi Display Capability | Quad Display |
| Recommended Power Supply | 750W |
| Power Consumption | 350W |
| Power Input | 2 x 8-pin |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Cooling | IceStorm 2.0 |
| Slot Size | 2.5 slot |
| SLI | NVLink Ready |
| Supported OS | Windows 10 64-bit (build 2004 or later) |
| Card Length | 317.8mm x 120.7mm x 58mm / 12.5″ x 4.75″ x 2.28″ |
| Accessories | 2 x Dual 6-pin to 8-pin cable |
| Manual |
