Description

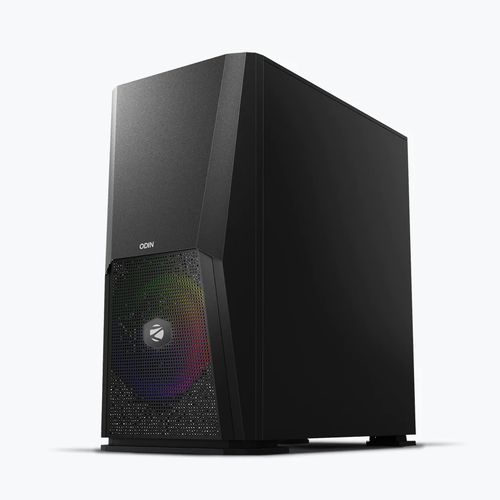

Features of ZEBRONICS Zeb Odin ATX Mid Tower Gaming Cabinet (Black)

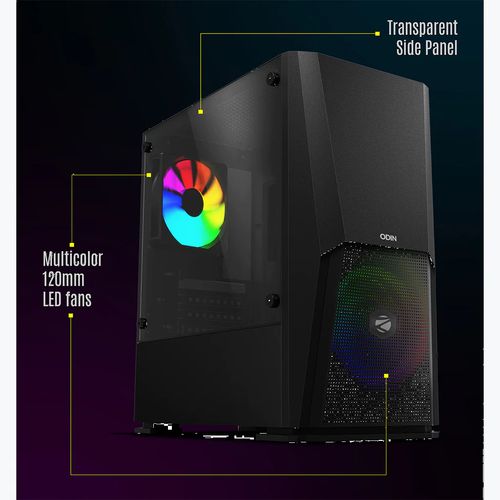

Zeb-Odin is a premium gaming ATX Cabinet that supports mATX/ITX. It features a transparent side panel with dual multicolor 120mm LED fans in the front and rear. The chassis also has a magnetic dust filter on the top along with front audio and USB 3.0. Odin has a heavy-duty structure build with space for cable management along with fan mounting spaces and AIO cooler mounting spaces and up to 320 VGA support.
Bottom PSU Mount
Bottom PSU Mount for easy cable management and routing with the ventilation holes
Motherboard & VGAs
- Supports mATX & ITX Motherboards with 160mm CPU Cooler and a 320mm VGA
Slots & Storage
- 2 x SSD Slots
- 2 x HDD Slots
- Bottom Mounted Power Supply
- Brilliant cable management
Fan Mounting Space
- Front Mounting: 1 x 120mm / 2 x 120mm / 1 x 140mm
- Bottom Mounting: 2 x 120mm
- Rear Mounting: 1 x 120mm
- Top Mounting: 2 x 120mm
AIO Cooler Mounting Space
Built in AIO Cooler Mounting Space of
- 1 x 120mm
- 1 x 280mm
- Form Factor : Mid tower
- CPU Cooler size : 160mm
- VGA Size : 320mm
- AIO Cooler : Rear-120mm ; Front-280mm
- Cooling fans : Multicolor
- Expansion slot : 4

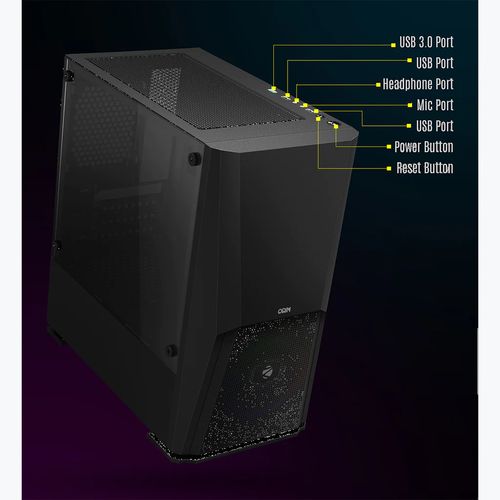

- USB : 2 x USB, 1 x USB3.0
- Audio: HD Audio
- Side panel: Transparent
- Multicolor fan
- Magnetic dust filter
- Transparent side panel
- 120mm Front and Rear LED Fan

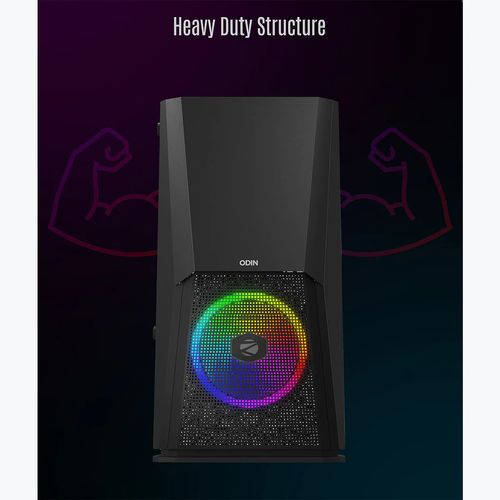

- Heavy Duty Structure
- Optimized design for airflow
- Bottom PSU
Specifications of ZEBRONICS Zeb Odin ATX Mid Tower Gaming Cabinet (Black)
| Form Factor | Mid tower |
| Motherboard | mATX/ITX |
|
Drive support
|
HDD (3.5) : 2 |
| SSD (2.5) : 2 | |
| CPU Cooler size | 160mm |
| VGA Size | 320mm |
|
AIO Cooler
|
Rear : 120mm |
| Front : 280 mm | |
|
Cooling fans
|
Multicolor |
| Front : 120mm x 1, 120mm x 2 / 140mm x 1 (Optional) | |
| Rear : 120mm x 1 | |
| Top : 120mm x 2 (Optional) | |
| PSU Cover : 120mm x 2 (Optional) | |
| Expansion slots | 4 |
| USB | 2 x USB, 1 x USB3.0 |
| Audio | HD Audio |
| Side panel | Transparent |
| PSU | Bottom |
| Product dimension | 200 x 361 x 393 mm(W x D x H) |
| Package dimension | 453 x 260 x 425 mm(W x D x H) |
| Net. weight | 3.8 kg |
