Description

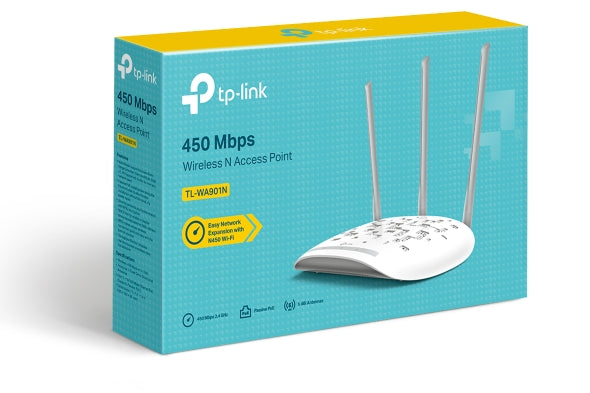

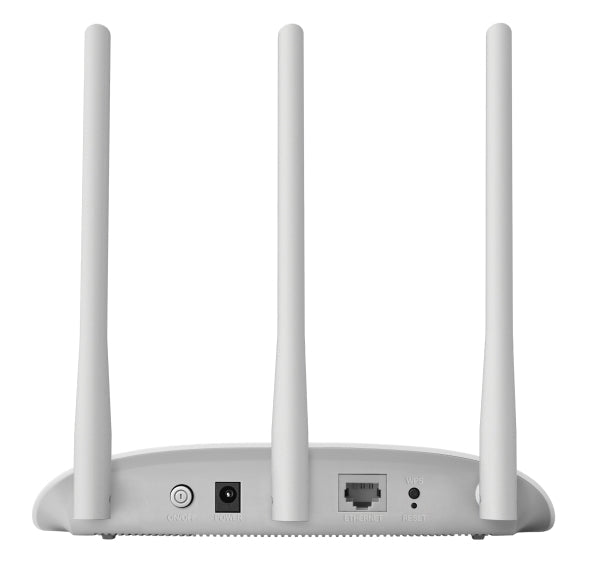

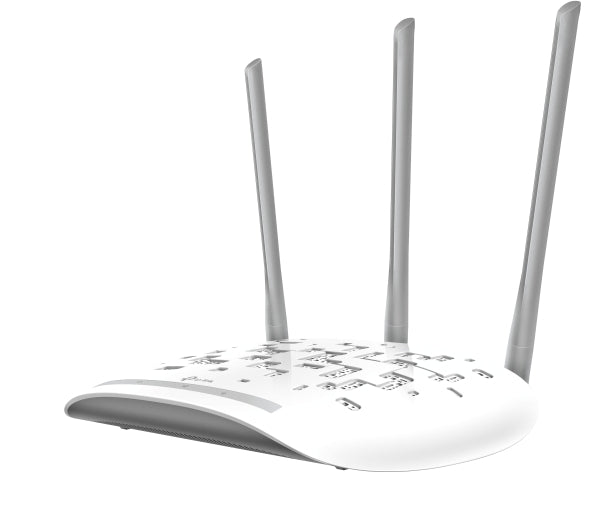

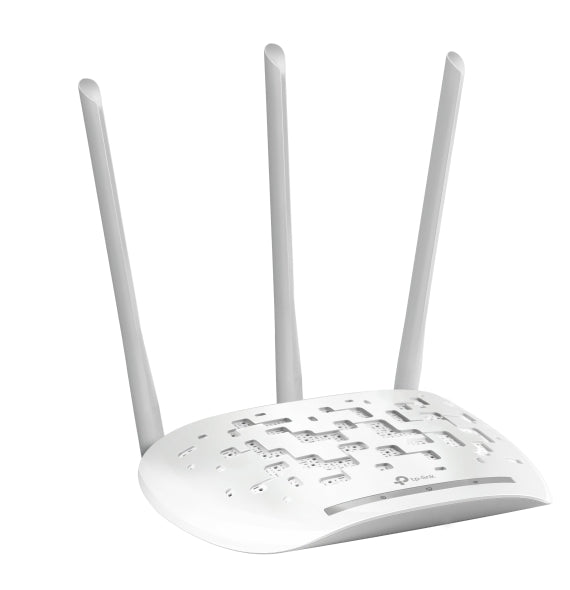

Features of TPLink TL-WA901N 450Mbps Wireless N Access Point
- 450Mbps wireless transmission rate brings smooth wireless N experience
- Supports multiple operating modes: Access Point, Range Extender, Multi-SSID and Client modes
- Easily setup a WPA-PSK/WPA2-PSK encrypted secure connection at a push of the WPS button
- Up to 30 meters (100 feet) of flexible deployment with included Power over Ethernet Injector
Specifications of TPLink TL-WA901N 450Mbps Wireless N Access Point
| HARDWARE FEATURES | |
| Interface |
1× 10/100M Ethernet Port(RJ45) Support Passive PoE |
| Button | Power On/Off Button, Reset Button, WPS Button |
| External Power Supply | 9VDC / 0.85A |
| Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Dimensions ( W x D x H ) | 7.7 × 5.3 × 1.4 in (195 × 134 × 36 mm ) |
| Antenna Type | 3 Fixed Omni-Directional Antennas |
| WIRELESS FEATURES | |
| Frequency | 2.4 GHz |
| Signal Rate | 450 Mbps at 2.4 GHz |
| Reception Sensitivity |
11g 54M: -76dBm 11n 20Mbps: -73dBm 11n 40Mbps: -70dBm |
| Transmit Power | CE: <20dBm; FCC: <30dBm |
| Wireless Modes | Access Point, Range Extender, Client, Multi-SSID |
| Wireless Functions |
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions |
| DHCP | Server, DHCP Client List |
| Quality of Service | WMM |
| Management | SNMP |
| Advanced Functions | Up to 30 meters PoE is supported |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents |
Wireless N Access Point TL-WA901N Power Adapter Passive PoE Power Injector RJ45 Ethernet Cable Quick Installation Guide |
| System Requirements |
Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Cable or DSL Modem Subscription with an Internet Service Provider (for Internet access) |
| Environment |
Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Protocol Support | IPv4, IPv6 |
