Description

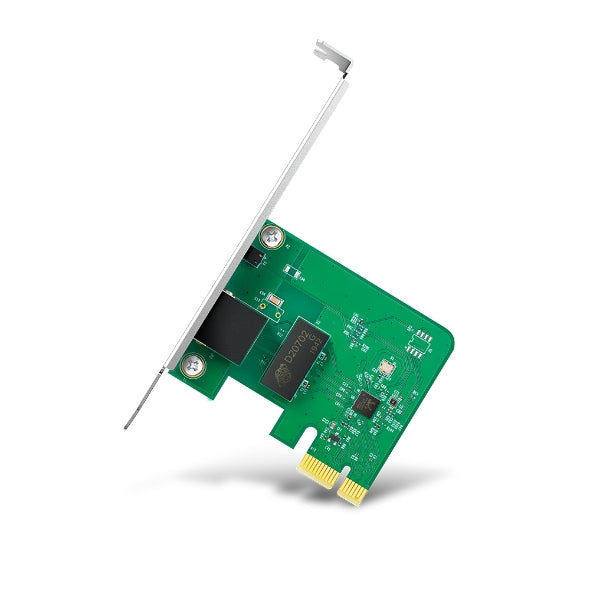

Features of TPLink TG-3468 Gigabit PCI Express Network Adapter
- Interface —— 32-bit PCIe interface 10/100/1000Mbps RJ45 PCIe Adapter, saving the finite chassis space
- Automization —— Wake-on-LAN, convenient to manage over LAN
- Data Rates —— 10/100/1000Mbps for Half-Duplex mode and 20/200/2000Mbps for Full-Duplex mode
- Flow Control —— IEEE 802.3x Flow Control (Full-Duplex)

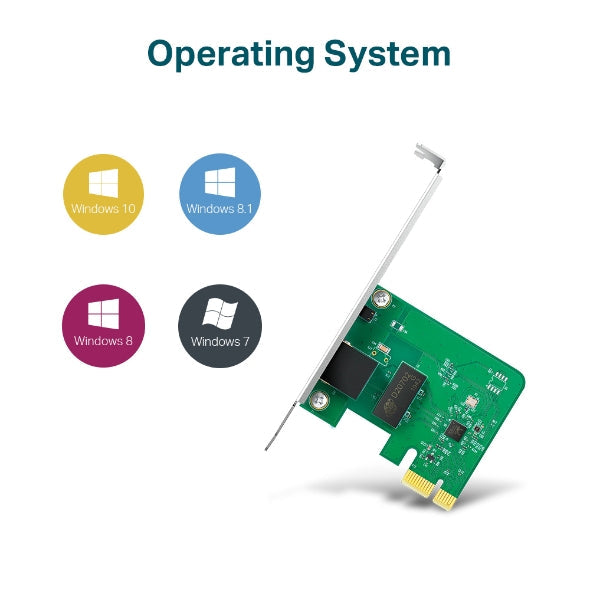

- Compatibility —— Windows 7/8/8.1/10/11 (32/64bits), Windows Vista (32/64 bits), Window XP (32/64bits)
-
In an unlikely case of product quality related issue, we may ask you to reach out to brand’s customer service support and seek resolution. We will require brand proof of issue to process replacement request.
Specifications of TPLink TG-3468 Gigabit PCI Express Network Adapter
| HARDWARE FEATURES | |
| Interface | PCI Express, 1 × 10/100/1000 Mbps RJ45 Port, Auto-Negotiation, Auto MDI/MDIX |
| Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000Base-T: UTP category 5, 5e cable (maximum 100m) |
| LED | Status |
| Wireless Standards | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x |
| Data Rates |
10/100/1000Mbps for Half-Duplex mode, 20/200/2000Mbps for Full-Duplex mode |
| Dimensions | 3.1 × 4.8 × 0.8 in (78.5 × 120.8 × 21.5mm) |
| Flow Control | IEEE 802.3x Flow Control (Full-Duplex) |
| OTHERS | |
| Certification | FCC, CE, RoHS, BSMI, VCCI |

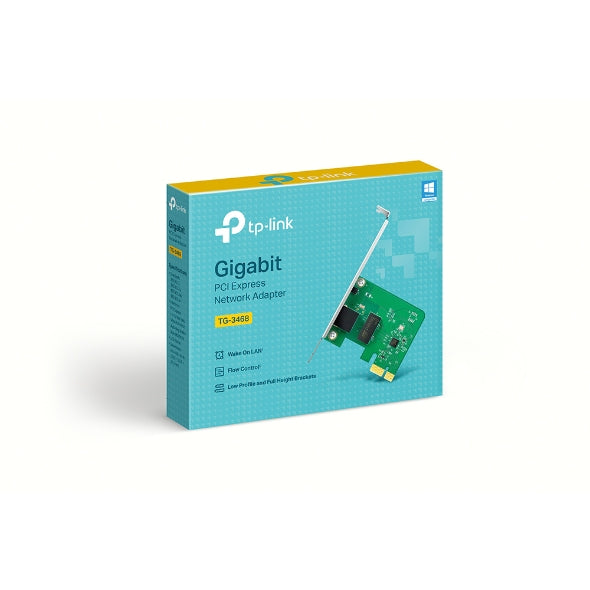

| Package Contents |
Gigabit PCI Express Network Adapter TG-3468 Quick Installation Guide Resource CD Low-profile Bracket |
| System Requirements | Windows 11/10/8.1/8/7 |
| Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
