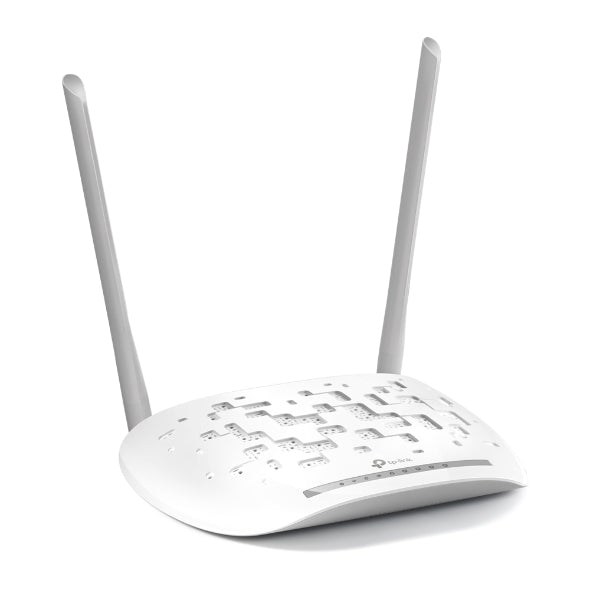

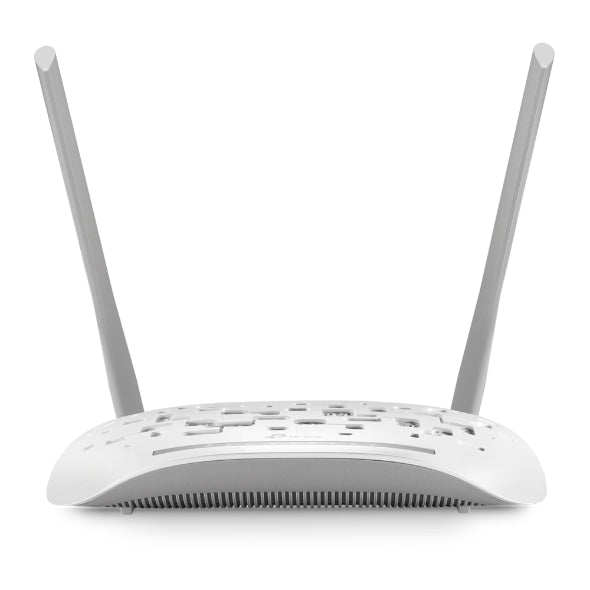

Features of TPLink TD-W8961N 300Mbps Wireless N ADSL2+ Modem Router
- All-in-One Device: ADSL2+ Modem, NAT Router, 4-Port Switch and Wireless N Access Point
- Wireless N speed up to 300Mbps makes it ideal for heavy bandwidth consuming or interruption sensitive applications like online gaming, Internet calls and even the HD video streaming
- Easy Setup Assistant with multi-language support provides quick & hassle-free installation
- Easy one-touch wireless security encryption with the ‘WPS’ button and easy Wi-Fi On/Off button
Specifications of TPLink TD-W8961N 300Mbps Wireless N ADSL2+ Modem Router
| HARDWARE FEATURES | |
| Interface |

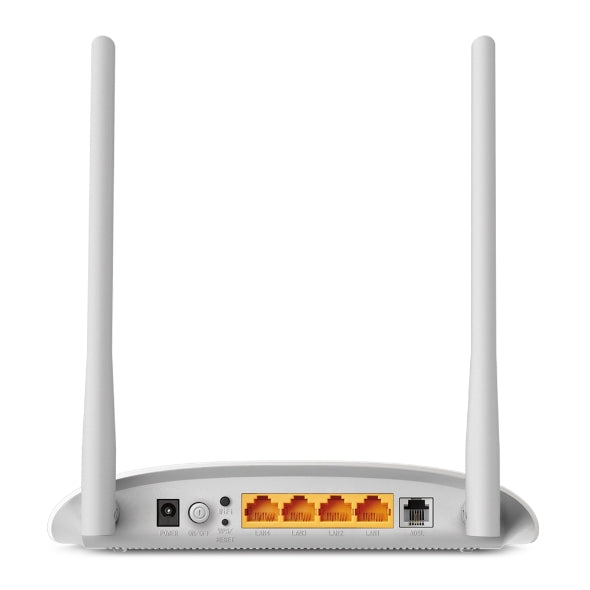

4 10/100Mbps RJ45 Ports 1 RJ11 Port |
| Button |
1 Power On/Off Switch 1 WPS Button 1 Wi-Fi On/Off Button |
| External Power Supply | 9VDC/0.6A |
| IEEE Standards | IEEE 802.3, 802.3u |
| ADSL Standards |
Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite) ITU-T G.994.1 (G.hs), ITU-T G.995.1 |
| ADSL2 Standards |
ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.4 (G.lite.bis) |
| ADSL2+ Standards | ITU-T G.992.5 |
| Dimensions ( W x D x H ) | 7.7 * 5.1 * 1.4 in. (195 * 130 * 35 mm ) |
| Antenna Type | Omni directional, Fixed |
| Antenna Gain | 2x5dBi |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11n, 802.11g, 802.11b |
| Frequency | 2.400-2.4835GHz |
| Transmit Power | <20dBm(EIRP) |
| Wireless Security |
Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, Wireless MAC Filtering |
| SOFTWARE FEATURES | |
| Quality of Service | QoS Remarking based on IPP/ToS, DSCP and 802.1p |
| Security |
NAT Firewall, SPI Firewall, MAC / IP / Packet / Application / URL Filtering, Denial of Service(DoS), SYN Flooding, Ping of Death |
| Management |
Web Based Configuration(HTTP), Remote management, Telnet management, Command Line Interface, SSL for TR-069, SNMP v1/2c, SNMP over EOC, Web Based Firmware Upgrade, CWMP(TR-069), Diagnostic Tools |
| Port Forwarding | Virtual Server, DMZ, ACL(Access Control List) |
| VPN Pass-Through | PPTP, L2TP, IPSec Pass-through |
| ATM/PPP Protocols |
ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), PVC - Up to 8 PVCs |
| Advanced Features |
Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt; Dynamic Host Configuration Protocol (DHCP), DHCP relay; Network Address Translation (NAT); PVC/Ethernet Port Mapping VLAN, 802.1P, Static Routing, DNS Relay, DDNS, IGMP snooping V1/2 IGMP Multicast, UPnP |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents |
TD-W8961N External Splitter RJ-11 Telephone Cable RJ-45 Ethernet Cable Quick Installation Guide Power Adapter |
| System Requirements |
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ ，Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux.
|
| Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
