Features of TPLink Archer TX3000 AX3000 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter
- Unrivaled Wi-Fi 6 Speed—Breaks the gigabit barrier with speed up to 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
- Smoother Experience—75% lower latency ensures ultra-responsive real-time gaming
- Reliable Connections—Intel® Wi-Fi 6 chipset brings faster and clearer Wi-Fi to fully unlock the potential of your Wi-Fi 6 router

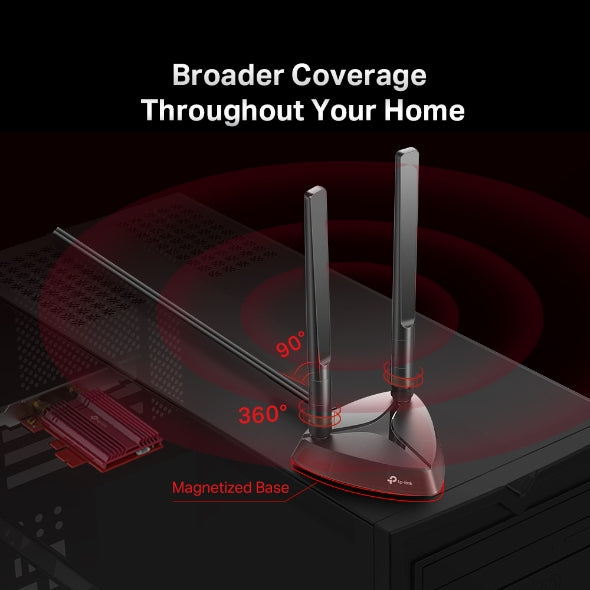

- Wider Signal Coverage—Two multi-directional antennas with the magnetized base are designed for optimum signal reception
- Bluetooth 5.2—The latest Bluetooth technology achieves Faster Speed and Broader Coverage than older versions
- Improved Security—The latest security enhancements WPA3 provides enhanced protection in personal password safety
- Fine Crafting—Specialized heatsink and gold plating is crafted to improve stability and reliability even in hot environments
- Backward Compatibility – Full support for 802.11ac/a/b/g/n standards
Specifications of TPLink Archer TX3000 AX3000 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter
| HARDWARE FEATURES | |
| Interface | PCI Express x1/x4/x8/x16 |
| Dimensions |
3.7 x 4.8 x 0.8 in (95.2 x 120.8 x 21.5 mm) |
| Antenna Type |
Two High-Gain Dual Band Antennas Magnetized Antenna Base |
| Chipset | Intel Wi-Fi 6 Chipset |
| BLUETOOTH FEATURES | |
| Standards and Protocols | Bluetooth 5.2, Bluetooth 5.0, Bluetooth 4.2, Bluetooth 4.0 |
| Interface | F_USB 2.0 |
| WIRELESS FEATURES | |
| Wireless Standards |
IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/g/b 2.4 GHz Bluetooth 5.0/4.2/4.0 |
| WLAN Signal Rate |
5 GHz 11ax: Up to 2402 Mbps(dynamic) 11ac: Up to 1733 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz |
| WLAN Reception Sensitivity |
5 GHz : 11ax HT160：-56.25dBm 11ax HT80: -59dBm 11ax HT40: -62.25dBm 11ax HT20: -65dBm 11ac HT160：-62dBm 2.4GHz : |
| WLAN Transmit Power |
5 GHz: 28dBm(FCC) / 23dBm(CE) (EIRP), 2.4 GHz : 24dBm(FCC) / 20dBm(CE) (EIRP) |
| WLAN Modes | Infrastructure mode |
| Wireless Security |
Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x |
| Modulation Technology |
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents |
Archer TX3000E Magnetized Antenna Base with 1m RF Cable Two High Gain Antennas Low-Profile Bracket Bluetooth Header Cable Quick Installation Guide Resource CD |
| System Requirements | Windows 11/10(64-bit) only |
| Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
