Description

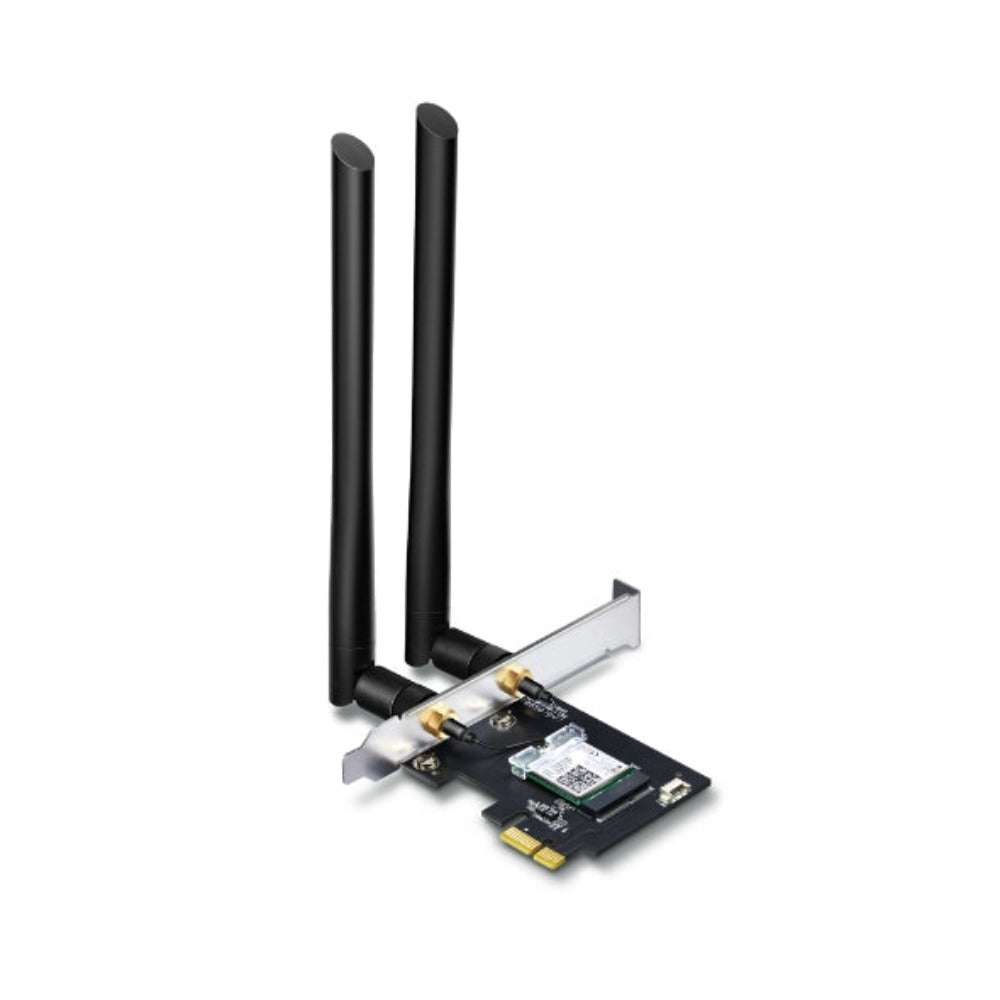

Features of TPLink Archer T5E AC1200 Wi-Fi Bluetooth 4.2 PCIe Adapter
- Ultra-Fast Speed – Make full use of your network with Wi-Fi speeds up to 1167 Mbps (867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band)
- Bluetooth 4.2 – Achieve 2.5× faster speed and 10× more packet capacity than Bluetooth 4.0
- Broad Wireless Range – Connect to your Wi-Fi in more parts of your home with two external high-gain antennas ensuring greater coverage and enhanced stability
- Easy Installation – Plug the adapter into an available PCI-E slot to upgrade your desktop
Dual Band Wi-Fi for Faster Connections
TPLink Archer T5E is an 802.11ac dual-band Wi-Fi PCI Express adapter with speeds up to 1167 Mbps (867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band), providing Wi-Fi signals on two separate bands for all your online needs. Choose the 2.4 GHz band for surfing, emailing, and social media, or switch to 5 GHz band for gaming, streaming, and large file downloads.
Arm Your PC with Bluetooth 4.2
Archer T5E is compatible with advanced Bluetooth 4.2 technology, achieving 2.5× faster speed and 10× more packet capacity than Bluetooth 4.0 to turn non-Bluetooth PCs into Bluetooth-Capable. Just connect your Bluetooth devices to your computer and enjoy.
Powerful Antennas for Broader Coverage
Two powerful signal-boosting high-gain antennas greatly extend your existing Wi-Fi reception capabilities, allowing you to enjoy fast and uninterrupted 4K streaming and smooth gaming.
Advanced Security
WPA/WPA2 encryption standards ensure your data is safe from cyberattacks
Operating System
Supports Windows 11/10/8.1/8/7 (32/64 bit)
Low-Profile Bracket
In addition to the standard bracket, a low-profile bracket is also provided for mini tower computer cases
Specifications of TPLink Archer T5E AC1200 Wi-Fi Bluetooth 4.2 PCIe Adapter
| HARDWARE FEATURES | |
| Interface | PCI Express |
| Dimensions | 4.8 × 3.3 × 0.85 in (120.8 × 83.2 × 21.5 mm) |
| Antenna | 2 Detachable External Antennas |
| BLUETOOTH FEATURES | |
| Standards and Protocols | Bluetooth 4.2, Bluetooth 4.0 |
| Interface | USB 2.0 |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11a/n/ac 5 GHz |
| Signal Rate |
11ac: Up to 867 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz: 11n: Up to 300 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic) |
| Reception Sensitivity |
5 GHz: 11ac HT80: -59.0dBm 11n HT40: -68.5dBm 11a 54Mbps: -73.5dBm 11a 6Mbps: -91dBm 2.4 GHz: 11n HT40: -69.5dBm 11g 54Mbps: -74dBm 11b 11Mbps: -87dBm |
| Transmit Power |
5 GHz: 21.5dBm(FCC) / 23dBm(CE) (EIRP) 2.4 GHz : 20.5dBm(FCC) / 20dBm(CE) (EIRP) |
| Wireless Modes | Infrastructure mode |
| Wireless Security | WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Contents |
AC1200 Wi-Fi Bluetooth 4.2 PCIe Adapter Archer T5E Low-Profile and Full Height Brackets Quick Installation Guide Bluetooth USB Cable Resource CD |
| System Requirements | Windows 11/10/8.1/8/7 (32/64 bit) |
| Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
