Description

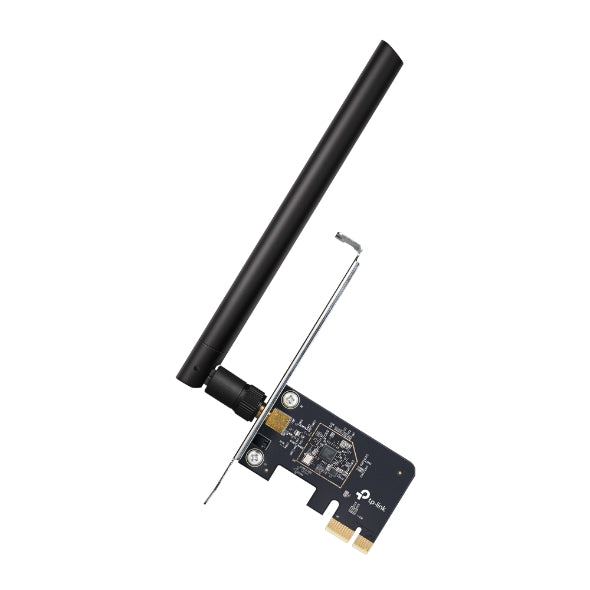

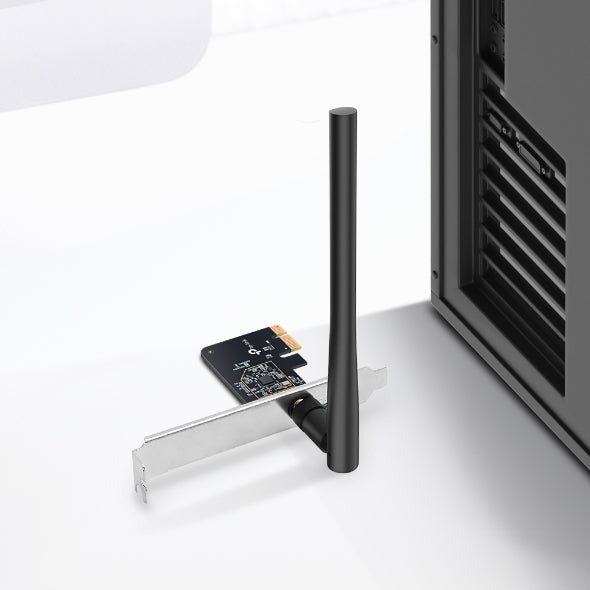

Features of TPLink Archer T2E AC600 Wireless Dual Band PCI Express Adapter
AC600 Dual Band WiFi –
Make full use of your network with Wi-Fi speeds up to 600 Mbps (433 Mbps on the 5 GHz band and 200 Mbps on the 2.4 GHz band)
MU-MIMO Supported –
Boost network thoughput and efficiency when working with a compatible MU-MIMO router

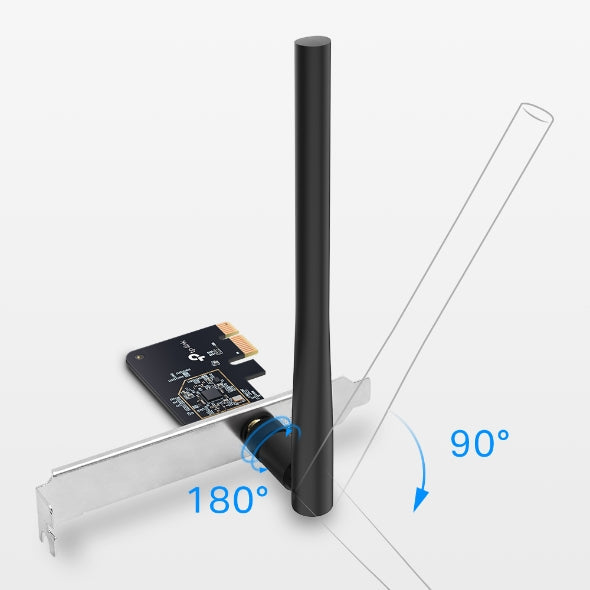

Broad Wireless Range –
Connect to your Wi-Fi in more parts of your home with powerful signal-boosting high-gain antenna
WPA3 Supported –
Improve cybersecurity with more secure and individualized protection

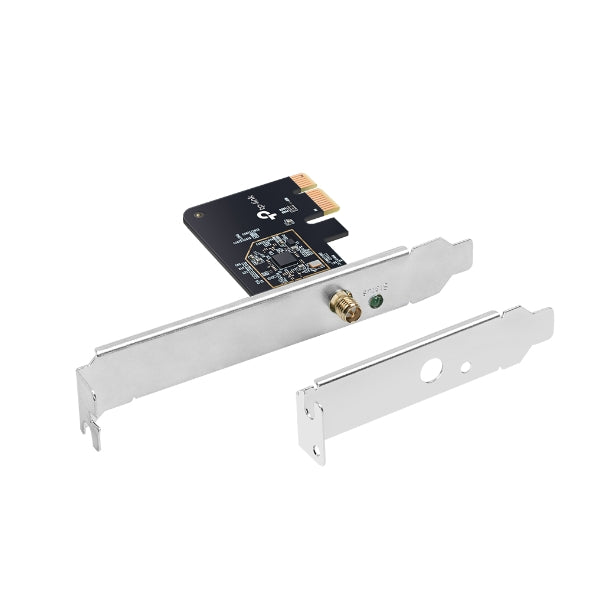

Low-Profile and Full-Height Brackets -
Customized options give you the flexibility to find a bracket that perfectly fits your board design
Specifications of TPLink Archer T2E AC600 Wireless Dual Band PCI Express Adapter
| HARDWARE FEATURES | |
| Interface | PCI Express |
| Dimensions | 4.76 × 3.09 × 0.85 in (120.8 × 78.5 × 21.5 mm) |
| Antenna | 1 Detachable External Antenna |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11a/n/ac 5 GHz |
| Signal Rate |
5 GHz: 11ac: Up to 433 Mbps(dynamic) 11n: Up to 200 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz: 11n: Up to 200 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic) |
| Reception Sensitivity |
5GHz: 11ac HT80:-59.0dBm 11n HT40:-68.0dBm 11a 54Mbps:-73.0dBm 11a 6Mbps:-90.0dBm 2.4GHz: 11n HT40:-70dBm 11g 54Mbps:-75dBm 11b 11Mbps:-87dBm |
| Transmit Power |
5GHz:18dBm(FCC)/23dBm(CE)(EIRP) 2.4GHz:18dBm(FCC)/20dBm(CE)(EIRP) |
| Wireless Modes | Infrastructure mode |
| Wireless Security | WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK/WPA3-SAE |
| Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Contents |
AC600 Wireless Dual Band PCI Express Adapter Archer T2E Low-Profile Bracket Quick Installation Guide Resource CD |
| System Requirements | Windows 11/10 |
| Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
