Description
Features of TPLink Archer MR400 AC1200 Wireless Dual Band 4G LTE Router
Cutting-edge 4G network –
Share internet access with up to 64 Wi-Fi devices and enjoy download speeds of up to 150 Mbps
AC1200 Wi-Fi –
Creates simultaneous dual band Wi-Fi networks, with maximum speeds of up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band

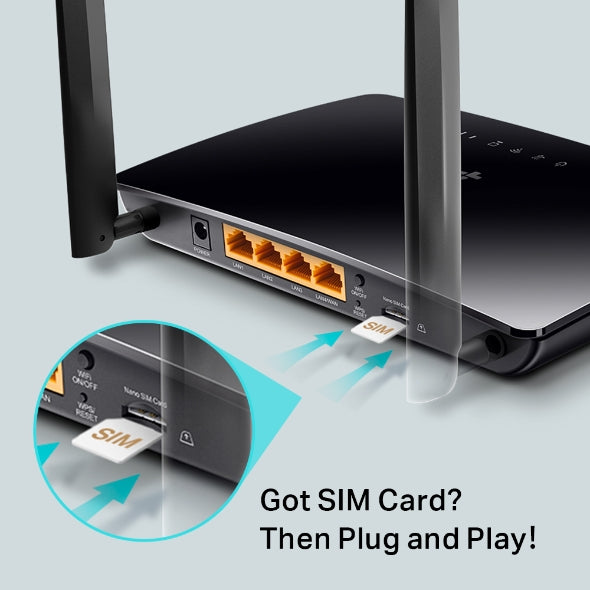

Plug a SIM card and play –
No configurations needed, compatibility for SIM cards in 100+ countries are assured by years of field tests
Two detachable advanced LTE antennas –
Enjoy stable and efficient connections to every device thanks to the two external antennas
Wi-Fi router mode –
Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection
Specifications of TPLink Archer MR400 AC1200 Wireless Dual Band 4G LTE Router
| HARDWARE FEATURES | |
| Interface |
3× 10/100Mbps LAN Ports, 1× 10/100Mbps LAN/WAN Port, 1× Nano SIM Card Slot |
| Button | WPS/RESET Button, Wi-Fi ON/OFF Button |
| External Power Supply | 12V/1A |
| Dimensions ( W x D x H ) | 6.85 × 4.9 × 1.32 in (174 × 124.5 × 33.5 mm) |
| Antenna | 2× Detachable External 4G LTE Antennas |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 300Mbps at 2.4GHz, 867Mbps at 5GHz |
| Reception Sensitivity |
5 GHz: 11a 54M: -77 dBm 11ac VHT20 MCS0: -95.5 dBm 11ac VHT20 MCS8: -73 dBm 11ac VHT40 MCS0: -93 dBm 11ac VHT20 MCS9: -68 dBm 11ac VHT80 MCS0: -90 dBm 11ac VHT20 MCS9: -65 dBm 2.4 GHz: 11g 54M: -74.5 dBm 11n HT20 MCS0: -92 dBm 11n HT20 MCS7: -73 dBm 11n HT40 MCS0: -89 dBm 11n HT40 MCS7: -70 dBm |
| Transmit Power | < 20 dBm (2.4 GHz), < 23 dBm (5 GHz) |
| Wireless Functions |
Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
| WAN Failover | Yes |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
| Network Type |
4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800 MHz) TDD-LTE B38/B40/B41 (2600/2300/2500 MHz)* 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900 MHz) *The B41 frequency of this product supports 2555-2655MHz |
| SOFTWARE FEATURES | |
| Quality of Service | Prioritizes network traffic by device or application |
| Operating Modes | 3G/4G Router, Wireless Router |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| Management |
Access Control, Local Management, Remote Management reboot schedule |
| DHCP | Server, Client, DHCP Client List, Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, NO-IP |
| VPN | PPTP VPN, OpenVPN |
| Access Control | Parental Control, Local Management Control |
| Firewall Security |
DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding |
| Protocols | Supports IPv4 and IPv6 |
| Guest Network | 2.4GHz guest network x 1, 5GHz guest network x 1 |
| OTHERS | |
| Certification | CE, RoHS |
| Package Contents |
AC1200 Wireless Dual Band 4G LTE Router, Archer MR400 RJ45 Ethernet Cable Power Adapter Quick Installation Guide |
| System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10 MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, |
| Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
