Description

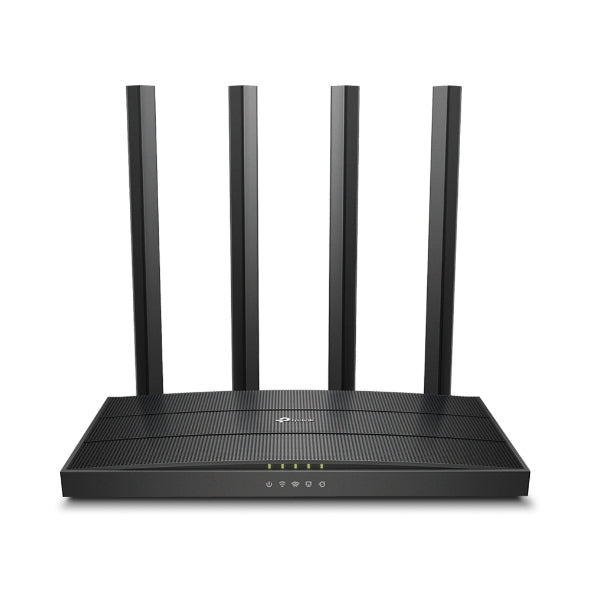

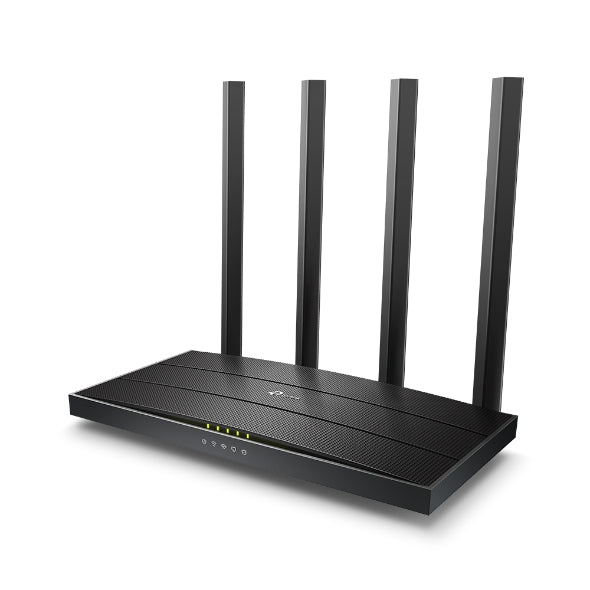

Features of TPLink Archer C6 AC1200 Wireless MU-MIMO Gigabit Router
AC1200 Dual-Band Wi-Fi –
867 Mbps at 5 GHz and 400 Mbps at 2.4 GHz band
MU-MIMO Technology –
Simultaneously transfers data to multiple devices for 2× faster performance
Boosted Coverage –
Four external antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals
Access Point Mode –
Supports AP Mode to transform your wired connection into the wireless network
Easy Setup –
Set up your Wi-Fi in minutes with TP-Link Tether app.
Specifications of TPLink Archer C6 AC1200 Wireless MU-MIMO Gigabit Router
| WIRELESS | |
| Standards |
Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds |
AC1200 5 GHz: 867 Mbps (802.11ac) 2.4 GHz: 400 Mbps (802.11n) |
| WiFi Range |
3 Bedroom Houses4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming |
| WiFi Capacity |
MediumDual-Band
Allocate devices to different bands for optimal performance MU-MIMO Airtime Fairness |
| Working Modes |
Router Mode Access Point Mode |
| HARDWARE | |
| Processor | 1.2 GHz CPU |
| Ethernet Ports |
1× Gigabit WAN Port 4× Gigabit LAN Ports |
| Buttons |
WPS/Wi-Fi Button Power On/Off Button Reset Button |
| Power | 12 V ⎓ 1 A |
| SECURITY | |
| WiFi Encryption |
WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) |
| Network Security |
SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
| Guest Network |
1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| SOFTWARE | |
| Protocols |
IPv4 IPv6 |
| OneMesh™ |
OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products> |
| Parental Controls |
URL Filtering Time Controls |
| WAN Types |
Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| Cloud Service |
OTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding |
Port Forwarding Port Triggering DMZ UPnP |
| IPTV |
IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP |
Address Reservation DHCP Client List Server |
| DDNS |
TP-Link NO-IP DynDNS |
| Management | Tether App |
| OTHER | |
| System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| TEST DATA | |
| WiFi Transmission Power |
CE EIRP: <20dBm(2.4GHz) <23dBm(5GHz) FCC: <30dBm(2.4GHz & 5GHz) |
| WiFi Reception Sensitivity |
5GHz: 11a 6Mbps:-93dBm；11a 54Mbps:-78dBm； 11ac HT20 mcs8:69dBm;11ac HT40 mcs9:-65dBm; 11ac HT80 mcs9:-62dBm; 2.4GHz: 11g 54Mbps:-78dBm; 11n HT20 mcs7:-74dBm; 11n HT40 mcs7:-71dbm； |
| PHYSICAL | |
| Dimensions (W×D×H) |
8.5 × 4.6 × 1.2 in (215 × 117 × 32 mm) |
| Package Contents |
Wi-Fi Router Archer C6 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
