Description

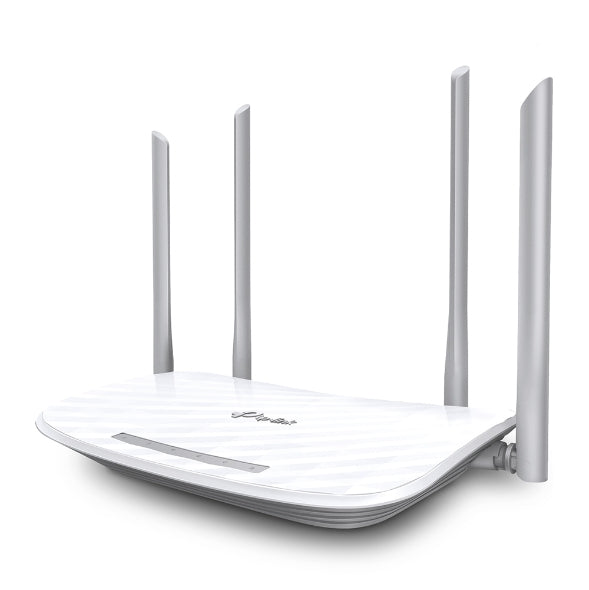

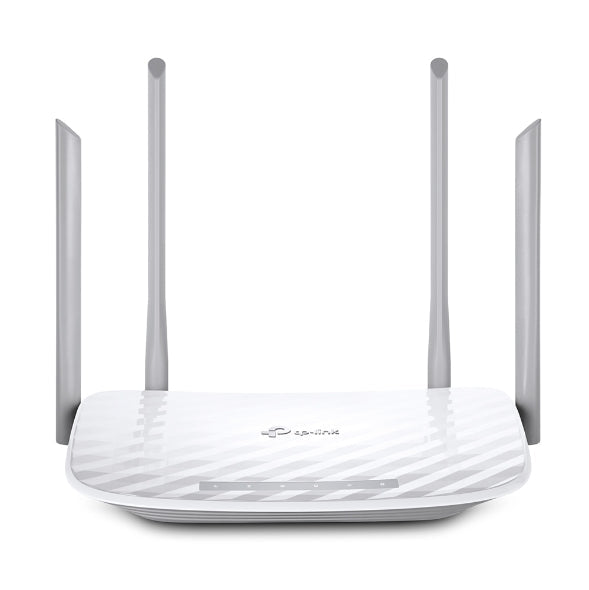

Features of TPLink Archer C5 AC1200 Wireless Dual Band Gigabit Router
- C5 AC1200 Superfast dual band Wi-Fi, up to 1.2Gbps Wi-Fi speed, 300Mbps 2.4GHz, 867Mbps 5GHz
- Easy Remote Management, TR-069 protocol enables an operator to remotely configure and manage end-user devices
- 4 external antennas provide stable wireless connections and optimal coverage
- Supports USB 2.0 port, easily share files & media with networked devices
- Full Gigabit Ports, Support 1000Mbps WAN port and four 1000Mbps LAN port, for ultrafast data transfer speeds
Specifications of TPLink Archer C5 AC1200 Wireless Dual Band Gigabit Router
| HARDWARE FEATURES | |

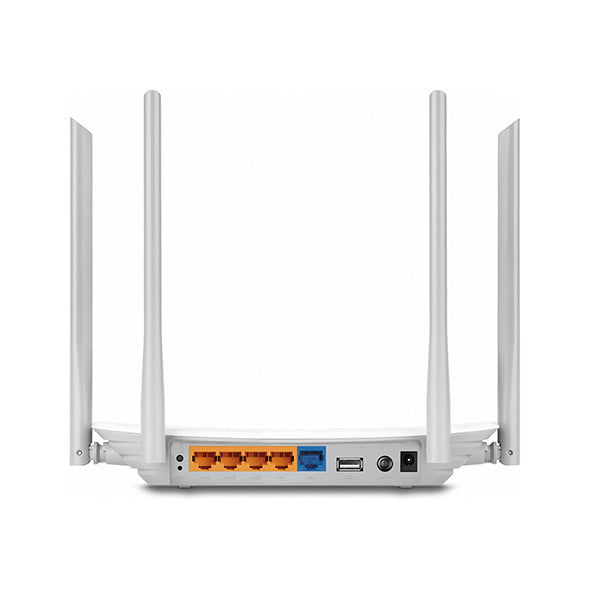

| Interface |
4 10/1000Mbps LAN Ports 1 10/1000Mbps WAN Port 1 USB 2.0 Port |
| Power Supply | 12VDC/1.0A |
| Dimensions ( W x D x H ) | 230.0 * 144.0 * 37.0 mm |
| Antenna Type | 4 Fixed antennas |
| WIRELESS FEATURES | |
| Wireless Standards |
IEEE 802.11n/g/b 2.4GHz IEEE 802.11ac/n/a 5GHz |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate |
2.4GHz: Up to 300Mbps 5GHz: Up to 867Mbps |
| Reception Sensitivity |
5GHz: 11a 54M: -73dBm; 11ac VHT20 MCS8: -66dBm; 11ac VHT40 MCS9: -61dBm; 11ac VHT80 MCS9: -58dBm. 2.4GHz: 11g 54M: -75dBm; 11n HT20 MCS7: -73dBm; 11n HT40 MCS7: -70dBm |
| Transmit Power |
CE: <20dBm(2.4GHz), <23dBm(5GHz) FCC: <30dBm |
| Wireless Functions |
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
|
| Wireless Security |
Provides WPA/WPA2 and WPA-PSK/WPA2-PSK authentication and TKIP/AES encryption security
Provides 64/128-bit WEP encryption security and wireless LAN ACL (Access Control List). |
| SOFTWARE FEATURES | |
| Quality of Service | WMM, Bandwidth Control |
| WAN Type | Dynamic IP, Static IP, PPPoE |
| Management | Access Control, Local Management, Remote Management |
| DHCP |
Server, Client, DHCP Client List, Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, NO-IP |
| Access Control |
Parental Control, Local Management Control, Host list, Access Schedule, Rule Management
|
| Protocols | IPv4 and IPv6 |
| OTHERS | |
| Package Contents |
AC1200 Wireless Dual Band Gigabit Router Power Adapter Quick Installation Guide RJ45 Cable |
| System Requirements |
Microsoft Windows 10/8.1/8/7/Vista/XP/2000/NT/98SE, MAC OS, NetWare, UNIX or Linux
|
| Certifications | CE, FCC, RoHS |
| Environment |
Operating Temperature: 0℃~40 ℃ (32 ℉~104℉) Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
