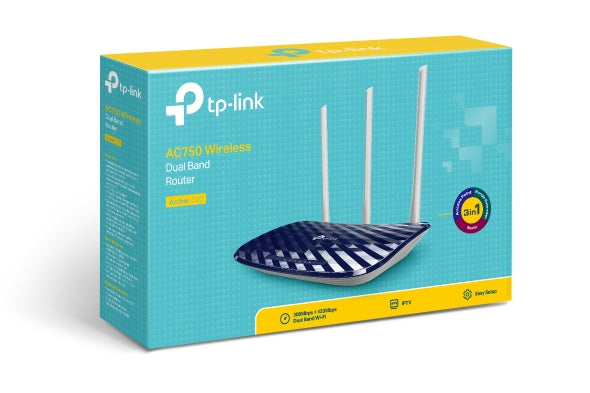

Features of TPLink Archer C20 AC750 Wireless Dual Band Router
- Supports 802.11ac standard - the next generation of Wi-Fi
- Simultaneous 2.4GHz 300Mbps and 5GHz 433Mbps connections for 733Mbps of total available bandwidth
- 3 external antennas provide stable omnidirectional signal and superior wireless coverage
Specifications of TPLink Archer C20 AC750 Wireless Dual Band Router
| WIRELESS | |
| Standards |
Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds |
AC750 5 GHz: 433 Mbps (802.11ac) 2.4 GHz: 300 Mbps (802.11n) |
| WiFi Range |
2 Bedroom Houses3× Fixed Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas |
| WiFi Capacity |
MediumDual-Band Allocate devices to different bands for optimal performance |
| Working Modes |
Router Mode Access Point Mode Range Extender Mode |
| HARDWARE | |
| Processor | Single-Core CPU |

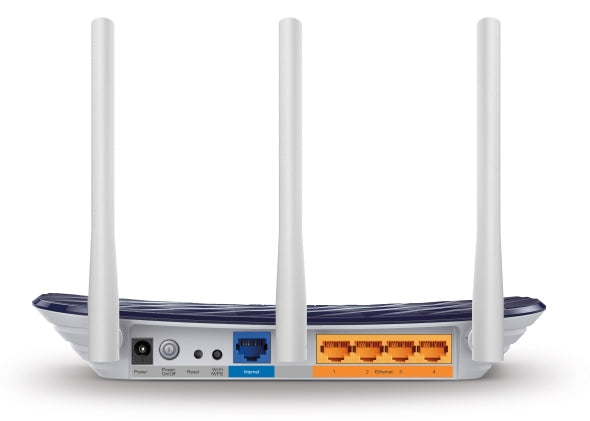

| Ethernet Ports |
1× 10/100 Mbps WAN Port 4× 10/100 Mbps LAN Ports |
| Buttons |
WPS/Wi-Fi Button Power On/Off Button Reset Button |
| Power | 9 V ⎓ 0.6 A |
| SECURITY | |
| WiFi Encryption |
WEP WPA WPA2 WPA/WPA2-Enterprise (802.1x) |
| Network Security |
SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
| Guest Network |
1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| SOFTWARE | |
| Protocols |
IPv4 IPv6 |
| Parental Controls |
URL Filtering Time Controls |
| WAN Types |
Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| NAT Forwarding |
Virtual Server Port Forwarding Port Triggering DMZ UPnP |
| IPTV |
IGMP Proxy IGMP Snooping |
| DHCP |
Address Reservation DHCP Client List Server |
| DDNS |
NO-IP Comex DynDNS |
| Management | Tether App |
| OTHER | |
| System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| TEST DATA | |
| WiFi Transmission Power |
CE: <20dBm(2.4GHz) <23dBm(5GHz) |
| WiFi Reception Sensitivity |
5GHz: 11a 54M: -76dBm; 11ac VHT20 MCS8: -71dBm; 11ac VHT40 MCS9: -66dBm; 11ac VHT80 MCS9: -62dBm 2.4GHz: 11g 54M: -76dBm11n; HT20 MCS7: -73dBm; 11n HT40 MCS7: -71dBm |
| PHYSICAL | |
| Dimensions (W×D×H) |
9.1 × 5.7 × 1.4 in (230 × 144 × 35 mm) |
| Package Contents |
Wi-Fi Router Archer C20 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
