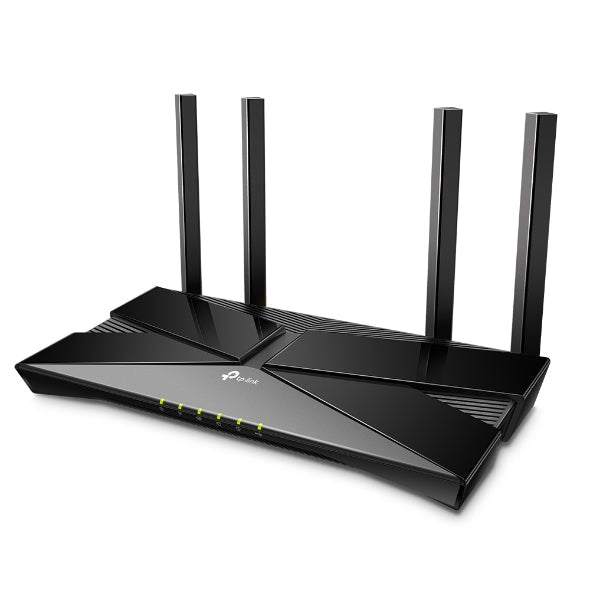

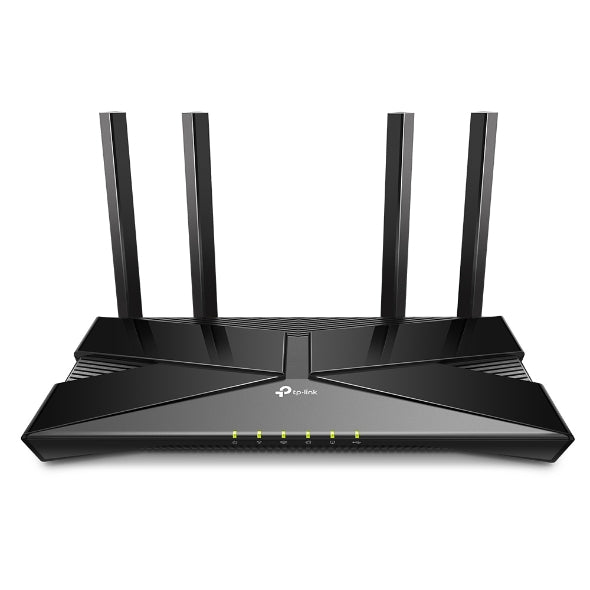

Features of TPLink Archer AX50 AX3000 Dual Band Gigabit Wi-Fi 6 Router
Next-Gen Gigabit Wi-Fi 6 Speed—2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz band ensure smoother streaming and faster downloads.
Connect More Devices—OFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices.
Ultra-Low Latency—Up to 75% reduction in latency enables more responsive gaming and video chatting.
Expanded Wi-Fi Coverage—Four high-gain external antennas and Beamforming technology combine to extend strong, reliable Wi-Fi throughout your home.
Enhanced Security—More secure and trusted AX50 AX3000 Wi-Fi with TP-Link HomeCare™.
Improved Battery Life—Target Wake Time helps your devices to communicate more while consuming less power.
Compatible with Alexa—Control your router via voice commands and make your life smarter and easier with Amazon Alexa.
The Next Wave of Home Connectivity
The Next Generation of Wi-Fi is Upon Us
Blazingly Fast Gig+ Speed Can't Wait
Reliable Connections for up to 256 Devices
Lower Latency,Greater Experience.
Specifications of TPLink Archer AX50 AX3000 Dual Band Gigabit Wi-Fi 6 Router
| WIRELESS | |
| Standards |
Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds |
AX3000 5 GHz: 2402 Mbps (802.11ax, HE160) 2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range |
3 Bedroom Houses4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming High-Power FEM |
| WiFi Capacity |
HighDual-Band Allocate devices to different bands for optimal performance OFDMA Airtime Fairness DFS 4 Streams |
| Working Modes |
Router Mode Access Point Mode |
| HARDWARE | |
| Processor | Dual-Core CPU |

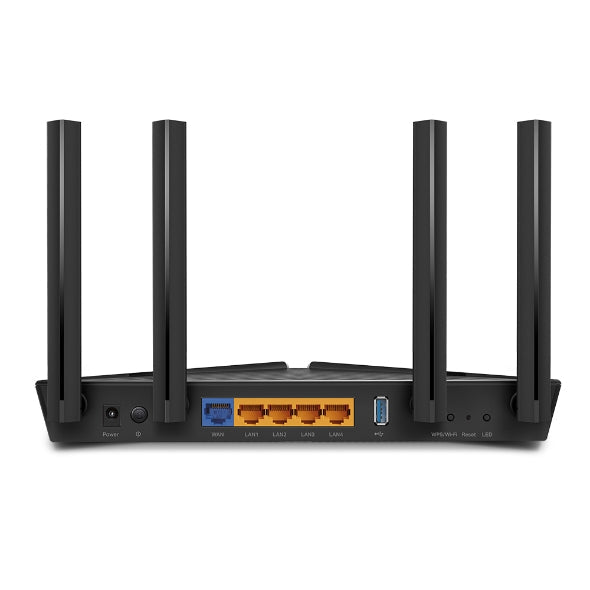

| Ethernet Ports |
1× Gigabit WAN Port 4× Gigabit LAN Ports Static Link Aggregation (LAG) available with 2× LAN ports |
| USB Support |
1× USB 3.0 Port
Supported Partition Formats: Supported Functions: |
| Buttons |
Wi-Fi/WPS Button Power On/Off Button LED On/Off Button Reset Button |
| Power | 12 V ⎓ 2 A |
| SECURITY | |
| WiFi Encryption |
WEP WPA WPA2 WPA/WPA2-Enterprise (802.1x) |
| Network Security |
SPI Firewall Access Control IP & MAC Binding Application Layer Gateway HomeCare™ AntivirusMalicious Site Checker |
| Guest Network |
1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| VPN Server |
OpenVPN PPTP |
| SOFTWARE | |
| Protocols |
IPv4 IPv6 |
| Service Kits | HomeCare™ |
| Parental Controls |
HomeCare™ Parental ControlsCustom Profiles Content Filtering App Block URL Filtering Time Limit Time Schedule (Bedtime) Log Insight |
| WAN Types |
Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service |
QoS by Device
HomeCare™ QoSQoS by Application |
| Cloud Service |
Auto Firmware Upgrade OTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding |
Virtual Servers Port Forwarding Port Triggering DMZ UPnP |
| IPTV |
IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP |
Address Reservation DHCP Client List Server |
| DDNS |
TP-Link NO-IP DynDNS |
| Management | Tether App |
| OTHER | |
| System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| TEST DATA | |
| WiFi Transmission Power |
CE: <20dBm(2.4GHz) <23dBm(5.15GHz~5.35GHz) <30dBm(5.47GHz~5.725GHz) FCC: <30dBm(2.4GHz & 5.15GHz~5.825GHz) |
| WiFi Reception Sensitivity |
5 GHz: 11a 6Mbps:-97dBm, 11a 54Mbps:-79dBm 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-66dBm 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-63dBm 11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS11:-60dBm 11ac VHT160_MCS0:-88dBm, 11ac VHT160_MCS11:-55dBm 11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-63dBm 11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-60dBm 11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-58dBm 11ax HE160_MCS0:-85dBm, 11ax HE160_MCS11:-55dBm 2.4 GHz: 11g 6Mbps:-97dBm, 11a 54Mbps:-79dBm 11n HT20_MCS0:-97dBm, 11n HT20_MCS7:-78dBm 11n HT40_MCS0:-95dBm, 11n HT40_MCS7:-75dBm 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-67dBm 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-64dBm 11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-64dBm 11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-61dBm |
| PHYSICAL | |
| Dimensions (W×D×H) |
10.2 × 5.3 × 1.5 in (260.2 x 135.0 x 38.6 mm) |
| Package Contents |
Wi-Fi Router Archer AX50 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
