Zoom
Description

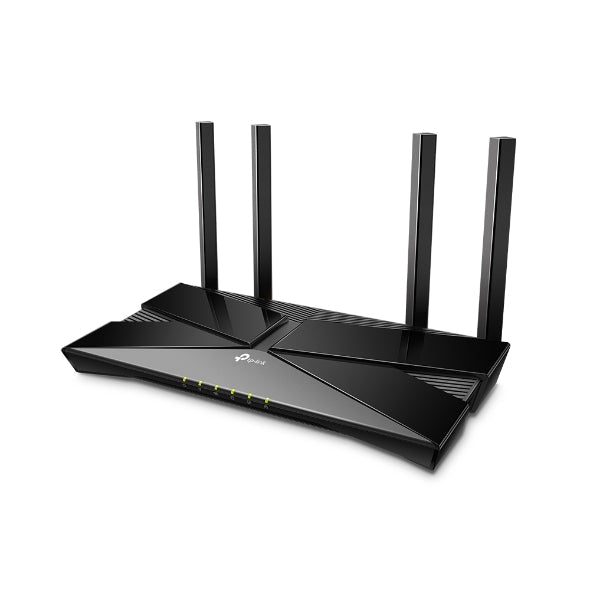

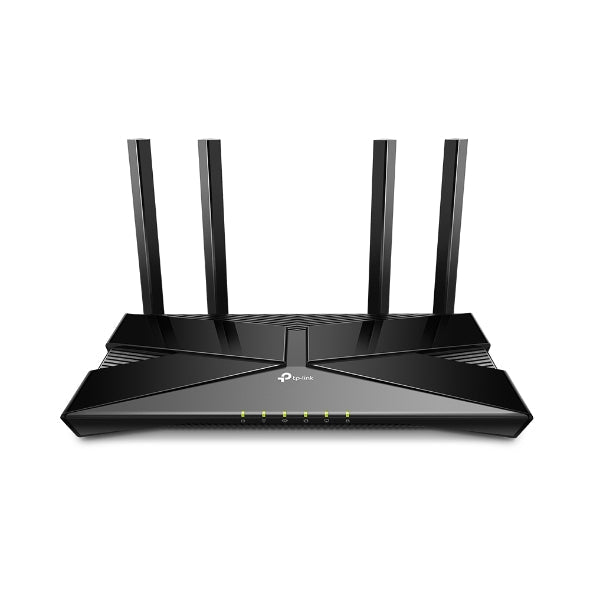

Features of TPLink Archer AX10 AX1500 Wi-Fi 6 Router
Faster Wi-Fi 6
Get Next-Gen Wi-Fi speeds up to 1.5 Gbps†
Triple-Core CPU
Instant response to all your network activity with a 1.5 GHz triple-core CPU.
Broader Coverage
4 Antennas and beamforming technology focus signal towards individual clients for broader coverage.†
Connect Dozens of Devices
More simultaneous connections and higher average throughput with OFDMA
Full Gigabit Ports
Take full advantages of broadband speeds up to 1 Gbps.
Easy Setup
Finish your network upgrade in minutes with Tether app
Easy and Smart
Connect a new device to your AX1500 Wi-Fi without using the password, but your voice
Specifications of TPLink Archer AX10 AX1500 Wi-Fi 6 Router
| WIRELESS | |
| Standards |
Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds |
AX1500 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 300 Mbps (802.11n) |
| WiFi Range |
2-3 Bedroom Houses4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming |
| WiFi Capacity |
HighDual-Band Allocate devices to different bands for optimal performance OFDMA Airtime Fairness 4 Streams |
| Working Modes |
Router Mode Access Point Mode |
| HARDWARE | |
| Processor | 1.5 GHz Triple-Core CPU |

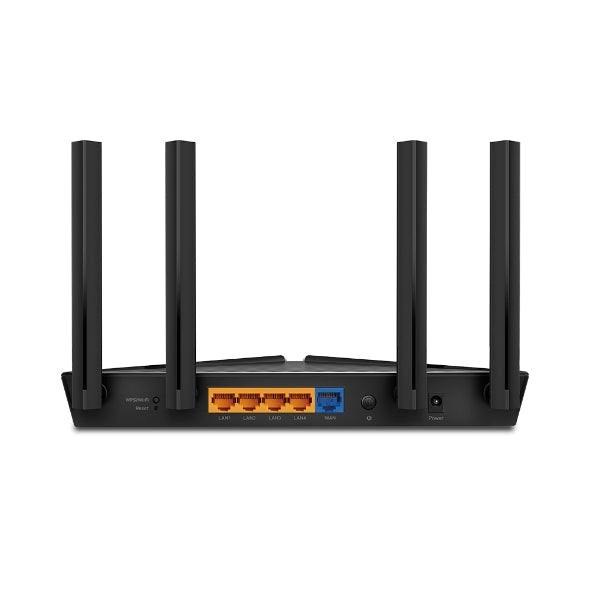

| Ethernet Ports |
1× Gigabit WAN Port 4× Gigabit LAN Ports |
| Buttons |
WPS/Wi-Fi Button Power On/Off Button Reset Button |
| Power | 12 V ⎓ 1 A |
| SECURITY | |
| WiFi Encryption |
WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) |
| Network Security |
SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
| Guest Network |
1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| VPN Server |
OpenVPN PPTP |
| SOFTWARE | |
| Protocols |
IPv4 IPv6 |
| OneMesh™ |
OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products> |
| Parental Controls |
URL Filtering Time Controls |
| WAN Types |
Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| Cloud Service |
Auto Firmware Upgrade OTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding |
Port Forwarding Port Triggering DMZ UPnP |
| IPTV |
IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP |
Address Reservation DHCP Client List Server |
| DDNS |
TP-Link NO-IP DynDNS |
| Management | Tether App |
| OTHER | |
| System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| TEST DATA | |
| WiFi Transmission Power |
CE: <20dBm(2.4 GHz) <23dBm(5.15 GHz~5.25 GHz) FCC: <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz) |
| WiFi Reception Sensitivity |
5 GHz: 11a 6Mbps:-97dBm 11a 54Mbps:-79dBm 11ac VHT20_MCS0:-96dBm 11ac VHT20_MCS11:-66dBm 11ac VHT40_MCS0:-94dBm 11ac VHT40_MCS11:-63dBm 11ac VHT80_MCS0:-91dBm 11ac VHT80_MCS11:-60dBm 11ax HE20_MCS0:-95dBm 11ax HE20_MCS11:-63dBm 11ax HE40_MCS0:-92dBm 11ax HE40_MCS11:-60dBm 11ax HE80_MCS0:-89dBm 11ax HE80_MCS11:-58dBm 2.4 GHz: 11g 6Mbps:-91dBm 11a 54Mbps:-74dBm 11n HT20_MCS0:-90dBm 11n HT20_MCS7:-73dBm 11n HT40_MCS0:-88dBm 11n HT40_MCS7:-70dBm |
| PHYSICAL | |
| Dimensions (W×D×H) |
10.2 × 5.3 ×1.5 in (260.2 × 135.0 × 38.6 mm) |
| Package Contents |
Wi-Fi Router Archer AX10 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
