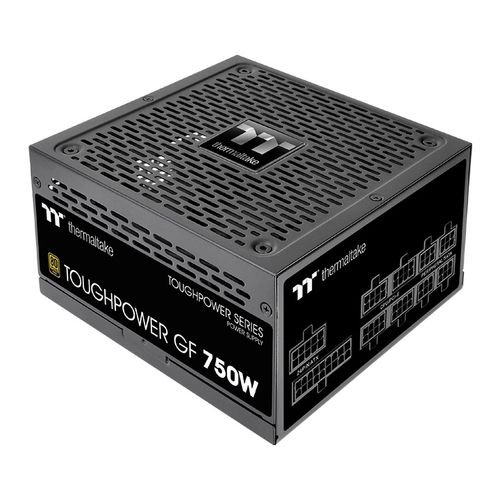

Features of THERMALTAKE ToughPower GF 750 80+ Gold Fully Modular Power Supply (750W )

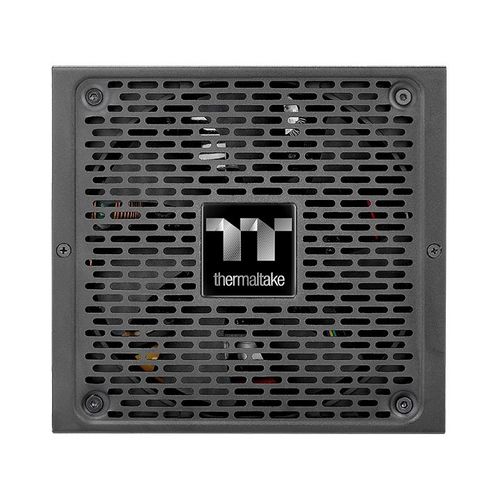

- Ultra Quiet 140mm Hydralic Bearing Fan

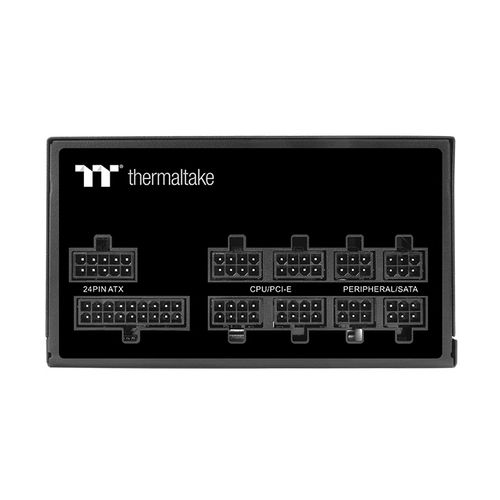

- Fully Modular Flat Cable Design
- High quality Japanese Main Capacitor
- DC to DC for Stable Output Voltage
- High Amperage Single +12V Rail
- 80 PLUS Gold Certified and Lake C6/C7 States Ready
Specifications of THERMALTAKE ToughPower GF 750 80+ Gold Fully Modular Power Supply (750W )
| P/N | PS-TPD-0750FNFAGK-2 |
| WATTS | 750W |
| MODEL | TTP-750AH3FCG-B |
| MAX. OUTPUT CAPACITY | 750W |
| PEAK OUTPUT CAPACITY | 900W |
| COLOR | Black |
| DIMENSION ( W / H / D ) | 150mm(W) x 86mm(H) x 160mm(D) |
| PFC (POWER FACTOR CORRECTION) | Active PFC |
| POWER GOOD SIGNAL | 100-500 msec |
| HOLD UP TIME | > 12msec at 80% of full load at 230Vac input |
| INPUT CURRENT | 10A max. |
| INPUT FREQUENCY RANGE | 47Hz – 63Hz |
| INPUT VOLTAGE | 100V – 240V~ |
| OPERATING TEMPERATURE | 0°C to + 40°C |
| OPERATING HUMIDITY | 20% to 90%,non-condensing |
| STORAGE TEMPERATURE | -20°C to + 70°C |
| STORAGE HUMIDITY | 5% to 95%, non-condensing |
| COOLING SYSTEM | 14cm hydraulic bearing fan |
| EFFICIENCY | Meet 80 PLUS®Gold at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| SAFETY APPROVAL | CE/cTUVus/TÜV/FCC/EAC |
| PCI-E 6+2PIN | 4 |
