Features of THERMALTEKE CTE E550 EATX Mid Tower Cabinet ( White )

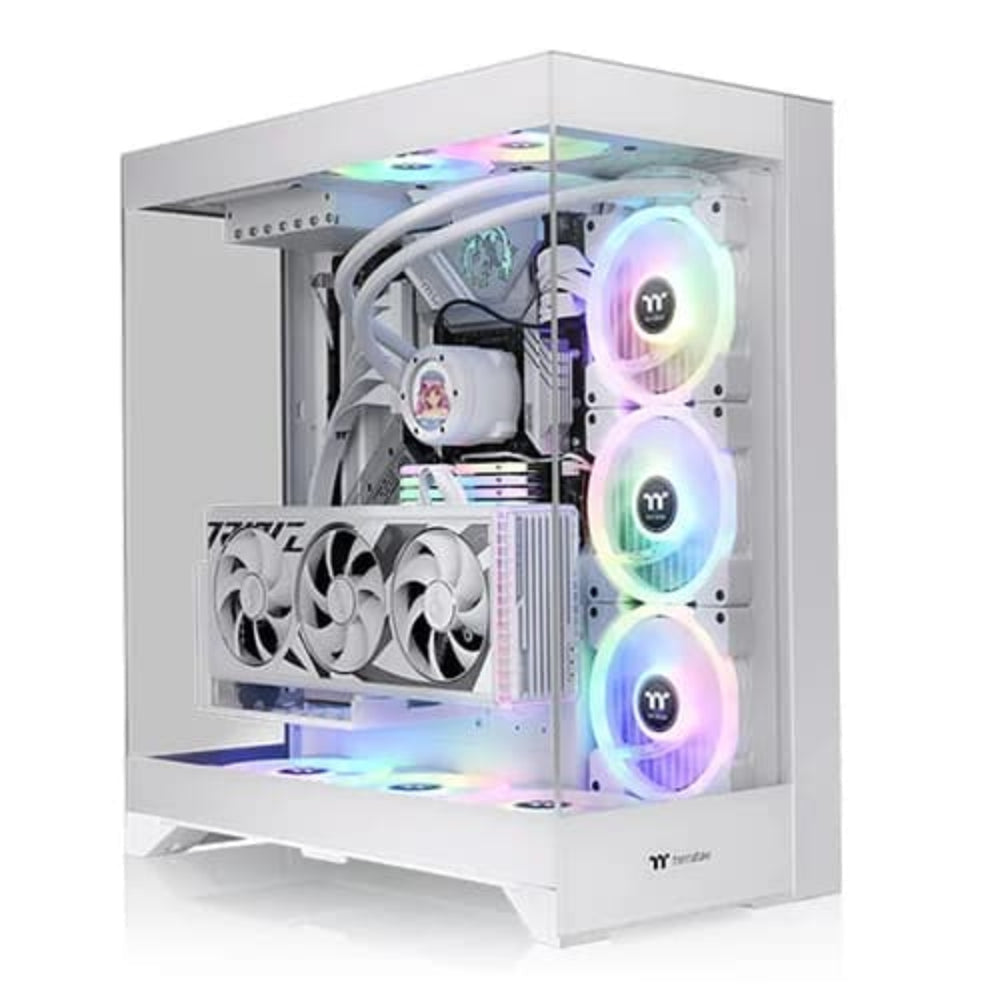

The CTE E550 TG Snow is a dual chamber mid-tower chassis with three TG panels that allows users to display components in style. It supports the latest Hidden-Connector motherboards and offers a three-way GPU installation option, seamlessly blending aesthetics with compatibility.
Visual Perfection
The CTE E550 TG Snow is a panoramic mid tower with tempered glass panels on the front, rear and left side. These crystal-clear panels offer an ultra-wide viewing angle normally only available with an open-frame chassis, providing an unparalleled visual display of your internal components.
Display It Your Way: Three-way GPU Installation
There are three different ways to mount your GPU:
1.Floating GPU:Placing the GPU in the middle of the chassis by using the enclosed floating GPU bracket and our separately sold 400mm long PCI-e 4.0 riser cable
2.Up Right:Hanging the GPU vertically
3.Up Right Forward:Placing it up-right with the graphics card facing forward to the side panel on the rotational PCI-e slots
Compatible with Hidden-Connector Motherboards
Created for next-generation motherboards, the CTE E550 TG Snow features a special design that enables support for both standard motherboards and hidden-connector motherboards from ASUS, MSI and GIGABYTE.
Maximum Radiator Support
The CTE E550 TG Snow offers multiple mounting locations and plenty of room to create your own configurations. DIY radiators up to 420mm in length can be installed on the bottom and M/B side, and for AIO compatibility, up to 420mm/360mm radiators can be installed on the M/B side, giving PC enthusiasts plenty of flexibility to create their ideal setup.
Fits Your Needs
The CTE E550 TG Snow provides excellent cooling support, accommodating up to six 140mm/120mm fans on the M/B side and bottom, along with two 120mm fans at the top. Additionally, the chassis supports radiators up to 420mm in length on both the bottom and motherboard side to ensure the best cooling configuration for your system.
Excellent Hardware Support & Cooling Solutions
The CTE E550 TG Snow has excellent expandability, allowing you to build the most high-end system you can dream of. It can support up to an E-ATX (12”x10.5”) motherboard, a CPU cooler with a maximum height of 166mm, VGA clearance up to 443.8mm in length without a radiator, a power supply with a length of up to 220mm, and up to two 2.5” SSD or three 3.5” HDD. Optimized for superior cooling, the CTE E550 TG Snow can accommodate up to eight 120mm fans (six 140mm fans), a 240mm AIO cooler at the top, and 360mm/420mm AIO coolers on the M/B side, allowing users to build their desired high-end system with many
How Much Storage Is Totally up to You
In the right chamber of CTE E550 TG, you can put on up to two 3.5” hard drives in the HDD Cage and two 2.5” drives or one 3.5” hard drives on the Drive Plate.
Optimal Cable Management
Thanks to the dual chamber design, the CTE E550 TG Snow offers ample space in the right chamber for effective cable management. Numerous anchor points are available in this chamber, complimented with Velcro straps and cable ties from the accessory box to insure a neat and organized setup.
Everything You Need Is Located In One Place
Two USB 3.0 ports, one USB 3.2 Gen 2 Type-C, and HD Audio ports are placed on the top panel to grant direct access when needed.
Perfect Dust Protection
There are fine removable filters at the top, bottom and right side of the chassis to provide excellent protection against dust, and they are easily removable for cleaning.
Specifications of THERMALTEKE CTE E550 EATX Mid Tower Cabinet ( White )
| Product Code | CA-1Z8-00M6WN-00 |
| Cabinet Size | MID-TOWER |
| Color | White |
| Material | SPCC, Tempered Glass |
| Expansion Slots | 7 |
| Motherboard Size | E-ATX,ATX,M-ATX,M-ITX |
| Max CPU Cooler Height | 166mm |
| Max PSU Length | 220mm |
| Max Gpu Length | 415mm |
| Max 3.5" HDD | 2 |
| Max 2.5" SSD | 2 |
| Max Fan Support | 8 |
| Radiator Support | 420mm,360mm,280mm,240mm,140mm,120mm |
| Front I/O Panel | USB 3.0,Type-C,HD Audio |
| Warranty | 3 Years |
| Note*** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
