Description

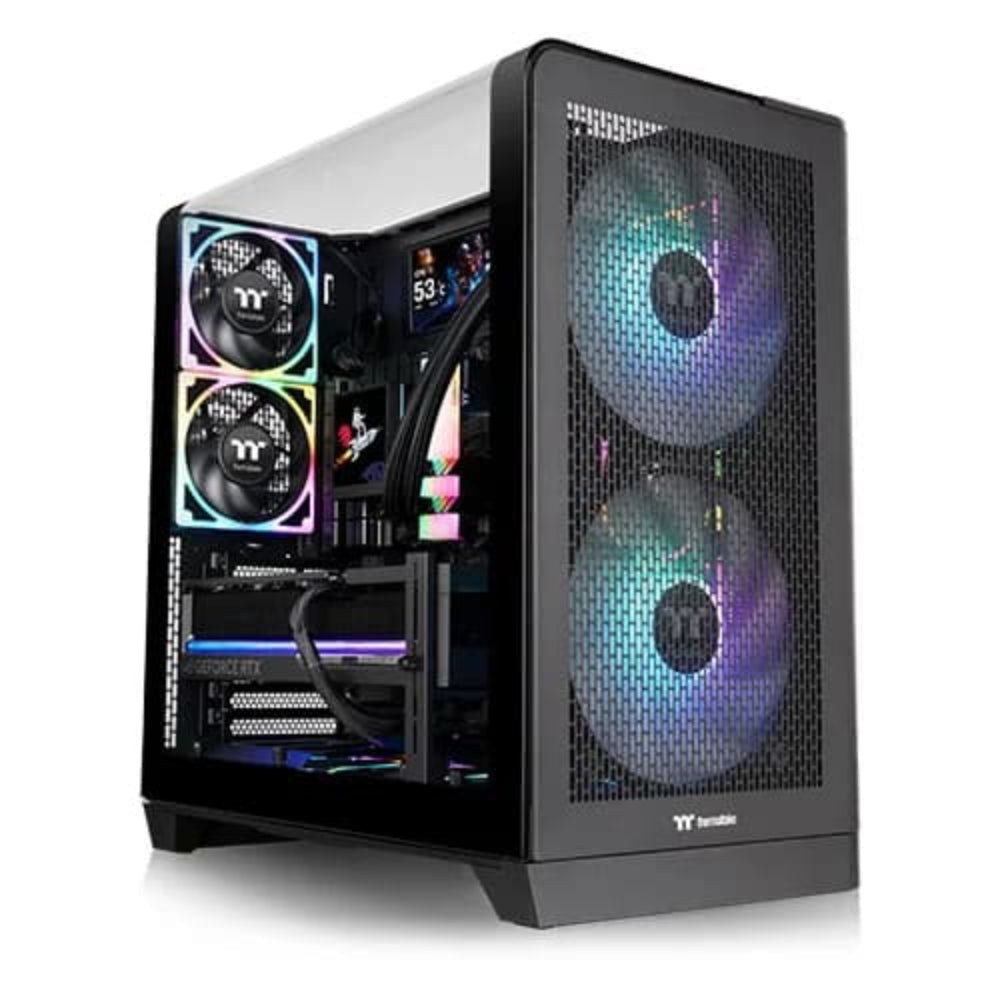

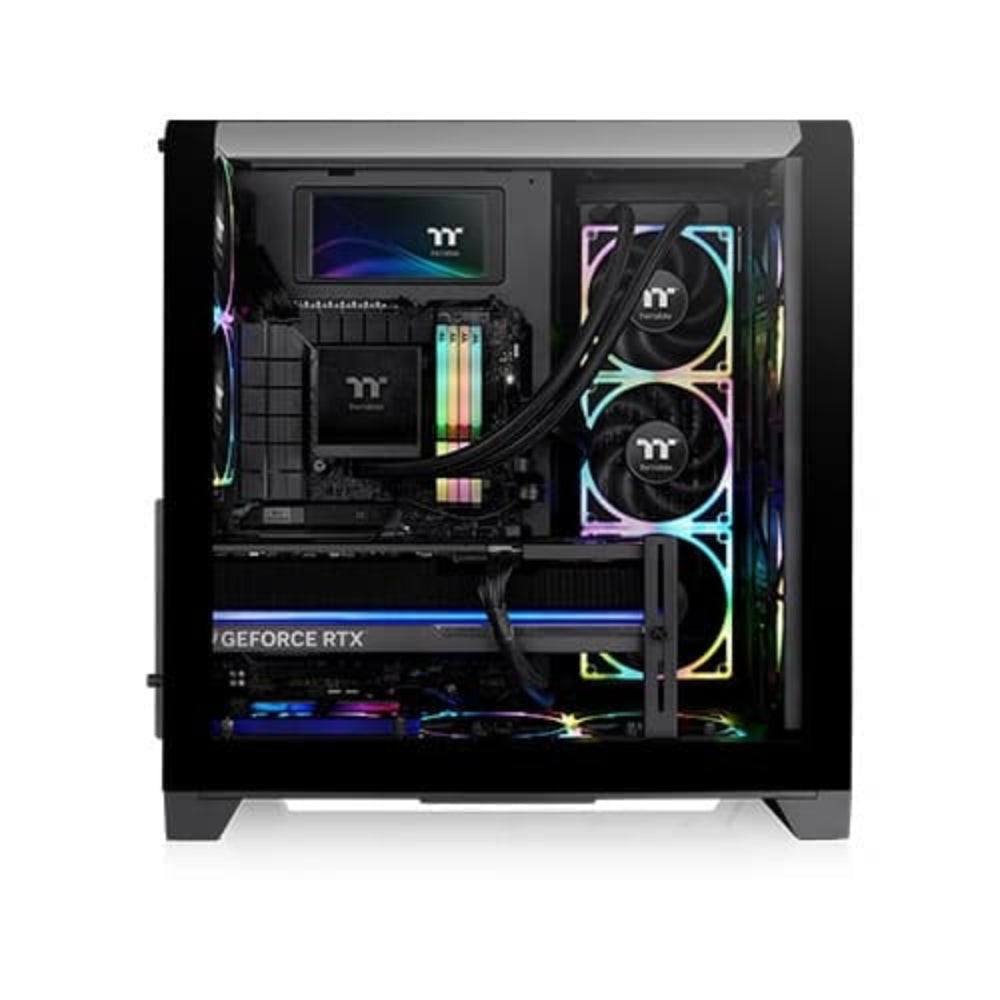

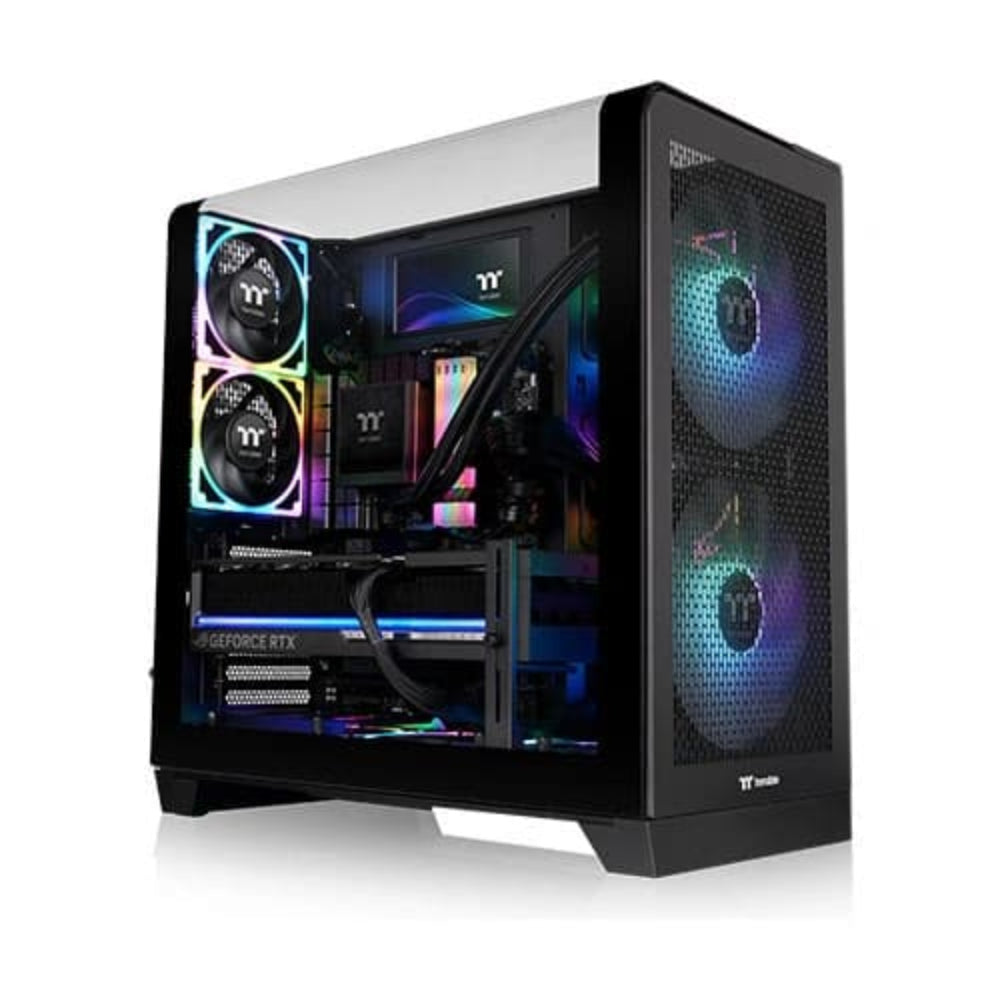

Features of THERMALTAKE View 390 Air ARGB ATX Mid Tower Cabinet ( Black )
- Dual-chamber mid tower chassis with seamless curved tempered glass(top to left side) for panoramic view
- Pre-installed with two CT120 fans at the rear for exhaust
- Included a pre-built VGA holder to prevent GPU sagging
- Supports ATX and ATX hidden-connector MB, vertical VGA installation,
- dual 200mm fans at the front and up to 360 mm radiators
View 390 Air Mid Tower Chassis features a 4mm one-piece curved tempered glass panel extending from the top to the left side, delivering a sleek panoramic view of your build. Its perforated mesh front panel boosts airflow, ensuring efficient cooling without compromising on style—making it a perfect blend of aesthetics and
performance.
- Max Motherboard Size: ATX (12’’ X 9.6’’)
- Max CPU Cooler Height: 160 mm
- Max VGA Length: 390 mm (with radiator)/ 420 mm (without radiator)
- Max PSU Length: 200 mm(with 2.5’’SSD)/ 260 mm(without 2.5’’ SSD)
Hidden-Connector Motherboard
The dedicated cutouts on the motherboard tray supports the latest hidden-connector motherboard (both ATX and micro-ATX) from major brands, includes: ASUS BTF Series, MSI PROJECT ZERO Series, and GIGABYTE PROJECT STEALTH Series.
Pre-installed Fan
View 390 Air Mid Tower Chassis pre-installed two CT120 fans at the rear for exhausting the heat.
CT120 specification:
- Fan Speed: 500~2000 RPM
- Max. Fan Airflow: 57.05 CFM
- Max. Fan Air Pressure: 2.23 mm-H2O
- Fan Noise Level: 25.8 dBA
- Fan Bearing: Hydraulic bearing
Cooling Support -CASE
- Front: 3 x 120 / 2 x 140 / 2 x 200 mm
- Motherboard Side: 3 x 120 mm
- Rear: 2 x 140 mm
- Bottom: 3 x 120 mm
Cooling Support -Radiator
- Front: 360 / 280 mm
- Motherboard Side: 360 mm
Storage
There is a drive plate behind the motherboard tray that supports either up to three 2.5" SSDs or one 2.5" SSD plus two 3.5" HDDs
VGA Support
View 390 Air comes with a built-in GPU holder that provides additional support to prevent sagging, especially when using multiple graphics cards
Rotational PCI-e Slots
View 390 Air features rotatable PCIe slots, allowing users to rotate them 90 degrees and install a riser cable bracket. This setup lets the GPU face its fan side toward the case’s side panel, providing a better visual display of the graphics card
Cable Management
View 390 Air is a dual-chamber mid tower chassis offering generous space for cable management. Multiple anchor points behind the motherboard (as shown in red circle) make it easy to organize cables using the included Velcro straps and cable ties.
Anti-Dust
Addressing thermal performance often raises dust concerns. View 390 Air is equipped with removable dust filters to safeguard your system from dust and small particles.
I/O Ports
Top-located I/O ports consist of following functions:
- Power Button with Integrated Power LED (Blue)
- 2 x USB 3.0 Type-A
- 1 x USB 3.2 Gen 2 Type-C
- HD Audio
- Reset Button
Specification of THERMALTAKE View 390 Air ARGB ATX Mid Tower Cabinet ( Black )
| Cabinet Size | MID-TOWER / CA-11F-00M1WN-00 |
| Color | Black |
| Material | SPCC |
| Expansion Slots | 7 |
| Motherboard Size | ATX,M-ATX,M-ITX |
| Max CPU Cooler Height | 160mm |
| Max PSU Length | 200mm |
| Max Gpu Length | 390mm |
| Max 3.5" HDD | 2 |
| Max 2.5" SSD | 4 |
| Dust Filters | Front, Bottom |
| Pre Installed Fans | 2 |
| Max Fan Support | 11 |
| Radiator Support | 360mm,280mm,240mm,140mm,120mm |
| Front I/O Panel | USB 3.2 Type-C, USB 3.0, HD Audio |
| Warranty | 3 Years |
| Note*** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
