Features of THERMALTAKE View 270 SP ARGB EATX Mid Tower Cabinet ( Black )

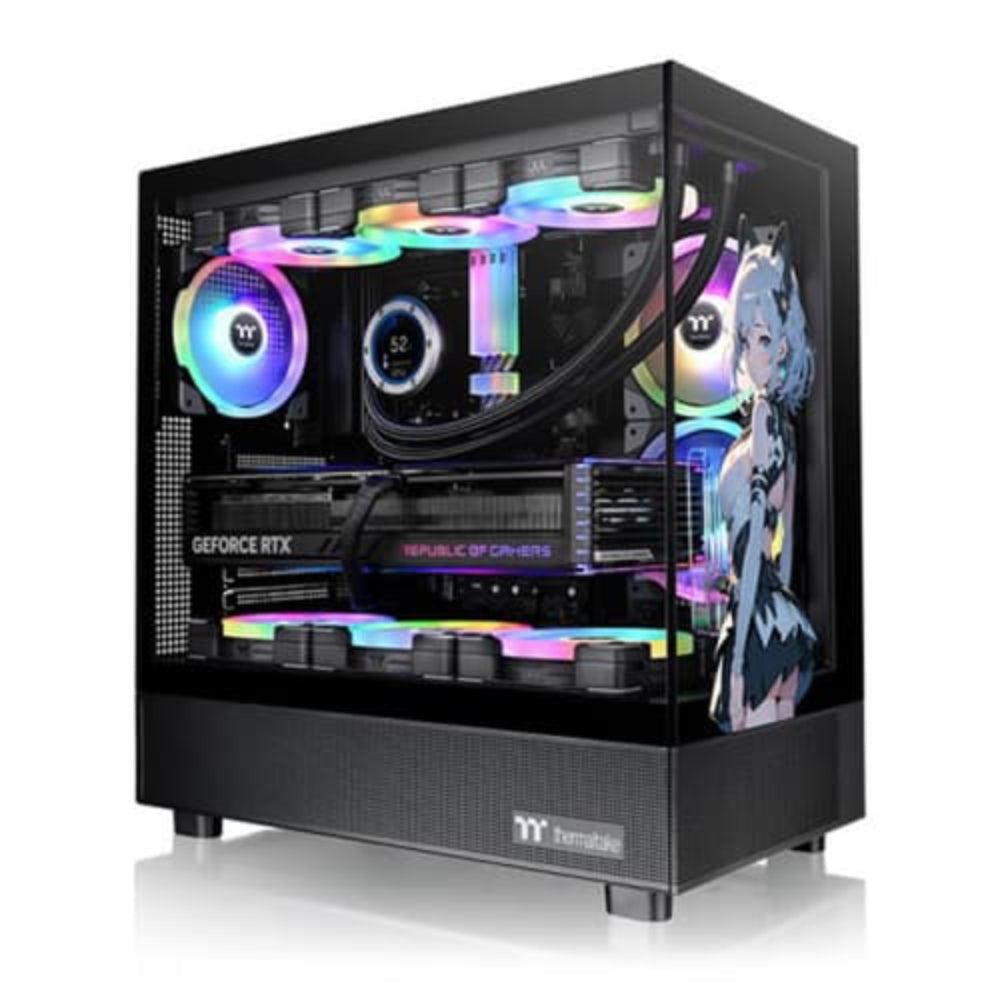

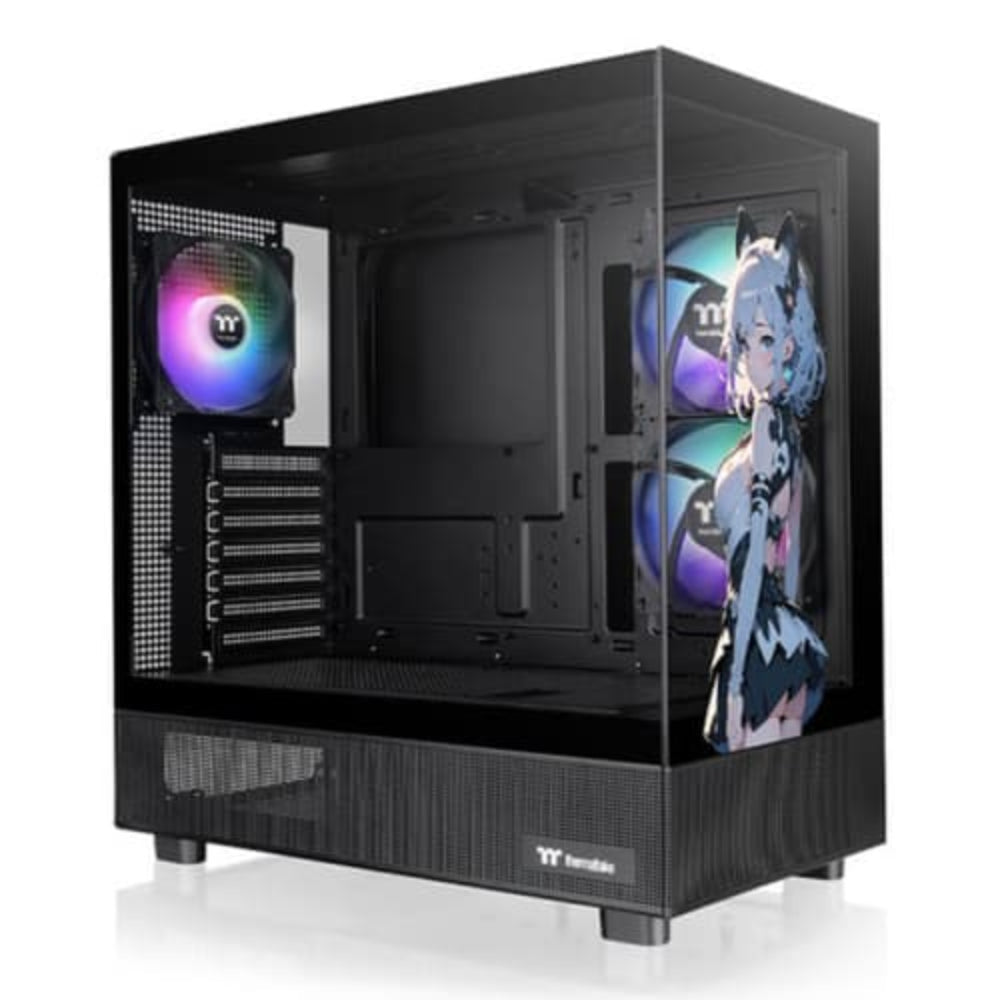

Built for amazing views, the View 270 SP Edition Mid Tower Chassis is an ATX case that features a tempered glass front panel that covered by specially designed graphics, and comes with three Hydraulic Bearing 120mm ARGB Lite Fans pre-installed.
View 270 SP Edition Mid Tower Chassis
Built for amazing views, the View 270 SP Edition Mid Tower Chassis is an ATX case that features tempered glass front and left panels, and the front panel is covered with specially designed graphics. The case comes with three Hydraulic Bearing 120mm ARGB Lite Fans pre-installed, and its RGB lighting can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Moreover, up to nine 120mm fans can be installed inside the chassis, and up to a 360mm radiator can be placed on the top of the View 270 SP Edition Mid Tower Chassis.

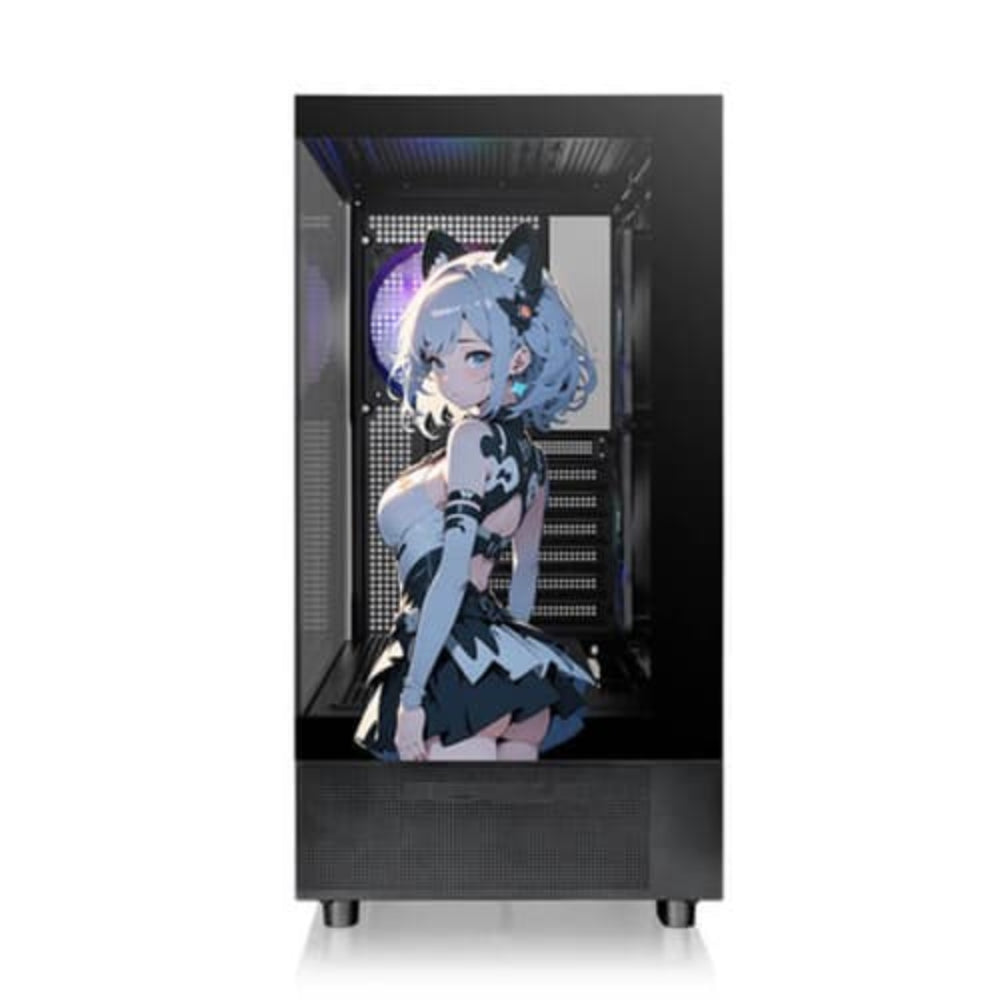

Tempered Glass Front and Left Panels
The View 270 SP Edition Mid Tower Chassis is designed for better visibility, allowing users to enjoy their system through the tempered glass front and left panels.
Supports up to a 360mm Radiator on the Top
Providing good cooling support, users can choose to place a 360mm radiator on the top of the View 270 SP Edition Mid Tower Chassis.
Three Hydraulic Bearing 120mm ARGB Lite Fans Pre-installed
The View 270 SP Edition Mid Tower Chassis comes with three Hydraulic Bearing 120mm ARGB Lite Fans at the motherboard side and the rear. It’s fascinating lighting effects can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock.
Built-in PSU Cover
The View 270 SP Edition Mid Tower Chassis features a full length power supply cover providing plenty of space to tuck away cables, while keeping airflow clear for your hard drives and PSU.
Opportunities For High-End Expansion
The View 270 SP Edition Mid Tower Chassis offers good expandability. It can support a CPU cooler with a maximum height of 180mm, VGA placement up to 420mm in length, a power supply up to 220mm in length. Optimized for excellent cooling performance, the case comes with three Hydraulic Bearing 120mm ARGB Lite Fans, and up to nine 120mm fans can be installed. For radiator compatibility, it can support up to 360mm on top, giving more options for high-end expansion!
How Much Storage Is Totally Up To You
For storage compatibility, the View 270 SP Edition Mid Tower Chassis gives maximum support of up to two 2.5‘’ SSDs or two 3.5‘’ HDDs in total.
Handy I/O Ports
Two USB 3.0, one USB 3.2 Gen 2 Type C and HD Audio ports are placed on the top panel to grant direct access when needed.
Specifications of THERMALTAKE View 270 SP ARGB EATX Mid Tower Cabinet ( Black )
| Product Code | CA-1Y7-00M1WN-02 |
| SERIES | View |
| MODEL Name | View 270 SP Edition |
| CASE TYPE | Mid Tower |
| DIMENSION (H X W X D) | 456 x 230 x 454 mm(18 x 9.1 x 17.9 inch) |
| NET WEIGHT | 6.35 kg / 14 lbs. |
| SIDE PANEL | Tempered Glass x 2 |
| COLOR | Black |
| MATERIAL | SPCC |
| COOLING SYSTEM |
Right(intake):120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 2 Rear(exhaust): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1 |
| DRIVE BAYS | 2 x 3.5”, 1 x 2.5” or 2 x 2.5” |
| EXPANSION SLOTS | 7 |
| MOTHERBOARDS |
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (E-ATX) |
| I/O PORT | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT |
Top:3 x 120mm, 2 x 120mm, 1 x 120mm, 2 x 140mm, 1 x 140mm Right (M/B Side):2 x 120mm, 1 x 120mm Rear:1 x 120mm, 1 x 140mm Power Cover:3 x 120mm, 2 x 120mm, 1 x 120mm |
| RADIATOR SUPPORT |
Top: 1 x 360mm, 1 x 240mm, 1 x 120mm Rear: 1 x 120mm |
| CLEARANCE |
CPU cooler max height: 180mm VGA max length: 420mm PSU max length: 220mm |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
